Synergic Inverter MIG/ARC/TIG Welder with Industrial Trolley, Wire Feeder & Storage - AdvanceMig500 Pack

500A Three Phase

W1114 1 of 6

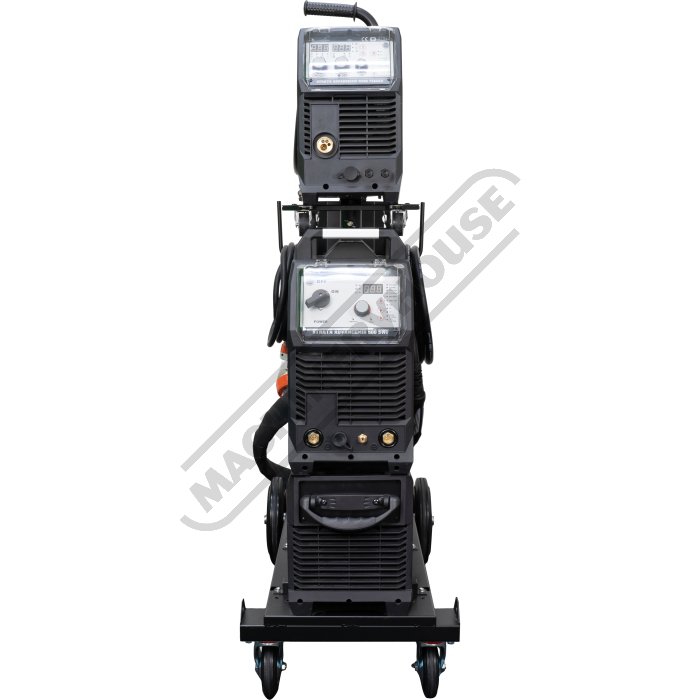

Front View 2 of 6

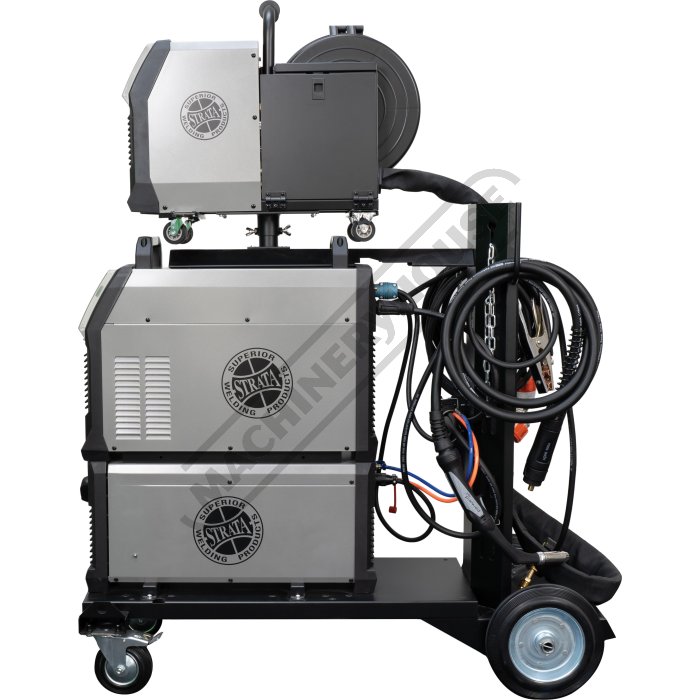

Right Side View 3 of 6

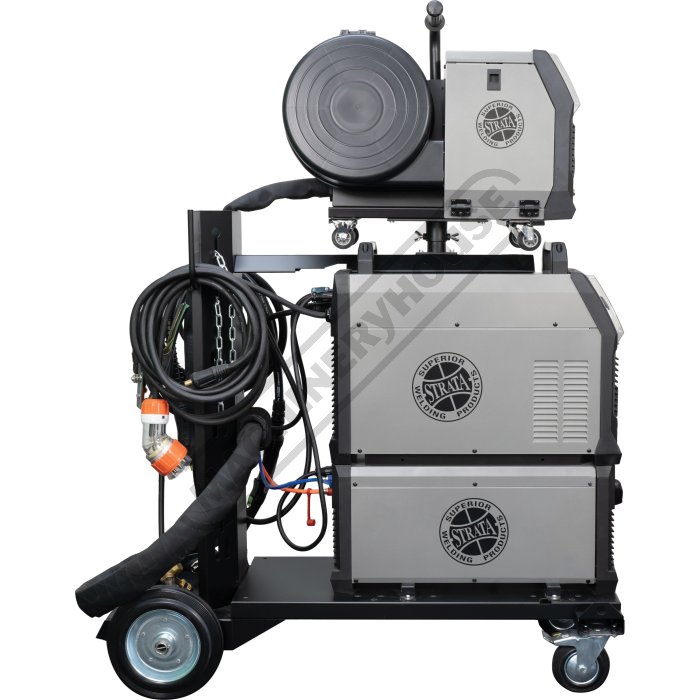

Left Side View 4 of 6

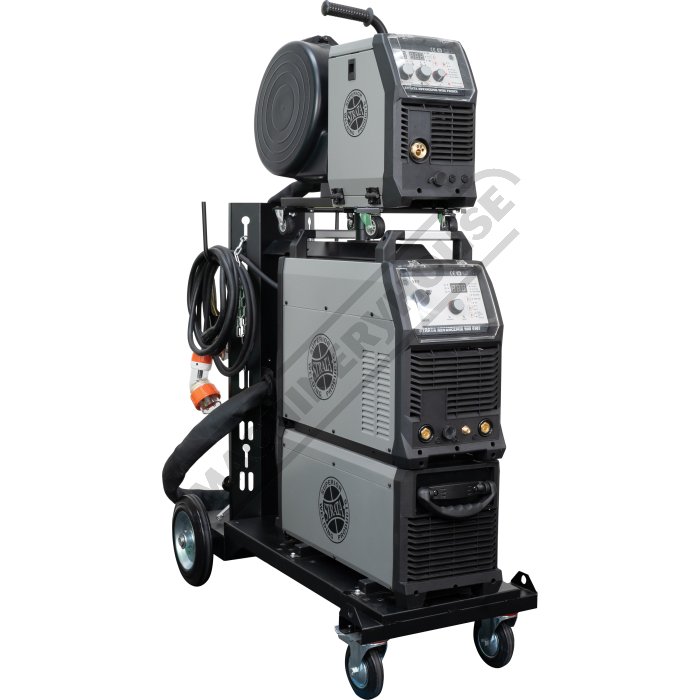

Left View 5 of 6

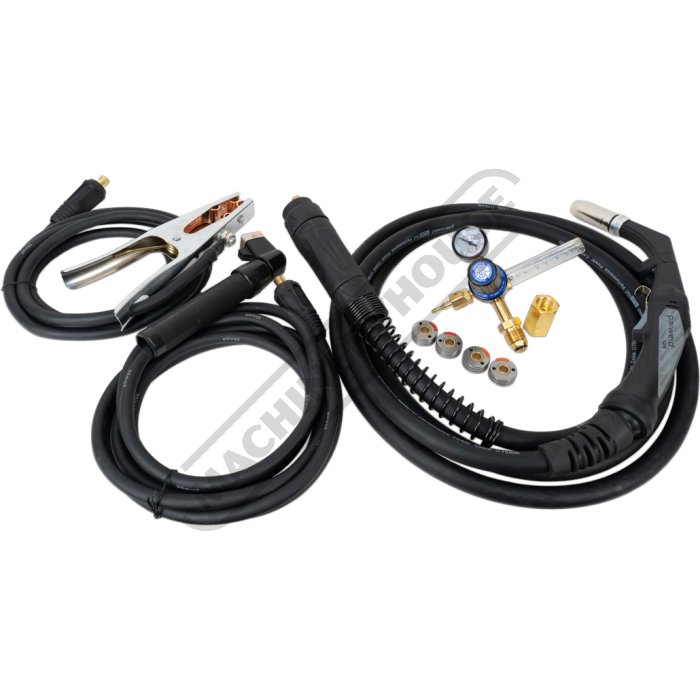

Included Accessories 6 of 6

STRATA WELDERS

On Sale

Order Code: W1114

ex-gst

inc-gst

^$ 5,994.00

^$ 6,893.10

^$ 5,844.35

^$ 6,721.00

415V / Plug Fitted
4 Years Warranty

Add to Cart

Finance

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

Synergic Inverter MIG/ARC/TIG Welder with Industrial Trolley, Wire Feeder & Storage - AdvanceMig500 Pack

500A Three Phase

Overview

State of the art synergies technology with full operational controls on the remote wire feeder make these models a breeze to operate. Rich in features including a 4 roll wire feeder and integrated protection systems mean these 3 phase machines are top of the class in performance, reliability and user satisfaction. Designed for rugged heavy work day in and day out.

Also available in water cooled package version, see AdvanceMig500WC Pack

Max Output (MIG) - 500A
Max Electrode Size - 6mm
Input Power Supply - 32A 400V Three Phase

Features

Intelligent digital wire feeder with all MIG controls and display located on wire feeder control panel
Digital microprocessor control system for superior & dynamic arc characteristics
Integrated heavy duty industrial trolley with storage compartment
Optional extended 10m interconnect cable (500A rated Water Cooled #17391) (350A rated Air Cooled #17388)
Modular power source can be used individually for MMA, arc air gouging and lift TIG welding (only 21kg!)
Synergic mig operation for optimum welding results every time
Lift TIG operation with down slope and remote current control (torch optional)
MIG waveform (inductance) control for great arc control and smoother welding results
Damage resistant industrial casing with front panel protection
Wire inching and gas purge control for safe, simple set up and ease of use
Adjustable pre flow, post flow, burn back and soft start settings
2T/4T trigger operation with crater control settings
Adjustable arc force, hot start & automatic anti stick control
Dual digital display meters for accurate pre setting and feedback of welding parameters & output.
Power source wind tunnel cooling construction
Protection against environmental contamination.
Includes: 3m Interconnecting Cable, 3m Earth Lead with HD earth clamp, 4m MMA lead with HD twist lock electrode holder, Professional MIG Torch, Argon Gas Regulator/CO2 Cylinder Adaptor, 4m Gas Hose, Gas Inlet Quick Connector, Gas Hose Clamp x2, Wire Drive Roller 0.8/0.9mm ‘v’ groove x2, Wire Drive Roller 1.0/1.2mm ‘v’ groove x2 & Wire Drive Roller 1.2/1.6mm flux cored x2

Includes

Binzel Style MB36 MIG Torch
AEL3550 3m Strata Earth lead with heavy-duty Earth clamp
AAL3550 4m Strata Arc lead with twist-lock electrode holder
22108 Strata Industrial Welding Machine Trolley V2
22115 Strata Industrial Storage Unit V2
GR102ARFL Strata Flowmeter Argon Regulator
PDL32 Plug Angled 4 Pin 32A 500V
17391 Strata Water Cooled 500A 10m Interconnect Lead Set
Wire Drive Roller 0.8/0.9mm ‘v’ groove x2
Wire Drive Roller 1.0/1.2mm ‘v’ groove x2
Wire Drive Roller 1.2/1.6mm flux cored x2

Specifications

Compare Product Range

Specifications

ORDER CODE	W1114
MODEL	AdvanceMig500 Pack
Type	MIG / TIG / STICK Multifunction SWF Welder
(V)Voltage	415
(amp)Recommended Plug Amperage	32
(amp)Welding Current Range - MIG	40 - 500
(amp)Welding Current Range - STICK	40 - 500
(amp)Welding Current Range - TIG	40 - 500
(% @ amp)Duty Cycle	MIG - 500A@60%, 400A@100% TIG - 500A@60% 400A@100%
(kg)Wire Spool Size	15
(mm)MMA Rod Size	1.6-4
(m/min)Wire Feeding Speed	2.4 - 18
(mm)Dimensions	1050 x 440 x 1450
(kg)Nett Weight	110
