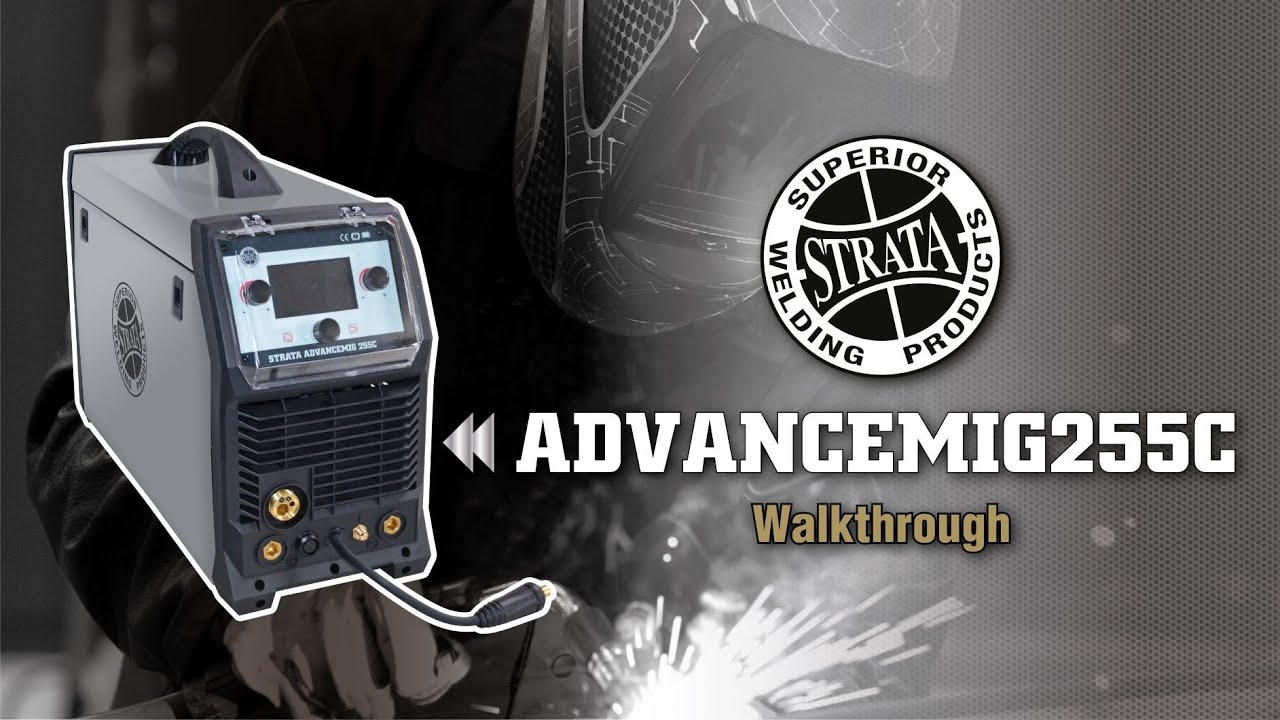

MIG/TIG/STICK WELDER - ADVANCEMIG 255C
Compact PFC Inverter
250 Amps Welding Current
W1106
1 of 2
Order Code: W1106
ex-gst
inc-gst
$
2,694.00
$
3,098.10
230V / 15A
4 Years Warranty
4 Years Warranty
Description
MIG/TIG/STICK WELDER - ADVANCEMIG 255C
Compact PFC Inverter
250 Amps Welding Current
Overview
With IGBT and PFC technology the ADVANCEMIG 255C Strata welder is a multi-process welder suited to a range of jobs and a must have for any industrial professional. High quality over specified electronics, extreme stress testing up to 440V and IP23 protection mean this machine is built to withstand the harshest of environments found in the NZ workplace.
Features
- Digital microprocessor control system with superior & dynamic arc characteristics
- Multi voltage input - will operate with wide range of input voltage, can even be used with long extension leads
- Smart full colour LCD display for a clear and intuitive display of all welding and setting parameters
- Synergic MIG operation with parameter save/recall, an intuitive, simple setting of controls for consistent welding results
- Lift TIG operation with down slope and remote current control ability.
- 4 Roll geared metal wire feeder unit provides a powerful and smooth wire feed
- MIG waveform (inductance) gives good control of the arc for smooth welding results
- Lightweight & compact design ideal for portable applications
- Intelligent protection system with temperature, voltage and current sensors for increased reliability & safety
- Designed to work with generator power supply with protection from power surges.
Compare Product Range
Specifications
| ORDER CODE | W1106 |
|---|---|
| MODEL | ADVANCEMIG 255C |
| Type | MIG / TIG / STICK Multifunction Welder |
| (V)Voltage | 230 |
| (amp)Recommended Plug Amperage | 15 |
| (amp)Welding Current Range - MIG | 25 - 250 |
| (amp)Welding Current Range - STICK | 10 - 250 |
| (amp)Welding Current Range - TIG | 10 - 250 |
| (% @ amp)Duty Cycle | 60 @ 195 |
| (kg)Wire Spool Size | 5 & 15 |
| (mm)Ferrous Wire Size - Range | 0.6 ~ 1.2 |
| (mm)Stainless Steel Wire Size - Range | 0.6 ~ 1.2 |
| (mm)Aluminium Wire Size - Range | 0.6 ~ 1.2 |
| (KVA)Recommended Generator | 10 |
| (mm)Dimensions | 740 x 310 x 560 |
| (kg)Nett Weight | 25 |
