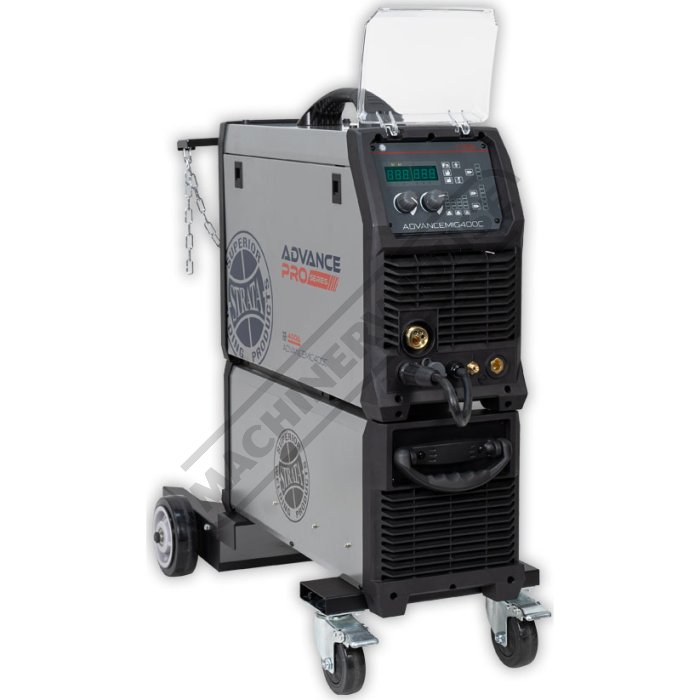

Main View Lid Up 3 of 10

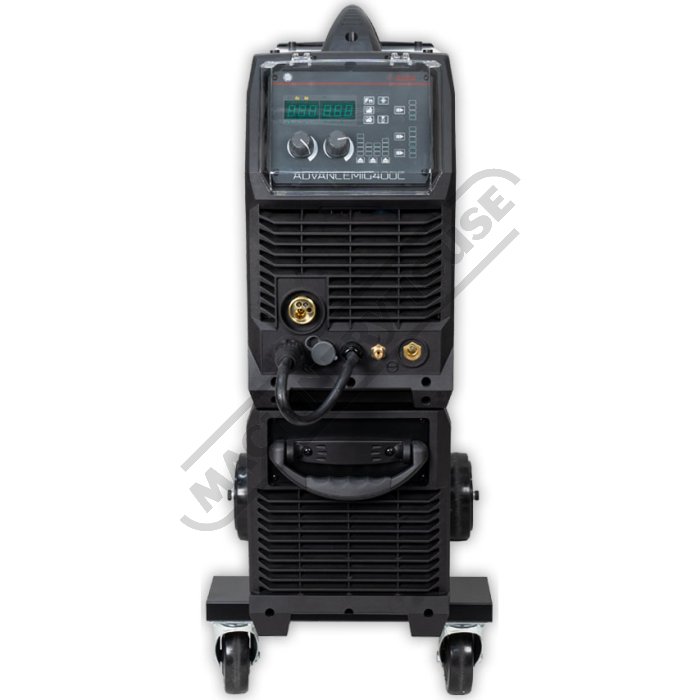

Front View 4 of 10

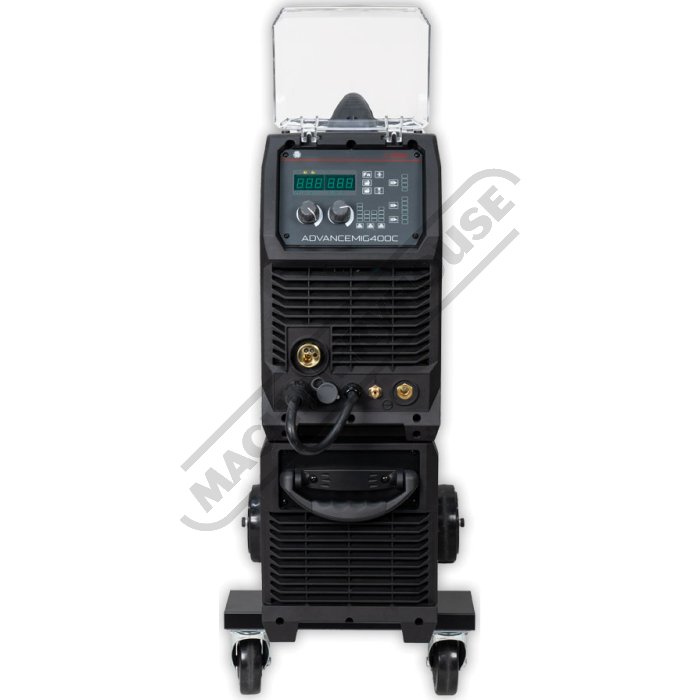

Front View Cover Open 5 of 10

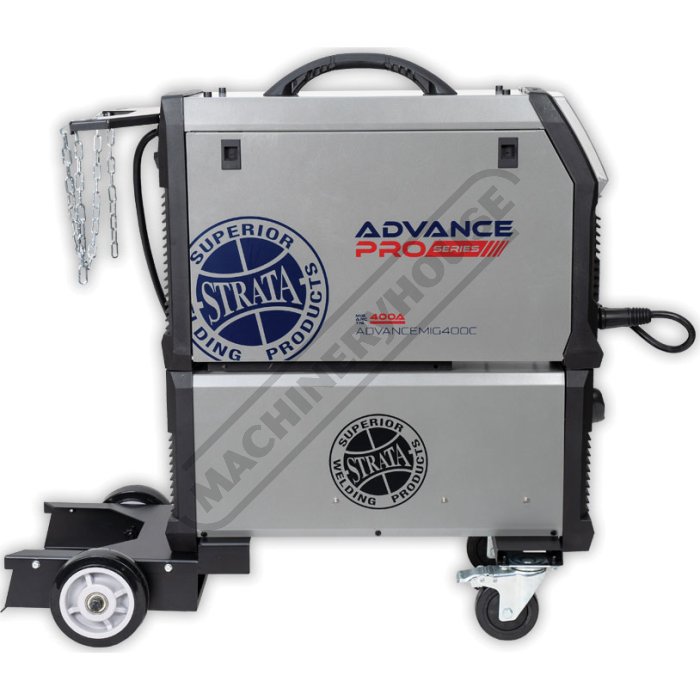

Side View 6 of 10

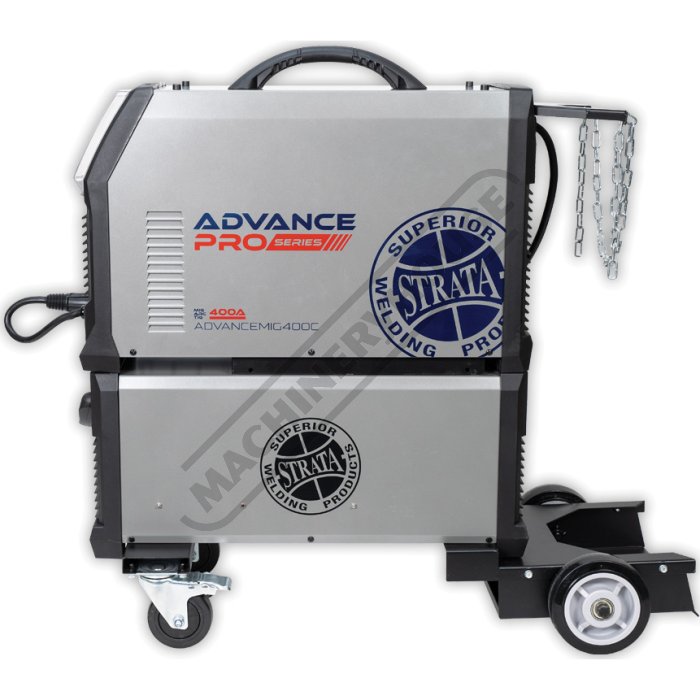

Side View 2 7 of 10

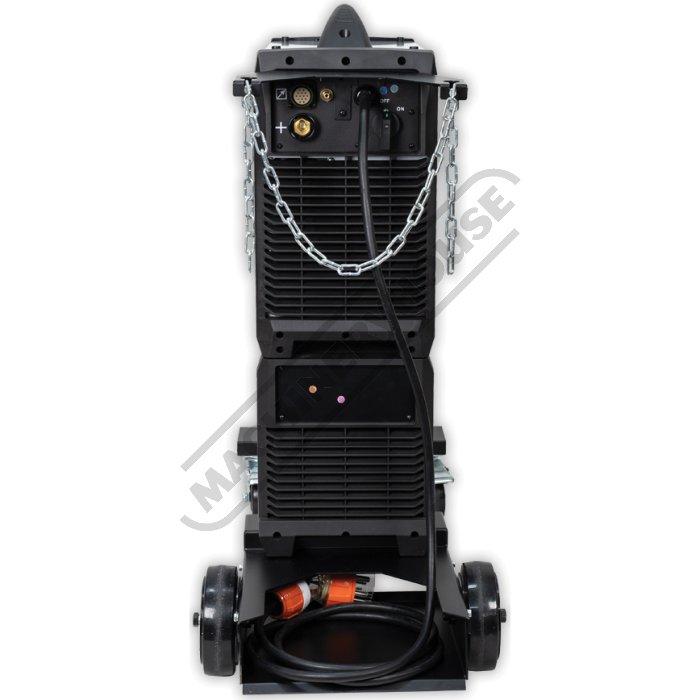

Rear View 8 of 10

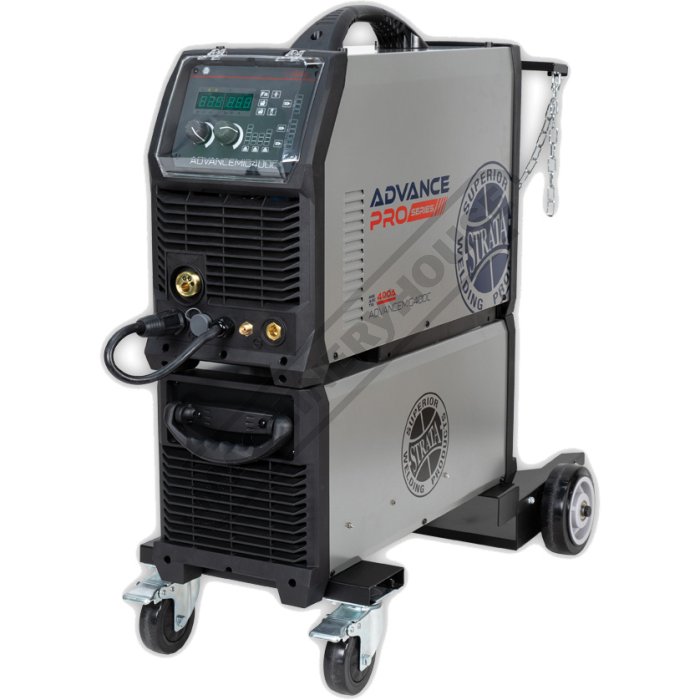

Right View 9 of 10

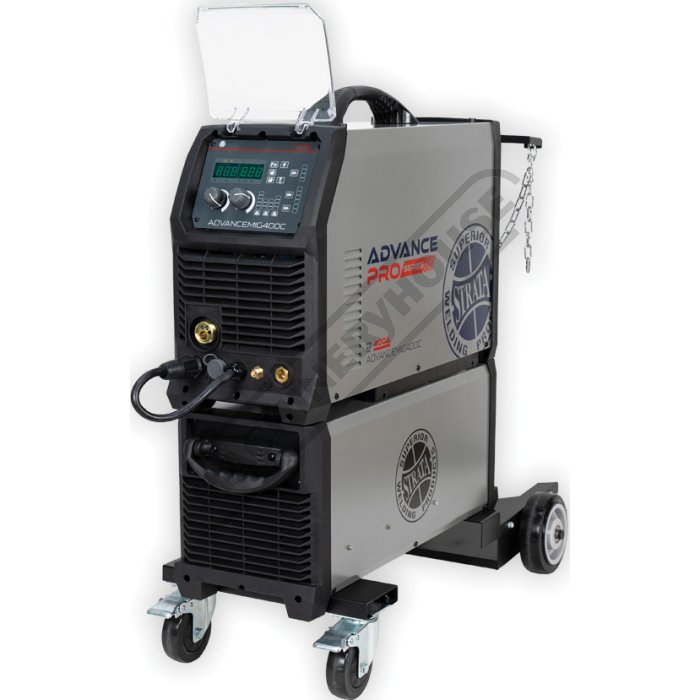

Right View Lid Up 10 of 10

STRATA WELDERS

On Sale - Special Order

Order Code: W1111

ex-gst

inc-gst

^$ 4,694.00

^$ 5,398.10

^$ 4,578.26

^$ 5,265.00

4 Years Warranty

Add to Cart

Finance

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

Compact Synergic MIG/ARC/Lift TIG Inverter Welder with Trolley/Storage - AdvanceMig400C Pack

400A Three-Phase

Overview

Unleash unparalleled power and flexibility with the AdvanceMig400C. This formidable 400A welder comes equipped with a high-duty cycle output in a compact design, ideal for rigorous site work. It features an intelligent synergic system that effortlessly adjusts parameters to match the job's material type, wire size, and thickness. Included is a powerful 4-roll geared industrial wire feed unit, ensuring smooth and consistent wire delivery. For added versatility, it offers optional upgrades such as an integrated heavy-duty industrial trolley and storage compartments. With its robust construction and advanced protection systems, the AdvanceMig400C is engineered for durability and peak performance in challenging environments.

Max Output (Mig) - 400A
Max Electrode Size - 4.0mm
Input Power Supply - 400V Three Phase 32A

Features

Powerful 400A high duty cycle output in a compact size - Ideal for heavy duty site work
Standalone machine or duplex full function separate wire feeder option - Ultimate flexibility for every job application.
Intelligent synergic system - Easily set parameters by material type, wire size and work thickness
Arc air gouging capability
IGBT Module Inverter Technology - Smooth & stable output, increased reliability, high duty cycle
4 Roll Geared Industrial Wire Feed Unit - Powerful and smooth wire feed
Integrated Heavy Duty Industrial Trolley
Integrated Trolley Storage Compartment
MIG Waveform (Inductance) Control - Greater control of the arc for smoother welding results
Adjustable secondary settings such as pre flow, post flow, burn back and soft start - Greater control for MIG welding operation
2T/4T/ Bi - Level, Spot Weld Trigger Modes
Lift TIG operation with down slope and remote current control ability
Remote Control Spool Gun Connection - Effective results welding with soft wires such as Aluminium. Suitable for MIG brazing with bronze wires.
Industrial IP23 casing with front panel protection - Resistant to damage, moisture and corrosion
Production tested with 550V - Extreme stress testing in production for rugged reliability.
Intelligent Protection System - Temperature, voltage and current sensors for increased reliability & safety
Generator Friendly - Designed to work with generator power supply and protect from power surges.
Phase Loss Protection - Machine automatically shuts down if power supply phase loss occurs, to prevent damage.
Power Source Wind Tunnel Cooling Construction - Protection against environmental contamination
Quick connect inlet gas fitting - Tool-less easy connection of gas supply to machine

Includes

Binzel Style MB36 MIG Torch
5m Arc Lead 500A
5m Earth Lead 500A
Argon Regulator with Flowmeter
32A 4 Pin 500V Angled Cable Plug
4-Wheel Welder Trolley with Integrated Storage

Specifications

Compare Product Range

Specifications

ORDER CODE	W1111
MODEL	AdvanceMig400C Pack
Type	MIG / TIG / STICK Multifunction Welder
(V)Voltage	16V-34V
(amp)Recommended Plug Amperage	32
(amp)Welding Current Range - MIG	40-400A
(amp)Welding Current Range - STICK	10-400A
(amp)Welding Current Range - TIG	10-400A
(% @ amp)Duty Cycle	MIG - 400A @ 60%, 310A @ 100% TIG - 400A @ 60%, 310A @ 100% MMA - 400A @ 60%, 310A @ 100%
(kg)Wire Spool Size	5/15
(KVA)Recommended Generator	20
(mm)Dimensions	670 x 250 x 445
(kg)Nett Weight	23
