| ORDER CODE | T8230 |
|---|---|

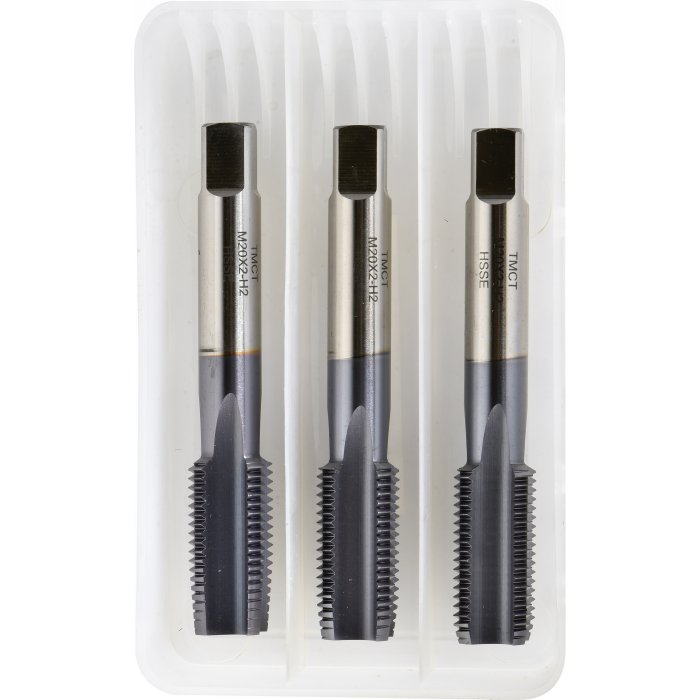

| Set Includes (Tap Profile) | Taper - Intermediate - Plug |
| Flute Type | Straight |

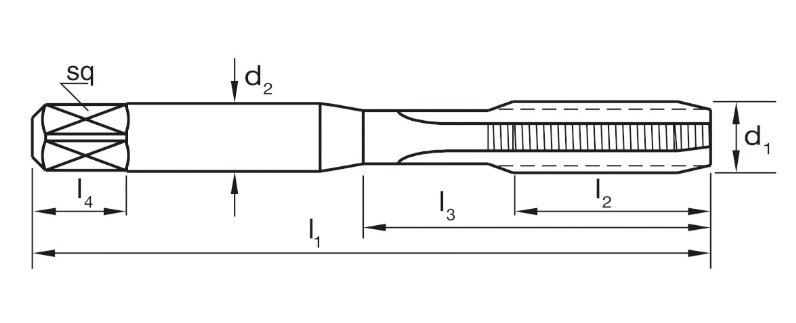

| (Ø / mm)d1 - Tap Size (Diameter) | M20 |
| (Ø / mm)d2 - Shank Diameter | 16.0 |
| (TPI)Pitch | 2.0mm |
| (TPI)Pitch Type | Fine |
| (Type)Thread Form | Metric |
| (DIN)Standard | ISO 529 |
| (mm)l1 - Length | 112 |
| (mm)l2 - Flute Length | 37.0 |
| (mm)l4 - Square Length | 15.0 |
| (mm)Square Across Flats | 11.20 |
| (Ø / mm)Drill Tapping Size (Diameter) | 18.0 |
