Order Code: T8211
ex-gst
inc-gst
$ 66.00
$ 75.90
Description

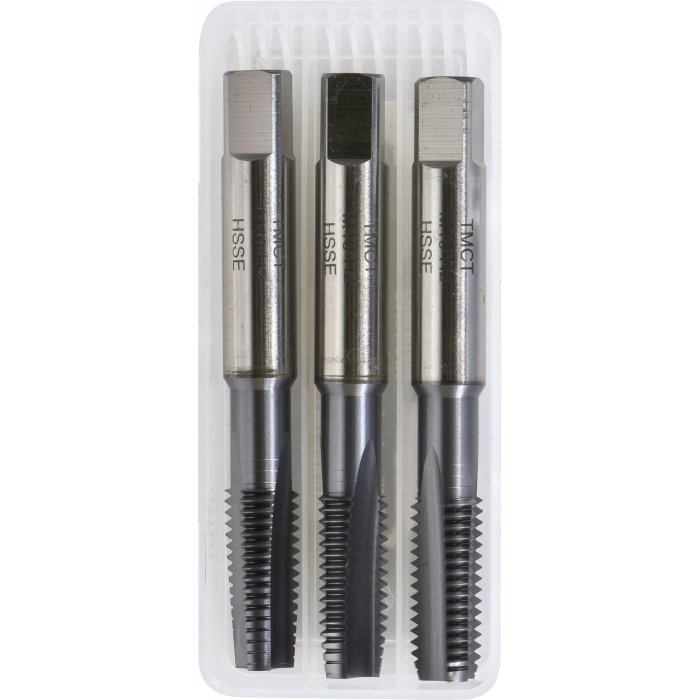

M10 x 1.5mm HSS Straight Flute 3 Piece Hand Tap Set

Metric Coarse Pitch
Overview
A premium-quality 3-piece hand tap set designed for accurate, controlled cutting of metric internal threads. The set includes taper, intermediate and plug taps, allowing the thread to be progressively cut in stages for greater control, reduced cutting load and a clean, accurate finish.

Manufactured from M35 High Speed Steel with 5% cobalt, these taps provide excellent hardness, heat resistance and cutting-edge durability. A TiCN (Titanium Carbonitride) coating provides increased wear resistance for extended tool life, while precision CNC-ground threads ensure excellent accuracy and consistent thread formation.

Ideal for machining, fabrication, maintenance, repair and general workshop applications, the complete set is supplied in a convenient storage case to keep all three taps protected and organised.
Features
  • Complete 3-piece hand tap set for progressive and controlled thread cutting
  • M35 High Speed Steel with 5% cobalt for excellent hardness, heat resistance and durability
  • TiCN coating provides increased wear resistance and helps extend tool life
  • Precision CNC-ground threads for clean, accurate and consistent thread formation
  • Straight flute design ideal for general-purpose hand tapping
  • Metric pitch thread form
  • Manufactured to ISO 529 Standard
  • Supplied in a handy storage case for protection and organisation
Includes
  • 1 x Taper
  • 1 x Intermediate
  • 1 x Plug
Recommended Accessories
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • Part Number
  • Set Includes (Tap Profile)
  • Flute Type

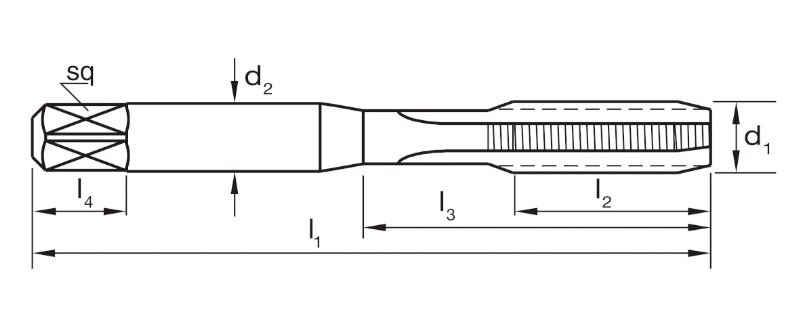

  • (Ø / mm)d1 - Tap Size (Diameter)
  • (Ø / mm)d2 - Shank Diameter
  • (TPI)Pitch
  • (TPI)Pitch Type
  • (Type)Thread Form
  • (DIN)Standard
  • (mm)l1 - Length
  • (mm)l2 - Flute Length
  • (mm)l4 - Square Length
  • (mm)Square Across Flats
  • (Ø / mm)Drill Tapping Size (Diameter)
  • (ex-gst)Pricing
  • (inc-gst)
  • T8200
  • Compare
  • Wishlist
  • T8200
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M3
  • 2.2
  • 0.5mm
  • Coarse
  • Metric
  • ISO 529
  • 48
  • 11.0
  • 4.0
  • 2.50
  • 2.5
  • $32.00
  • $36.80
  • ADD TO CART
  • T8202
  • Compare
  • Wishlist
  • T8202
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M4
  • 2.8
  • 0.7mm
  • Coarse
  • Metric
  • ISO 529
  • 53
  • 13.0
  • 5.0
  • 3.15
  • 3.3
  • $34.00
  • $39.10
  • ADD TO CART
  • T8204
  • Compare
  • Wishlist
  • T8204
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M5
  • 3.5
  • 0.8mm
  • Coarse
  • Metric
  • ISO 529
  • 58
  • 16.0
  • 6.0
  • 4.00
  • 4.2
  • $36.00
  • $41.40
  • ADD TO CART
  • T8207
  • Compare
  • Wishlist
  • T8207
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M6
  • 4.5
  • 0.75mm
  • Fine
  • Metric
  • ISO 529
  • 66
  • 19.0
  • 6.0
  • 5.00
  • 5.3
  • $44.00
  • $50.60
  • ADD TO CART
  • T8206
  • Compare
  • Wishlist
  • T8206
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M6
  • 4.5
  • 1.0mm
  • Coarse
  • Metric
  • ISO 529
  • 66
  • 19.0
  • 6.0
  • 5.00
  • 5.0
  • $44.00
  • $50.60
  • ADD TO CART
  • T8209
  • Compare
  • Wishlist
  • T8209
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M8
  • 6.0
  • 1.0mm
  • Fine
  • Metric
  • ISO 529
  • 72
  • 22.0
  • 8.0
  • 6.30
  • 7.0
  • $56.00
  • $64.40
  • ADD TO CART
  • T8208
  • Compare
  • Wishlist
  • T8208
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M8
  • 6.0
  • 1.25mm
  • Course
  • Metric
  • ISO 529
  • 72
  • 22.0
  • 8.0
  • 6.30
  • 6.8
  • $56.00
  • $64.40
  • ADD TO CART
  • T8212
  • Compare
  • Wishlist
  • T8212
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M10
  • 7.0
  • 1.25mm
  • Fine
  • Metric
  • ISO 529
  • 80
  • 24.0
  • 8.0
  • 8.00
  • 8.8
  • $66.00
  • $75.90
  • ADD TO CART
  • T8211
  • Compare
  • Wishlist
  • T8211
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M10
  • 7.0
  • 1.5mm
  • Course
  • Metric
  • ISO 529
  • 80
  • 24.0
  • 8.0
  • 8.00
  • 8.5
  • $66.00
  • $75.90
  • ADD TO CART
  • T8216
  • Compare
  • Wishlist
  • T8216
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M12
  • 9.0
  • 1.5mm
  • Fine
  • Metric
  • ISO 529
  • 89
  • 29.0
  • 10.0
  • 7.10
  • 10.5
  • $84.00
  • $96.60
  • ADD TO CART
  • T8215
  • Compare
  • Wishlist
  • T8215
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M12
  • 9.0
  • 1.75mm
  • Course
  • Metric
  • ISO 529
  • 89
  • 29.0
  • 10.0
  • 7.10
  • 10.3
  • $84.00
  • $96.60
  • ADD TO CART
  • T8221
  • Compare
  • Wishlist
  • T8221
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M14
  • 11.0
  • 1.25mm
  • Extra Fine
  • Metric
  • ISO 529
  • 95
  • 30.0
  • 12.0
  • 9.00
  • 12.8
  • $104.00
  • $119.60
  • ADD TO CART
  • T8220
  • Compare
  • Wishlist
  • T8220
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M14
  • 11.0
  • 1.5mm
  • Fine
  • Metric
  • ISO 529
  • 95
  • 30.0
  • 12.0
  • 9.00
  • 12.5
  • $104.00
  • $119.60
  • ADD TO CART
  • T8219
  • Compare
  • Wishlist
  • T8219
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M14
  • 11.0
  • 2.0mm
  • Course
  • Metric
  • ~ISO 529
  • 95
  • 30.0
  • 12.0
  • 9.00
  • 12.0
  • $104.00
  • $119.60
  • ADD TO CART
  • T8224
  • Compare
  • Wishlist
  • T8224
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M16
  • 12.0
  • 1.5mm
  • Fine
  • Metric
  • ISO 529
  • 102
  • 32.0
  • 12.0
  • 10.00
  • 14.5
  • $160.00
  • $184.00
  • ADD TO CART
  • T8223
  • Compare
  • Wishlist
  • T8223
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M16
  • 12.0
  • 2.0mm
  • Course
  • Metric
  • ISO 529
  • 102
  • 32.0
  • 12.0
  • 10.00
  • 14.0
  • $160.00
  • $184.00
  • ADD TO CART
  • T8230
  • Compare
  • Wishlist
  • T8230
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M20
  • 16.0
  • 2.0mm
  • Fine
  • Metric
  • ISO 529
  • 112
  • 37.0
  • 15.0
  • 11.20
  • 18.0
  • $232.00
  • $266.80
  • ADD TO CART
  • T8229
  • Compare
  • Wishlist
  • T8229
  • ~
  • Taper - Intermediate - Plug
  • Straight
  • M20
  • 16.0
  • 2.5mm
  • Course
  • Metric
  • ISO 529
  • 112
  • 37.0
  • 15.0
  • 11.20
  • 17.5
  • $232.00
  • $266.80
  • ADD TO CART
  • T8102
  • Compare
  • Wishlist
  • T8102
  • T9010500
  • Taper - Intermediate - Plug
  • Straight
  • M5
  • 3.5
  • 0.8mm
  • Course
  • Metric
  • ISO 529
  • 58
  • 16.0
  • 6.0
  • 4.00
  • 4.2
  • $70.00
  • $80.50
  • ADD TO CART
  • T8103
  • Compare
  • Wishlist
  • T8103
  • T9010600
  • Taper - Intermediate - Plug
  • Straight
  • M6
  • 4.5
  • 1.0mm
  • Course
  • Metric
  • ISO 529
  • 66
  • 19.0
  • 6.0
  • 5.00
  • 5.0
  • $72.00
  • $82.80
  • ADD TO CART
  • T8104
  • Compare
  • Wishlist
  • T8104
  • T9010800
  • Taper - Intermediate - Plug
  • Straight
  • M8
  • 6.0
  • 1.25mm
  • Course
  • Metric
  • ISO 529
  • 72
  • 22.0
  • 8.0
  • 6.30
  • 6.8
  • $78.00
  • $89.70
  • ADD TO CART
  • T8105
  • Compare
  • Wishlist
  • T8105
  • T9011000
  • Taper - Intermediate - Plug
  • Straight
  • M10
  • 7.0
  • 1.5mm
  • Course
  • Metric
  • ISO 529
  • 80
  • 24.0
  • 8.0
  • 8.00
  • 8.5
  • $104.00
  • $119.60
  • ADD TO CART
  • T8106
  • Compare
  • Wishlist
  • T8106
  • T9011200
  • Taper - Intermediate - Plug
  • Straight
  • M12
  • 9.0
  • 1.75mm
  • Course
  • Metric
  • ISO 529
  • 89
  • 28.0
  • 10.0
  • 7.10
  • 10.8
  • $160.00
  • $184.00
  • ADD TO CART
