M5 x 0.8mm Straight Flute HSGT 3pc Tap Set - T9010500
Metric Coarse
T8102
1 of 3
Set
3 of 3
Order Code: T8102
ex-gst
inc-gst
$
70.00
$
80.50
Made in Australia
Description
M5 x 0.8mm Straight Flute HSGT 3pc Tap Set - T9010500
Metric Coarse
Overview
The Sutton Tools Tap Set is designed for general purpose use and is suitable for materials up to 1000N/mm². It can be used for both hand and machine operations, making it versatile for various applications. With depths up to approximately 1 x d₁, this tap set provides reliable performance and precision.
Features
- General purpose use
- Suitable for materials up to 1000N/mm2
- Suitable for both hand and machine operations
- Depths up to approx. 1 x d1
- Material: HSS M2
- Standard: ISO529
- Tolerance: ISO2/6H
- Finish: Bright
- Type: Straight Flute

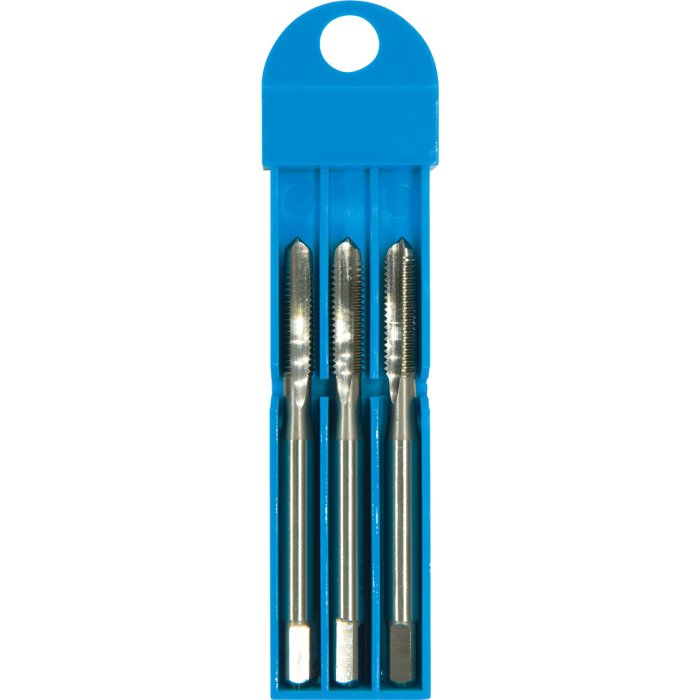

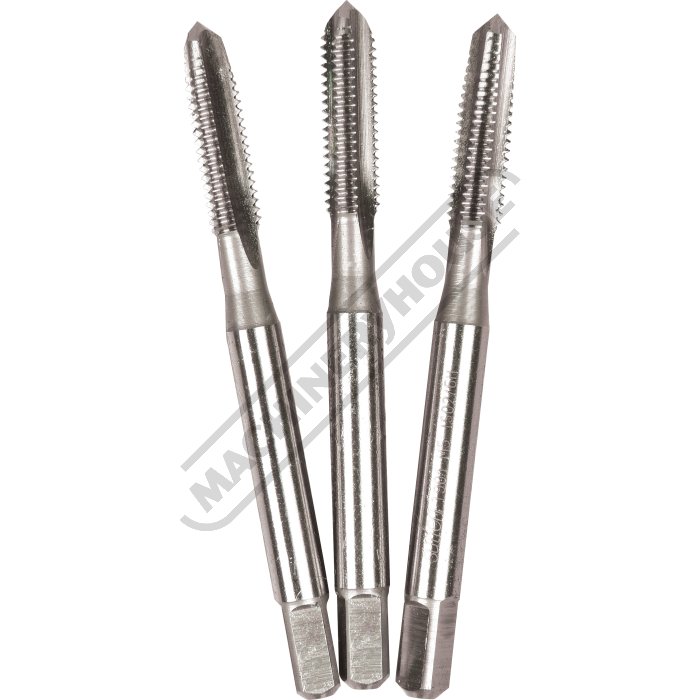

Includes
- 1 x Taper
- 1 x Intermediate
- 1 x Bottoming
Compare Product Range

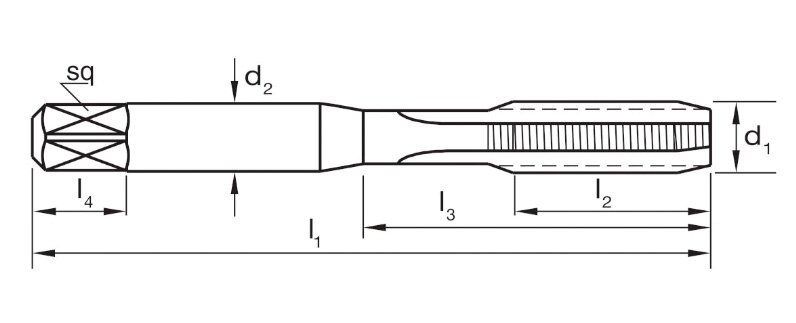

Specifications
| ORDER CODE | T8102 |
|---|---|
| Part Number | T9010500 |
| Set Includes (Tap Profile) | Taper - Intermediate - Plug |
| Flute Type | Straight |
| (Ø / mm)d1 - Tap Size (Diameter) | M5 |
| (Ø / mm)d2 - Shank Diameter | 3.5 |
| (TPI)Pitch | 0.8mm |
| (TPI)Pitch Type | Course |
| (Type)Thread Form | Metric |
| (DIN)Standard | ISO 529 |
| (mm)l1 - Length | 58 |
| (mm)l2 - Flute Length | 16.0 |
| (mm)l4 - Square Length | 6.0 |
| (mm)Square Across Flats | 4.00 |
| (Ø / mm)Drill Tapping Size (Diameter) | 4.2 |
- Compare:
- Wishlist:
- ORDER CODE
- Part Number
- Set Includes (Tap Profile)
- Flute Type
- (Ø / mm)d1 - Tap Size (Diameter)
- (Ø / mm)d2 - Shank Diameter
- (TPI)Pitch
- (TPI)Pitch Type
- (Type)Thread Form
- (DIN)Standard
- (mm)l1 - Length
- (mm)l2 - Flute Length
- (mm)l4 - Square Length
- (mm)Square Across Flats
- (Ø / mm)Drill Tapping Size (Diameter)
- (ex-gst)Pricing
- (inc-gst)
-
-
Compare
-
Wishlist
- T8200
- ~
- Taper - Intermediate - Plug
- Straight
- M3
- 2.2
- 0.5mm
- Coarse
- Metric
- ISO 529
- 48
- 11.0
- 4.0
- 2.50
- 2.5
- $32.00
- $36.80
- ADD TO CART
-
-
Compare
-
Wishlist
- T8202
- ~
- Taper - Intermediate - Plug
- Straight
- M4
- 2.8
- 0.7mm
- Coarse
- Metric
- ISO 529
- 53
- 13.0
- 5.0
- 3.15
- 3.3
- $34.00
- $39.10
- ADD TO CART
-
-
Compare
-
Wishlist
- T8204
- ~
- Taper - Intermediate - Plug
- Straight
- M5
- 3.5
- 0.8mm
- Coarse
- Metric
- ISO 529
- 58
- 16.0
- 6.0
- 4.00
- 4.2
- $36.00
- $41.40
- ADD TO CART
-
-
Compare
-
Wishlist
- T8207
- ~
- Taper - Intermediate - Plug
- Straight
- M6
- 4.5
- 0.75mm
- Fine
- Metric
- ISO 529
- 66
- 19.0
- 6.0
- 5.00
- 5.3
- $44.00
- $50.60
- ADD TO CART
-
-
Compare
-
Wishlist
- T8206
- ~
- Taper - Intermediate - Plug
- Straight
- M6
- 4.5
- 1.0mm
- Coarse
- Metric
- ISO 529
- 66
- 19.0
- 6.0
- 5.00
- 5.0
- $44.00
- $50.60
- ADD TO CART
-
-
Compare
-
Wishlist
- T8209
- ~
- Taper - Intermediate - Plug
- Straight
- M8
- 6.0
- 1.0mm
- Fine
- Metric
- ISO 529
- 72
- 22.0
- 8.0
- 6.30
- 7.0
- $56.00
- $64.40
- ADD TO CART
-
-
Compare
-
Wishlist
- T8208
- ~
- Taper - Intermediate - Plug
- Straight
- M8
- 6.0
- 1.25mm
- Course
- Metric
- ISO 529
- 72
- 22.0
- 8.0
- 6.30
- 6.8
- $56.00
- $64.40
- ADD TO CART
-
-
Compare
-
Wishlist
- T8212
- ~
- Taper - Intermediate - Plug
- Straight
- M10
- 7.0
- 1.25mm
- Fine
- Metric
- ISO 529
- 80
- 24.0
- 8.0
- 8.00
- 8.8
- $66.00
- $75.90
- ADD TO CART
-
-
Compare
-
Wishlist
- T8211
- ~
- Taper - Intermediate - Plug
- Straight
- M10
- 7.0
- 1.5mm
- Course
- Metric
- ISO 529
- 80
- 24.0
- 8.0
- 8.00
- 8.5
- $66.00
- $75.90
- ADD TO CART
-
-
Compare
-
Wishlist
- T8216
- ~
- Taper - Intermediate - Plug
- Straight
- M12
- 9.0
- 1.5mm
- Fine
- Metric
- ISO 529
- 89
- 29.0
- 10.0
- 7.10
- 10.5
- $84.00
- $96.60
- ADD TO CART
-
-
Compare
-
Wishlist
- T8215
- ~
- Taper - Intermediate - Plug
- Straight
- M12
- 9.0
- 1.75mm
- Course
- Metric
- ISO 529
- 89
- 29.0
- 10.0
- 7.10
- 10.3
- $84.00
- $96.60
- ADD TO CART
-
-
Compare
-
Wishlist
- T8221
- ~
- Taper - Intermediate - Plug
- Straight
- M14
- 11.0
- 1.25mm
- Extra Fine
- Metric
- ISO 529
- 95
- 30.0
- 12.0
- 9.00
- 12.8
- $104.00
- $119.60
- ADD TO CART
-
-
Compare
-
Wishlist
- T8220
- ~
- Taper - Intermediate - Plug
- Straight
- M14
- 11.0
- 1.5mm
- Fine
- Metric
- ISO 529
- 95
- 30.0
- 12.0
- 9.00
- 12.5
- $104.00
- $119.60
- ADD TO CART
-
-
Compare
-
Wishlist
- T8219
- ~
- Taper - Intermediate - Plug
- Straight
- M14
- 11.0
- 2.0mm
- Course
- Metric
- ~ISO 529
- 95
- 30.0
- 12.0
- 9.00
- 12.0
- $104.00
- $119.60
- ADD TO CART
-
-
Compare
-
Wishlist
- T8224
- ~
- Taper - Intermediate - Plug
- Straight
- M16
- 12.0
- 1.5mm
- Fine
- Metric
- ISO 529
- 102
- 32.0
- 12.0
- 10.00
- 14.5
- $160.00
- $184.00
- ADD TO CART
-
-
Compare
-
Wishlist
- T8223
- ~
- Taper - Intermediate - Plug
- Straight
- M16
- 12.0
- 2.0mm
- Course
- Metric
- ISO 529
- 102
- 32.0
- 12.0
- 10.00
- 14.0
- $160.00
- $184.00
- ADD TO CART
-
-
Compare
-
Wishlist
- T8230
- ~
- Taper - Intermediate - Plug
- Straight
- M20
- 16.0
- 2.0mm
- Fine
- Metric
- ISO 529
- 112
- 37.0
- 15.0
- 11.20
- 18.0
- $232.00
- $266.80
- ADD TO CART
-
-
Compare
-
Wishlist
- T8229
- ~
- Taper - Intermediate - Plug
- Straight
- M20
- 16.0
- 2.5mm
- Course
- Metric
- ISO 529
- 112
- 37.0
- 15.0
- 11.20
- 17.5
- $232.00
- $266.80
- ADD TO CART
-
-
Compare
-
Wishlist
- T8102
- T9010500
- Taper - Intermediate - Plug
- Straight
- M5
- 3.5
- 0.8mm
- Course
- Metric
- ISO 529
- 58
- 16.0
- 6.0
- 4.00
- 4.2
- $70.00
- $80.50
- ADD TO CART
-
-
Compare
-
Wishlist
- T8103
- T9010600
- Taper - Intermediate - Plug
- Straight
- M6
- 4.5
- 1.0mm
- Course
- Metric
- ISO 529
- 66
- 19.0
- 6.0
- 5.00
- 5.0
- $72.00
- $82.80
- ADD TO CART
-
-
Compare
-
Wishlist
- T8104
- T9010800
- Taper - Intermediate - Plug
- Straight
- M8
- 6.0
- 1.25mm
- Course
- Metric
- ISO 529
- 72
- 22.0
- 8.0
- 6.30
- 6.8
- $78.00
- $89.70
- ADD TO CART
-
-
Compare
-
Wishlist
- T8105
- T9011000
- Taper - Intermediate - Plug
- Straight
- M10
- 7.0
- 1.5mm
- Course
- Metric
- ISO 529
- 80
- 24.0
- 8.0
- 8.00
- 8.5
- $104.00
- $119.60
- ADD TO CART
-
-
Compare
-
Wishlist
- T8106
- T9011200
- Taper - Intermediate - Plug
- Straight
- M12
- 9.0
- 1.75mm
- Course
- Metric
- ISO 529
- 89
- 28.0
- 10.0
- 7.10
- 10.8
- $160.00
- $184.00
- ADD TO CART
