CL-100A - Centre Lathe

Ø660 x 3000mm Turning Capacity - Ø105mm Spindle Bore

BONUS TOOLKIT: Turning & Parting Kit & 5MT Live Centre Also Includes Digital Readout System, Quick Change Toolpost & Taper Turning Attachment

L628D 1 of 36

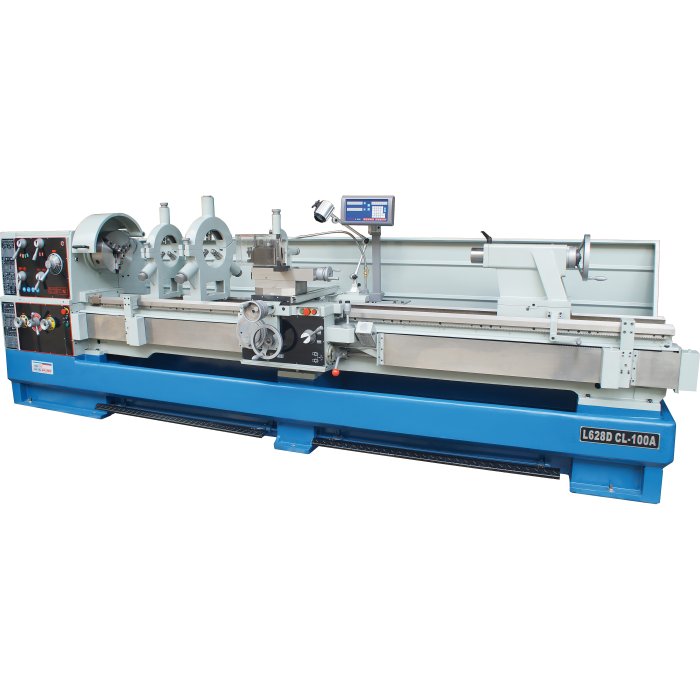

Front View 2 of 36

Digital Readout 3 of 36

Quick Change Toolpost 4 of 36

Taper Turning Attachment 5 of 36

Leadscrew Covers 6 of 36

Rapid Traverse Selection Lever On Saddle 7 of 36

Head Stock 8 of 36

Spindle Speed Controls 9 of 36

Spindle Speeds 10 of 36

Gearbox Controls 11 of 36

Feed Charts 12 of 36

Thread Charts 13 of 36

Chuck Guard 14 of 36

Removable Bed 15 of 36

Micro Adjustable Saddle Stop 16 of 36

Ground and Hardened Bed 17 of 36

3 Point Fixed Steady 18 of 36

2 Point Travelling Steady 19 of 36

Foot Brake 20 of 36

Saddle Left View 21 of 36

Saddle Front View 22 of 36

Saddle Right View 23 of 36

Coolant Nozzle And Worklight 24 of 36

Compound Slide 25 of 36

Compound Slide Dial 26 of 36

Compound Slide Angle Scale 27 of 36

Cross Slide Dial 28 of 36

Power Control Panel On Saddle 29 of 36

Saddle Hand Wheel 30 of 36

Saddle Dial 31 of 36

One Shot Lubrication 32 of 36

Thread Chasing Dial 33 of 36

Spindle Engage Lever 34 of 36

Tailstock 35 of 36

Tailstock Rear View 36 of 36

HAFCO-METALMASTER

Back In Stock Soon

Order Code: L628D

ex-gst

inc-gst

^$ 35,146.00

^$ 40,417.90

415V / (NO PLUG)
1 Year Warranty

Add to Cart

Finance

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

CL-100A - Centre Lathe

Ø660 x 3000mm Turning Capacity - Ø105mm Spindle Bore

BONUS TOOLKIT: Turning & Parting Kit & 5MT Live Centre Also Includes Digital Readout System, Quick Change Toolpost & Taper Turning Attachment

Features

2 Axis digital readout system
Taper turning attachment fitted to saddle
Triple bearings supporting headstock spindle
Spindle clutch to allow operator to switch between forward & reverse without shutting motor down
Quick change toolpost with additional holders
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
Multiple discs forward and reversing clutch system
Overload protection on drive motor and coolant system
Universal enclosed gearbox incorporating metric & imperial thread capabilities
Foot operated spindle brake with safety cut out switch
X & Z axis rapid traverse selection lever incorporated on the saddle @ 4.5m/min

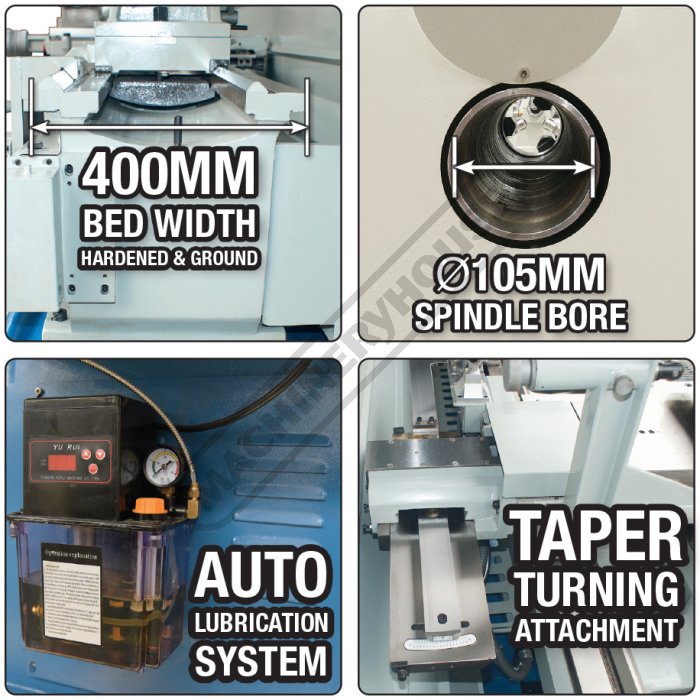

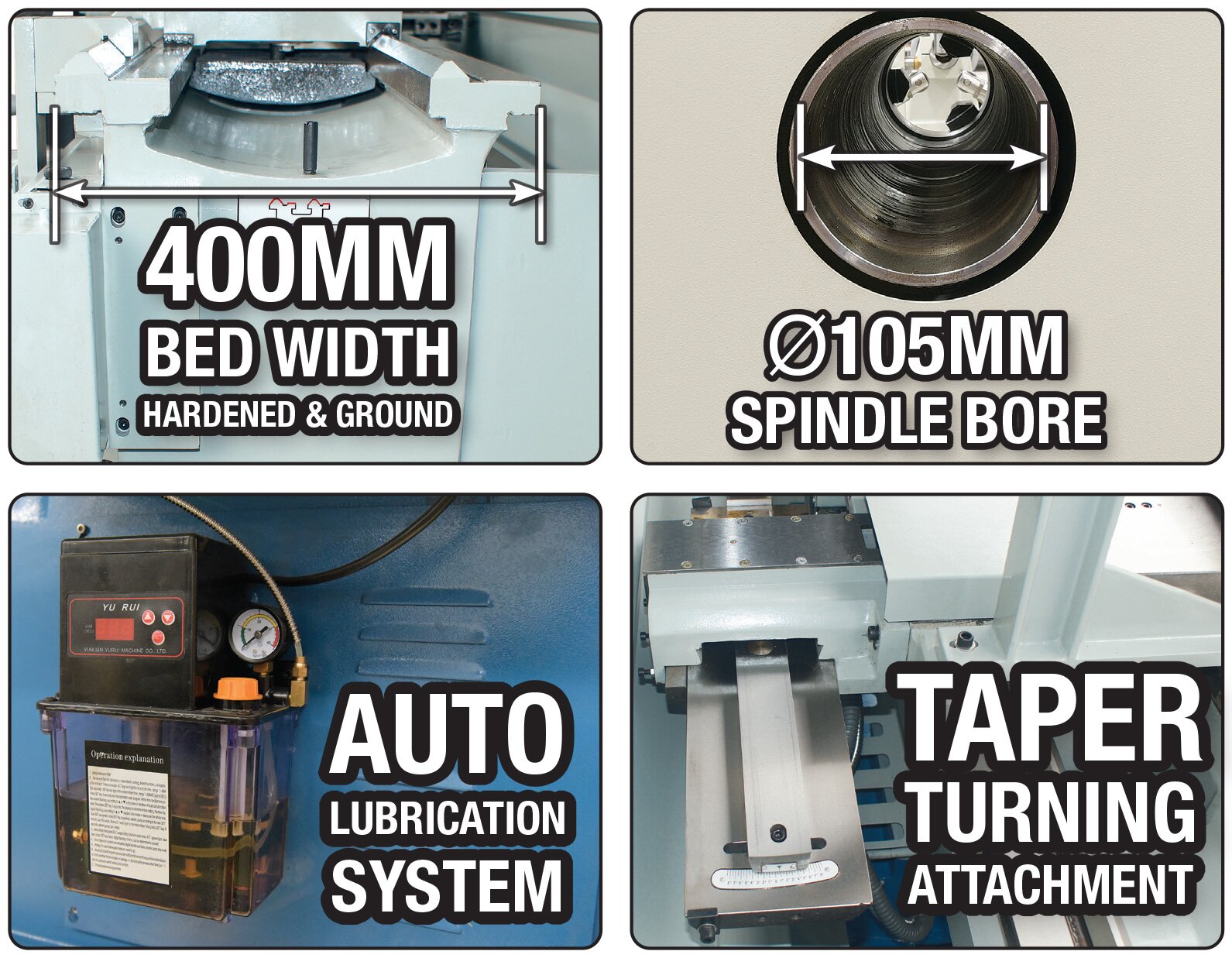

400mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 900mm
Adjustable micro saddle length stop for repetition work
Cross slide handle disengages when auto feed is used
Saddle hand wheel disengages when auto feed is used
Adjustable clutch for auto feeds protects machine from overloading during machining
Chuck guard fitted with safety micro switch
Micro switch on side access door
Powered longitudinal and cross feeds
Metric / imperial calibrated feed dials
Coolant system with flexible hose enabling flow control & direction
Oil sight glass for head stock and gearbox & apron
Lubrication pump on saddle oiling slides
Low voltage halogen work light
D1-8 camlock spindle for quick chuck removal
16 spindle speeds 25-1600rpm
Large 105mm spindle bore
7.5kW / 10HP 415V main motor

Includes

BONUS TOOLKIT: Turning & Parting Kit & 5MT Live Centre
2 Axis digital readout system
Taper turning attachment
Leadscrew covers
325mm 3-jaw chuck with reverse jaws
400mm 4-jaw chuck
Face plate
Ø20 - Ø190mm fixed steady with roller bearings
Ø190 - Ø380mm fixed steady with roller bearings
Travelling steady
Dead centres
Thread chasing dial
Foot brake
Coolant system
Work light
Rear splash guard
Spindle reducing bush

Specifications

Compare Product Range

Specifications

ORDER CODE	L628D
MODEL	CL-100A
(mm)Swing Over Bed	660
(mm)Distance Between Centres	3000
(mm)Spindle Bore	105
(mm)Swing In Gap	900
(mm)Swing Over Cross-slide	440
Digital Readout System Fitted	Yes
Quick Change Toolpost Fitted	Yes
Leadscrew Covers Fitted	Yes
Taper Turning Attachment	Yes
Coolant System	Yes
(mm)Tool Height To Suit	25
(mm)Centre Height	330
Spindle Nose Size or Type	D1-8 Camlock
(mm)Bed Width	400
(MT)Headstock Spindle Taper	7
(MT)Tailstock Taper	5
(mm)Cross Slide Travel	368
(mm)Compound Slide Travel	230
Leadscrew Type	Metric
(mm/rev)Metric Cross Feed (X-Axis)	0.044 - 1.48
(mm/rev)Metric Longitudinal Feed (Z-Axis)	0.022 - 0.74
(No. / mm)Metric Thread Steps & Pitch	54 (0.45 - 120)
(No. / TPI)Imperial Thread Steps & TPI	54 (7/16 - 80)
(mm)3 Jaw Chuck Diameter	325
(mm)4 Jaw Chuck Diameter	400
(No. / rpm)Spindle Steps / Speeds	16 (25 - 1600)
(kW / hp)Motor Power	7.5 / 10
(V / amp)Voltage / Amperage	415
(kg)Nett Weight	3700
