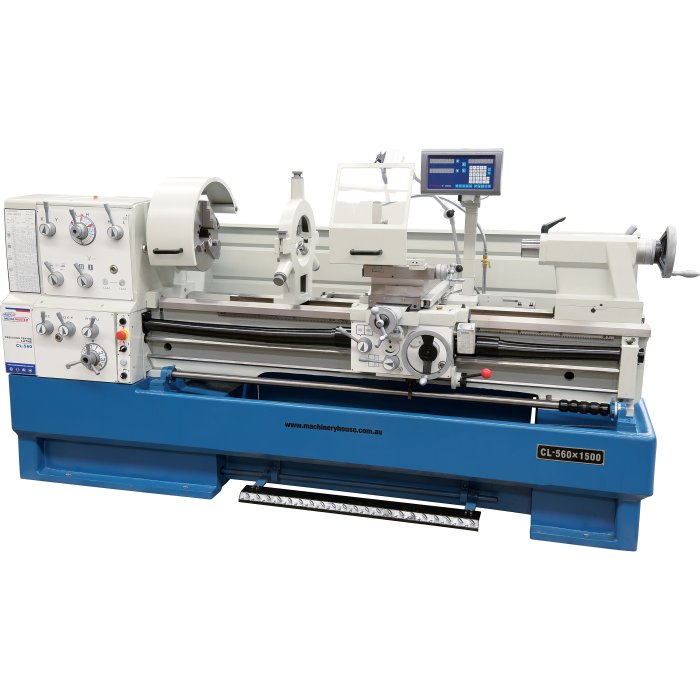

CL-560 - Centre Lathe

Ø560 x 1500mm Turning Capacity - Ø105mm Spindle Bore

Includes Digital Readout System, Quick Change Toolpost, Taper Turning Attachment & Auto Slide-way Lubrication

L610D 1 of 43

Right View 2 of 43

Left View 3 of 43

2 Axis Digital Readout 4 of 43

Safety Chuck Guard 5 of 43

Head Stock Controls 6 of 43

Speed Selections Levers and Feed Levers 7 of 43

Feed Chart 8 of 43

Feed Levers 9 of 43

Automatic Lubrication System 10 of 43

105mm Spindle Bore 11 of 43

Removable Gap Bedway 12 of 43

Hardened and Ground Bed 13 of 43

Taper Turning Attachment 14 of 43

Taper Turning Attachment Rear View 15 of 43

Taper Turning Attachment Close Up 16 of 43

Saddle Front View 17 of 43

Saddle Right View 18 of 43

LED Worklight and Coolant Hose 19 of 43

LED Worklight Close up 20 of 43

Fixed Steady with Roller Guides 21 of 43

Travelling Steady with Roller Guides 22 of 43

Leadscrew Covers 23 of 43

Quick Change Toolpost 24 of 43

Saddle Safety Guard 25 of 43

Saddle Safety Guard Shown Open 26 of 43

Compound Slide 27 of 43

5 Position Adjustable Length Stop 28 of 43

Spindle Engagement Lever 29 of 43

Thread Chasing Dial 30 of 43

Compound Angle Slide 31 of 43

Saddle Controls 32 of 43

Saddle Dial 33 of 43

Compound Slide Dial 34 of 43

Cross Feed Dial in Metric Mode 35 of 43

Cross Feed Dial in Imperial Mode 36 of 43

Tailstock 37 of 43

Tailstock Quill Graduations 38 of 43

Tailstock Dial 39 of 43

Tailstock with Horizontal Adjustment 40 of 43

Contrrol Panel 41 of 43

Foot Brake 42 of 43

Toolbox Included 43 of 43

HAFCO-METALMASTER

Back In Stock Soon

Order Code: L610D

ex-gst

inc-gst

^$ 23,046.00

^$ 26,502.90

415V / (NO PLUG)
1 Year Warranty

Add to Cart

Finance

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads Spare Parts

Description

CL-560 - Centre Lathe

Ø560 x 1500mm Turning Capacity - Ø105mm Spindle Bore

Includes Digital Readout System, Quick Change Toolpost, Taper Turning Attachment & Auto Slide-way Lubrication

Features

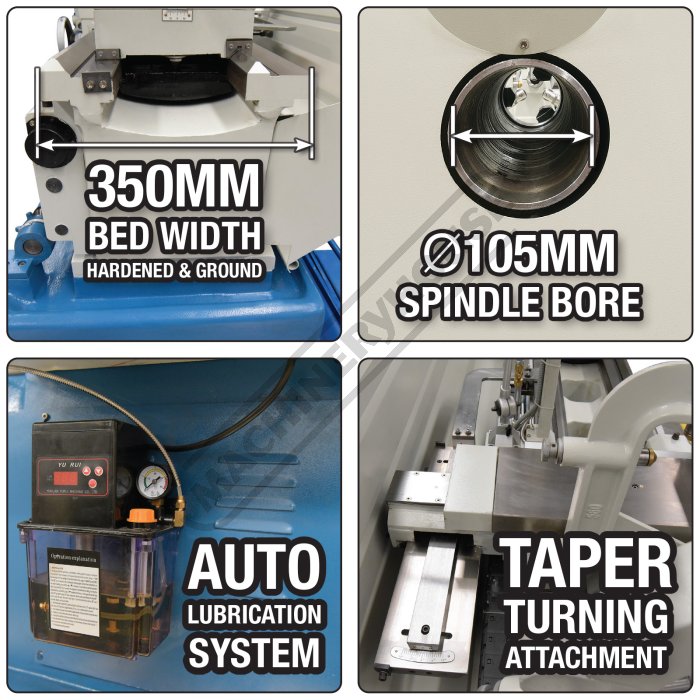

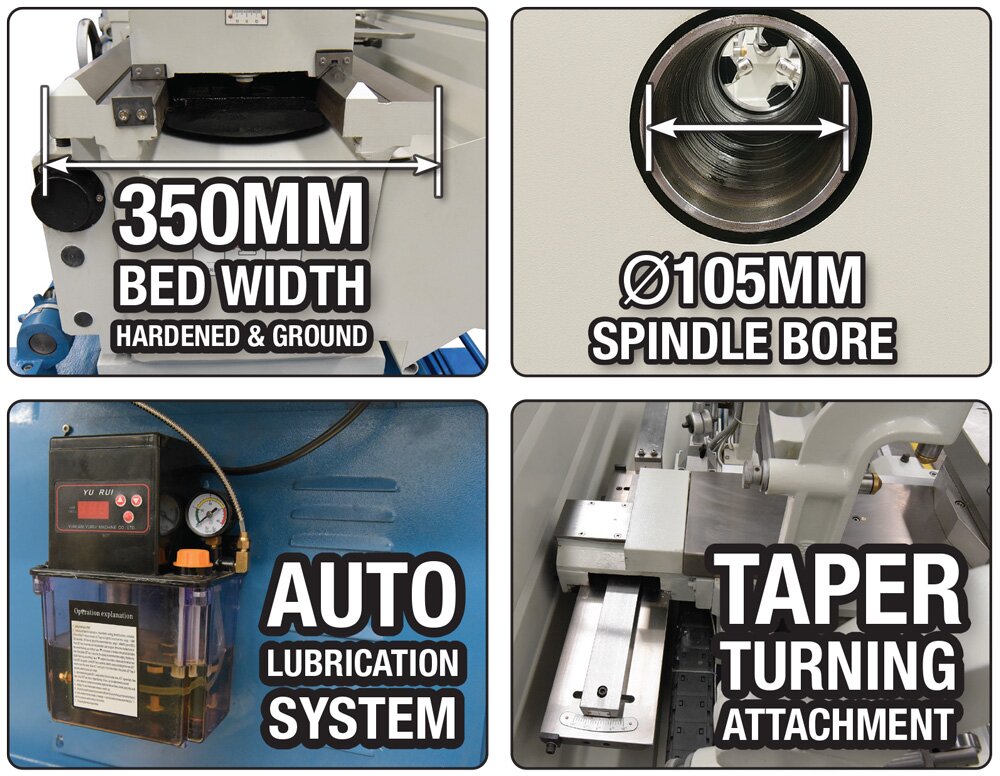

2 axis digital readout system
Quick change toolpost
Large 105mm spindle bore
Taper turning attachment fitted to saddle
Automatic lubrication pump oiling slides
Triple bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
One piece cast iron base increases rigidity
Overload protection on drive motor and coolant system
Universal enclosed gearbox incorporating metric & imperial thread capabilities
Inching button incorporated on the control panel for convenient spindle speed selection
Foot operated spindle brake with safety cut out switch
350mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing workpiece to swing up to 785mm
Chuck guard fitted with safety micro switch
Powered longitudinal and cross feeds
Adjustable 5 position length-stop mechanism for accurate repetitive operation
Micro adjustable saddle stop
Dual calibrated cross feed dial incorporating metric & imperial graduations
Coolant system with flexible hose enabling operator to manipulate flow direction
Oil level sight glass for headstock and gearbox
Low voltage halogen work light
D1-8 camlock spindle for quick chuck removal
12 spindle speeds from 20-1600rpm
7.5kW / 10HP 415V main motor

Includes

2 axis digital readout system
Taper turning attachment
Quick change toolpost
Auto lubrication pump for slides
Concertina leadscrew covers
320mm 3-jaw chuck with reverse jaws
400mm 4-jaw chuck
450m face plate
Fixed steady with roller bearings
Travelling steady with brass guides
Dead centres
Thread chasing dial
Foot brake
Coolant system
LED Work light
Rear splash guard
Spindle reducing bush

Specifications

Compare Product Range

Specifications

ORDER CODE	L610D
MODEL	CL-560
(mm)Swing Over Bed	560
(mm)Distance Between Centres	1500
(mm)Spindle Bore	105
(mm)Swing In Gap	785
(mm)Swing Over Cross-slide	355
Digital Readout System Fitted	Yes
Quick Change Toolpost Fitted	Yes
Leadscrew Covers Fitted	Yes
Taper Turning Attachment	Yes
Coolant System	Yes
(mm)Tool Height To Suit	25
(mm)Centre Height	280
Spindle Nose Size or Type	D1-8 Camlock
(mm)Bed Width	350
(MT)Headstock Spindle Taper	7
(MT)Tailstock Taper	5
(mm)Cross Slide Travel	316
(mm)Compound Slide Travel	130
Leadscrew Type	Metric
(mm/rev)Metric Cross Feed (X-Axis)	0.020-0.573
(mm/rev)Metric Longitudinal Feed (Z-Axis)	0.059-1.646
(No. / mm)Metric Thread Steps & Pitch	47 (0.2 - 14)
(No. / TPI)Imperial Thread Steps & TPI	60 (2 - 112)
(mm)3 Jaw Chuck Diameter	320
(mm)4 Jaw Chuck Diameter	400
(No. / rpm)Spindle Steps / Speeds	12 (20 - 1600)
(kW / hp)Motor Power	7.5 / 10
(V / amp)Voltage / Amperage	415
(kg)Nett Weight	2700
