BM52VE Industrial Turret Milling Machine

Home Metal Working Machines Milling Machines Milling Machines - Conventional M596D

Includes Digital Readout System, Vice & Clamp Kit

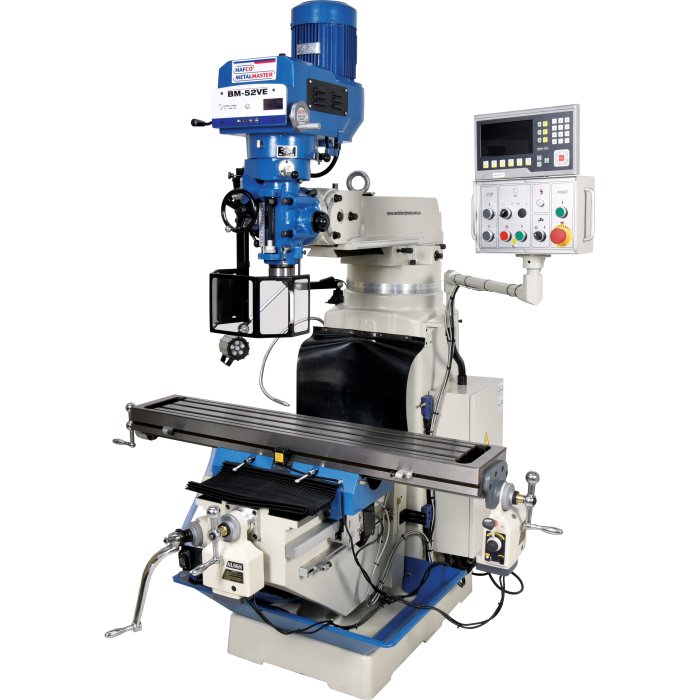

M596D 1 of 19

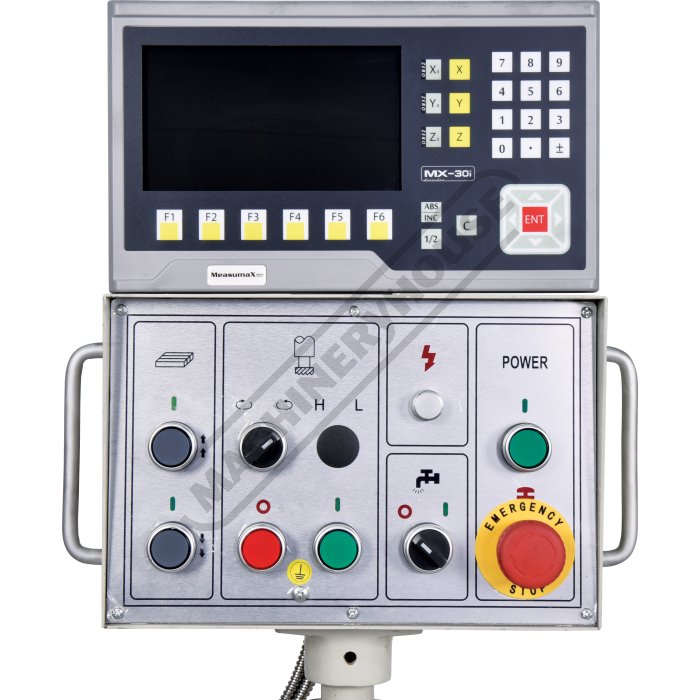

Control Panel 2 of 19

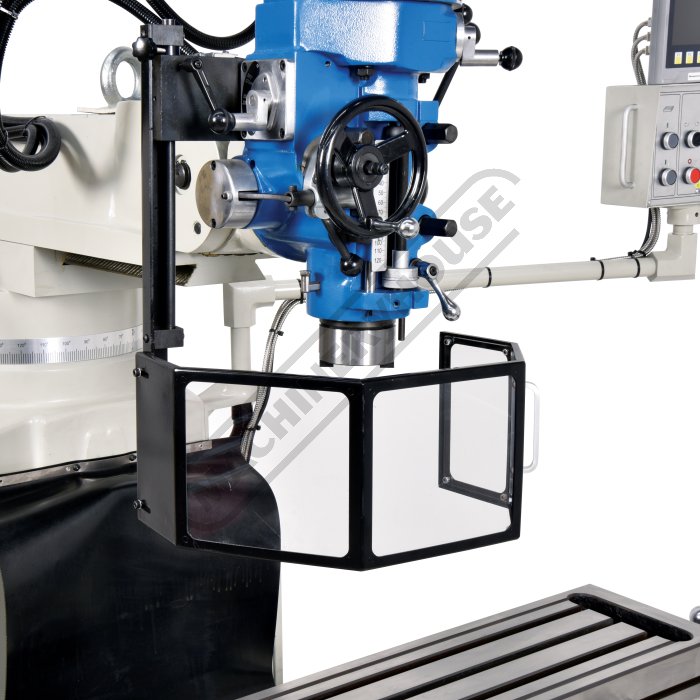

Safety Milling Guard 3 of 19

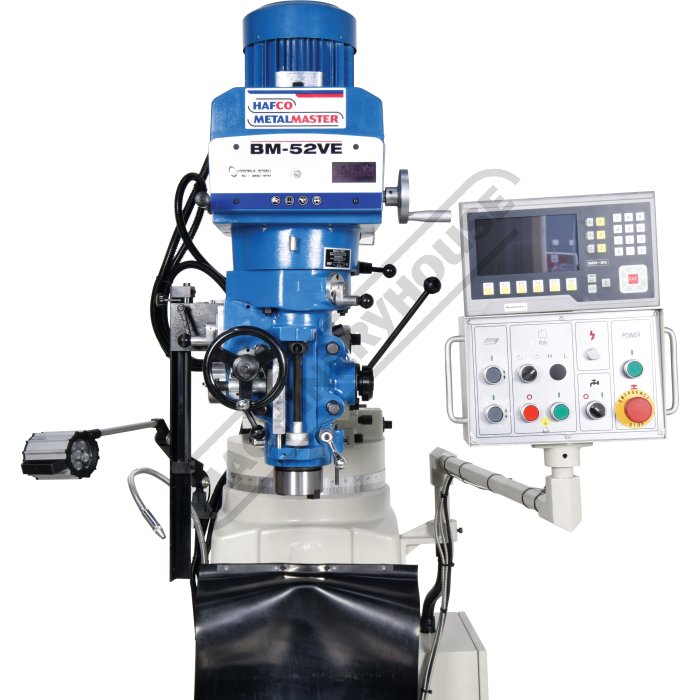

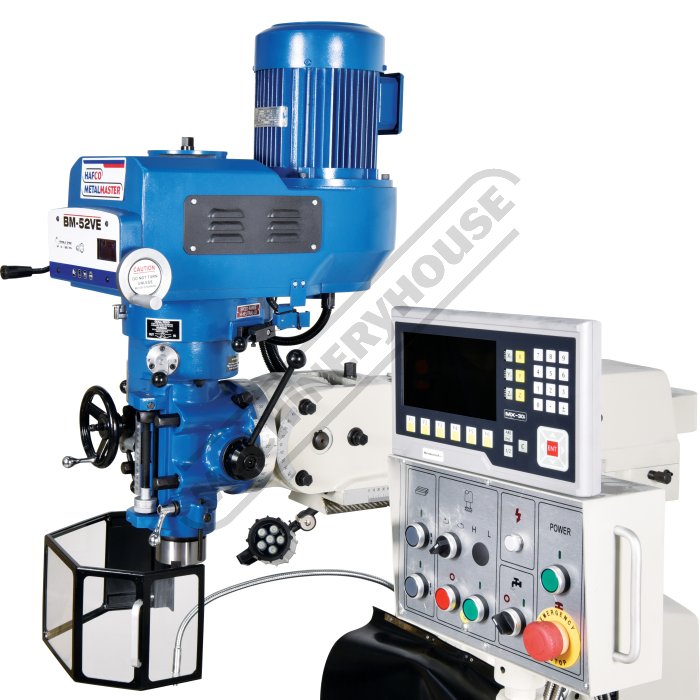

Head Right View 4 of 19

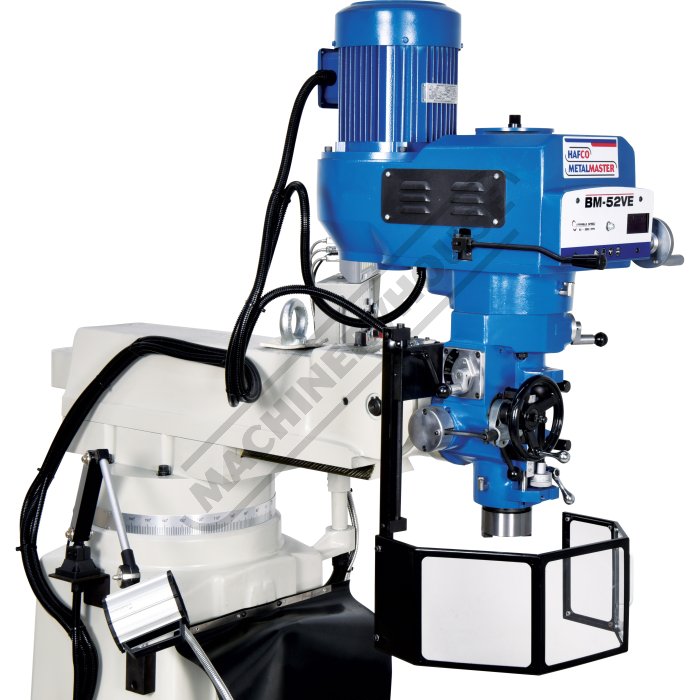

Head Left View 5 of 19

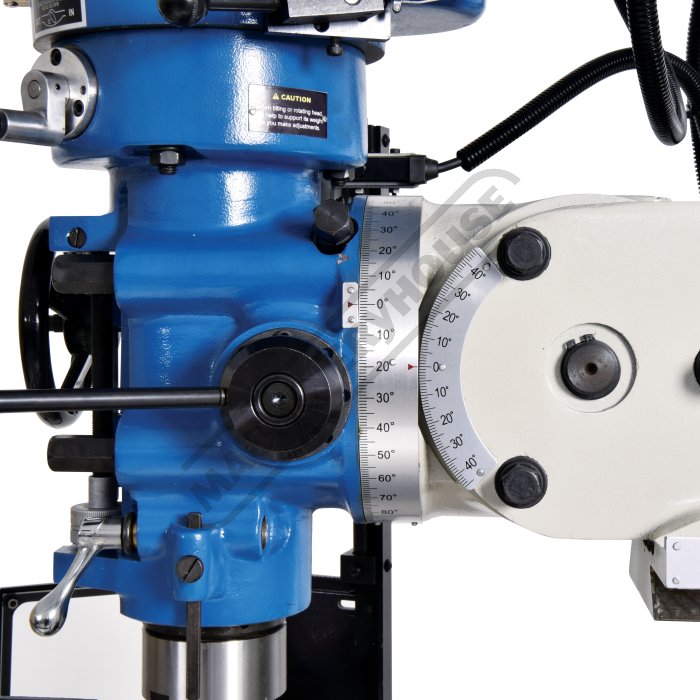

Universal Tilting and Rotating Head 6 of 19

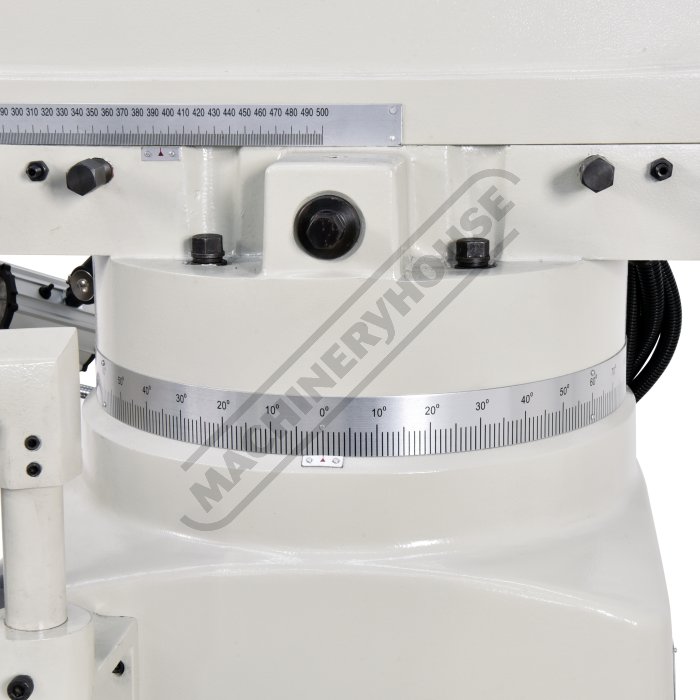

Adjustable Swivel and Sliding Ram 7 of 19

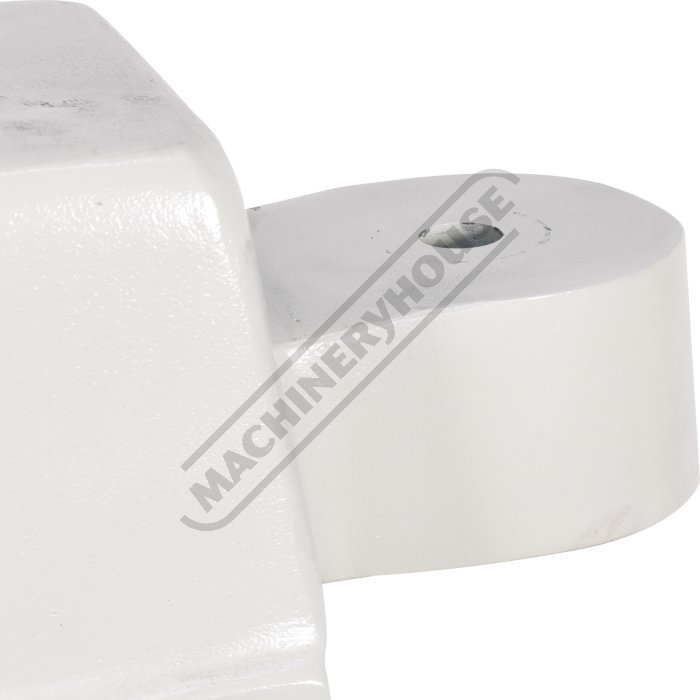

Tail Lug Spigot Supports Slotting Head 8 of 19

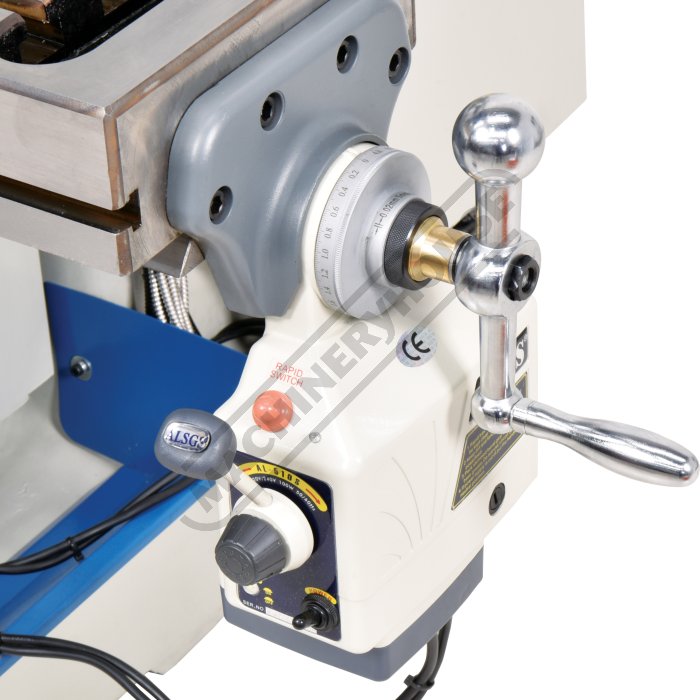

X Axis Power Feed with Rapid 9 of 19

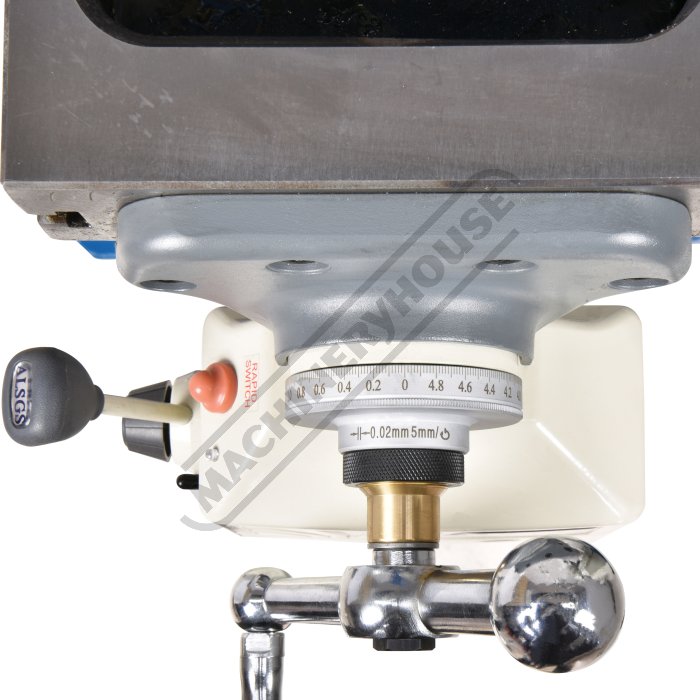

X Axis Dial 10 of 19

Y Axis Power Feed with Rapid 11 of 19

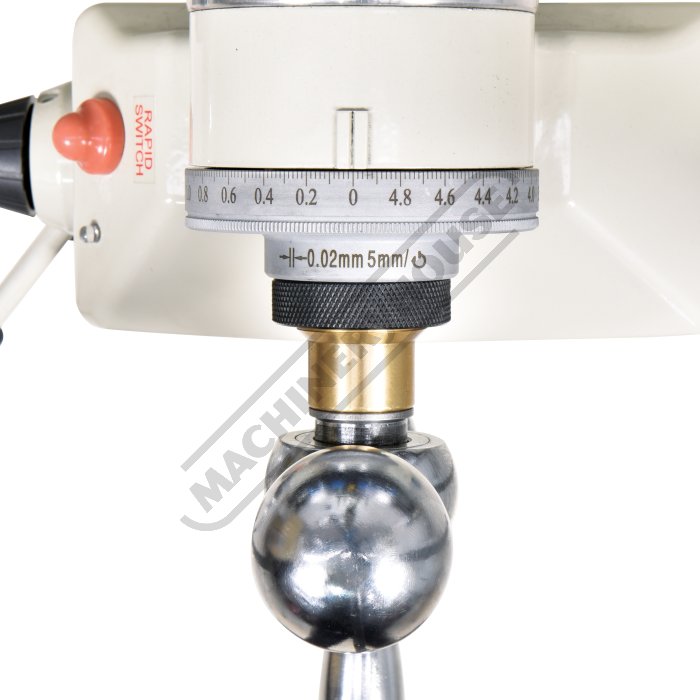

Y Axis Dial 12 of 19

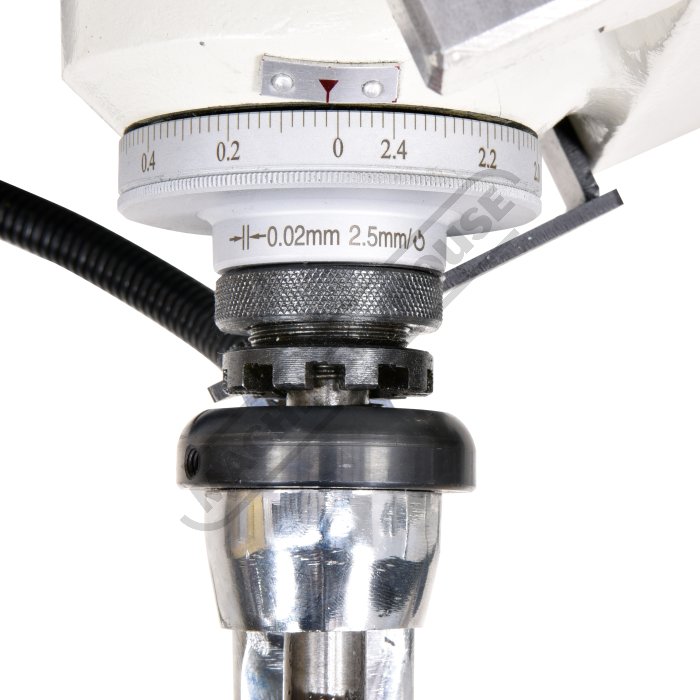

Z Axis Dial 13 of 19

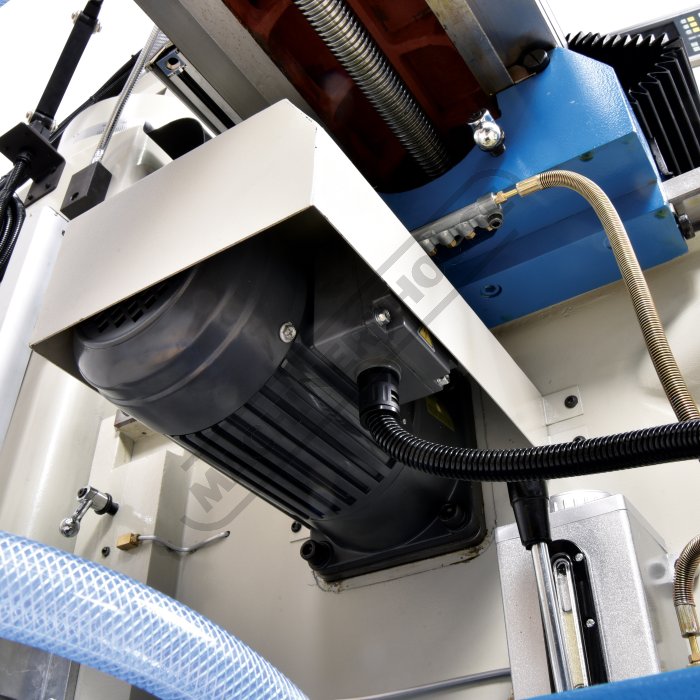

Z Axis Rapid Motor 14 of 19

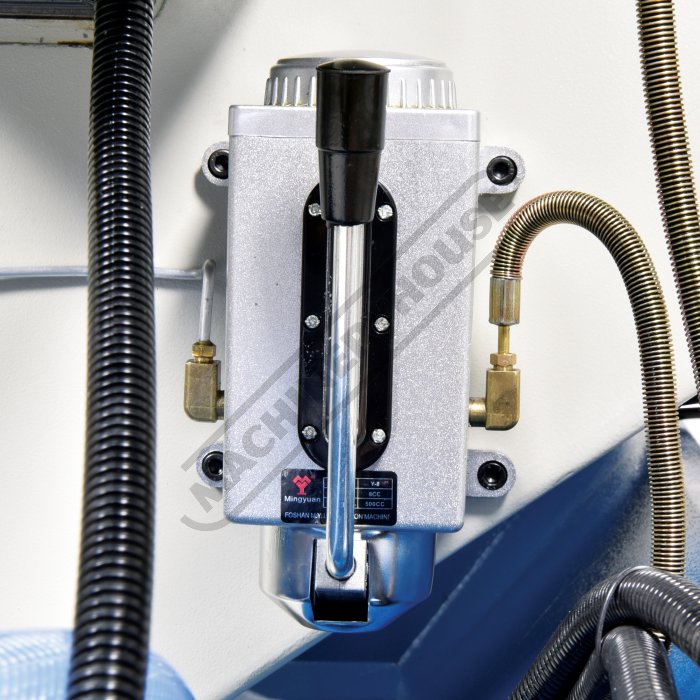

Lubrication Pump 15 of 19

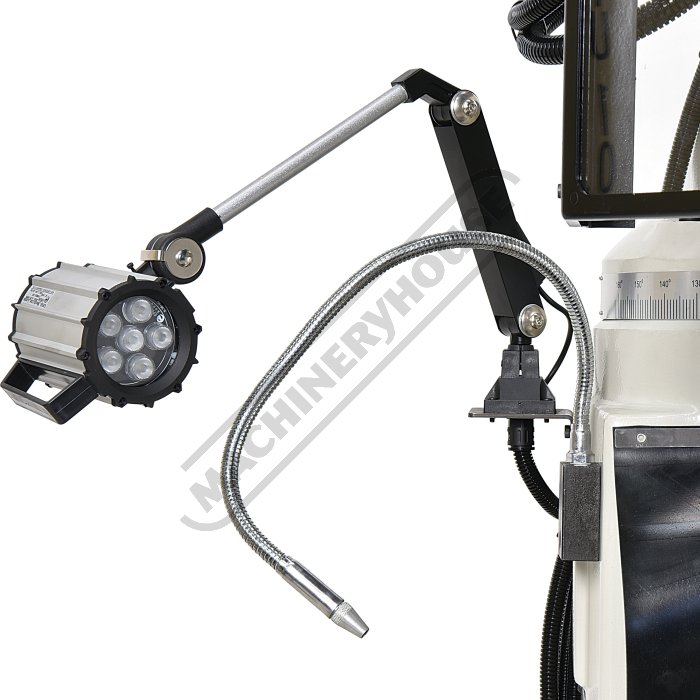

Work Light and Coolant Hose 16 of 19

Machine Vice 17 of 19

Clamp Kit 18 of 19

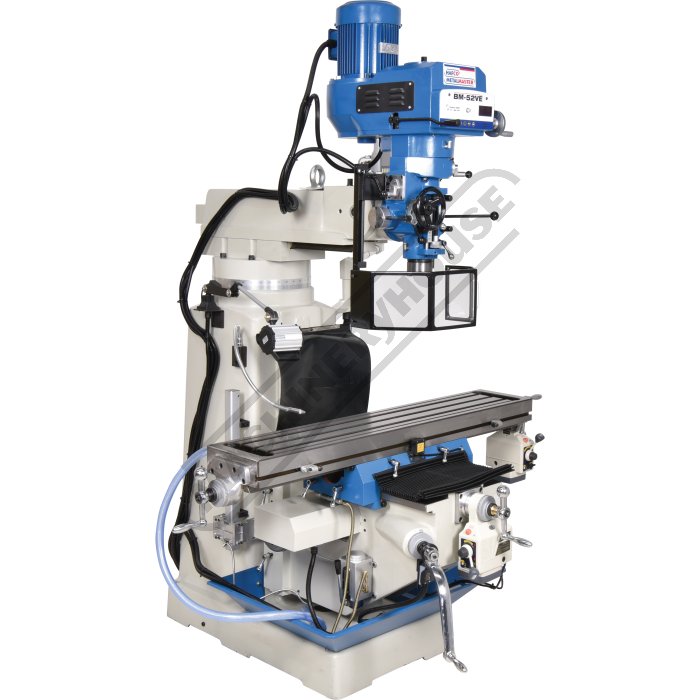

Left View 19 of 19

Discontinued

Order Code: M596D

415V / (NO PLUG)
1 Year Warranty

Compare

Wishlist

Description

Table Travel: (X) - 865mm (Y) - 420mm (Z) - 400mm

Includes Digital Readout System, Vice & Clamp Kit

Quality product representing excellent value

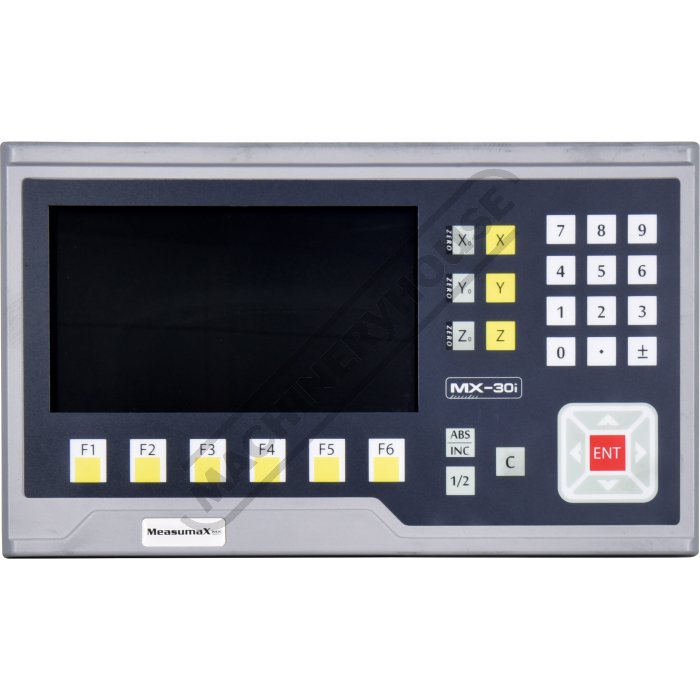

3 Axis digital readout fitted
5HP 415V motor with mechanical variable speed system
NT40 Spindle taper with a chrome & ground quill
Hardened & ground work table & slide-ways
Square construction slides for Y & Z-Axis to maximise rigidity
Turcite B coated X & Y Axis slide-ways reduces friction for smooth operation
Powered elevating motor for Z-Axis
Meehanite casting for high strength & minimal deformation
Quality electrics & overload protection in an easy access enclosure
Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle
The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.

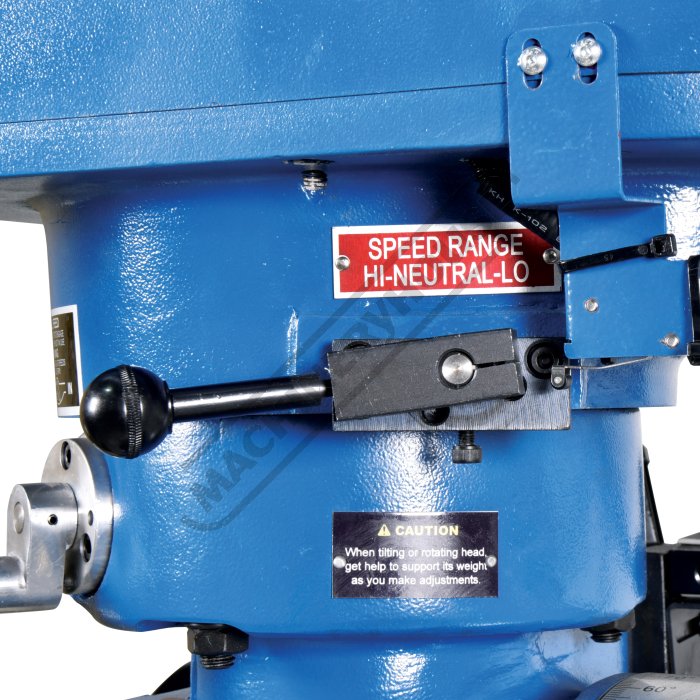

High / neutral and low gear selection lever to maximise torque
X & Y-Axis power-feed with adjustable micro switch feed stops

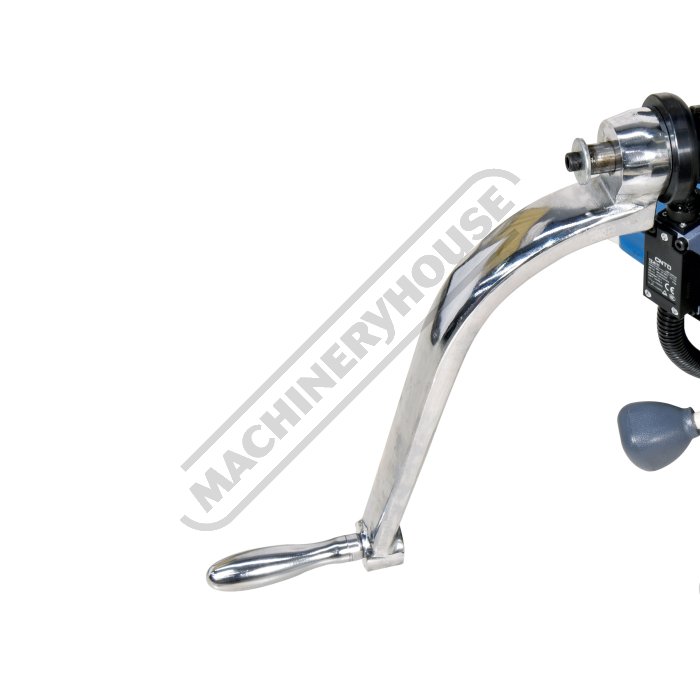

Micro switch on the manual knee handle for additional operator safety
Metric dial graduations @ 0.02mm for X , Y & Z-Axis

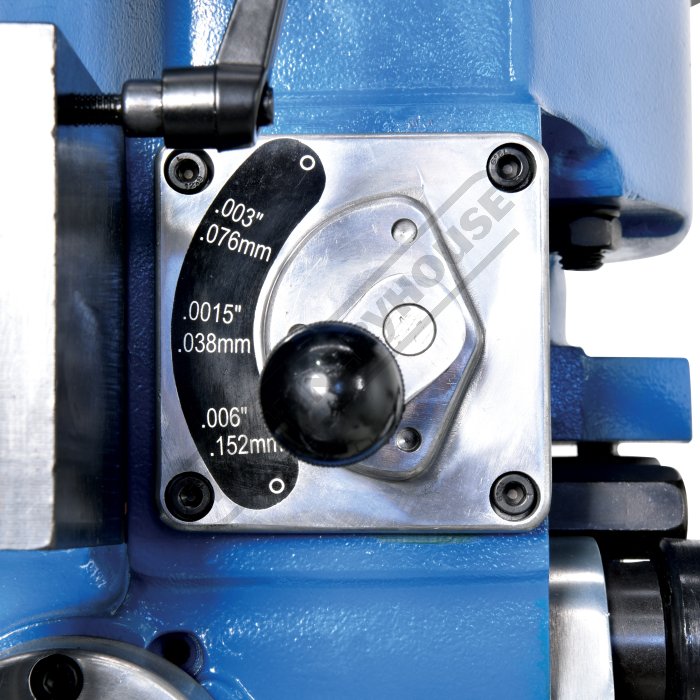

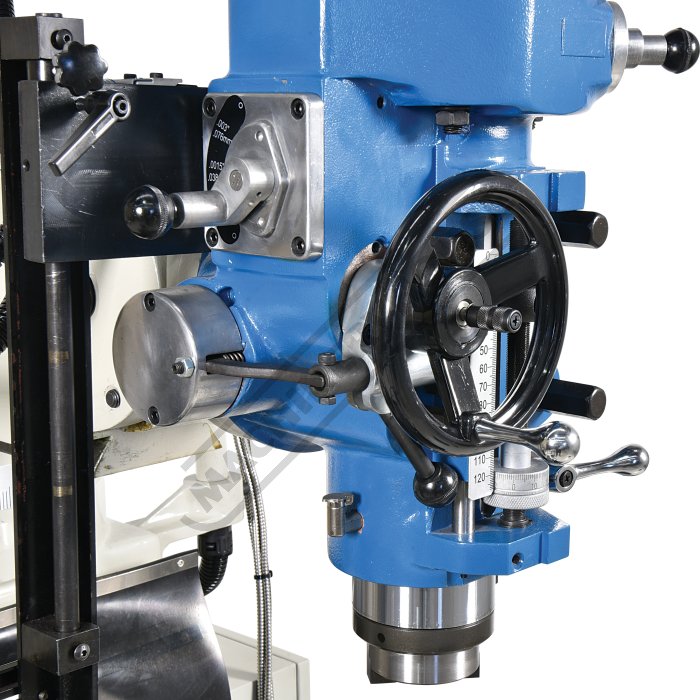

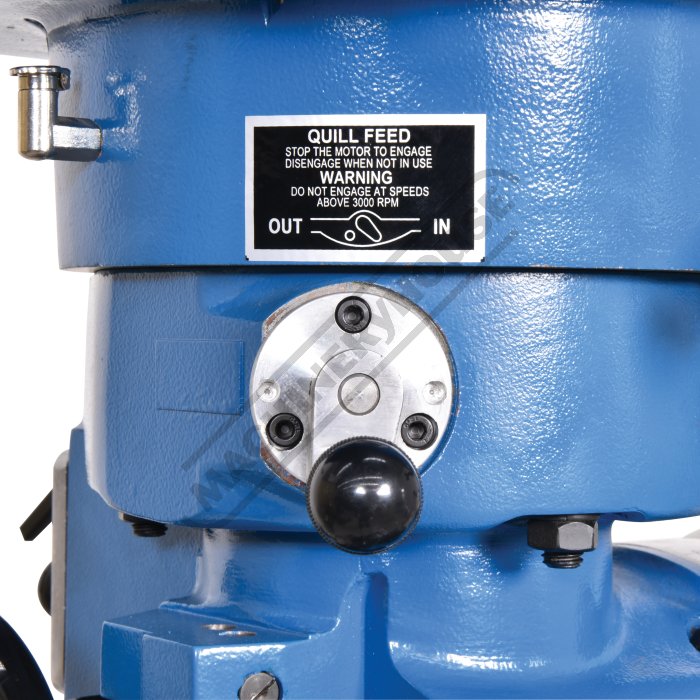

Automatic quill feed 0.076, 0.038, 0.152mm/rev

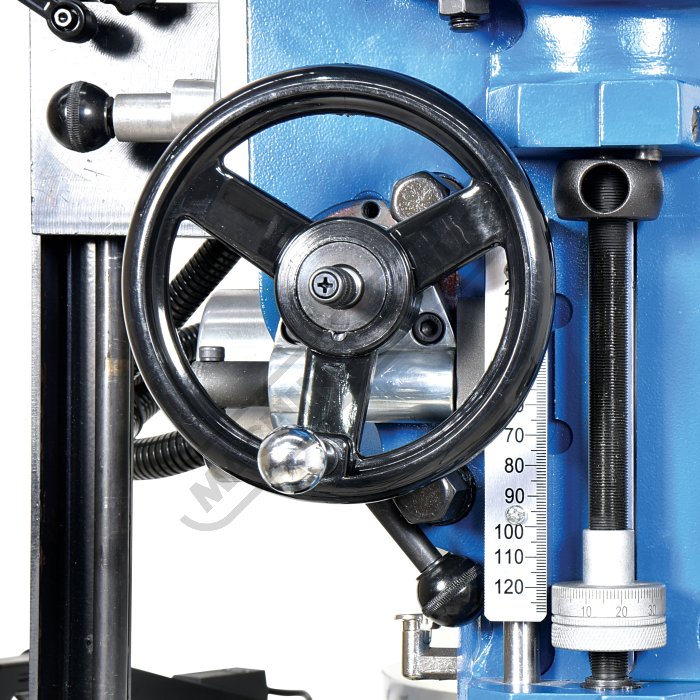

Automatic cut off depth stop on quill
Oil lubrication pump and reservoir

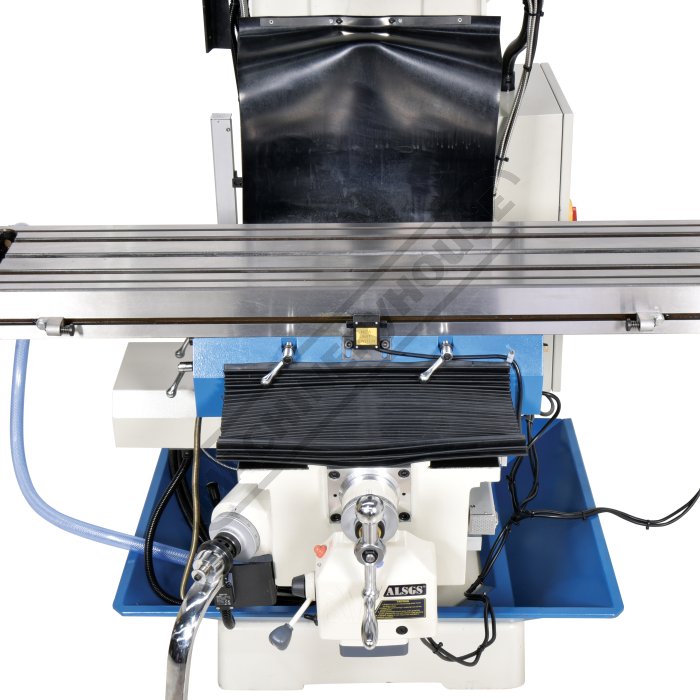

Slide-way covers Y & Z-Axis
Mill head tilts to ±45º forward and back
Mill head tilts to ±90º left and right
Manual quick action quill lever
Mechanical spindle brake
Tool box and manual

Specifications

ORDER CODE	M596D
MODEL	BM-52VE
Digital Readout	3-Axis Digital Readout
Type	Vertical
(mm)Table Size	1370 x 254
Spindle Taper - Vertical	NT40
(mm)Longitudinal Travel (X-Axis)	865
(mm)Cross Travel (Y-Axis)	420
(mm)Vertical Travel (Z-Axis)	400
Type of Slides	Dovetail (X), Square (Y & Z)
(mm)Ram Travel	500
(mm)Spindle to Table	440
(mm)Spindle Travel / Diameter	127 / 86
(mm)Throat Depth (max.)	690
Tilting Head (Left ~ Right)	±90º
Tilting Head (Forward ~ Back)	±45º
(mm/rev)Power Feed - Quill	0.076 / 0.038 / 0.152
(mm/min)Power Feed - Longitudinal (X-Axis)	20 - 2000
(mm/min)Power Feed - Cross (Y-Axis)	20 - 2000
(mm/min)Power Feed - Vertical (Z-Axis)	Rapid
(inch / mm)Table T-Slot Size	5/8
(kg)Work Table Load Capacity	350
(No./ rpm)Spindle Speeds Vertical	Variable (50 - 3750)
(kW / hp)Motor Power - Vertical Spindle	3.75 / 5
(V / amp)Voltage / Amperage	415
(kg)Nett Weight	1130
