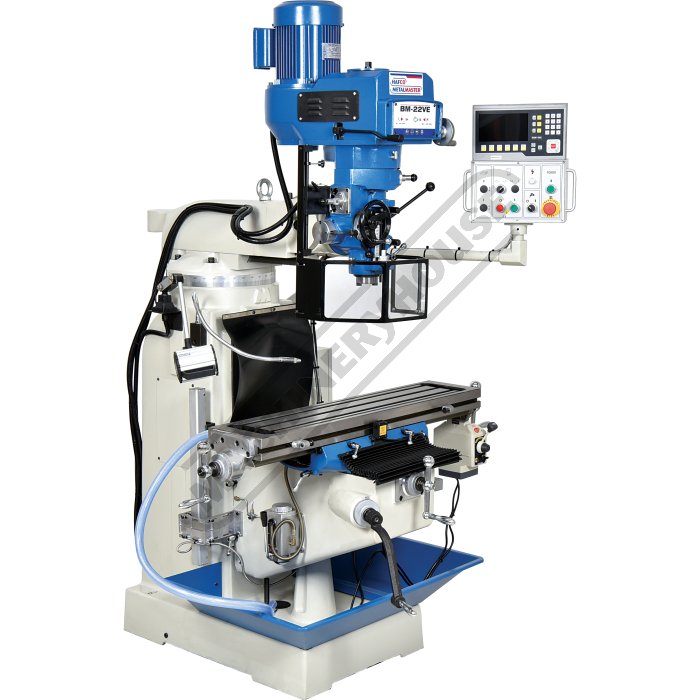

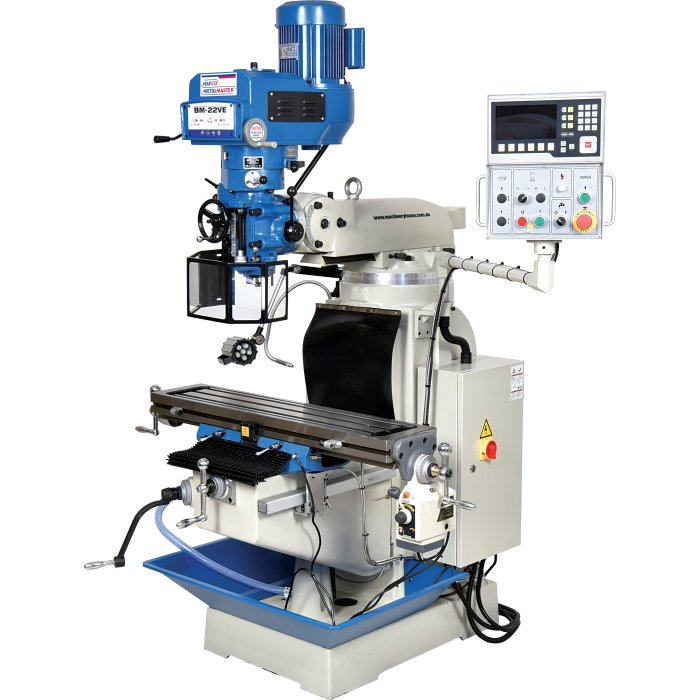

Industrial Turret Milling Machine - BM-22VE
Table Travel: (X) - 600mm (Y) - 325mm (Z) - 370mm
Includes Digital Readout System
Image Coming Soon
1 of 1
Back In Stock Soon
Order Code: M592D
Description
Industrial Turret Milling Machine - BM-22VE
Table Travel: (X) - 600mm (Y) - 325mm (Z) - 370mm
Includes Digital Readout System
Overview
Quality product representing excellent value
Features

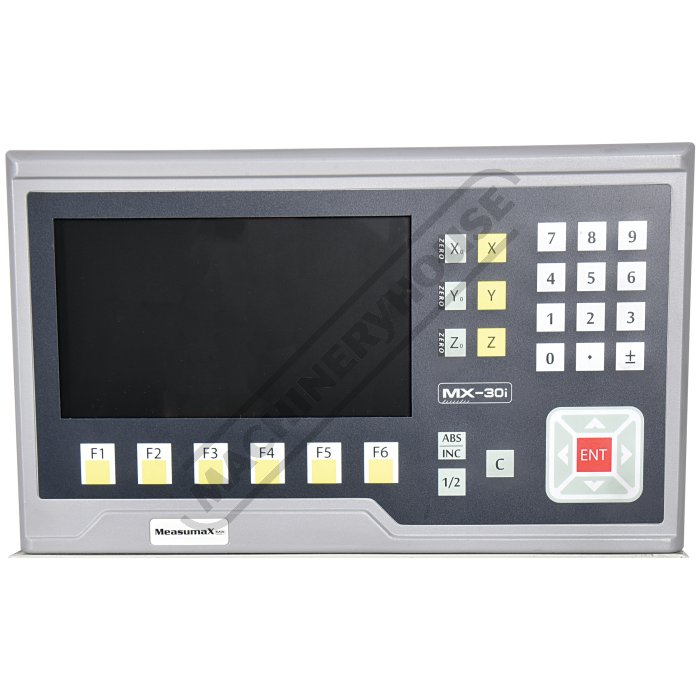

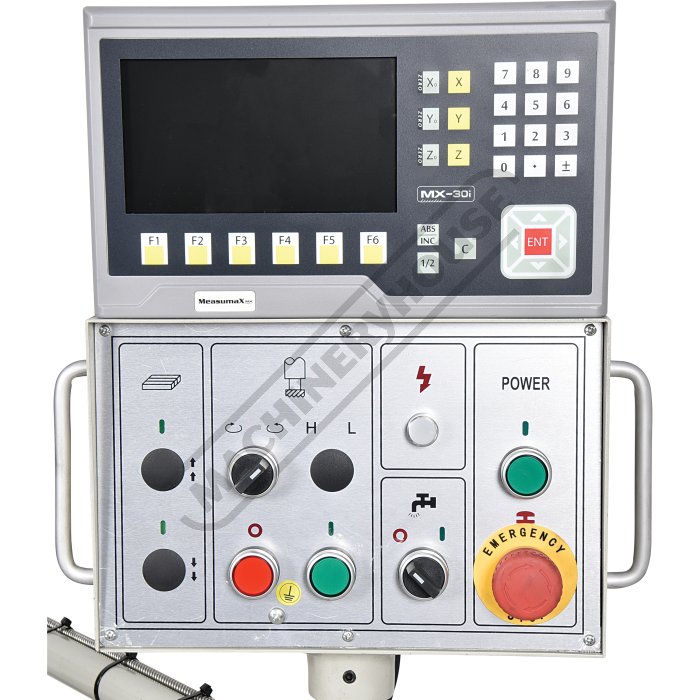

- 3 Axis digital readout fitted
- 3HP 240V motor with mechanical variable speed system
- NT30 Spindle taper with a chrome & ground quill
- Hardened & ground work table & slide-ways
- All slides utilise dovetail construction for maximum rigidity
- Turcite B coated X & Y Axis slide-ways reduces friction for smooth operation
- Meehanite casting for high strength & minimal deformation
- Quality electrics & overload protection in an easy access enclosure

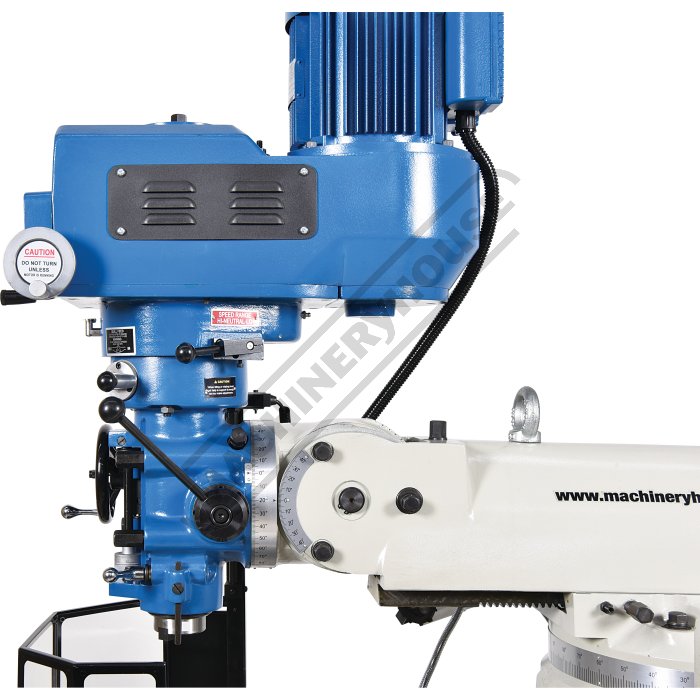

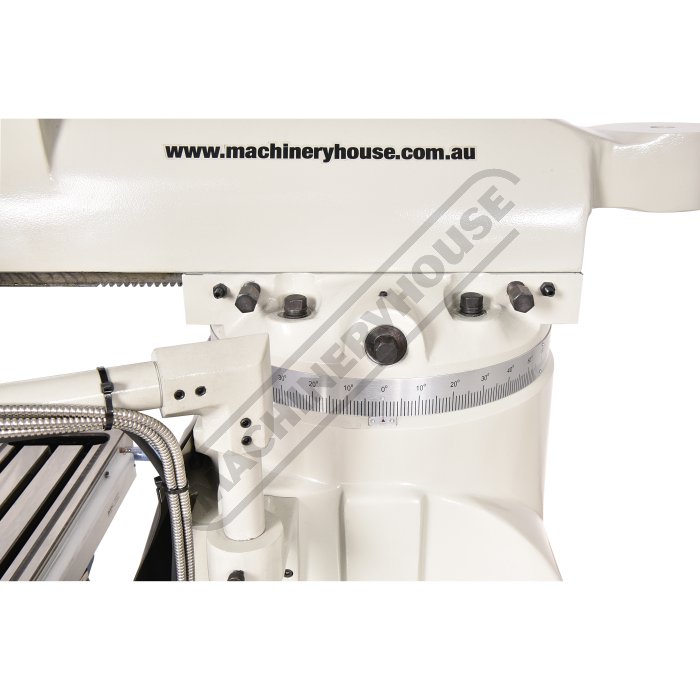

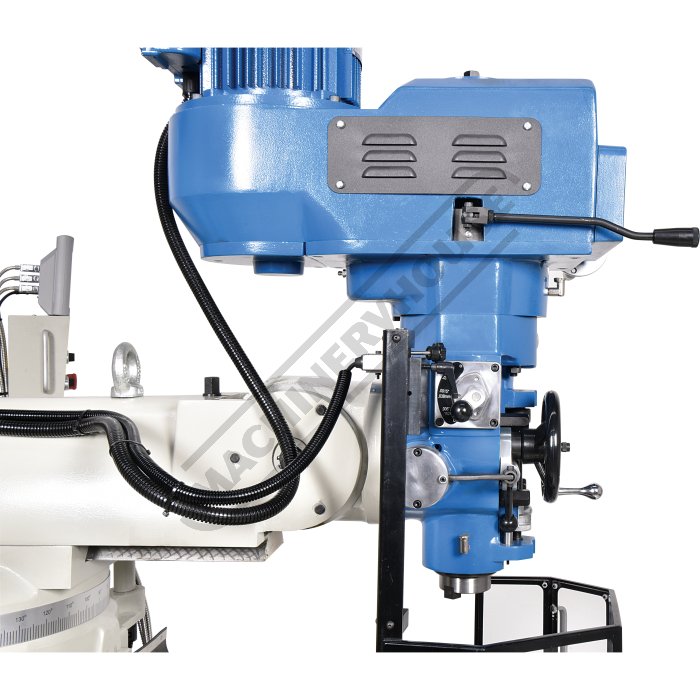

- Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle

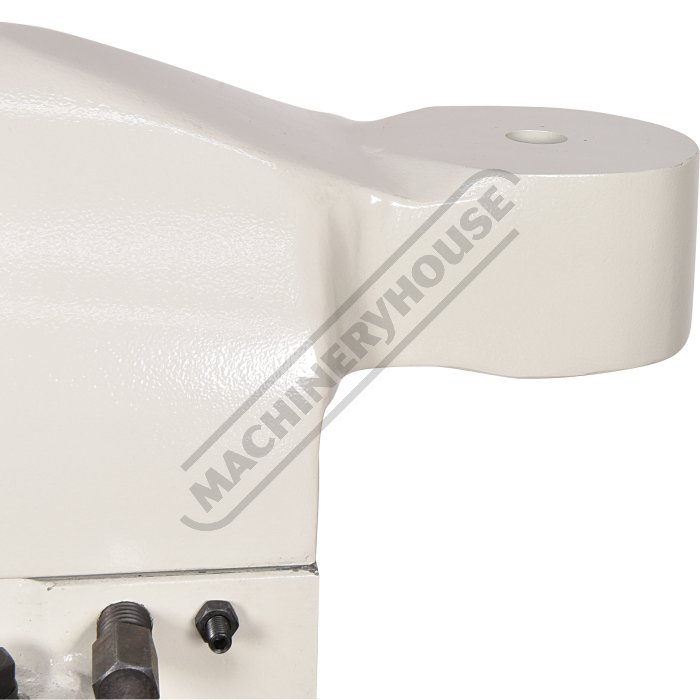

- The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.

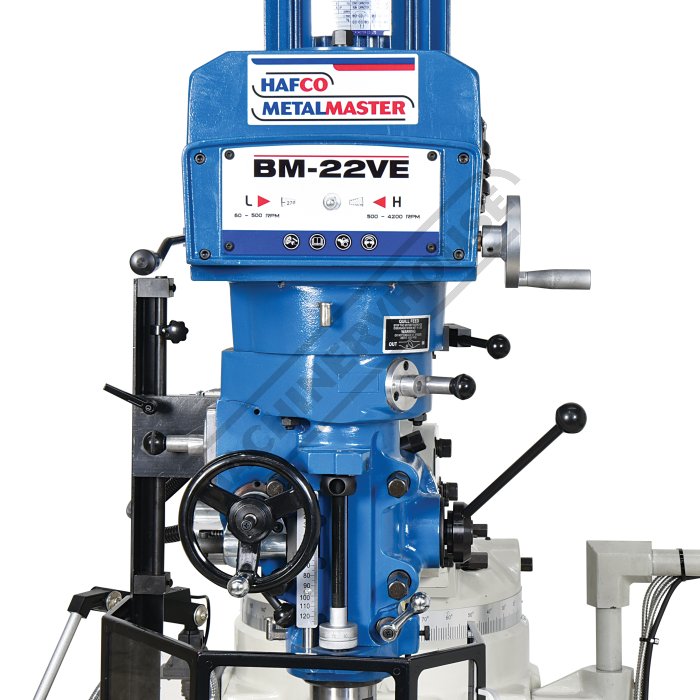

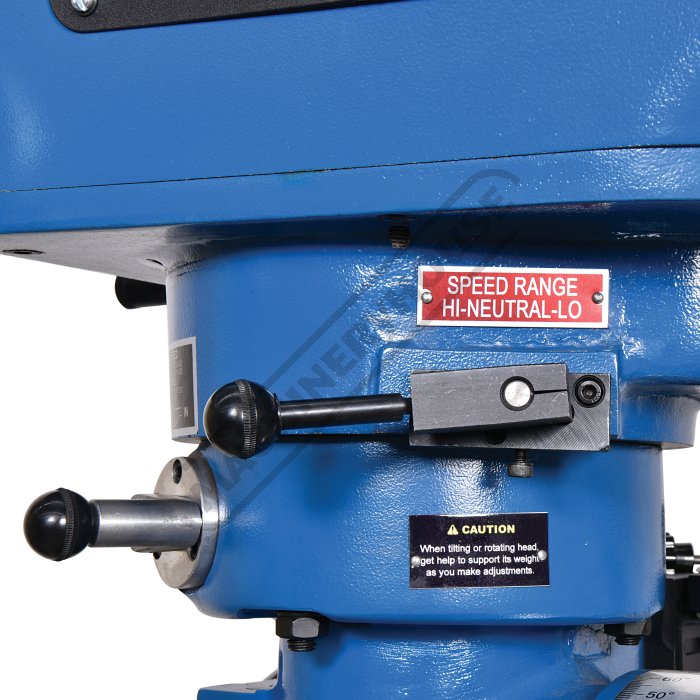

- High / neutral and low gear selection lever to maximise torque

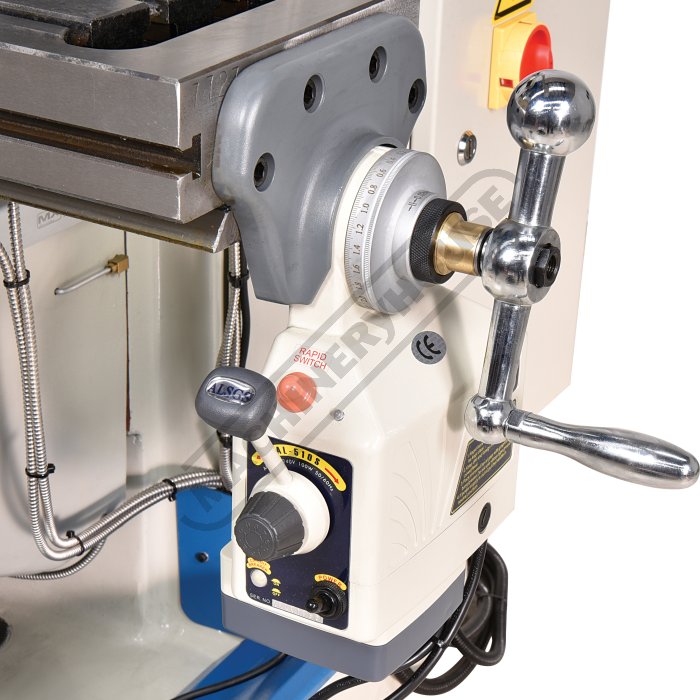

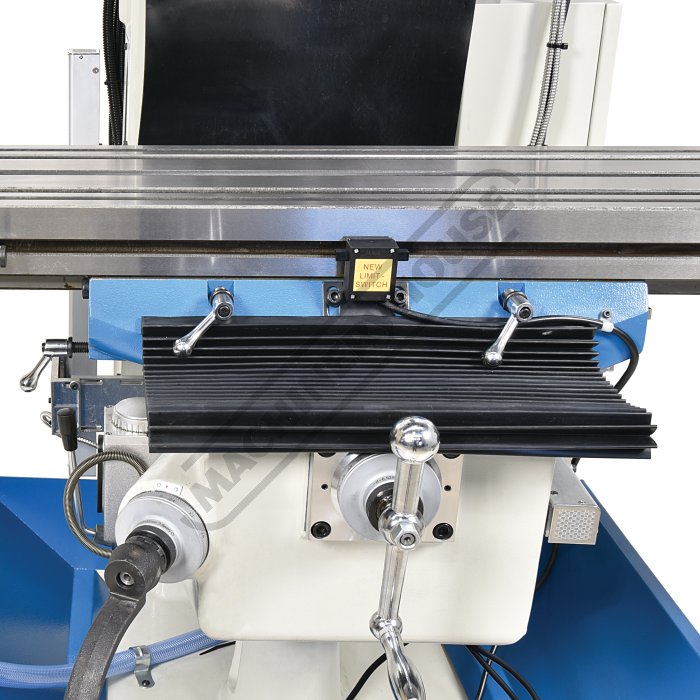

- X-Axis power-feed with adjustable micro switch feed stops

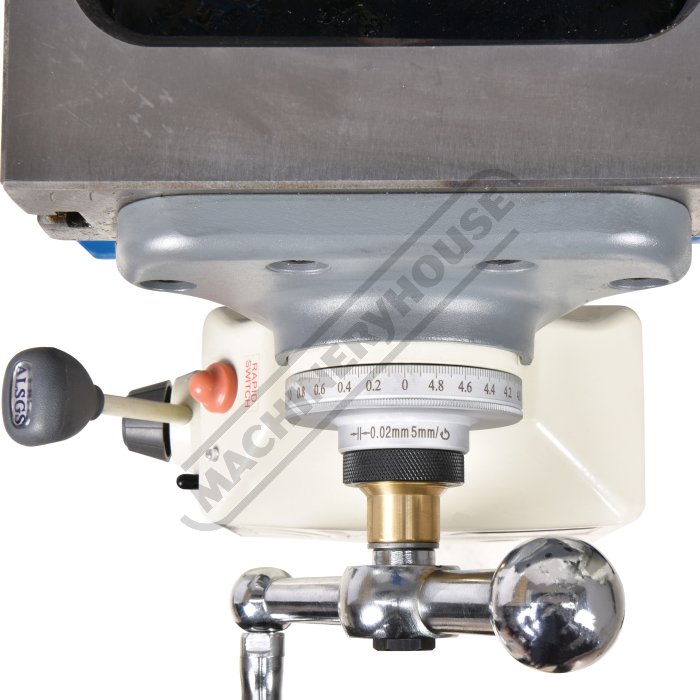

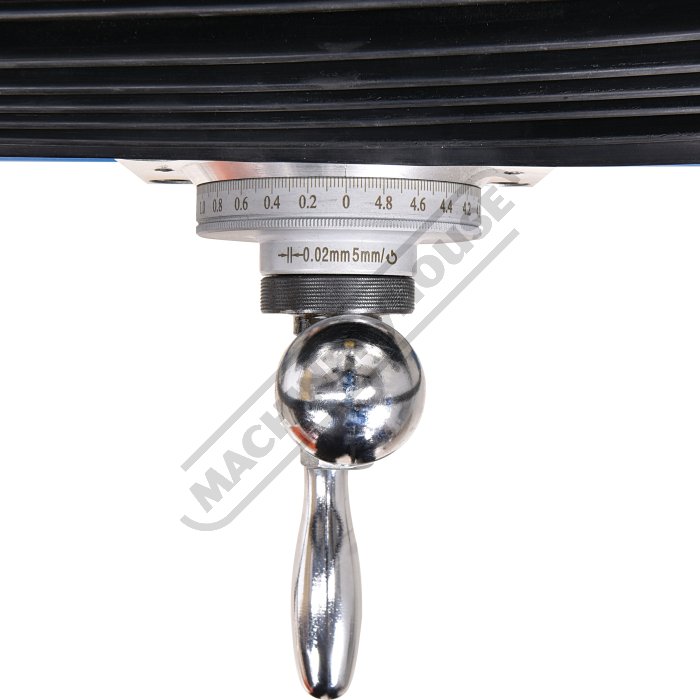

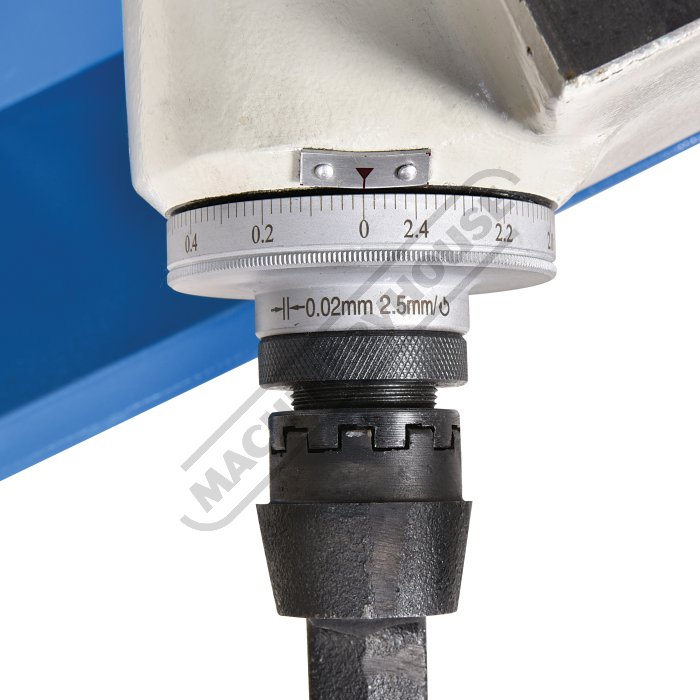

- Metric dial graduations @ 0.02mm for X , Y & Z-Axis

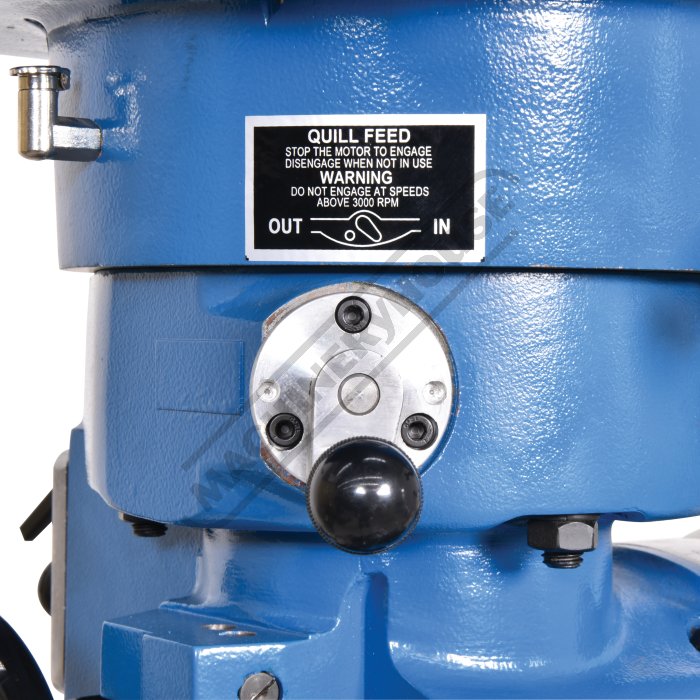

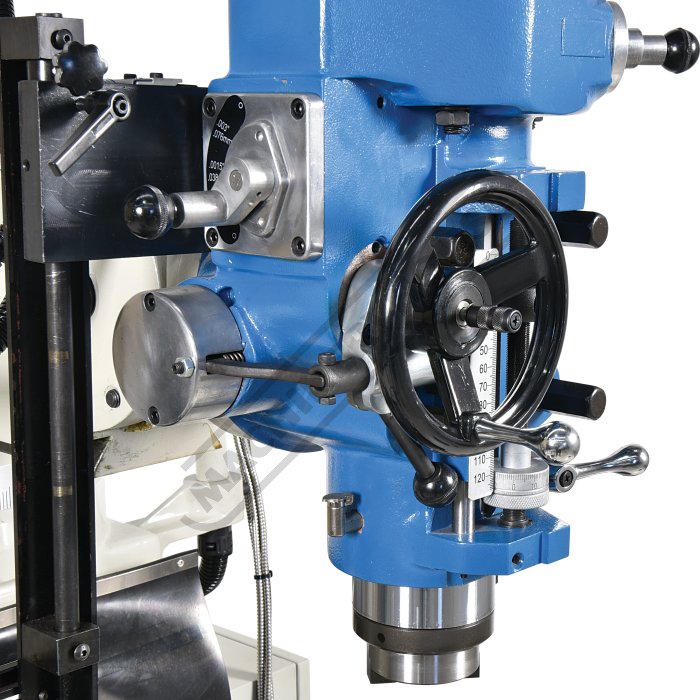

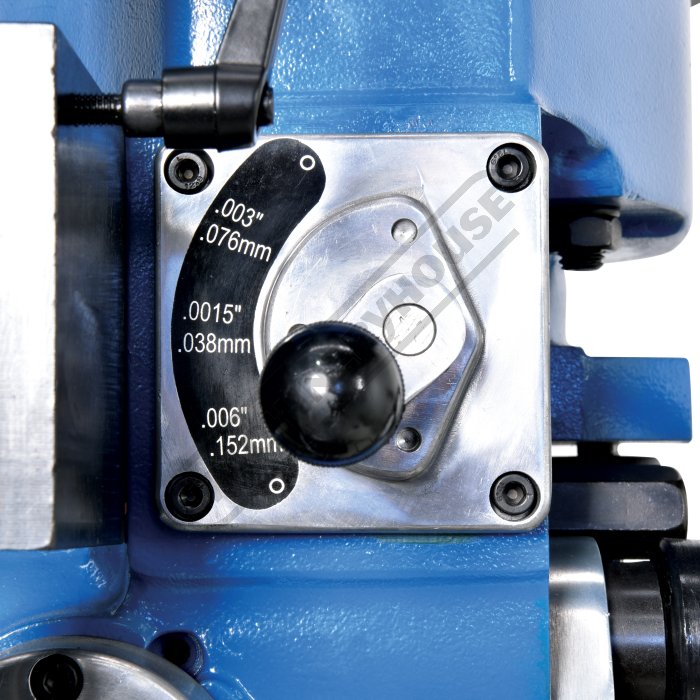

- Automatic quill feed 0.038, 0.076, 0.152mm/rev

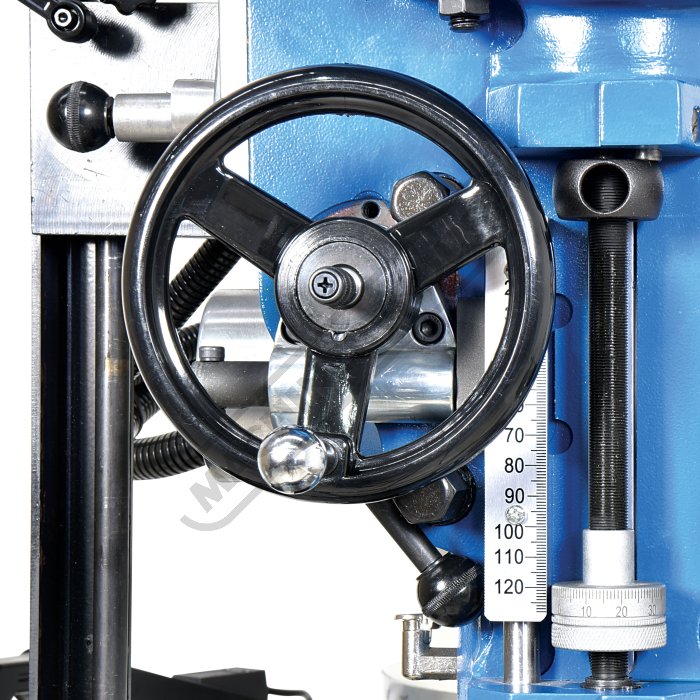

- Automatic cut off depth stop on quill
- Oil lubrication pump and reservoir
- Slide-way covers Y & Z-Axis

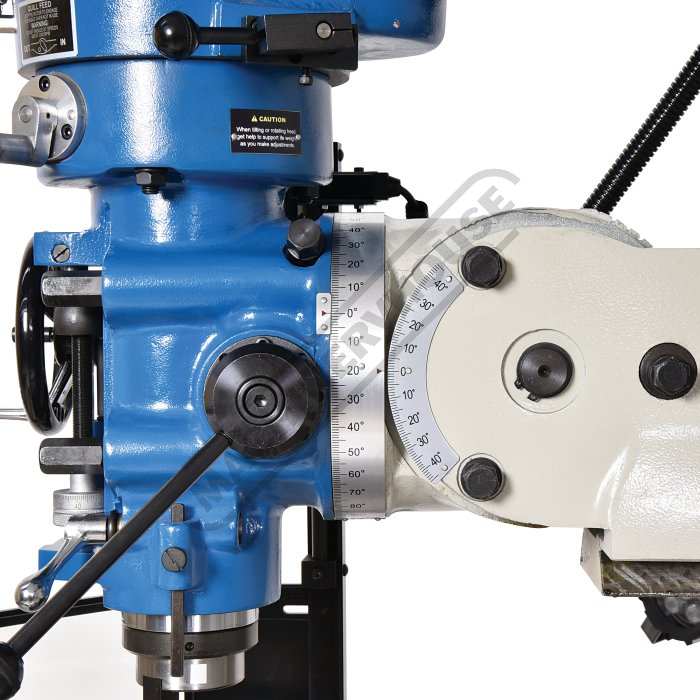

- Mill head tilts to ±45º forward and back
- Mill head tilts to ±90º left and right
- Manual quick action quill lever

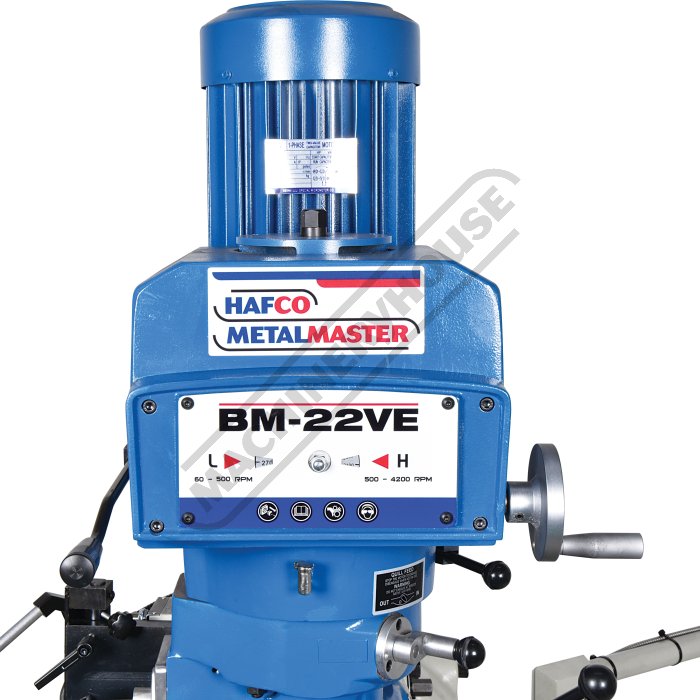

- Mechanical spindle brake
- Tool box and manual
Includes
- 3 Axis digital readout fitted

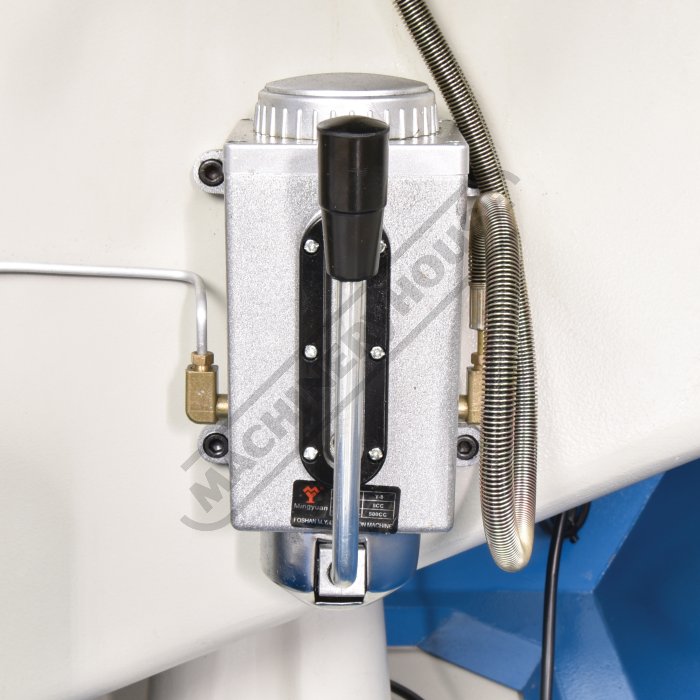

- One-shot oil lubrication pump and reservoir
- Drawbar M12 thread
- Coolant system
- Slideway covers
- X-Axis power-feed

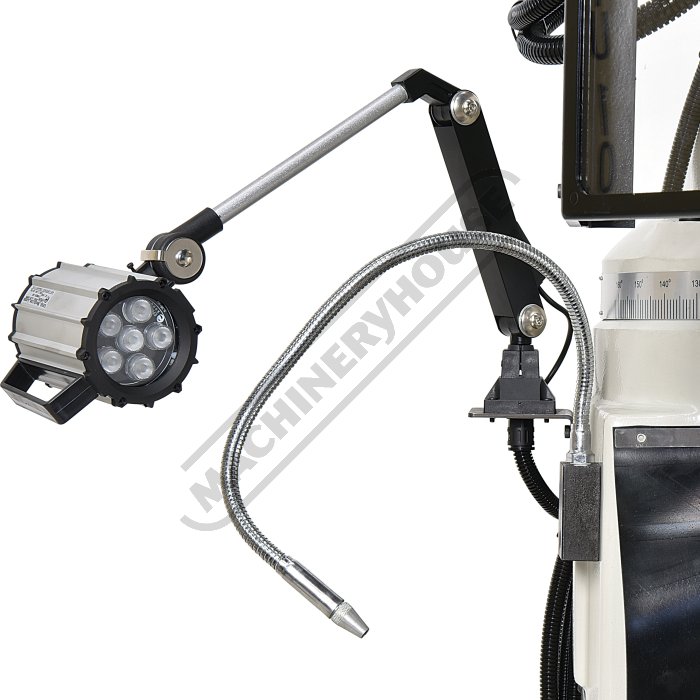

- LED work light

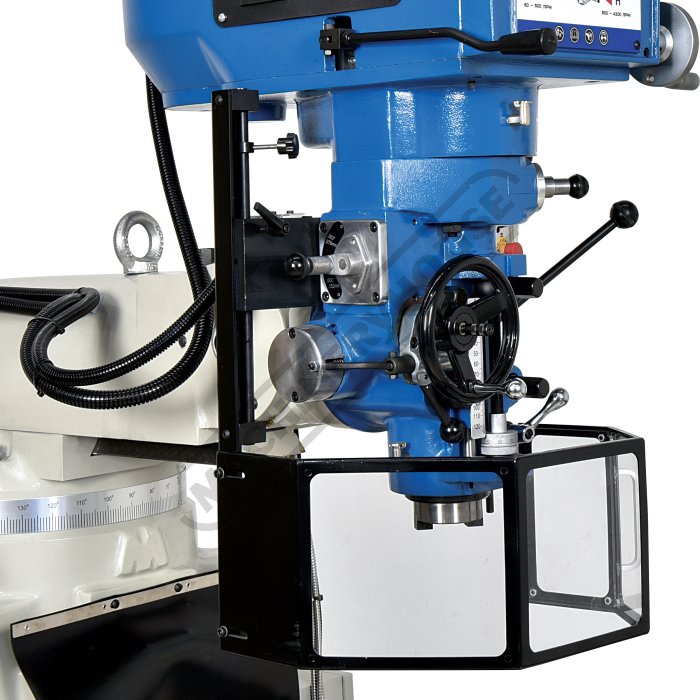

- Safety cutter guard
- Swarf tray
Compare Product Range
Specifications
| ORDER CODE | M592D |
|---|---|
| MODEL | BM-22VE |
| Digital Readout | 3-Axis Digital Readout |
| Type | Vertical |
| (mm)Table Size | 1067 x 230 |
| Spindle Taper - Vertical | NT30 |
| (mm)Longitudinal Travel (X-Axis) | 600 |
| (mm)Cross Travel (Y-Axis) | 325 |
| (mm)Vertical Travel (Z-Axis) | 370 |
| Type of Slides | Dovetail (X, Y & Z) |
| (mm)Ram Travel | 315 |
| (mm)Spindle to Table | 430 |
| (mm)Spindle Travel / Diameter | 127 / 86 |
| (mm)Throat Depth (max.) | 482 |
| Tilting Head (Left ~ Right) | ±90º |
| Tilting Head (Forward ~ Back) | ±45º |
| (mm/rev)Power Feed - Quill | 0.038 / 0.076 / 0.152 |
| (mm/min)Power Feed - Longitudinal (X-Axis) | 20 - 2000 |
| (mm/min)Power Feed - Cross (Y-Axis) | Optional |
| (inch / mm)Table T-Slot Size | 16 |
| (kg)Work Table Load Capacity | 250 |
| (No./ rpm)Spindle Speeds Vertical | Variable (60 - 4200) |
| (kW / hp)Motor Power - Vertical Spindle | 2.2 / 3 |
| (V / amp)Voltage / Amperage | 240 |
| (kg)Nett Weight | 1000 |
