KENNAMETAL Grooving Insert EVO Generation - ERO312M03U00GUP

3.13mm Width Grooving Insert Grade KCU25B / Parting Blade code L4696 and L4697

10 Inserts Per Pack

L0511 1 of 1

Order Code: L0511

Compare

Wishlist

Description Specifications Compare Accessories Downloads

Description

Description

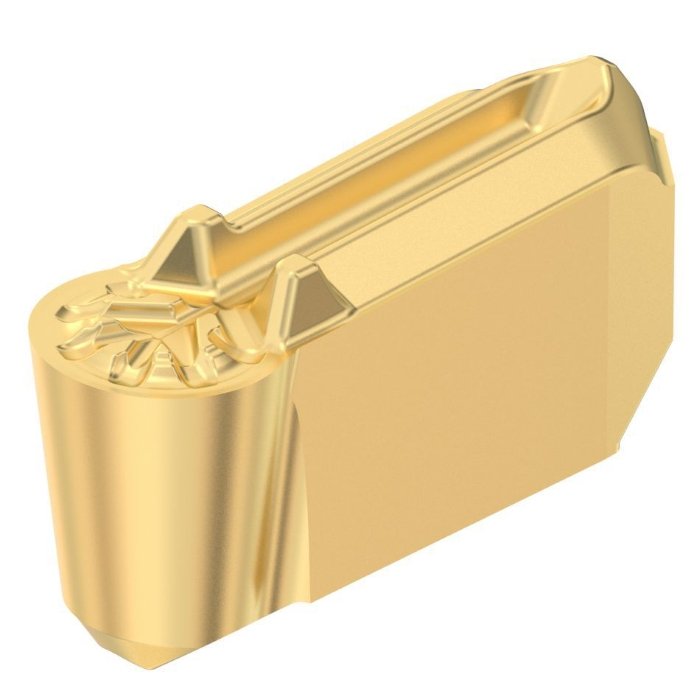

KENNAMETAL Grooving Insert EVO Generation - ERO312M03U00GUP

3.13mm Width Grooving Insert Grade KCU25B / Parting Blade code L4696 and L4697

10 Inserts Per Pack

Overview

KCU25B upgrades Kennametal’s existing KCU25 with a newly engineered KENGold™ PVD, multilayer coating that makes machining from one material to another easy while also achieving consistency in cutting. The nano-composite coating has an enhanced coating adhesion that delivers better flank and chipping resistance. The new EVO grooving inserts fit into Parting Blade codes L4696 and L4697. Please click on Accessories for blade size requirement.

Features

KCU25B - Coated grade: Suitable for heavy machining, particular suitable when turning Austenitic stainless steels. Reduces build up on the cutting edge
3.13mm Width
1.56mm Radius
Made in Germany
10 Inserts Per Pack

Specifications

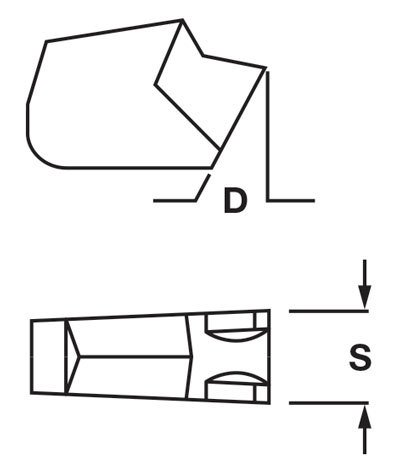

Enlarge Diagram Compare Product Range

Specifications

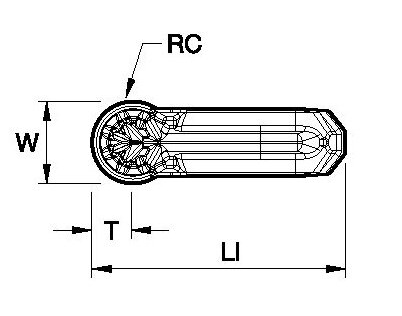

ORDER CODE	L0511
ISO Catalog ID	ERO312M03U00GUP
Grade	KCU25B
(Type)Insert Hand	N
(mm)[W] Cutting Width	3.13
(mm)[RC] Corner Radius Center	1.58
(mm)[LI] Insert Length	9.6
(mm)[T] Cuttg Depth	1.56
(deg)Clearance Angle	7.6°
