Order Code: L0510
ex-gst
inc-gst
$ 160.00
$ 184.00
Made in Germany
Description

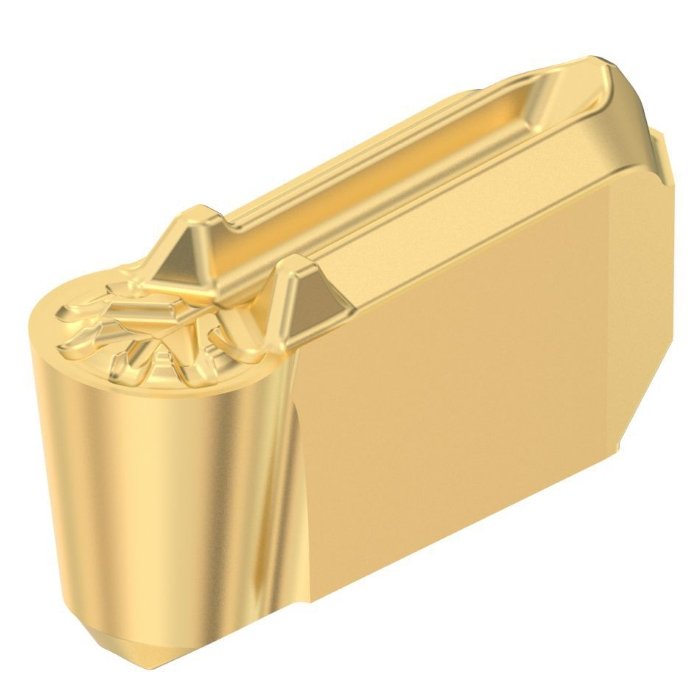

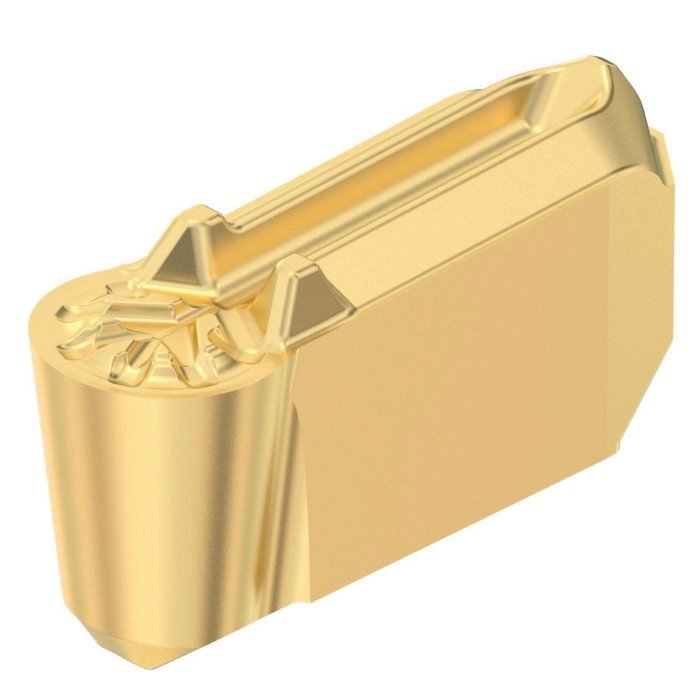

KENNAMETAL Grooving Insert EVO Generation - ERO212M02U00GUP

2.12mm Width Grooving Insert Grade KCU25B / Parting Blade code L4694 and L4695
10 Inserts Per Pack
Overview
KCU25B upgrades Kennametal’s existing KCU25 with a newly engineered KENGold™ PVD, multilayer coating that makes machining from one material to another easy while also achieving consistency in cutting. The nano-composite coating has an enhanced coating adhesion that delivers better flank and chipping resistance. The new EVO grooving inserts fit into Parting Blade codes L4694 and L4695. Please click on Accessories for blade size requirement.
Features
  • KCU25B - Coated grade
  • 2.12mm Width
  • 1.06mm Radius
  • Made in Germany
  • 10 Inserts Per Pack
KENNAMETAL Grooving Insert EVO Generation - ERO212M02U00GUP overview
Compare Product Range Compare Selected

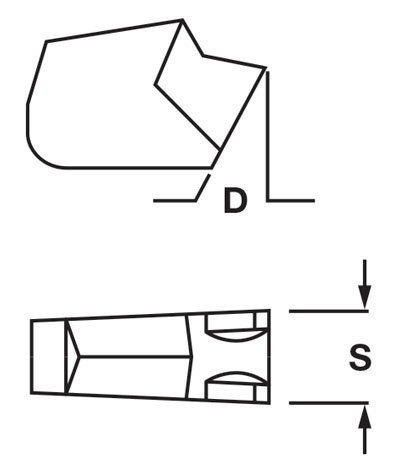

  • KENNAMETAL Grooving Insert EVO Generation - ERO212M02U00GUP diagram
  • Compare:
  • Wishlist:
  • ORDER CODE
  • ISO Catalog ID
  • Grade
  • (Type)Insert Hand

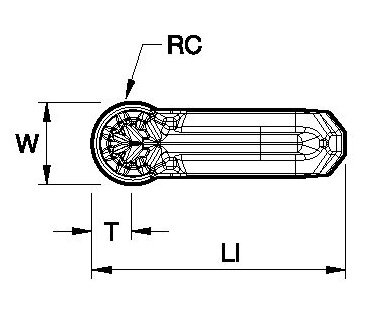

  • (mm)Insert Size
  • (mm)[W] Cutting Width
  • (mm)[RC] Corner Radius Center
  • (mm)[LI] Insert Length
  • (mm)[T] Cuttg Depth
  • (mm)[RR] Corner Radius
  • (deg)Clearance Angle
  • (ex-gst)Pricing
  • (inc-gst)
  • New Release KENNAMETAL Parting Insert EVO generation EC020M02N00CF02
  • Compare
  • Wishlist
  • L0508
  • EC020M02N00CF02
  • KCU25B
  • N
  • ~
  • 2.00
  • .02
  • 8.97
  • 1.65
  • ~
  • 7.6°
  • $160.00
  • $184.00
  • ADD TO CART
  • Coming Soon KENNAMETAL Parting Insert EVO Generation EC030M03N00CF02
  • Compare
  • Wishlist
  • L0509
  • EC030M03N00CF02
  • KCU25B
  • N
  • ~
  • 3.00
  • .02
  • 8.97
  • 1.65
  • ~
  • 7.6°
  • $166.00
  • $190.90
  • ADD TO CART
  • KENNAMETAL Grooving Insert EVO Generation ERO212M02U00GUP
  • Compare
  • Wishlist
  • L0510
  • ERO212M02U00GUP
  • KCU25B
  • N
  • ~
  • 2.12
  • 1.05
  • 8.97
  • 1.65
  • ~
  • 7.6°
  • $160.00
  • $184.00
  • ADD TO CART
  • Coming Soon KENNAMETAL Grooving Insert EVO Generation ERO312M03U00GUP
  • Compare
  • Wishlist
  • L0511
  • ERO312M03U00GUP
  • KCU25B
  • N
  • ~
  • 3.13
  • 1.58
  • 9.6
  • 1.56
  • ~
  • 7.6°
  • $166.00
  • $190.90
  • ADD TO CART
  • KENNAMETAL Carbide Inserts - Parting  A2022N00CR02
  • Compare
  • Wishlist
  • L0512
  • A2022N00CR02
  • KCU25B
  • N
  • 2
  • 2.2
  • ~
  • ~
  • ~
  • 0.2
  • 7.6°
  • $160.00
  • $184.00
  • ADD TO CART
  • KENNAMETAL Carbide Inserts - Parting A2030N00CR02
  • Compare
  • Wishlist
  • L0513
  • A2030N00CR02
  • KCU25B
  • N
  • 3
  • 3
  • ~
  • ~
  • ~
  • 0.2
  • 7.6°
  • $160.00
  • $184.00
  • ADD TO CART
