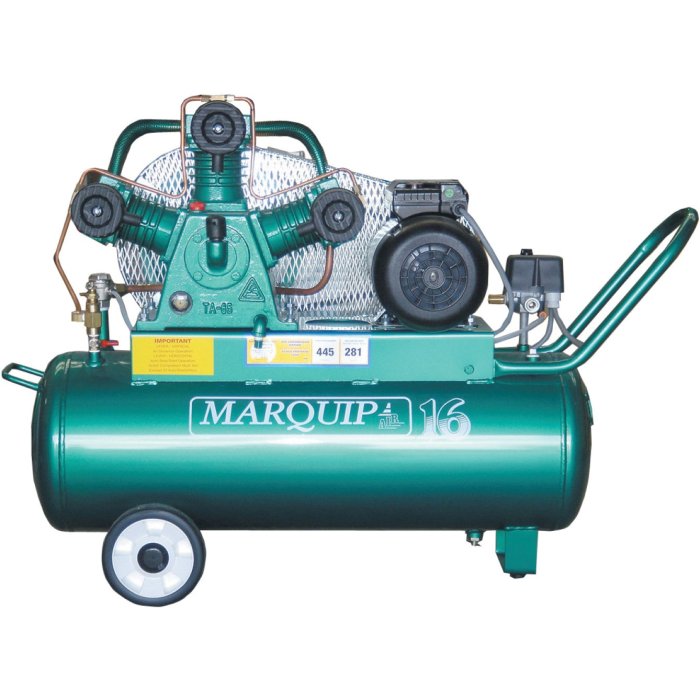

Air Compressor - Belt Drive - 16RSE-DC

16RSE-DC belt-drive heavy duty professional unit suitable for medium demand air tools and spray guns required to produce a professional automotive quality finish.

Dual capacitor start / run 2.7HP motor is complete with overload and manual reset, IP54 rating, TEFC (totally enclosed, fan cooled) and 15 Amp plug and overload.

Air receiver is painted to an automotive quality finish.

MARQUIP electric compressors have been assembled in New Zealand since 1946. The pump is fully cast iron with a low speed of 970rpm ensuring a long life. The compressor produces a displacement of at least 15.7cfm (445 litre/min) and free air delivery of 300 litre/min – arguably the biggest single phase compressor available. A reliable 230V / 15 Amp circuit must be available when operating this unit. Extension leads must be heavy duty.

The DUAL CONTROL or “DC” feature permits the compressor to be switched from pressure switch ONLY operation to continuous run when operating under a high duty cycle.

“DC” Dual Control version which features:
Automatic STOP/START pressure switch (PS) control and automatic free-running air governor (AG) control depending on compressor use and duty the best method of operating can be chosen to suit the job. Heavy duty cast iron pump has cast iron cylinders, air cooled by a large fan-type flywheel. German made pressure switch, Italian check valves, Vibration resistant liquid filled gauges. Efficient air intake filters reduce noise and low revving speed extends pump life

Pump: TA65
Dimensions (L x W x H): 110 x 40 x 80 cm
