PAPR WELDING HELMETS - U11152
Main
1 of 1
On Sale - Back In Stock Soon
Order Code: W992
Please Call
240V / 15A
5 Years Warranty
5 Years Warranty
Description

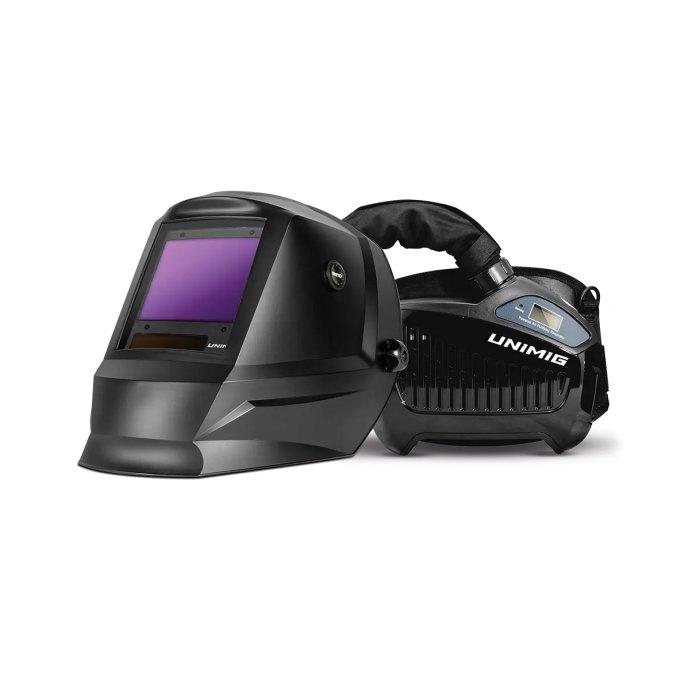

PAPR WELDING HELMETS - U11152
Overview
The PAPR Welding Helmet TH3 lets you keep your lungs as protected as your eyes and face with the added respirator to keep fumes and gas out.
Features
- TH3 filter protection stops 99.8% of fine particles, weld fumes and gas
- With up to 8 hours of battery life, you can work all day on a single charge
- Top-of-the-line optical clarity with 1/1/1/1 classifications
- Outer Lens: PUMRBOP
- Inner Lens: PUMRWXIP
- Harness: UMRWXHR
Compare Product Range
Specifications
| (mm)Viewing Area | 100x83.4mm |
|---|---|
| (mm)Cartridge Size | 114x133x9.5mm |
| (No.)Arc Sensors | 4 |
| Light State | 4 |
| Shade | 5-9 / 9-13 |
| Shade Control | Yes |
| Sensitivity Control | Adjustable (1-5 for low-high) |
| UV/IR Protection | DIN15 |
| Helmet Power Supply | ~ |
| Respirator Power Supply | Solar Cells & CR2450 Replaceable Battery |
| Switching Time Light To Dark | 0.08ms |
| (sec)Delay Time Dark To Light (Seconds) | 0.1-0.9s |
| (amp)TIG Rated Minimum | 3A |
| (Yes / No)Grinding Function | Yes |
| Operating Temperature | -10?C to 65?C |
| Storing Temperature | -20?C to 85?C |
| Helmet Material | ~ |
| Application Range | ~ |
| Standard | CE EN379, ANSI Z87.1, CSA Z94.3, AS/NZS 1337.1 B (High Impact) AS/NZS 1338.1 (Auto-Darkening) AS/NZS 1716:2012 |
- Compare:
- Wishlist:
- ORDER CODE
- MODEL
- (mm)Viewing Area
- (mm)Cartridge Size
- (No.)Arc Sensors
- Light State
- Shade
- Shade Control
- Power On/off
- Sensitivity Control
- UV/IR Protection
- Helmet Power Supply
- Respirator Power Supply
- Switching Time Light To Dark
- (sec)Delay Time Dark To Light (Seconds)
- (amp)TIG Rated Minimum
- (Yes / No)Grinding Function
- Inactive Shade (Grind/Off)
- Operating Temperature
- Storing Temperature
- Helmet Material
- Application Range
- Standard
- (grams)Total Weight
- (ex-gst)Pricing
- (inc-gst)
- On Sale
-
Compare
-
Wishlist
- W011
- WT350
- 100 x 67
- ~
- 4
- ~
- 9 ~ 13
- ~
- Fully Automatic
- Low - High
- ~
- Solar Cell, Battery Change
Required
- ~
- ~
- 0.15 ~ 0.80
- 2
- Yes
- ~
- -5 C to +55 C
- -10 C to +65 C
- ~
- Stick, Mig, Tig, Arc Welding,
& Grinding Mode
- Lens: AS/NZS1338.1, EN379, ANSI Z87.1,
CSA Z94.3
Shell: AS/NZS1337.1 High Impact EN 175 B,
ANSI Z87.1, CSA Z94.3
- ~
- $86.09
- $99.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- W001
- PROMAX 200
- 96 x 39
- ~
- 2
- ~
- 9 ~ 13
- Internal Variable Shade
- Fully Automatic
- Adjustable Dial, Low ~ High
- ~
- Solar Cell,
Non Replaceable Battery
- ~
- 1/30,000 (0.00003) sec
- 0.1 ~ 1.0
- ~
- Yes - ON/Off Switch
- Shade 4
- -5ºC ~ +55ºC
- -10ºC ~ +65ºC
- ~
- Stick, Mig, Arc Welding &
Grinding
- Lens: EN379
Shell: EN175
- 460
- $86.09
- $99.00
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- W002
- PROMAX 350
- 100 x 53
- ~
- 4
- ~
- 9 ~ 13
- Internal Variable Shade
- Fully Automatic
- Adjustable Dial, Low ~ High
- ~
- Solar Cell, Battery Change
Required (1 x CR2032
lithium battery) - ~
- 1/30,000 (0.00003) seconds
- 0.1 ~ 1.0
- 30
- Yes - ON/Off Switch
- Shade 4
- -5ºC ~ +55ºC
- -10ºC ~ +65ºC
- High Impact Nylon
- Stick, Mig, Tig, Arc Welding
& Grinding
- Lens: AS/NZS1338.1,
EN379, ANSI Z87.1,
CSA Z94.3
Shell: AS/NZS1337.1
High Impact EN 175 B,
ANSI Z87.1, CSA Z94.3 - 480
- $160.00
- $184.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- W1089
- PANORAMAXX
- 100 x 50
- ~
- 5
- ~
- (2.5) 5 ~ 13
- Variable Shade Levels
- Fully Automatic
- Yes (Infinitely adjustable, Super High)
- Yes
- Solar Cell, Battery Change
Required
- ~
- 0.090ms
- ~
- ~
- Yes
- ~
- -10°C to + 70°C
- -20°C to + 80°C
- ~
- Mig, Tig, Arc Welding,
Plasma & Grinding Mode
- CE, ANSI Z87.1 (ADF and helmet shell)
EAC, complies with CSA Z94.3
- ~
- $778.26
- $895.00
- ADD TO CART
- On Sale - Limited Stock
-
Compare
-
Wishlist
- Z00894AC
- DW7000XL
- 100 x 50
- ~
- ~
- ~
- 5 ~ 13
- ~
- Fully Automatic
- ~
- ~
- Solar Cell, Battery Change
Required
- ~
- 0.1ms
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- Mig, Tig, Arc Welding,
& Plasma
- ~
- ~
- $913.04
- $1,050.00
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- W1097
- OT20402 Clearmaxx Std Grinding Helmet
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- TIG MIG MMA, Plasma
- ~
- ~
- $95.65
- $110.00
- ADD TO CART
- On Sale - Limited Stock
-
Compare
-
Wishlist
- W1094
- Clearmaxx Grinding Helmet & Swiss Air Kit
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- $1,750.00
- $2,012.50
- ADD TO CART
- On Sale
-
Compare
-
Wishlist
- W1094A
- Swiss Air Half-Mask Replacement - 4160.500
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- $95.65
- $110.00
- ADD TO CART
-
-
Compare
-
Wishlist
- W1092
- Vegaview2.5
- ~
- ~
- 3 with variable angle detect
- ~
- (2.5) 8 ~ 12
- Variable Shade Levels
- Fully Automatic
- Yes (Super High)
- Yes
- Solar Cell, Battery Change
Required
- ~
- 0.100ms
- 0.05 - 1.0
- ~
- Yes
- ~
- -10°C to + 70°C
- -20°C to + 80°C
- ~
- Mig, Tig, Arc Welding,
Plasma & Grinding Mode
- CE, ANSI, also complies with
CSA Z94.3
- ~
- $1,898.00
- $2,182.70
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- W990
- U21032
- 98x48mm
- 110x90x10mm
- 4
- 4
- 9-13
- Yes
- Yes
- Adjustable (Internal)
- DIN15
- Solar Cells & CR2450 Replaceable Battery
- ~
- 0.1ms
- 0.1-0.8s
- 3A
- Yes - ON/Off Switch
- Yes (External)
- -5˚C to 55˚C
- -20˚C to 55˚C
- ~
- Stick, Mig, Tig, Arc Welding,
Grinding, Plasma,
- CE EN379, ANSI Z87.1, CSA Z94.3
AS/NZS 1337.1 B (High Impact)
AS/NZS 1338.1 (Auto-Darkening)
- ~
- Please Call
- Please Call
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- W991
- U21015
- 102.5x102.5mm
- 114x133x9.5mm
- 4 Arc Sensors, 1 Arc Intensity Sensor
- 3
- 5-13
- Yes
- ~
- Adjustable (1-5 for low-high)
- DIN15
- Solar Cells & 2 x CR2450
Replaceable Battery
- ~
- 0.04ms
- 0.1-0.9s
- 2A
- Yes (External)
- ~
- -10˚C to 65˚C
- -20˚C to 85˚C
- ~
- Mig, Tig, Stick, Plasma
Grind
- AS/NZS 1337.1 B (High Impact)
AS/NZS 1338.1 (Auto-Darkening)
- ~
- Please Call
- Please Call
- ADD TO CART
- On Sale - Back In Stock Soon
-
Compare
-
Wishlist
- W992
- ~
- 100x83.4mm
- 114x133x9.5mm
- 4
- 4
- 5-9 / 9-13
- Yes
- ~
- Adjustable (1-5 for low-high)
- DIN15
- ~
- Solar Cells & CR2450 Replaceable Battery
- 0.08ms
- 0.1-0.9s
- 3A
- Yes
- ~
- -10?C to 65?C
- -20?C to 85?C
- ~
- ~
- CE EN379, ANSI Z87.1, CSA Z94.3,
AS/NZS 1337.1 B (High Impact)
AS/NZS 1338.1 (Auto-Darkening)
AS/NZS 1716:2012
- ~
- Please Call
- Please Call
- ADD TO CART
