On Sale - Back In Stock Soon
Order Code: W990

Please Call
240V / 15A
5 Years Warranty
Description

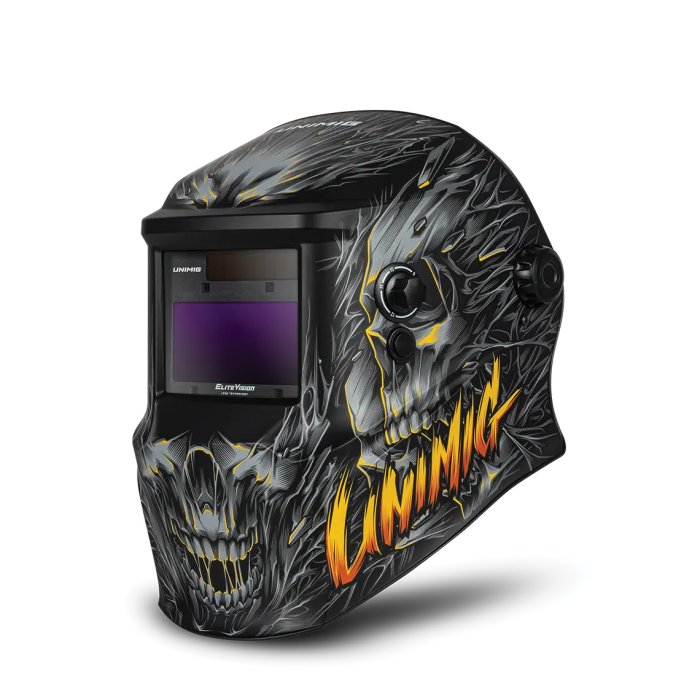

Revenant Welding Helmet - U21032

Suits Mig, Tig, Arc, Plasma & Includes Grinding Function
4 Arc Sensors
Overview
98x48mm View Size
Get clear visibility in every situation. The 98x48mm viewing area lets you see every weld
with complete clarity.
External Grind Button
Seamlessly switch to grind mode with the click of a button. When the helmet is in grind
mode a small LED will illuminate, so you don’t need to take the helmet off to check.
9-13 Shade Control
Keep your eyes protected no matter the weld type. With a 9 to 13 shade range, you’ll be
covered while MIG, TIG or STICK welding, even when running as high as 500A.
4 Arc Sensors
Detect every arc instantly. The four optimally positioned arc sensors trigger the lens,
darkening it and keeping your eyes shielded from the start, even when you’re out of position.
Backup Battery
A CR2450 backup battery improves the performance and reliability of the auto-darkening filter.
4 Point Harness
Get the perfect fit and stay comfortable for hours. Adjust all 4 points of contact to suit you,
and have the weight spread more evenly, minimising neck strain.
EliteVision Lens Technology
See your weld clearly in true colour. EliteVision technology allows more colours from the
spectrum to pass through the view, giving you better optical clarity and reducing eye fatigue.
Features
  • Clear visibility in every situation with a 98x48mm view
  • EliteVision Lens Technology lets you see the weld clearly with a true colour view
  • Get the perfect fit and stay comfortable for hours with four points of contact
Includes
  • Core Series Welding Helmet
  • Operating Manual
  • Carry Bag
  • Spare Inner/Outer Lens Cover
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • (mm)Viewing Area
  • (mm)Cartridge Size
  • (No.)Arc Sensors
  • Light State
  • Shade
  • Shade Control
  • Power On/off
  • Sensitivity Control

  • UV/IR Protection
  • Helmet Power Supply


  • Respirator Power Supply

  • Switching Time Light To Dark
  • (sec)Delay Time Dark To Light (Seconds)

  • (amp)TIG Rated Minimum
  • (Yes / No)Grinding Function
  • Inactive Shade (Grind/Off)
  • Operating Temperature
  • Storing Temperature
  • Helmet Material

  • Application Range


  • Standard





  • (grams)Total Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • On Sale W011
  • Compare
  • Wishlist
  • W011
  • WT350
  • 100 x 67
  • ~
  • 4
  • ~
  • 9 ~ 13
  • ~
  • Fully Automatic
  • Low - High

  • ~
  • Solar Cell, Battery Change
    Required

  • ~

  • ~
  • 0.15 ~ 0.80

  • 2
  • Yes
  • ~
  • -5 C to +55 C
  • -10 C to +65 C
  • ~

  • Stick, Mig, Tig, Arc Welding,
    & Grinding Mode

  • Lens: AS/NZS1338.1, EN379, ANSI Z87.1,
    CSA Z94.3
    Shell: AS/NZS1337.1 High Impact EN 175 B,
    ANSI Z87.1, CSA Z94.3


  • ~
  • $86.09
  • $99.00
  • ADD TO CART
  • On Sale W001
  • Compare
  • Wishlist
  • W001
  • PROMAX 200
  • 96 x 39
  • ~
  • 2
  • ~
  • 9 ~ 13
  • Internal Variable Shade
  • Fully Automatic
  • Adjustable Dial, Low ~ High

  • ~
  • Solar Cell,
    Non Replaceable Battery

  • ~

  • 1/30,000 (0.00003) sec
  • 0.1 ~ 1.0

  • ~
  • Yes - ON/Off Switch
  • Shade 4
  • -5ºC ~ +55ºC
  • -10ºC ~ +65ºC
  • ~

  • Stick, Mig, Arc Welding &
    Grinding

  • Lens: EN379
    Shell: EN175




  • 460
  • $86.09
  • $99.00
  • ADD TO CART
  • On Sale - Back In Stock Soon W002
  • Compare
  • Wishlist
  • W002
  • PROMAX 350
  • 100 x 53
  • ~
  • 4
  • ~
  • 9 ~ 13
  • Internal Variable Shade
  • Fully Automatic
  • Adjustable Dial, Low ~ High

  • ~
  • Solar Cell, Battery Change
    Required (1 x CR2032
    lithium battery)
  • ~

  • 1/30,000 (0.00003) seconds
  • 0.1 ~ 1.0

  • 30
  • Yes - ON/Off Switch
  • Shade 4
  • -5ºC ~ +55ºC
  • -10ºC ~ +65ºC
  • High Impact Nylon

  • Stick, Mig, Tig, Arc Welding
    & Grinding

  • Lens: AS/NZS1338.1,
    EN379, ANSI Z87.1,
    CSA Z94.3
    Shell: AS/NZS1337.1
    High Impact EN 175 B,
    ANSI Z87.1, CSA Z94.3
  • 480
  • $160.00
  • $184.00
  • ADD TO CART
  • On Sale W1089
  • Compare
  • Wishlist
  • W1089
  • PANORAMAXX
  • 100 x 50
  • ~
  • 5
  • ~
  • (2.5) 5 ~ 13
  • Variable Shade Levels
  • Fully Automatic
  • Yes (Infinitely adjustable, Super High)

  • Yes
  • Solar Cell, Battery Change
    Required

  • ~

  • 0.090ms
  • ~

  • ~
  • Yes
  • ~
  • -10°C to + 70°C
  • -20°C to + 80°C
  • ~

  • Mig, Tig, Arc Welding,
    Plasma & Grinding Mode

  • CE, ANSI Z87.1 (ADF and helmet shell)
    EAC, complies with CSA Z94.3




  • ~
  • $778.26
  • $895.00
  • ADD TO CART
  • On Sale - Limited Stock W1087
  • Compare
  • Wishlist
  • Z00894AC
  • DW7000XL
  • 100 x 50
  • ~
  • ~
  • ~
  • 5 ~ 13
  • ~
  • Fully Automatic
  • ~

  • ~
  • Solar Cell, Battery Change
    Required

  • ~

  • 0.1ms
  • ~

  • ~
  • ~
  • ~
  • ~
  • ~
  • ~

  • Mig, Tig, Arc Welding,
    & Plasma

  • ~





  • ~
  • $913.04
  • $1,050.00
  • ADD TO CART
  • On Sale W1097
  • Compare
  • Wishlist
  • W1097
  • OT20402 Clearmaxx Std Grinding Helmet
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~

  • ~
  • ~


  • ~

  • ~
  • ~

  • ~
  • ~
  • ~
  • ~
  • ~
  • ~

  • TIG MIG MMA, Plasma


  • ~





  • ~
  • $95.65
  • $110.00
  • ADD TO CART
  • On Sale - Limited Stock W1094
  • Compare
  • Wishlist
  • W1094
  • Clearmaxx Grinding Helmet & Swiss Air Kit
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~

  • ~
  • ~


  • ~

  • ~
  • ~

  • ~
  • ~
  • ~
  • ~
  • ~
  • ~

  • ~


  • ~





  • ~
  • $1,750.00
  • $2,012.50
  • ADD TO CART
  • On Sale W1094A
  • Compare
  • Wishlist
  • W1094A
  • Swiss Air Half-Mask Replacement - 4160.500
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~

  • ~
  • ~


  • ~

  • ~
  • ~

  • ~
  • ~
  • ~
  • ~
  • ~
  • ~

  • ~


  • ~





  • ~
  • $95.65
  • $110.00
  • ADD TO CART
  • W1092
  • Compare
  • Wishlist
  • W1092
  • Vegaview2.5
  • ~
  • ~
  • 3 with variable angle detect
  • ~
  • (2.5) 8 ~ 12
  • Variable Shade Levels
  • Fully Automatic
  • Yes (Super High)

  • Yes
  • Solar Cell, Battery Change
    Required

  • ~

  • 0.100ms
  • 0.05 - 1.0

  • ~
  • Yes
  • ~
  • -10°C to + 70°C
  • -20°C to + 80°C
  • ~

  • Mig, Tig, Arc Welding,
    Plasma & Grinding Mode

  • CE, ANSI, also complies with
    CSA Z94.3




  • ~
  • $1,898.00
  • $2,182.70
  • ADD TO CART
  • On Sale - Back In Stock Soon W990
  • Compare
  • Wishlist
  • W990
  • U21032
  • 98x48mm
  • 110x90x10mm
  • 4
  • 4
  • 9-13
  • Yes
  • Yes
  • Adjustable (Internal)

  • DIN15
  • Solar Cells & CR2450 Replaceable Battery


  • ~

  • 0.1ms
  • 0.1-0.8s

  • 3A
  • Yes - ON/Off Switch
  • Yes (External)
  • -5˚C to 55˚C
  • -20˚C to 55˚C
  • ~

  • Stick, Mig, Tig, Arc Welding, Grinding, Plasma,


  • CE EN379, ANSI Z87.1, CSA Z94.3
    AS/NZS 1337.1 B (High Impact)
    AS/NZS 1338.1 (Auto-Darkening)



  • ~
  • Please Call
  • Please Call
  • ADD TO CART
  • On Sale - Back In Stock Soon W991
  • Compare
  • Wishlist
  • W991
  • U21015
  • 102.5x102.5mm
  • 114x133x9.5mm
  • 4 Arc Sensors, 1 Arc Intensity Sensor
  • 3
  • 5-13
  • Yes
  • ~
  • Adjustable (1-5 for low-high)

  • DIN15
  • Solar Cells & 2 x CR2450
    Replaceable Battery

  • ~

  • 0.04ms
  • 0.1-0.9s

  • 2A
  • Yes (External)
  • ~
  • -10˚C to 65˚C
  • -20˚C to 85˚C
  • ~

  • Mig, Tig, Stick, Plasma Grind


  • AS/NZS 1337.1 B (High Impact)
    AS/NZS 1338.1 (Auto-Darkening)




  • ~
  • Please Call
  • Please Call
  • ADD TO CART
  • On Sale - Back In Stock Soon W992
  • Compare
  • Wishlist
  • W992
  • ~
  • 100x83.4mm
  • 114x133x9.5mm
  • 4
  • 4
  • 5-9 / 9-13
  • Yes
  • ~
  • Adjustable (1-5 for low-high)

  • DIN15
  • ~


  • Solar Cells & CR2450 Replaceable Battery

  • 0.08ms
  • 0.1-0.9s

  • 3A
  • Yes
  • ~
  • -10?C to 65?C
  • -20?C to 85?C
  • ~

  • ~


  • CE EN379, ANSI Z87.1, CSA Z94.3,
    AS/NZS 1337.1 B (High Impact)
    AS/NZS 1338.1 (Auto-Darkening)
    AS/NZS 1716:2012


  • ~
  • Please Call
  • Please Call
  • ADD TO CART
