Order Code: W1139G
ex-gst
inc-gst
$ 294.00
$ 338.10
1 Year Warranty
Compare
Wishlist
Description

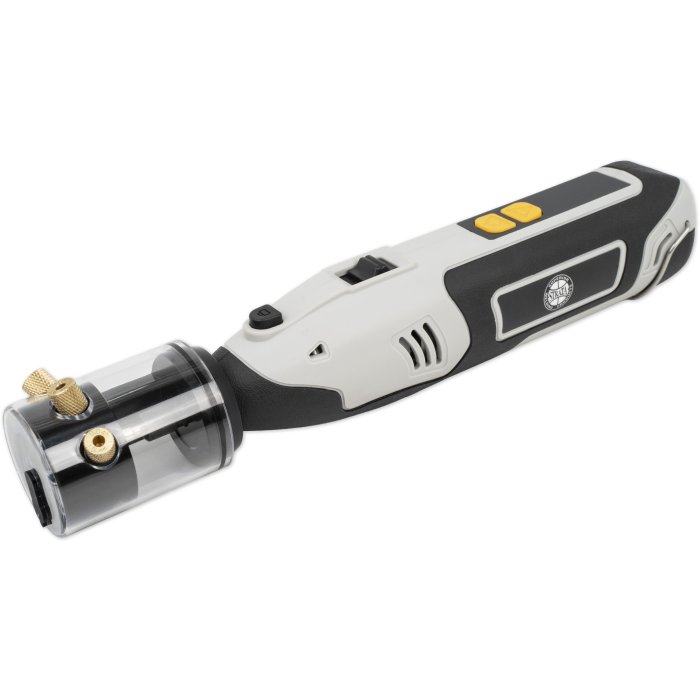

12V Cordless Tungsten Grinder - STG12

25mm Max. Disc Diameter
Tungsten Grinder
Overview
The Strata STG12 12V Cordless Tungsten Grinder is a compact, portable solution for accurately sharpening TIG tungsten electrodes on site or in the workshop. Designed for fabricators, engineers, and welders, it delivers consistent grind angles with repeatable results, without the need for a bench grinder.

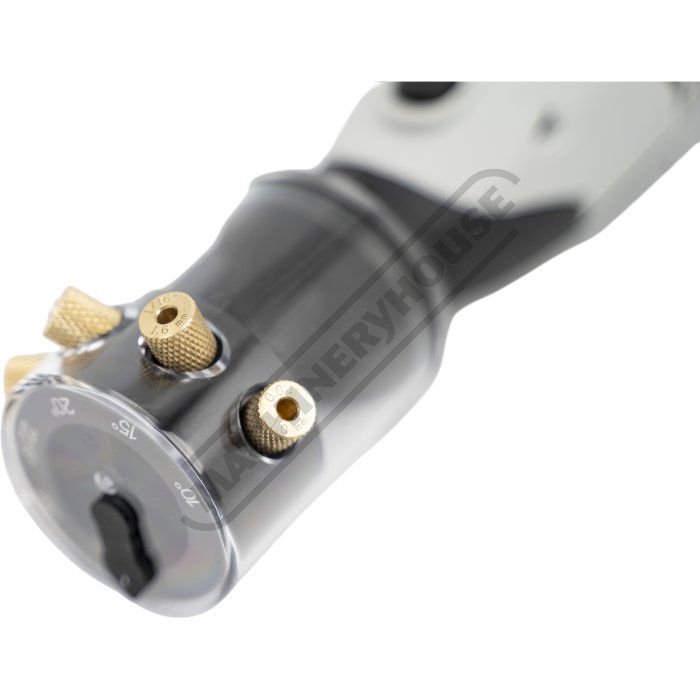

The STG12 easily sharpens tungsten electrodes from 1.0 mm to 3.2 mm diameter, producing clean, centred points with selectable grinding angles. Adjustable angle settings of 10°, 15°, 20°, 22.5°, and 25° allow you to match electrode geometry to material type, amperage, and welding position.

Powered by a 12V lithium-ion battery, the Strata STG12 offers cordless convenience with enough power for plenty of long shifts and regular TIG preparation work. Variable speed control lets you adjust grinding speed based on tungsten condition, improving finish quality and diamond wheel life.
Features
  • Cordless 12V lithium-ion operation for portability
  • Precision grinding for improved TIG arc control
  • Adjustable grinding angles from 10° to 25°
  • Variable speed control to suit tungsten condition
  • Built-in tungsten breaker for contaminated electrodes
  • Compact size suited to site work, fabrication shops.

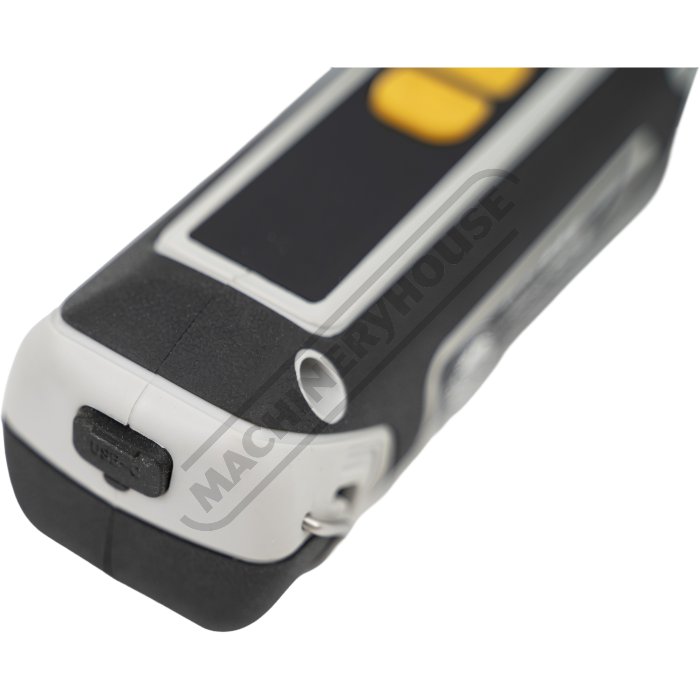

  • Generic USB C type charging
  • Diamond grinding wheels designed for long service life

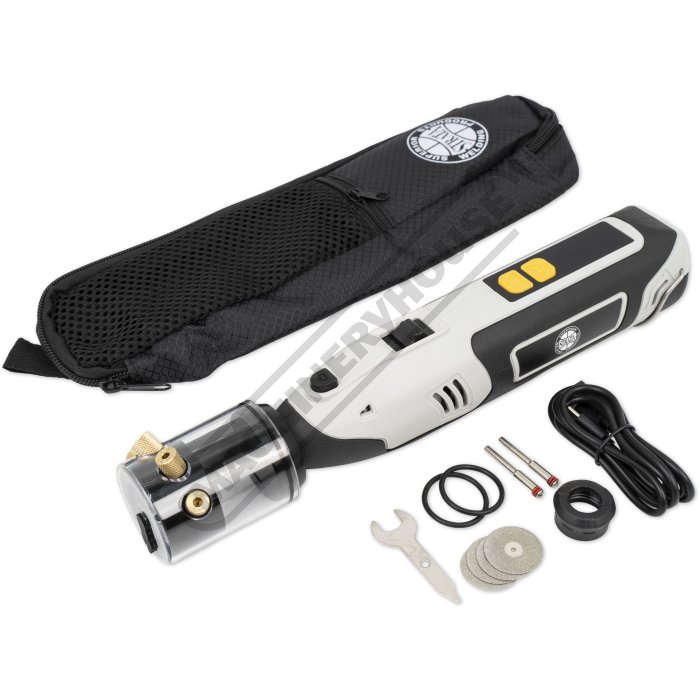

Includes
  • Strata 12V Cordless Tungsten Grinder / Cutter Kit
  • 5pcs Diamond Grinding Disc
  • 3pcs Mandrel
  • Tungsten Grinder Head Assembly
  • Collet Wrench
  • USB Type-C Cable
  • Storage bag
