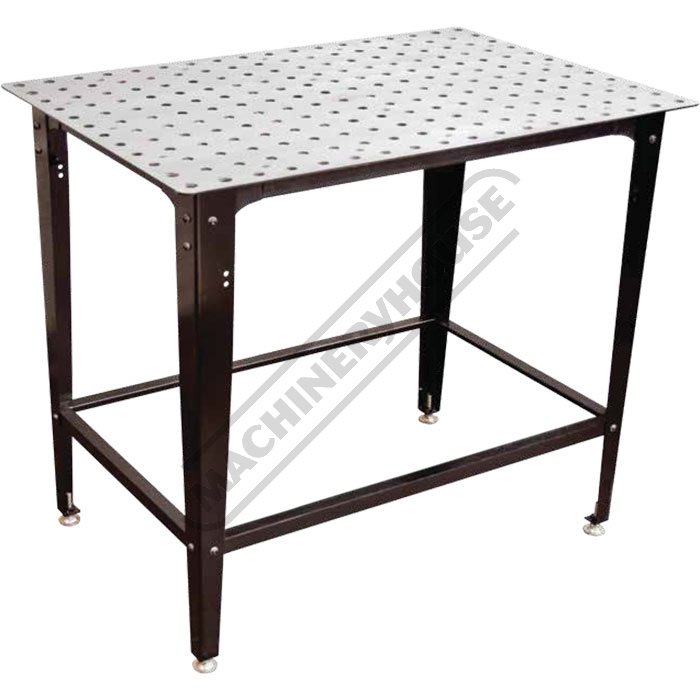

TBH90604 FixturePoint Welding Table 5 of 28

TBH90604 FixturePoint Welding Table Tabletop Setting 6 of 28

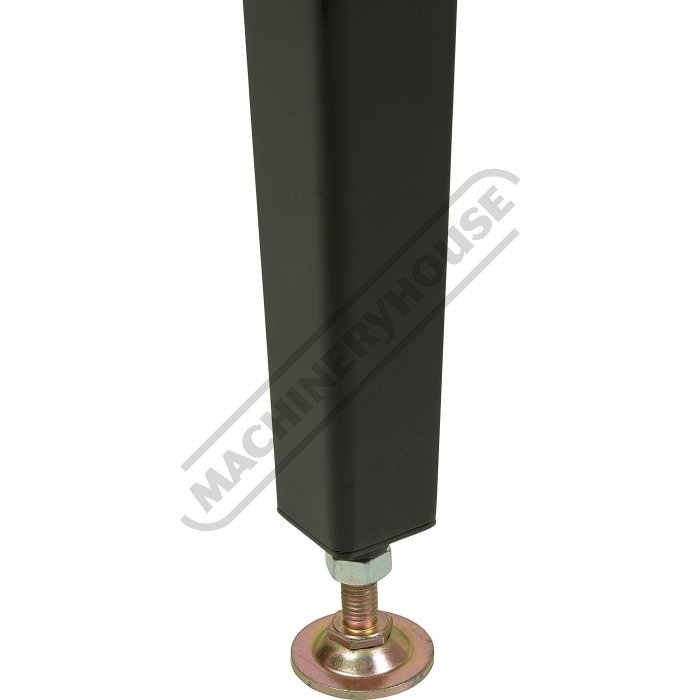

Adjustable Feet 7 of 28

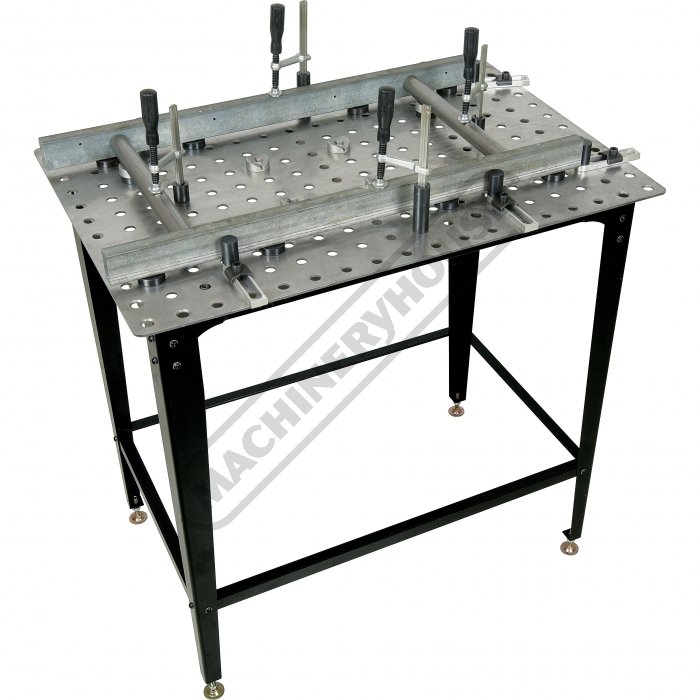

Left Top View 8 of 28

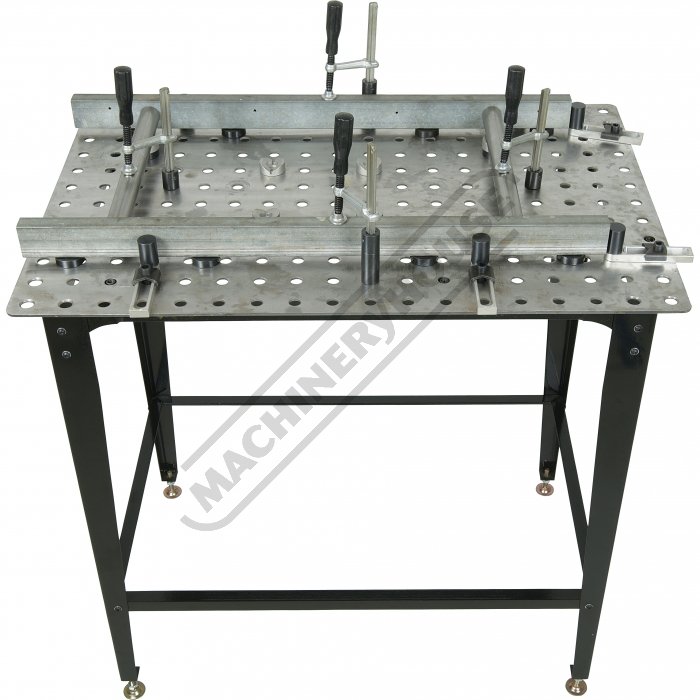

Front View 9 of 28

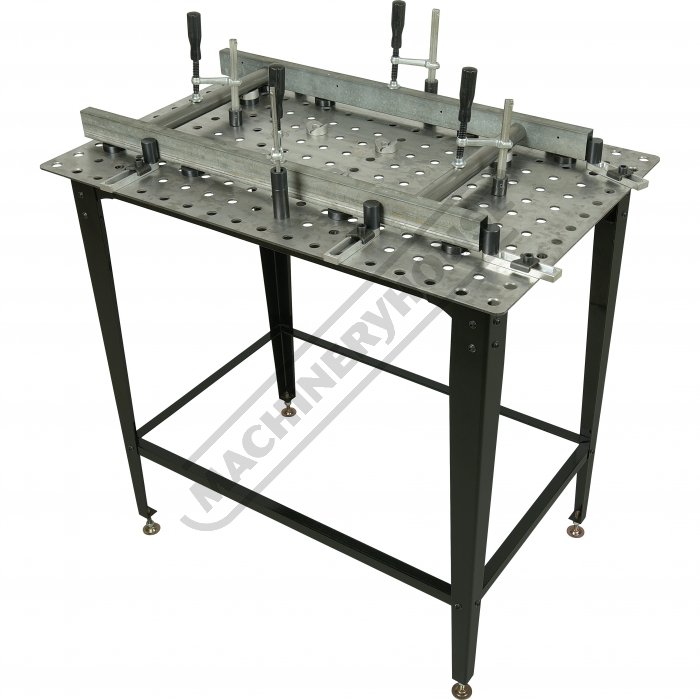

Right View 10 of 28

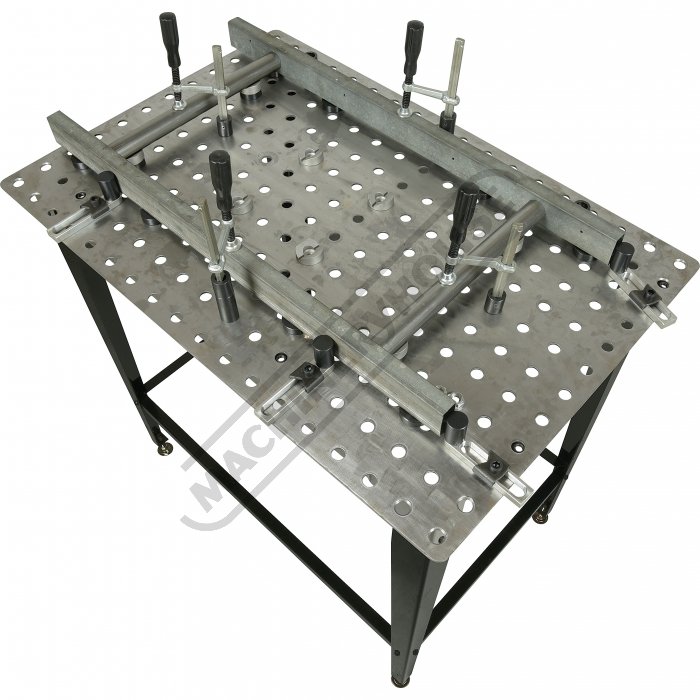

Right Top View 11 of 28

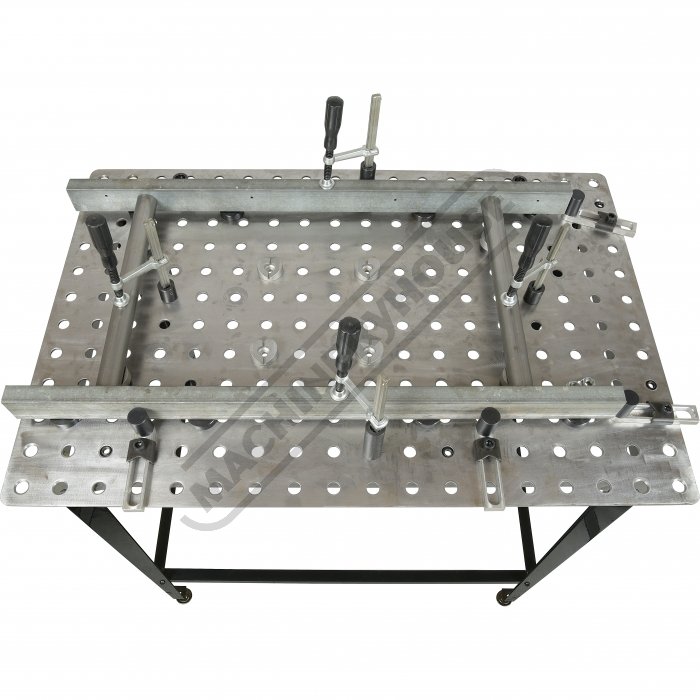

Front Top View 12 of 28

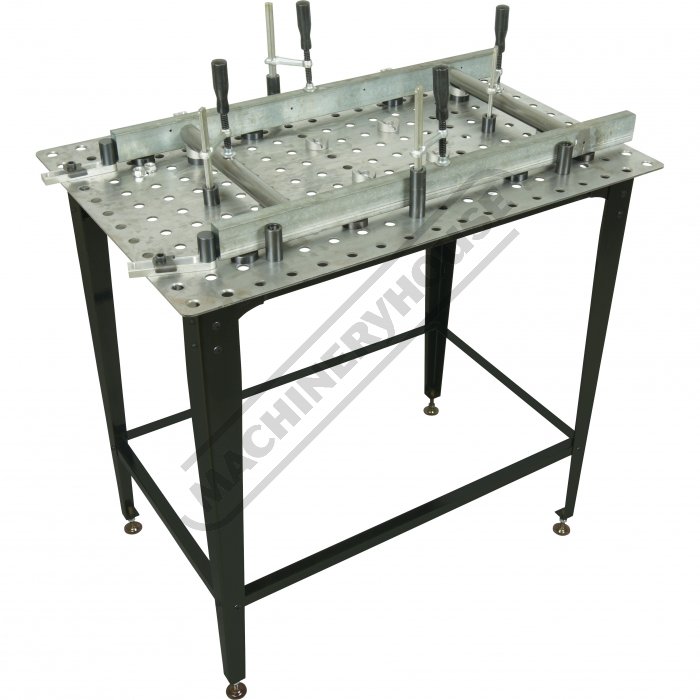

Rear View 13 of 28

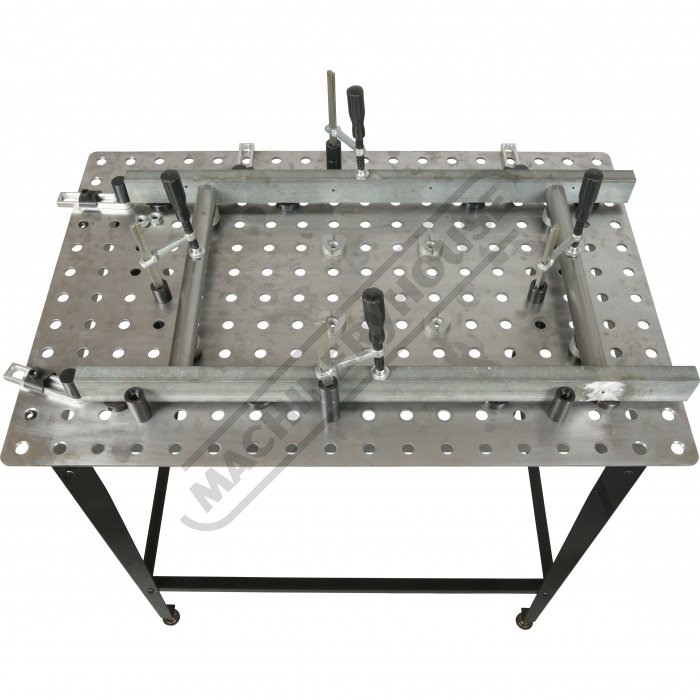

Rear Top View 14 of 28

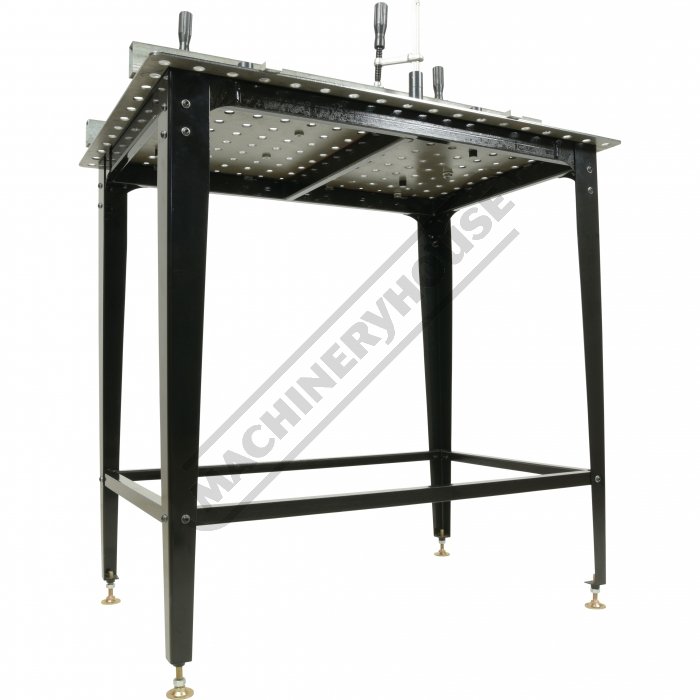

Low View 15 of 28

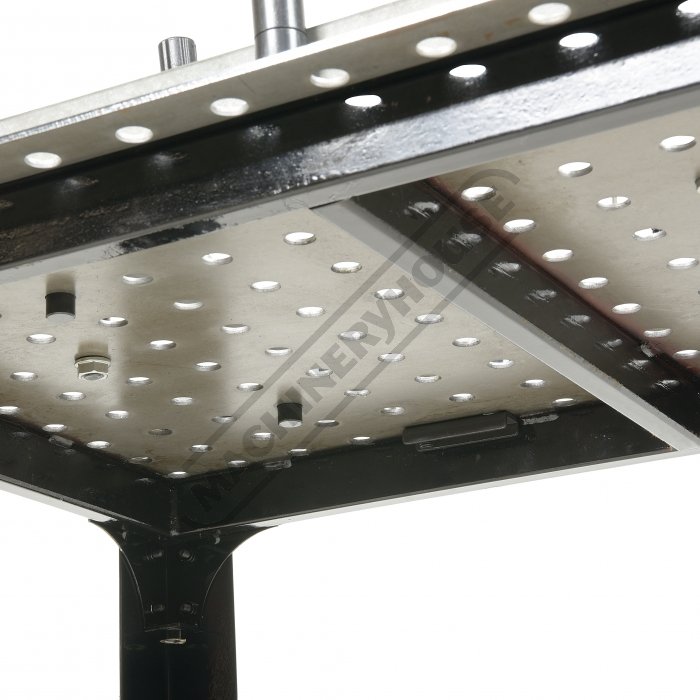

Under View 1 16 of 28

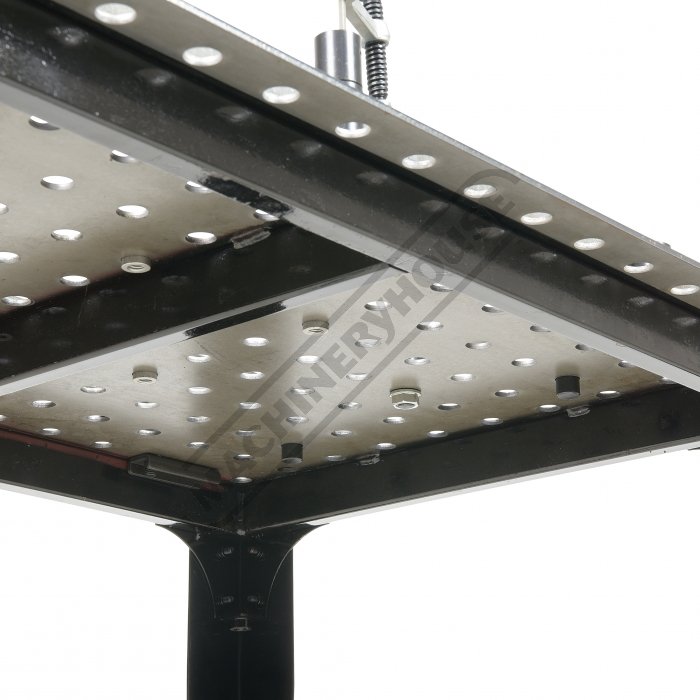

Under View 2 17 of 28

Shown Clamping Square Material 18 of 28

Shown Clamping Round Material 19 of 28

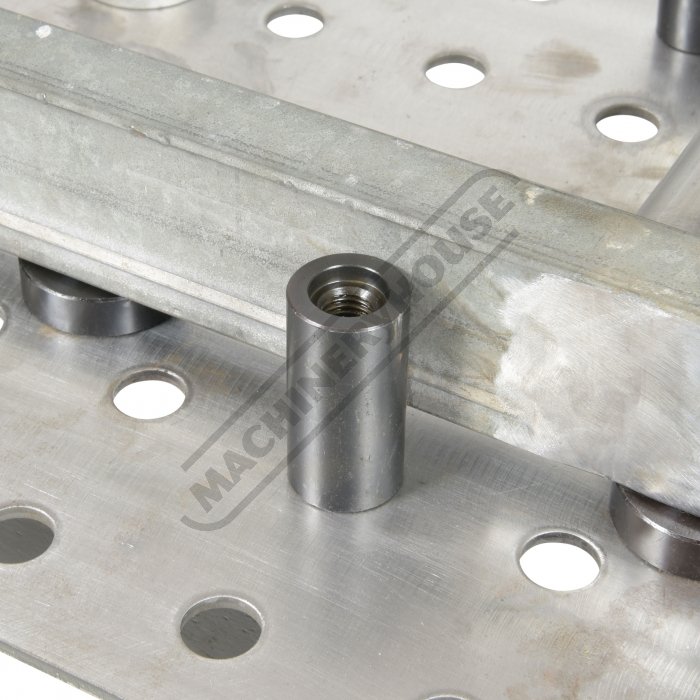

Multipurpose Riser Stop 20 of 28

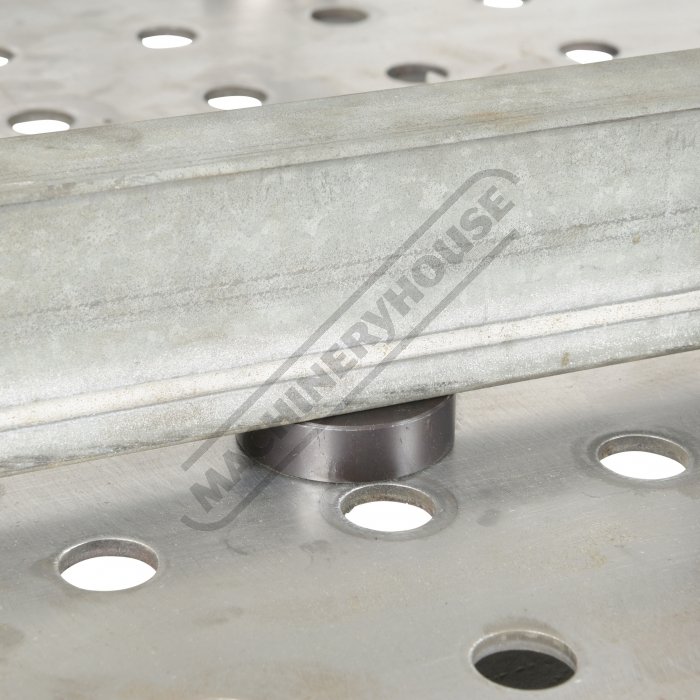

Magnetic Rest 21 of 28

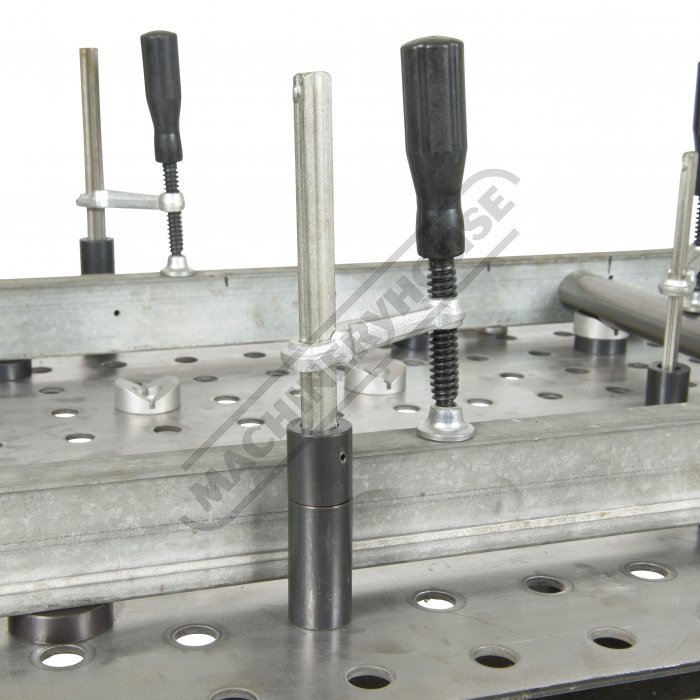

Clamp On Riser Stop 22 of 28

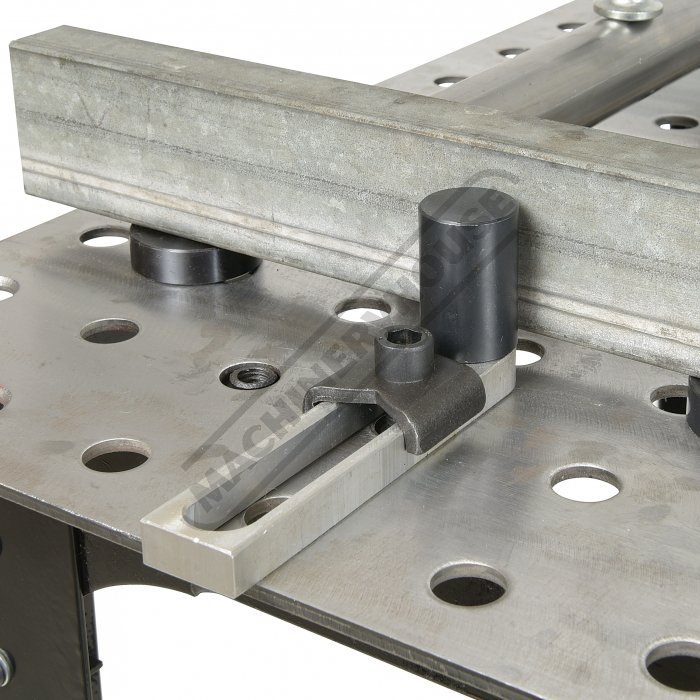

Positioning Bar 1 23 of 28

Round Material Rests 24 of 28

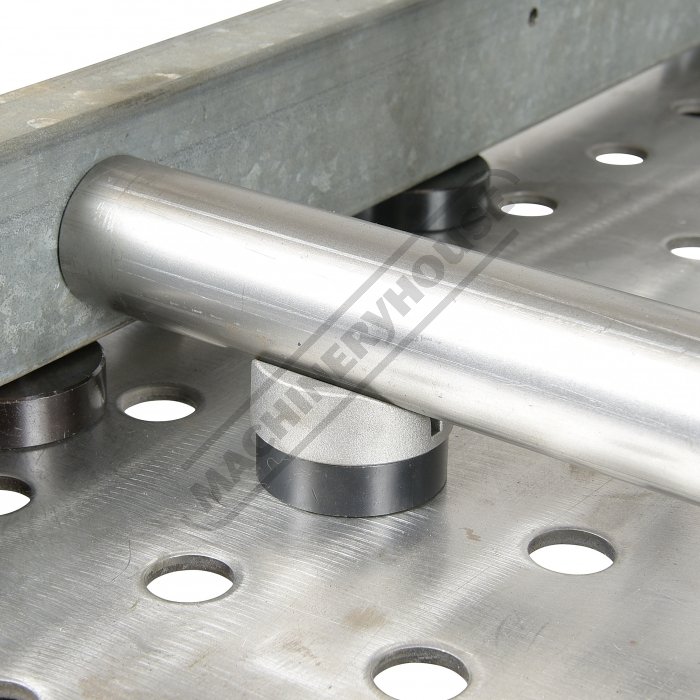

Round Material Rest with Spacer 25 of 28

End View 1 26 of 28

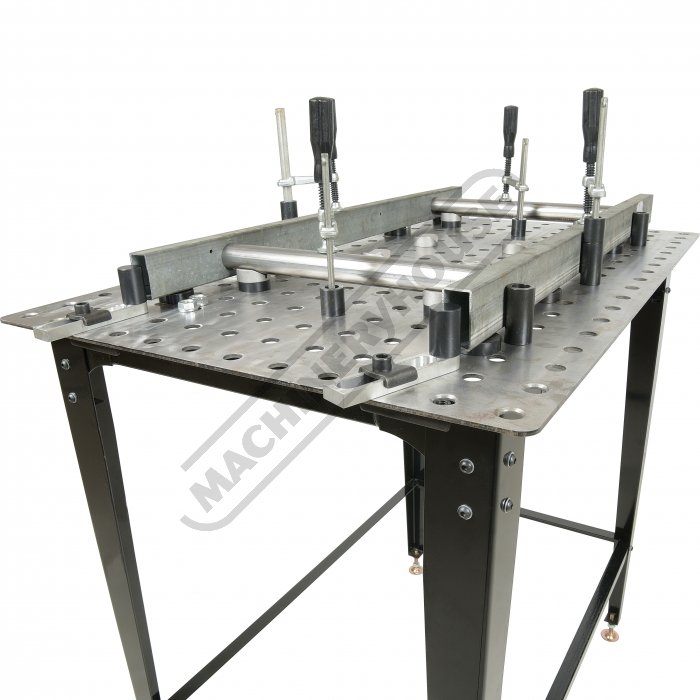

End View 2 27 of 28

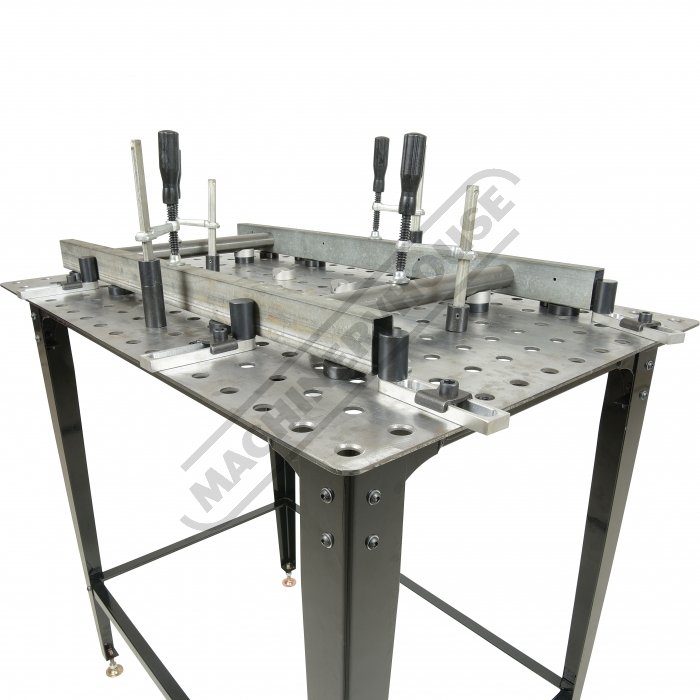

End View 3 28 of 28

Description Specifications Compare Accessories Related Downloads

Description

Welding Table with Square & Round Tube Clamp Kit - SRK-40P1

Includes 40 Piece Clamp Kit

600 x 900 x 860mm (LxWxH)

Overview

Complete modular clamp kit for the set-up of 4 x SQUARE or ROUND tubing frames

FixturePoint Welding Table
ONE Table, TWO Height Settings

An Affordable, Easy-to-Use Modular Fixturing System.

Increase work quality and productivity!

Fixture at ANY POINT on the tabletop.

The FixturePoint System is ideal for the set-up of 2D frames. Use the clamp kit to get started right away, working comfortably, safely, and efficiently for improved work quality and productivity!

Clamps and Components can be inserted into the 16mm holes on the 900 x 600mm tabletop for complete flexibility.

Features

40 Piece Clamp kit for the set-up of 4 x SQUARE & ROUND tubing frames
Ø16mm holes
4mm thick plate
50 x 50mm grid pattern
600 x 900mm tabletop
One Table, Two Height Settings - Tabletop 158mm Height, Leg Frame (incl.) 860mm height

Includes

1 x TBH90604 Welding Table
4 x Weld Clamps
4 x Insert Stops
4 x Positioning Bars
8 x Round Material Rests
4 x Spacers
4 x Multi-Purpose Riser/Stops
8 x Magnetic Rests
4 x Threaded Adaptors

Specifications

Compare Product Range

Specifications

ORDER CODE	W07706
MODEL	SRK-40P1
Type	1D
(Ø)Table Hole Diameter	16mm
(mm)Table Top Size	600 x 900
(mm)Table Height with Stand	158 / 860
(mm)Top Plate Thickness	4
(mm)Grid Pattern	50 x 50
(kg)Nett Weight	39
