Tube Bender - Manual - 11BH-C
Ø1/2" - Ø1 1/2" Round Capacity
T061
1 of 3

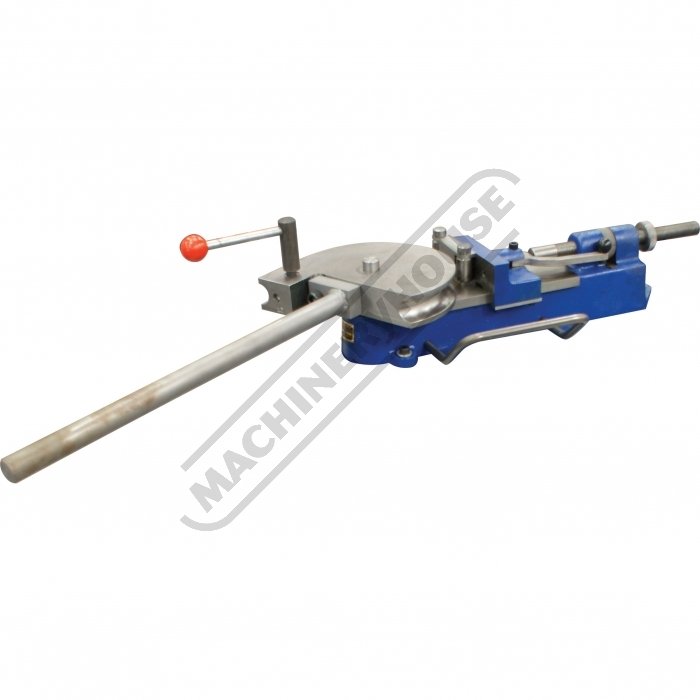

Top View
3 of 3
Discontinued
Order Code: T061
1 Year Warranty
Made in Australia
Description
Tube Bender - Manual - 11BH-C
Ø1/2" - Ø1 1/2" Round Capacity
Overview
The 11B and 11BH models are Universal Draw Bender type designed to form presision bends using mild steel, or non-ferrous materials in either tube or section forms.
Features include slide block pressure applied by cam action clamp, tube clamping by quick action cam lock giving ease & speed of operation plus rapid setting up times for short run production.
Made in Australia
Other models also available
Features include slide block pressure applied by cam action clamp, tube clamping by quick action cam lock giving ease & speed of operation plus rapid setting up times for short run production.
Made in Australia
Other models also available
Features
- Engineered from the highest quality materials
- Simple setup and operation
- Bench mounted
- Hand operated
- Slide block pressure applied by cam action clamp
- Tube clamping by quick action cam lock, giving ease and speed of operation
- Capacity (1-1/2") x (10 SWG), (1-1/2") x (16 SWG)
- Maximum angle of Bend 180 degrees
- Maximum radius 228mm (9") Centre Line Radius
- Overall dimensions 76cm long x 84cm wide x 14cm high
- Weight approximately 85kg
Compare Product Range
Specifications
| ORDER CODE | T061 |
|---|---|
| MODEL | 11BH-C |
| (Type)Material | Tube |
| (Type)Material Section | Round |
| (Type)Machine | Manual |
| (inch / mm)Round Tube Range (OD) - Mild Steel | Ø1/2 - Ø1-1/2" |
| (inch / mm)Tube Formers Included | 1/2", 3/4", 7/8", 1" 1-1/4", 1-1/2" |
| (inch / mm)Pipe Formers Included | ~ |
| (kg)Nett Weight | 105 |
Discontinued
