Discontinued
Order Code: T060
Description

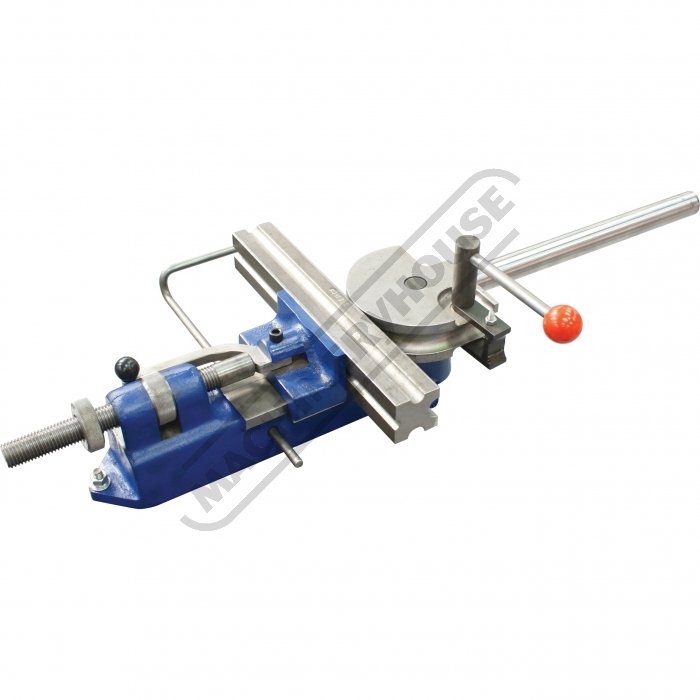

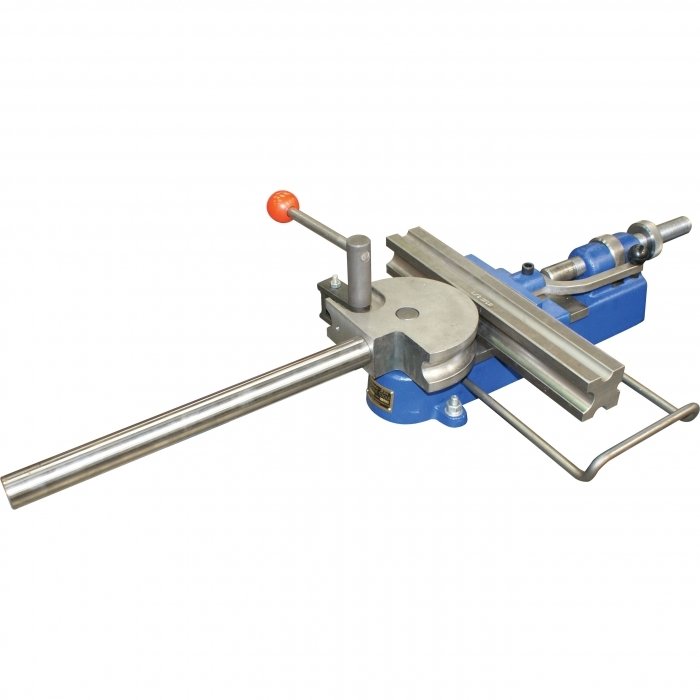

Tube Bender - Manual - 11B-C

Ø1/2" - Ø1" Round Capacity
Overview
The 11B and 11BH models are Universal Draw Bender type designed to form precision bends using mild steel, or non-ferrous materials in either tube or section forms.

Features include slide block pressure applied by cam action clamp, tube clamping by quick action cam lock giving ease & speed of operation plus rapid setting up times for short run production.

Simple bends without use of mandrel or slide block can be performed with the use of special slide block jaw attachment.

Made in Australia
Features
  • Engineered from the highest quality materials
  • Simple set-up and operation
  • Bench mounted
  • Hand operated
  • Bench mounted. Cam lock tube clamp. Cam lock slide block adjustment. Direction of bend left or right
  • Capacity 25mm (1") x 2.5mm (125 SWG), 25mm (1") x 1.6mm (16 SWG)
  • Maximum angle of Bend 180 degrees

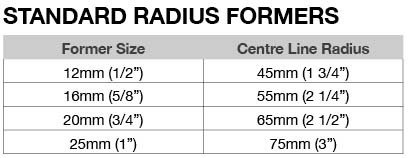

  • Maximum Radius 125mm (5") Centre Line Radius
  • Overall Dimensions 54cm long x 51cm wide x 13cm high
  • Weight Approximately 34kg
Tube Bender - Manual - 11B-C overview
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • (Type)Material
  • (Type)Material Section
  • (Type)Machine
  • (Tonne)Hydraulic Jack Size
  • (inch / mm)Round Pipe Range (NB) - Mild Steel
  • (inch / mm)Round Tube Range (OD) - Mild Steel
  • (inch / mm)Square Tube Range
  • (inch / mm)Tube Wall Thickness - Mild Steel
  • (inch)Round Pipe (NB) x Wall Capacity - Mild Steel
  • (inch / mm)Round Pipe (NB) x Wall Capacity - Aluminium
  • (inch / mm)Round Pipe (NB) x Wall Capacity - Stainless Steel
  • (inch / mm)Round Tube (OD) x Wall Capacity - Mild Steel
  • (inch / mm)Round Tube (OD) x Wall Capacity - Aluminium
  • (inch / mm)Round Tube (OD) x Wall Capacity - Copper, Brass
  • (inch / mm)Round Tube (OD) x Wall Capacity - Stainless Steel
  • (inch / mm)Round Tube (OD) x Wall Capacity - Chromoly
  • (inch / mm)Solid Rod - Mild Steel
  • (inch / mm)Square Tube x Wall Capacity - Mild Steel
  • (inch / mm)Rectangle Tube x Wall Capacity - Mild Steel
  • (Deg / Sec)Bend Speed - Maximum
  • Bend Direction
  • (inch / mm)Centre Line Radius - Maximum (CLR)
  • (inch / mm)Centre Line Radius - Minimum (CLR)
  • (inch / mm)Tube Formers Included


  • (inch / mm)Pipe Formers Included

  • (inch / mm)Spigot Size on Ram
  • (deg)Angle Capacity
  • (psi)Hydraulic Pressure - Maximum
  • (kW / hp)Motor Power
  • (V / amp)Voltage / Amperage
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • Manual Tube Bender - Round & Square TBRS-25
  • Compare
  • Wishlist
  • T055
  • TBRS-25
  • Tube
  • Round & Square
  • Manual
  • ~
  • ~
  • Ø9.52 - Ø22.22
  • 19.05 & 25.4
  • 1.2
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • 9.52, 12.7, 14.29 Round
    15.87, 19.05, 22.22 Round
    19.05 & 25.4 Square
  • ~

  • ~
  • 0 - 180º
  • ~
  • ~
  • ~
  • 28
  • $320.00
  • $368.00
  • ADD TO CART
  • Manual Tube Bender - Round TBRD
  • Compare
  • Wishlist
  • T051
  • TBRD
  • Tube
  • Round
  • Manual
  • ~
  • ~
  • Ø12.7 - Ø28.57
  • 12.7 - 25.4
  • 1.6
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • 12.7, 15.87, 19.05,
    22.22, 25.4 OD Round

  • ~

  • ~
  • 0 - 90º
  • ~
  • ~
  • ~
  • 19
  • $780.00
  • $897.00
  • ADD TO CART
  • Back In Stock Soon Manual Tube Bender - Square  TBSQ
  • Compare
  • Wishlist
  • T050
  • TBSQ
  • Tube
  • Square
  • Manual
  • ~
  • ~
  • Ø12.7 - Ø28.57
  • 12.7 - 25.4
  • 1.6
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • 12.7, 15.87, 19.05,
    22.22, 25.4 Square

  • ~

  • ~
  • 0 - 90º
  • ~
  • ~
  • ~
  • 19
  • $960.00
  • $1,104.00
  • ADD TO CART
  • Tube Bender - Electric  DB-32
  • Compare
  • Wishlist
  • T070
  • DB-32
  • Tube
  • Round
  • Electric
  • ~
  • ~
  • Ø15.87 - Ø31.75
  • ~
  • 2.0*
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • 15.87, 19.05, 22.22,
    25.4 & 31.75 OD Round

  • ~

  • ~
  • 0 - 180º
  • ~
  • 1.7 / 2.3
  • 240
  • 32.6
  • $2,916.00
  • $3,353.40
  • ADD TO CART
  • Hydraulic Pipe Bender - 2 Stage Pump MPB-2SH
  • Compare
  • Wishlist
  • P064
  • MPB-2SH
  • Pipe
  • Round
  • Manual Hydraulic
  • 12 - 2 Stage Pump
  • Ø1/2" - Ø2"
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~


  • 1/2", 3/4", 1", 1-1/4",
    1-1/2", 2"
  • 31.8
  • ~
  • ~
  • ~
  • ~
  • 50
  • $476.00
  • $547.40
  • ADD TO CART
  • Hydraulic Pipe Bender - 2 Stage Pump PB-2
  • Compare
  • Wishlist
  • P075
  • PB-2
  • Pipe
  • Round
  • Manual Hydraulic
  • 12
  • Ø1/2" - Ø2"
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~


  • 1/2", 3/4", 1", 1-1/4",
    1-1/2", 2"
  • 38
  • ~
  • ~
  • ~
  • ~
  • 65
  • $1,450.00
  • $1,667.50
  • ADD TO CART
  • Electric-Hydraulic Pipe Bender 022E
  • Compare
  • Wishlist
  • P075A
  • 022E
  • Pipe
  • Round
  • Electric Hydraulic
  • 12
  • Ø1/2 - Ø2"
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~


  • 1/2", 3/4", 1", 1-1/4",
    1-1/2", 2"
  • 38
  • ~
  • ~
  • ~
  • 240 / 10
  • 50
  • $3,240.00
  • $3,726.00
  • ADD TO CART
  • Manual Pipe & Tube Rotary Draw Bender RDB-100
  • Compare
  • Wishlist
  • B8070
  • RDB-100
  • Pipe & Tube
  • Round, Square & Rod
  • Manual - Rotary Draw
  • ~
  • Ø1/2" - Ø1"
  • Ø6.35 - Ø44.45
  • 19.05 - 25.4
  • ~
  • Ø1" x 1/8"
  • Ø1" x 1/8"
  • Ø3/4" x 7/64"
  • Ø44.45 x 2.1
  • Ø50.8 x 3.17
  • ~
  • Ø38.1 x 2.1
  • Ø38.1 x 2.1
  • Ø25.4
  • 25.4 x 3.17
  • ~
  • ~
  • ~
  • 10 1/2" / 266.7mm
  • 1/2" / 12.7mm
  • ~


  • ~

  • ~
  • 206º
  • ~
  • ~
  • ~
  • 132
  • $9,260.00
  • $10,649.00
  • ADD TO CART
  • Electric Pipe & Tube Bender - Digital Control TB-60
  • Compare
  • Wishlist
  • T606
  • TB-60
  • Pipe & Tube
  • Round
  • Electric
  • ~
  • Ø1/2" - Ø1-1/4"
  • Ø25.4 - Ø51
  • ~
  • ~
  • Ø1-1/4" x 1/8"
  • ~
  • ~
  • Ø51 x 2
  • Ø51 x 3
  • Ø51 x 2
  • Ø38 x 1.6
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • 4 x Former Diameter
  • 3 x Former Diameter
  • ~


  • 1/2", 3/4", 1" &
    1-1/4" NB Pipe
  • ~
  • 0 - 210º
  • ~
  • 1.1 / 1.5
  • 240 / 10
  • 140
  • $9,260.00
  • $10,649.00
  • ADD TO CART
  • Back In Stock Soon Electric Pipe & Tube Bender - Digital Control, Includes Stand TB-70
  • Compare
  • Wishlist
  • T607
  • TB-70
  • Pipe & Tube
  • Round
  • Electric
  • ~
  • Ø1/2" - Ø2"
  • Ø25.4 - Ø51
  • ~
  • ~
  • Ø2" x 1/8"
  • ~
  • ~
  • Ø51 x 3
  • Ø51 x 5
  • Ø51 x 4
  • Ø51 x 2
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • 4 x Former Diameter
  • 3 x Former Diameter
  • ~


  • 1/2", 3/4", 1" &
    1-1/4" NB Pipe
  • ~
  • 0 - 210º
  • ~
  • 2.2 / 3
  • 415
  • 240
  • $17,690.00
  • $20,343.50
  • ADD TO CART
  • On Sale - Limited Stock Hydraulic Pipe & Tube Rotary Draw Bender RDB-125
  • Compare
  • Wishlist
  • B8075
  • RDB-125
  • Pipe & Tube
  • Round, Square & Rod
  • Electric Hydraulic - Rotary Draw
  • ~
  • Ø1/2" - Ø2"
  • Ø6.35 - Ø63.5
  • 19.05 - 50.8
  • ~
  • Ø2" (Schedule 40)
  • Ø2" (Schedule 40)
  • Ø1-1/2" (Schedule 40)
  • Ø63.5 x 3.17
  • Ø63.5 x 3.96
  • ~
  • Ø60.32 x 3.17
  • Ø50.8 x 3.17
  • Ø31.75
  • 50.8 x 3.17
  • ~
  • ~
  • ~
  • 10 1/2" / 266.7mm
  • 1/2" / 12.7mm
  • ~


  • ~

  • ~
  • 200º
  • ~
  • ~
  • 240
  • 160
  • $11,000.00
  • $12,650.00
  • ADD TO CART
  • Hydraulic Pipe & Tube Rotary Draw Bender RDB-175
  • Compare
  • Wishlist
  • B8080
  • RDB-175
  • Pipe & Tube
  • Round, Square & Rod
  • Electric Hydraulic - Rotary Draw
  • ~
  • Ø1/2" - Ø2"
  • Ø6.35 - Ø63.5
  • 19.05 - 50.8
  • ~
  • Ø2" (Schedule 40)
  • Ø2" (Schedule 40)
  • Ø1-1/2" (Schedule 40)
  • Ø63.5 x 3.17
  • Ø63.5 x 3.96
  • ~
  • Ø60.32 x 3.17
  • Ø50.8 x 3.17
  • Ø31.75
  • 50.8 x 3.17
  • ~
  • 180° / 12.5
  • ~
  • 9" / 228.6mm
  • 1/2" / 12.7mm
  • ~


  • ~

  • ~
  • 180º
  • ~
  • 1.5 / 2
  • 240
  • 286
  • $22,876.00
  • $26,307.40
  • ADD TO CART
  • Back In Stock Soon Motorised Pipe & Tube Rotary Draw Bender RDB-250
  • Compare
  • Wishlist
  • B8085
  • RDB-250
  • Pipe & Tube
  • Round, Square & Rod
  • Electric Hydraulic - Rotary Draw
  • ~
  • Ø1/2" - Ø2"
  • Ø6.35 - Ø63.5
  • 19.05 - 50.8
  • ~
  • Ø2" (Schedule 40)
  • Ø2" (Schedule 40)
  • Ø1-1/2" (Schedule 40)
  • Ø63.5 x 3.17
  • Ø63.5 x 3.96
  • ~
  • Ø60.32 x 3.17
  • Ø50.8 x 3.17
  • Ø31.75
  • 50.8 x 3.17
  • ~
  • 180° / 9
  • ~
  • 9" / 228.6mm
  • 1/2" / 12.7mm
  • ~


  • ~

  • ~
  • 180º
  • ~
  • ~
  • 240
  • 278
  • $32,270.00
  • $37,110.50
  • ADD TO CART
  • Motorised Pipe & Tube Rotary Draw Bender RDB-325
  • Compare
  • Wishlist
  • B8090
  • RDB-325
  • Pipe & Tube
  • Round, Square & Rod
  • Electric Hydraulic - Rotary Draw
  • ~
  • Ø1/2" - Ø2"
  • Ø6.35 - Ø76.2
  • 19.05 - 50.8
  • ~
  • Ø2" (Schedule 80)
  • Ø2" (Schedule 80)
  • Ø2" (Schedule 40)
  • Ø76.2 x 2.41
  • Ø76.2 x 5.15
  • ~
  • Ø76.2 x 2.41
  • Ø76.2 x 2.1
  • Ø31.75
  • 50.8 x 3.17
  • ~
  • 180° / 10
  • ~
  • 16 1/2" / 419.1mm
  • 1/2" / 12.7mm
  • ~


  • ~

  • ~
  • 180º
  • ~
  • ~
  • 415
  • 545
  • $40,200.00
  • $46,230.00
  • ADD TO CART
  • Motorised Pipe & Tube Rotary Draw Bender RDB-350-TS
  • Compare
  • Wishlist
  • B8095
  • RDB-350-TS
  • Pipe & Tube
  • Round, Square & Rod
  • Electric Hydraulic - Rotary Draw
  • ~
  • Ø1/2" - Ø2-1/2"
  • Ø19.05 - Ø76.2
  • 12.7 - 50.8
  • ~
  • Ø2-1/2" (Schedule 40)
  • v3" (Schedule 40)
  • Ø2" (Schedule 40)
  • v76.2 x 4.75
  • Ø88.9 x 6.35
  • ~
  • Ø76.2 x 3.17
  • Ø63.5 x 3.17
  • Ø38.1
  • 76.2 x 3.17
  • ~
  • 180° / 16
  • ~
  • 24" / 609.6mm
  • 1/2" / 12.7mm
  • ~


  • ~

  • ~
  • 180º (*360º)
  • ~
  • ~
  • 415
  • 681
  • $52,400.00
  • $60,260.00
  • ADD TO CART
  • Hydraulic Pipe & Tube Rotary Draw Bender RDB-500
  • Compare
  • Wishlist
  • B8105
  • RDB-500
  • Pipe & Tube
  • Round, Square & Rod
  • Electric Hydraulic - Rotary Draw
  • ~
  • Ø1/2" - v3"
  • Ø6.35 - Ø76.2
  • 19.05 - 50.8
  • ~
  • Ø3" (Schedule 40)
  • Ø3-1/2" (Schedule 40)
  • Ø2-1/2" (Schedule 40)
  • Ø76.2 x 6.5
  • Ø88.9 x 6.6
  • ~
  • Ø73 x 5
  • Ø88.9 x 5
  • 5Ø0.8
  • 76 x 6.5
  • ~
  • 180° / 36
  • ~
  • 20" / 508mm
  • 1/2" / 12.7mm
  • ~


  • ~

  • ~
  • 206º
  • ~
  • ~
  • 415
  • 879
  • $58,500.00
  • $67,275.00
  • ADD TO CART
  • Discontinued Tube Bender - Manual 11B-C
  • Compare
  • Wishlist
  • T060
  • 11B-C
  • Tube
  • Round
  • Manual
  • ~
  • ~
  • Ø1/2 - Ø1"
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • 1/2", 5/8", 3/4", 1


  • ~

  • ~
  • ~
  • ~
  • ~
  • ~
  • ~
  • N/A
  • N/A
  • ENQUIRE
