Section & Pipe Rolling Machine - HK-50
60 x 60 x 6mm
S740
1 of 9

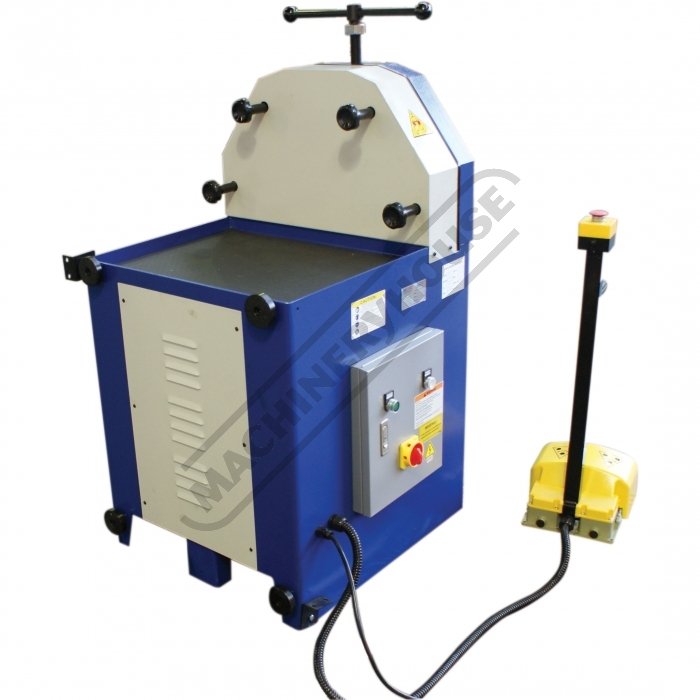

Rear View
2 of 9

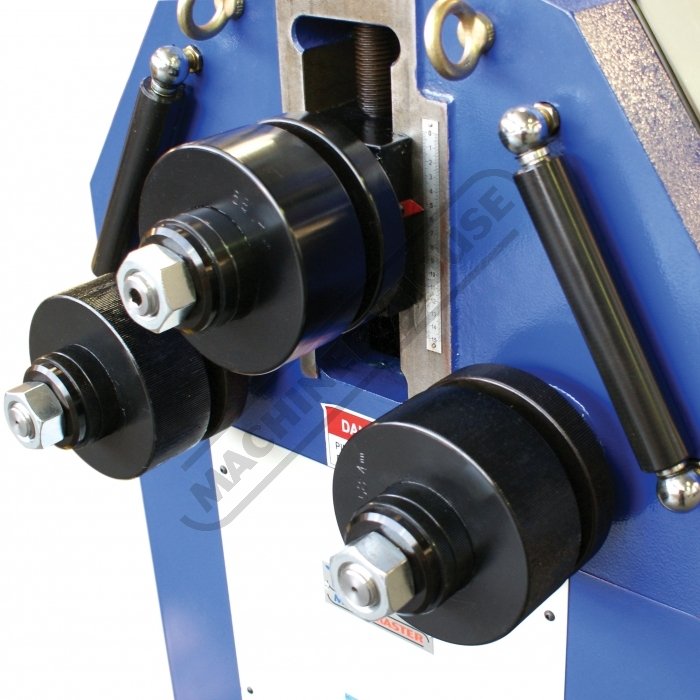

Two Bottom Rolls are Powered
3 of 9

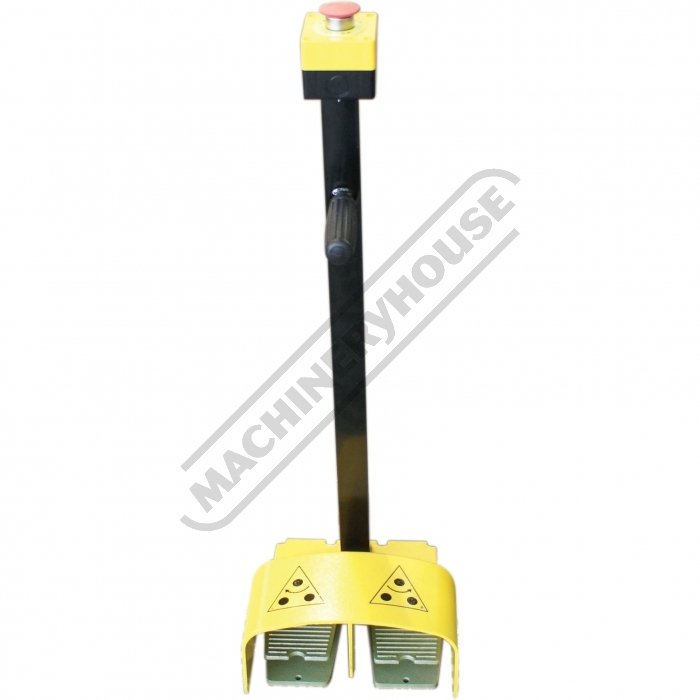

Roving Foot Control with Forward Reverse
4 of 9

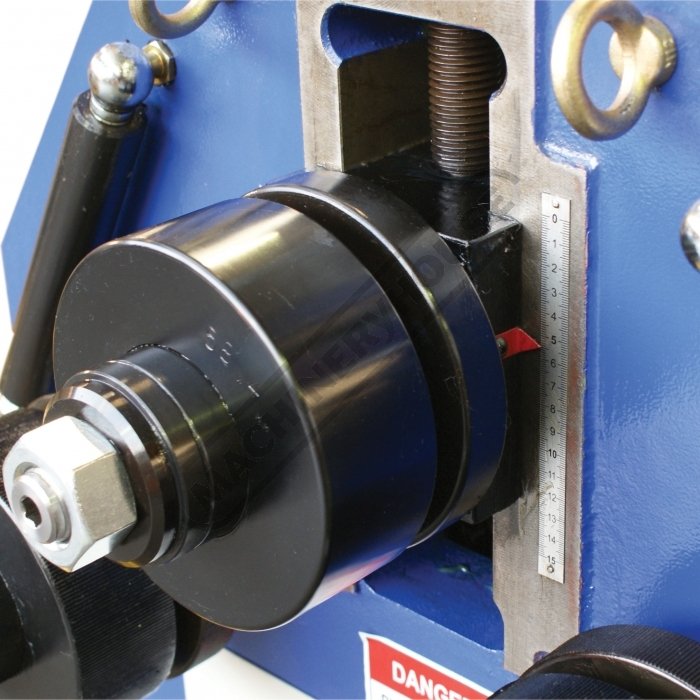

Height Gauge
5 of 9
Support Guide Rolls
6 of 9
Top Roll Adjustment
7 of 9
Profile Chart
8 of 9

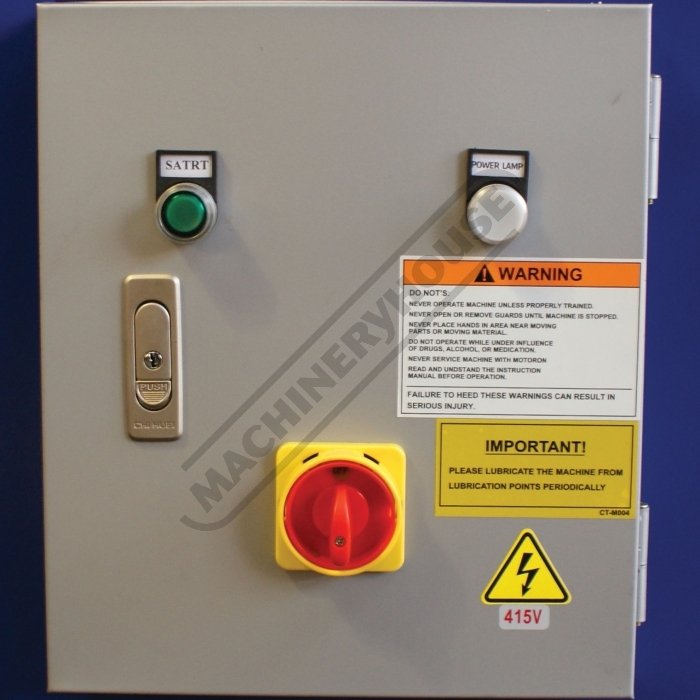

Electrical Box
9 of 9
Discontinued
Order Code: S740
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Made in Taiwan
Description
Section & Pipe Rolling Machine - HK-50
60 x 60 x 6mm
Features
- Heavy duty steel fabricated frame
- Manual screw adjustment of top roller
- Adjustable side support guide rolls
- Standard flat & angle rolls are included
- Roving foot pedal control with forward/reverse
- Two bottom rollers are powered
- One piece guiding mono block mounted on cross head
- Ground drive shaft
- Additional support guides
- Can be used in both vertical and horizontal position
Compare Product Range
Specifications
| ORDER CODE | S740 |
|---|---|
| MODEL | HK-50 |
| (Qty)Powered Driven Rolls | 2 |
| (Type)Bending Rolls | Manual Top |
| (mm)Flat Bar Edge Capacity - MS (size / Ø) | 60 x 10 / 400 |
| (mm)Flat Bar Capacity - MS (size / Ø) | 100 x 315 / 375 |
| (mm)Square Bar Solid Capacity - MS (size / Ø) | 35 x 35 / 600 |
| (mm)Square Tube Capacity - MS (size / Ø) | 50 x 3 / 1000* |
| (mm)Round Bar Solid Capacity - MS (size / Ø) | Ø35 / 400* |
| (mm)Round Tube Capacity - MS (size / Ø) | 70 x 2 / 600* |
| (inch / mm)Round Pipe Capacity - MS (size / Ø) | Ø50 x 2.9mm / 600mm* |
| (mm)Angle Capacity - MS (size / Ø) | 60 x 60 x 6 / 600 |
| (kW / hp)Motor Power | 2.25 / 3 |
| (V / amp)Voltage / Amperage | 415 |
| (mm)Dimensions (L x W x H) | 1330 x 840 x 1330 |
| (No / Yes*)Note: Requires Additional Tooling | Yes* |
| (kg)Nett Weight | 430 |
Back In Stock Soon
- Compare:
- Wishlist:
- ORDER CODE
- MODEL
- (Qty)Powered Driven Rolls
- (Type)Bending Rolls
- (mm)Top Roll Shaft Diameter (Ø)
- (mm)Lower Roll Shaft Diameter (Ø)
- (mm)Top Roll Diameter (Ø)
- (mm)Lower Roll Diameter (Ø)
- (mm)Flat Bar Edge Capacity - MS (size / Ø)
- (mm)Flat Bar Capacity - MS (size / Ø)
- (mm)Square Bar Solid Capacity - MS (size / Ø)
- (mm)Rectangle Tube Capacity - MS (size / Ø)
- (mm)Square Tube Capacity - MS (size / Ø)
- (mm)Round Bar Solid Capacity - MS (size / Ø)
- (mm)Round Tube Capacity - MS (size / Ø)
- (inch / mm)Round Pipe Capacity - MS (size / Ø)
- (mm)Angle Capacity - MS (size / Ø)
- (kW / hp)Motor Power
- (V / amp)Voltage / Amperage
- (mm)Dimensions (L x W x H)
- (No / Yes*)Note: Requires Additional Tooling
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
-
-
Compare
-
Wishlist
- S680
- RR-5G
- 2 x Manual
- Manual Bottom Right
- ~
- ~
- ~
- ~
- ~
- 25 x 3 / 125
- ~
- ~
- ~
- Ø5 / 125
- ~
- ~
- ~
- ~
- ~
- 360 x 190 x 180
- No
- 6
- $110.00
- $126.50
- ADD TO CART
-
-
Compare
-
Wishlist
- S6805
- RR-6
- 2 x Manual
- Manual Bottom Right
- ~
- ~
- ~
- ~
- ~
- 40 x 6 /
- ~
- ~
- ~
- Ø10
- ~
- ~
- ~
- ~
- ~
- 200 x 200 x 310 (without handle)
- No
- 15.2
- $270.00
- $310.50
- ADD TO CART
-
-
Compare
-
Wishlist
- S681
- RR-10
- 2 x Manual
- Manual Top
- ~
- ~
- 98
- ~
- 30 x 10 / 500 - (20 x 5 / 190)
- 50 x 10 / 400 - (20 x 5 / 160)
- 20 x 20 / 500 - (10 x 10 / 160)
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 500 x 480 x 680
- No
- 185
- $1,648.00
- $1,895.20
- ADD TO CART
-
-
Compare
-
Wishlist
- S682
- RR-24
- 2
- Manual Top
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- 50 x 50 x 1.6 / 1000
- ~
- Ø76 x 2 / 1520
- ~
- ~
- 1.1 / 1.5
- 240 / 10
- 740 x 630 x 1030
- No
- 287
- $2,868.00
- $3,298.20
- ADD TO CART
-
-
Compare
-
Wishlist
- S745
- PK-35F
- 2
- Manual Top
- 50
- 50
- 155
- 155
- 60 x 10 / 500
- 100 x 15 / 450
- 35 x 35 / 900
- 50 x 40 x 3 / 1200*
- 50 x 50 x 3 / 1700*
- Ø35 / 600*
- Ø70 x 2 / 1000*
- Ø2" x 2.9mm / 1000mm*
- 50 x 50 x 5 / 1000 mm*
- 1.5 / 2
- 240 / 10
- 750 x 1000 x 1400
- Yes* (S7455 for angle capacity)
- 400
- $7,674.00
- $8,825.10
- ADD TO CART
-
-
Compare
-
Wishlist
- S749
- HPK-45
- 2
- Manual Top
- 50
- 50
- 155
- 155
- 60 x 10 / 500
- 100 x 15 / 450
- 35 x 35 / 900
- 50 x 40 x 3 / 1200*
- 50 x 50 x 3 / 1700*
- Ø35 / 600*
- Ø70 x 2 / 1000*
- Ø2" x 2.9mm / 1000mm*
- 50 x 50 x 5 / 1000 mm*
- 1.5 / 2
- 415
- 90 x 1360 x 1450
- Yes* (S7455 for angle capacity)
- 400
- $11,212.00
- $12,893.80
- ADD TO CART
-
-
Compare
-
Wishlist
- S750
- HPK-50
- 3
- Hydraulic Top
- 50
- 50
- 152
- 162
- 60 x 10 / 600
- 100 x 15 / 600
- 35 x 35 / 600
- 70 x 30 x 3 / 1500*
- 50 x 50 x 3 / 1600*
- Ø35 / 600*
- Ø70 x 2 / 1200*
- Ø2" x 2.9mm / 1000mm*
- 50 x 50 x 6 / 600
- 1.1 / 1.5
- 415
- 810 x 950 x 1500
- Yes*
- 500
- $15,556.00
- $17,889.40
- ADD TO CART
-
-
Compare
-
Wishlist
- S754
- HPK-65
- 3
- Hydraulic - Left & Right
- ~
- ~
- 180
- ~
- 60 x 10 / 500
- 80 x 20 / 500
- 32 x 32 / 400
- 50 x 25 x 3 / 450*
- 45 x 45 x 3 / 600*
- Ø35 / 350*
- Ø60 x 2 / 600*
- Ø2" x 3.91mm / 400mm*
- 60 x 60 x 6 / 650
- 3 / 4
- 415
- 1200 x 850 x 1200
- Yes*
- 1000
- $27,756.00
- $31,919.40
- ADD TO CART
- Back In Stock Soon
-
Compare
-
Wishlist
- S756
- HPK-80
- 3
- Hydraulic - Left & Right
- 80
- 70
- 245
- ~
- 80 x 20 / 800
- 125 x 25 / 600
- 45 x 45 / 500
- 80 x 25 x 3 / 800*
- 70 x 70 x 3 / 1300*
- Ø50 / 500*
- Ø100 x 2.5 / 1200*
- Ø3" x 5.48mm / 800mm*
- 80 x 80 x 8 / 800
- 4 / 5.3
- 415
- 1450 x 1000 x 1400
- Yes*
- 1700
- $32,270.00
- $37,110.50
- ADD TO CART
-
-
Compare
-
Wishlist
- S756C
- HPK-80NC
- 3
- Hydraulic - Left & Right
- 80
- 70
- 245
- 245
- 80 x 20 / 800
- 125 x 25 / 600
- 45 x 45 / 500
- 80 x 25 x 3 / 800*
- 70 x 70 x 3 / 1300*
- Ø50 / 500*
- Ø100 x 2.5 / 1200*
- Ø3" x 5.48mm / 800mm*
- 80 x 80 x 8 / 800
- 4 / 5.3
- 415
- 1450 x 1000 x 1400
- Yes*
- 1700
- $47,886.00
- $55,068.90
- ADD TO CART
- Back In Stock Soon
-
Compare
-
Wishlist
- S758C
- HPK-100NC
- 3
- Hydraulic - Left & Right
- 100
- 100
- 315
- 315
- 100 x 20 / 800
- 200 x 30 / 1200
- 60 x 60 / 750
- 100 x 40 x 4 / 1300*
- 80 x 50 x 5 / 1500*
- Ø75 / 800*
- Ø125 x 2.5 / 1400*
- Ø4" x 6.02mm / 1000mm*
- 100 x 100 x 12 / 1000
- 7.5 / 10
- 415
- 2000 x 1450 x 1700
- Yes*
- 3650
- $70,700.00
- $81,305.00
- ADD TO CART
