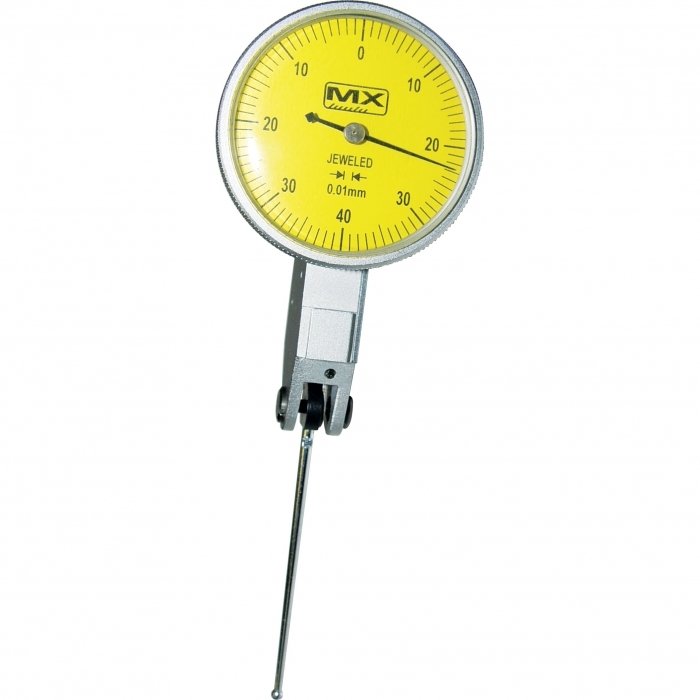

Dial Test Indicator - Metric - 34-2175
Ø2mm Carbide Ball End
0 - 0.8mm
Q2175
1 of 4

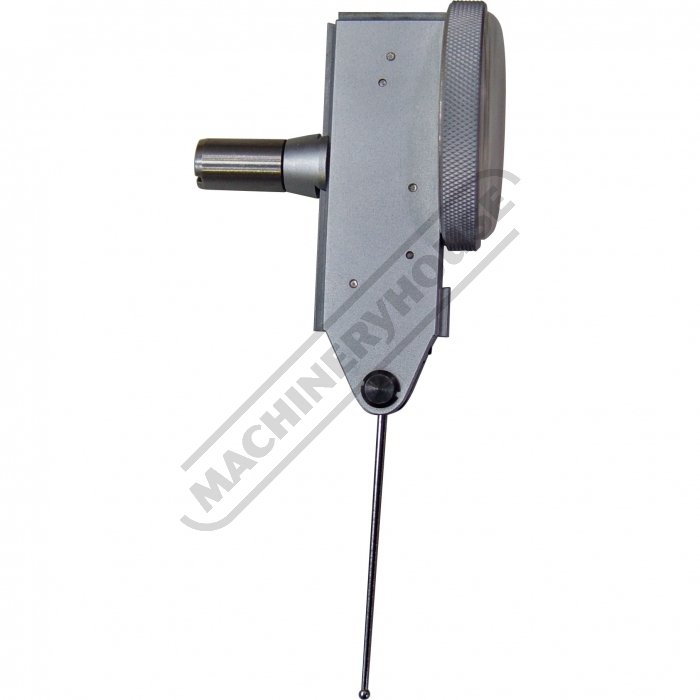

Side View
2 of 4

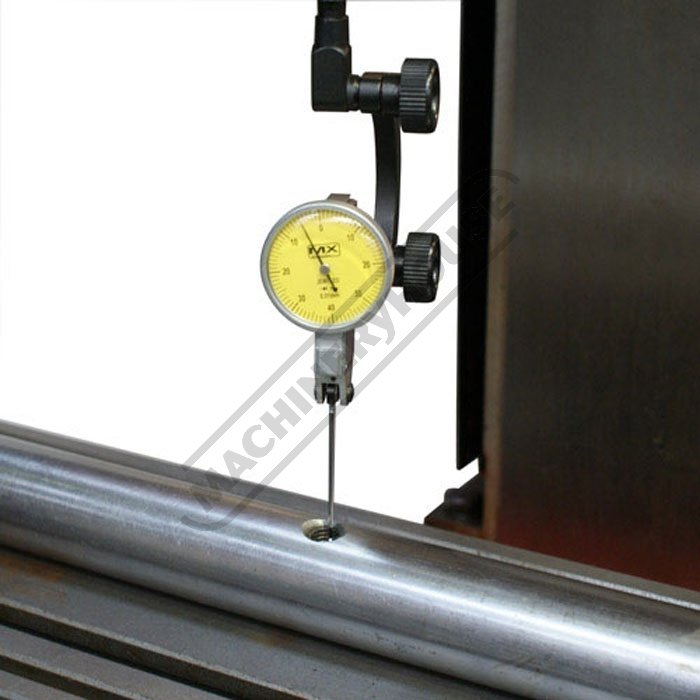

Figure 1
3 of 4

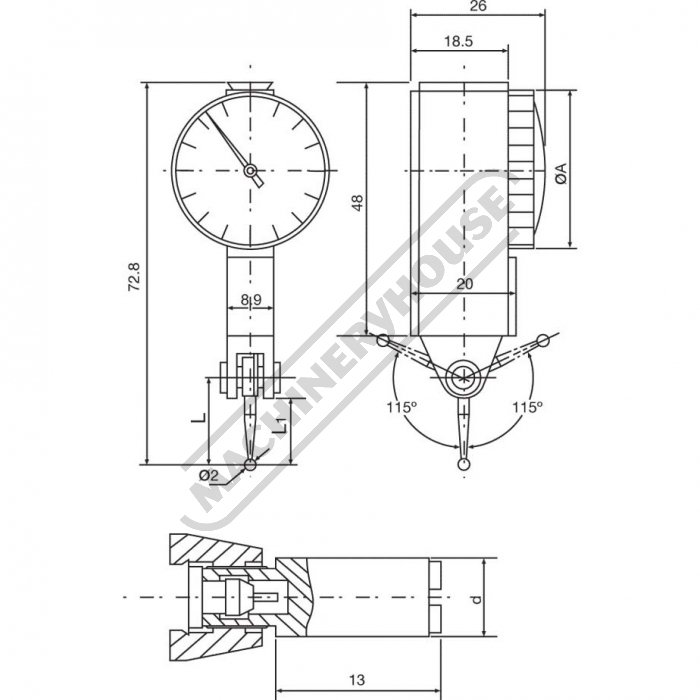

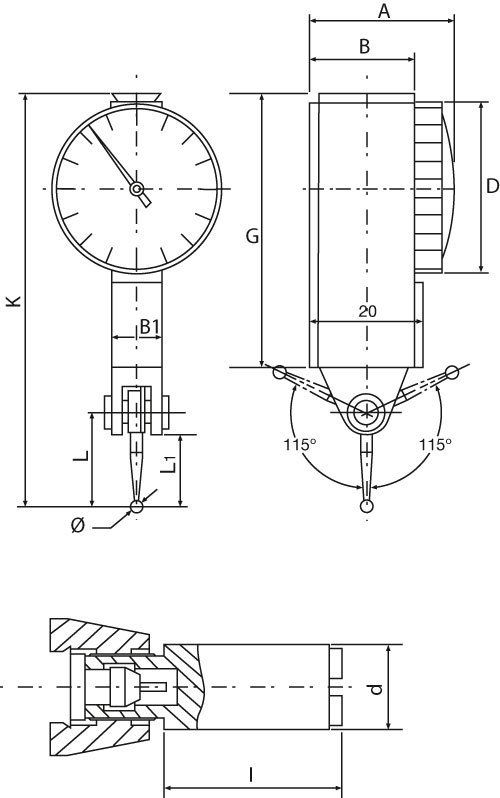

Diagram Dimensions
4 of 4
Discontinued
Order Code: Q2175
1 Year Warranty
Description
Dial Test Indicator - Metric - 34-2175
Ø2mm Carbide Ball End
0 - 0.8mm
Features
- High quality brass main bodies, high resistance to magnetism
- Jewelled, vibration proof, durable steel ball
- Metal bezel
- Pivot ball bearing
- Three dovetails
Compare Product Range
Specifications
| ORDER CODE | Q2175 |
|---|---|
| Range | 0 - 0.8mm |
| Graduations | 0.01mm |
| (mm)A | 26 |
| (mm)B | 18.5 |
| (mm)B1 | 8.9mm |
| (mm)C | 16.5 |
| (mm)D | Ø37.5 |
| (mm)d | 6 / 8 |
| (mm)E | 42.7 |
| (mm)F | 38.7 |
| (mm)G | 48 |
| (mm)I | 13 |
| (mm)K | 72.8 |
| (mm)L | 46.4 |
| (mm)L1 | 42.4 |
| (mm)Ø | 2 |
Back In Stock Soon
Back In Stock Soon
- Compare:
- Wishlist:
- ORDER CODE
- Range
- Graduations
- (mm)A
- (mm)B
- (mm)B1
- (mm)C
- (mm)D
- (mm)d
- (mm)E
- (mm)F
- (mm)G
- (mm)H
- (mm)I
- J
- (mm)K
- (mm)L
- (mm)L1
- (mm)Ø
- (ex-gst)Pricing
- (inc-gst)
-
-
Compare
-
Wishlist
- Q217
- 0 - 0.8mm
- 0.01mm
- 26.35
- 18.35
- ~
- 16.5
- Ø37
- 6 / 8
- 44
- 39.75
- ~
- ~
- ~
- ~
- ~
- 16.5
- ~
- 2
- $130.00
- $149.50
- ADD TO CART
-
-
Compare
-
Wishlist
- Q2171
- 0 - 0.03"
- 0.0005"
- 24.5
- 17.3
- ~
- 16.6
- Ø31.2
- 3.95 / 9.5
- 42.6
- 38.7
- ~
- ~
- ~
- ~
- ~
- 19
- ~
- 2
- $110.00
- $126.50
- ADD TO CART
-
-
Compare
-
Wishlist
- Q218
- ±1.6mm
- 0.01mm
- 31.2
- ~
- ~
- ~
- Ø38
- 4 / 8
- ~
- ~
- ~
- ~
- 16.5
- 99
- ~
- ~
- 19
- 2.5
- $220.00
- $253.00
- ADD TO CART
-
-
Compare
-
Wishlist
- M081
- 0 - 0.8mm
- 0.01mm
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- $390.00
- $448.50
- ADD TO CART
-
-
Compare
-
Wishlist
- M083
- 0.04"
- 0.001"
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- ~
- $450.00
- $517.50
- ADD TO CART
