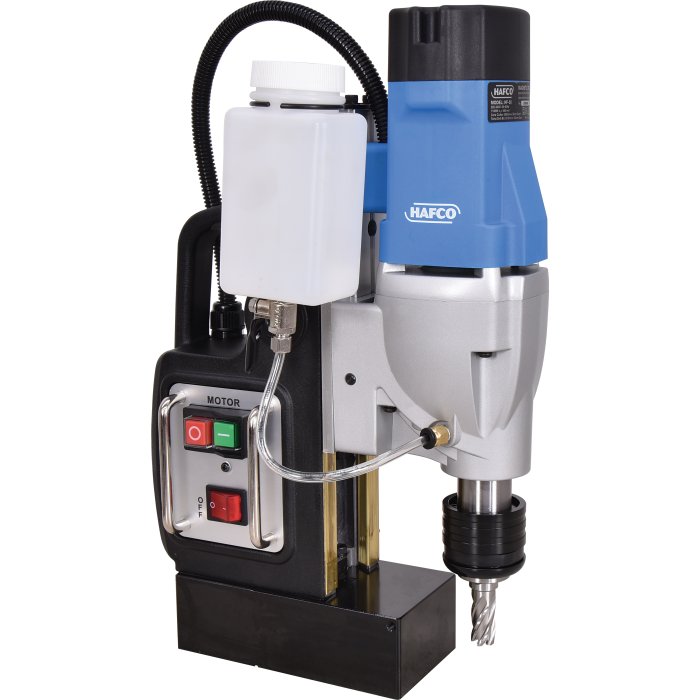

HF-50 - Portable Magnetic Drill
Includes Quick Action Broach Chuck, 13mm Drill Chuck with Adaptor & 2 x Drilling Speeds 300 / 450rpm
Ø50mm Drill Capacity - Manual Feed
D9508
1 of 8

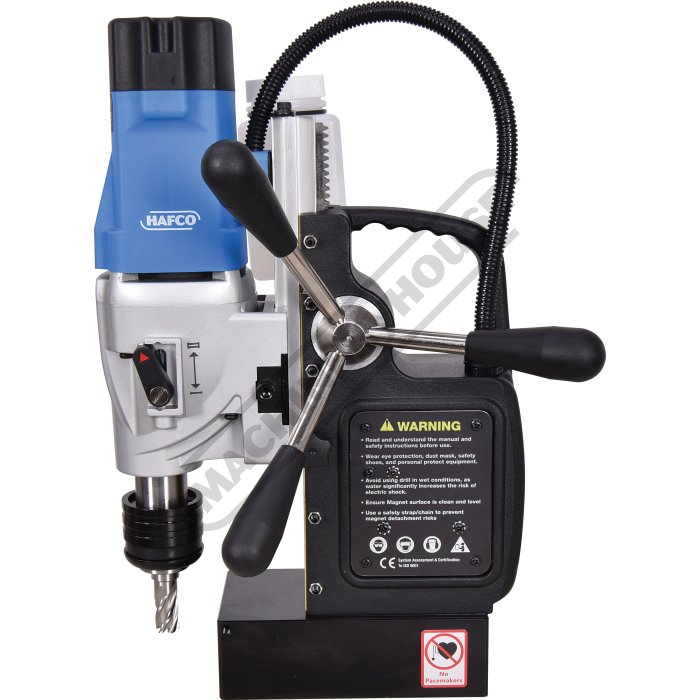

Rear Side View
2 of 8

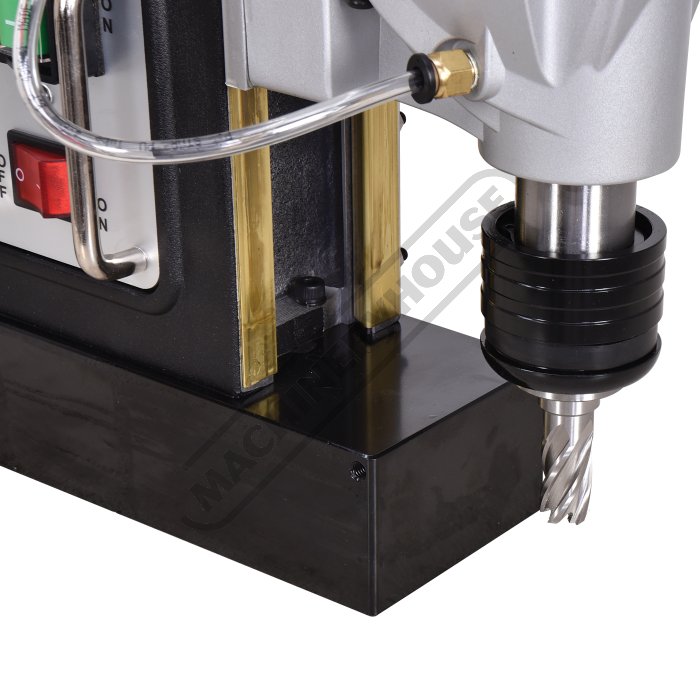

Quick Release Chuck - Cutter Not Included
3 of 8

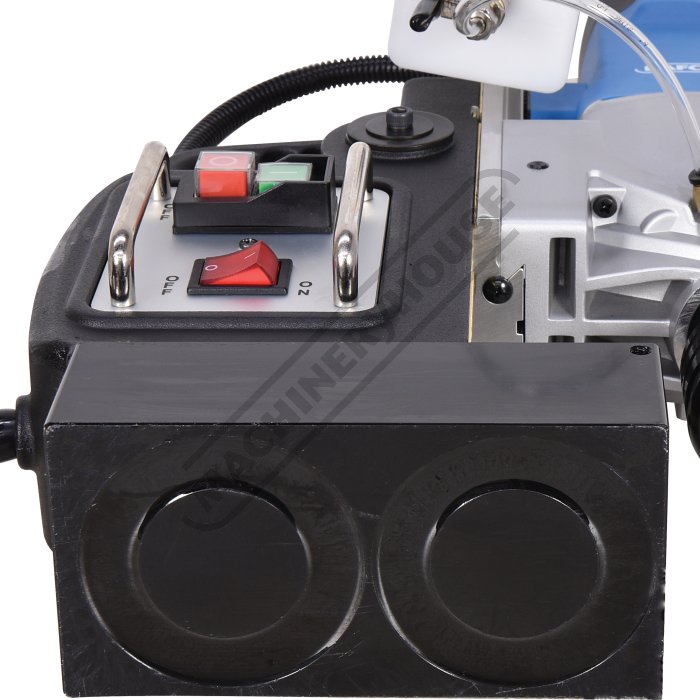

Control Panel
4 of 8

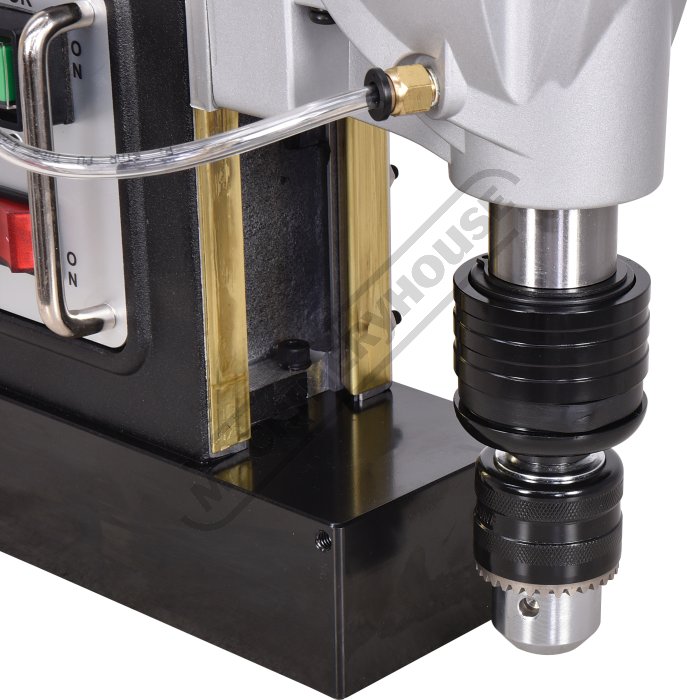

Includes Drill Chuck
5 of 8

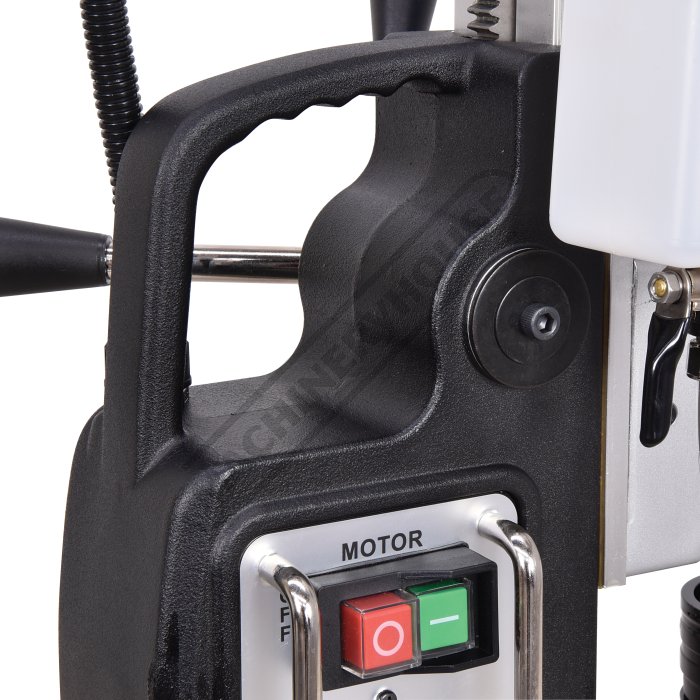

Carry Handle
6 of 8

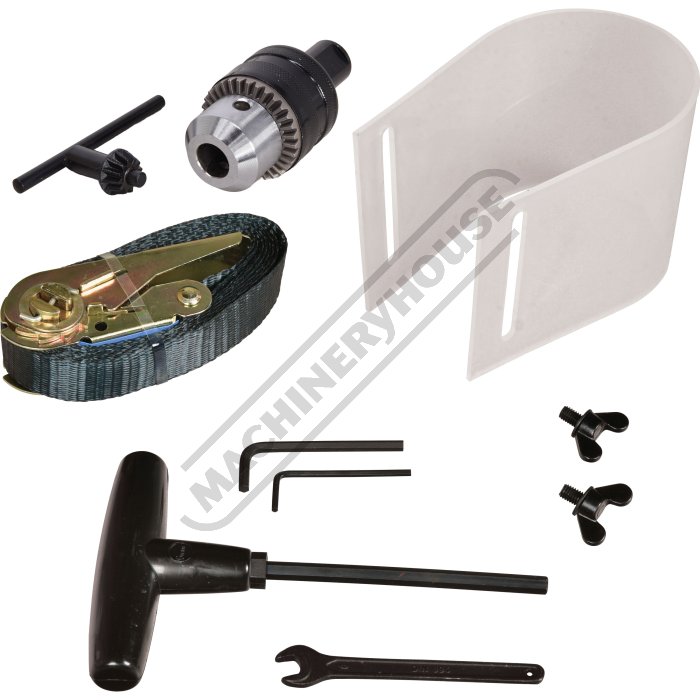

Parts
7 of 8

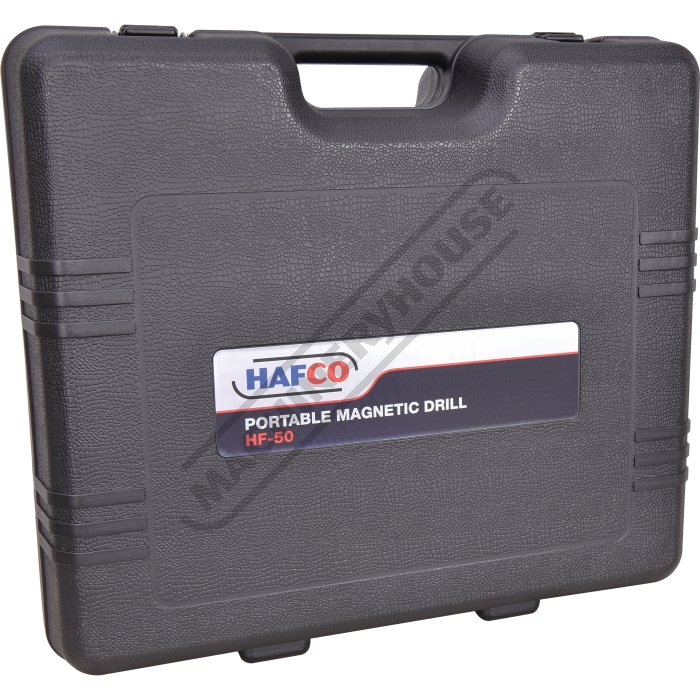

Plastic Carry Case
8 of 8
Order Code: D9508
ex-gst
inc-gst
$
1,298.00
$
1,492.70
240V / 10A
1 Year Warranty
1 Year Warranty
Made in Taiwan
Description
HF-50 - Portable Magnetic Drill
Includes Quick Action Broach Chuck, 13mm Drill Chuck with Adaptor & 2 x Drilling Speeds 300 / 450rpm
Ø50mm Drill Capacity - Manual Feed
Overview
Manufactured in Taiwan
Hafco HF-50 features 2 drilling speeds and also includes a quick release chuck for where repetitive productivity is required
On-site hole cutting in steel plates, H-Beams shaped bars, framework, ship building, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs.
NOTE: Shown with optional broach cutter
Hafco HF-50 features 2 drilling speeds and also includes a quick release chuck for where repetitive productivity is required
On-site hole cutting in steel plates, H-Beams shaped bars, framework, ship building, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs.
NOTE: Shown with optional broach cutter
Features

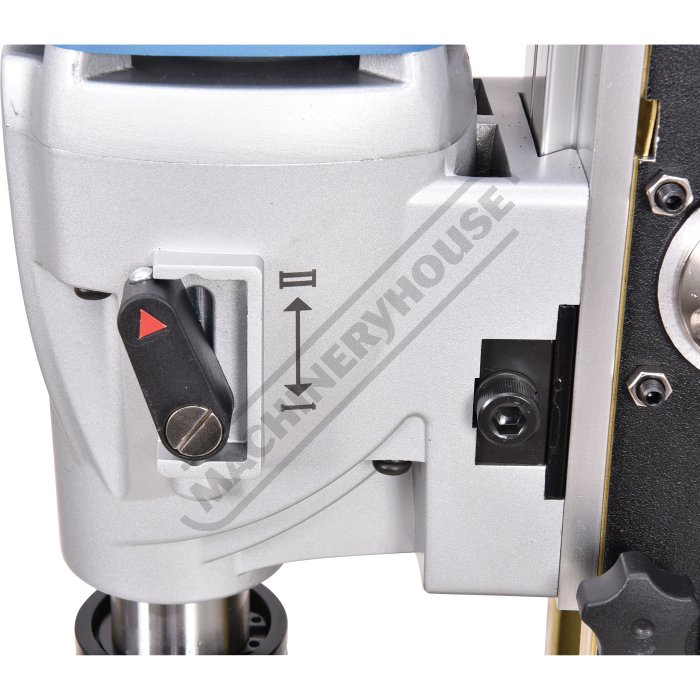

- 2 x drilling speed selection
- Quick release chuck for broach cutters
- Compact design with heavy duty magnet
- Drills up to 50mm diameter through 50mm plate
- Sturdy feed handles
- CE approved
Includes
- Quick release chuck for broach cutters

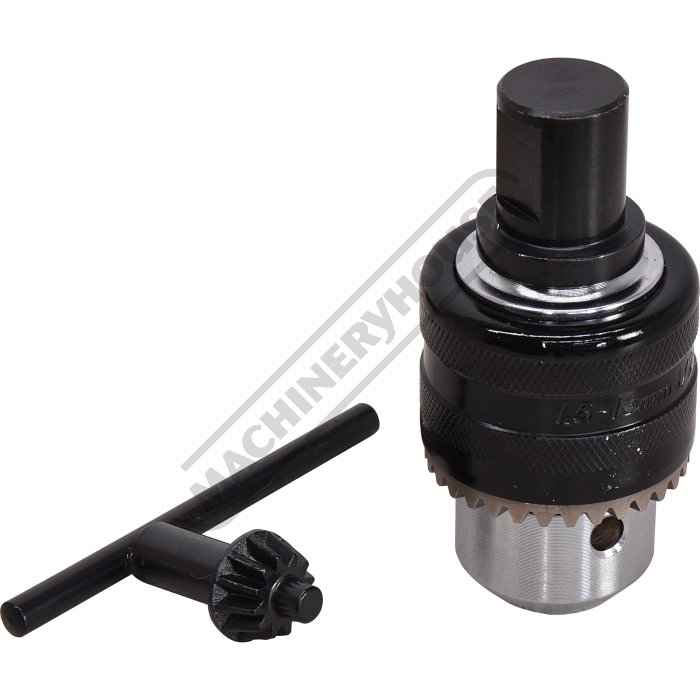

- 13mm drill chuck & adaptor

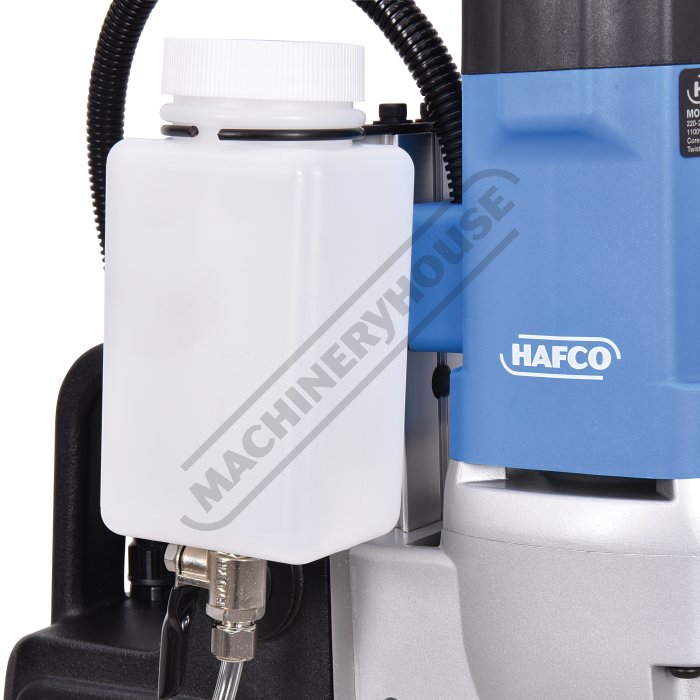

- Coolant tank kit
- Safety chain
- Blow mould plastic case
Compare Product Range
Specifications
| ORDER CODE | D9508 |
|---|---|
| MODEL | HF-50 |
| Feed | Manual |
| (mm)Drilling Capacity Range - Manual | 12 - 50 |
| (mm)Maximum Thickness | 50 |
| (mm)Suits Cutter Shank Size | 19 |
| (No.)Number of Drilling Speeds | 2 |
| (rpm)Full Load Drilling Speeds | 180 / 270 |
| (rpm)No Load Drilling Speeds | 300 / 450 |
| (kg/f)Magnetic Holding Power | 1733 |
| (kW / hp)Motor Power | 1.1 / 1.46 |
| (V / amp)Voltage / Amperage | 240 / 10 |
| (kg)Machine Weight Only | 14 |
| (kg)Nett Weight | 17.5 |
