EB-330DSC - Swivel Head-Dual Mitre Metal Cutting Band Saw with Conveyor System

2 Blade Speed 36 - 72mpm, Dual Mitre Cuts Up To 60º, Quick Action Material Clamp, Includes Hydraulic Downfeed Control & In & Out Feed Conveyor System

295 x 230mm (W x H) Rectangle Capacity

B075 1 of 21

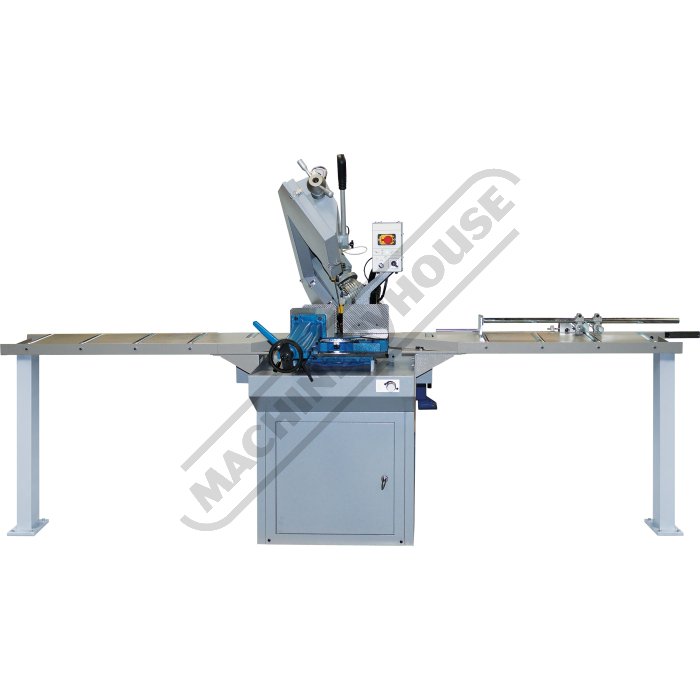

90 Degrees Cut 2 of 21

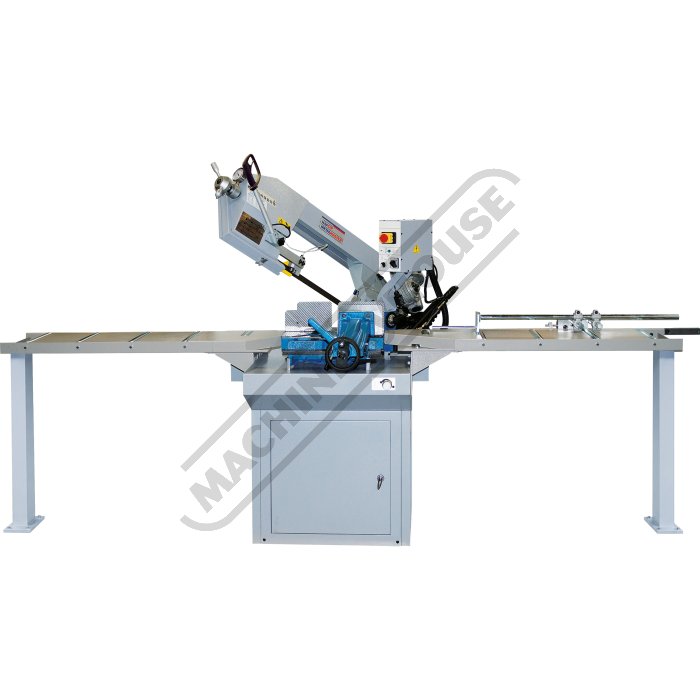

Swivel Head, 45 Degrees Left Cut 3 of 21

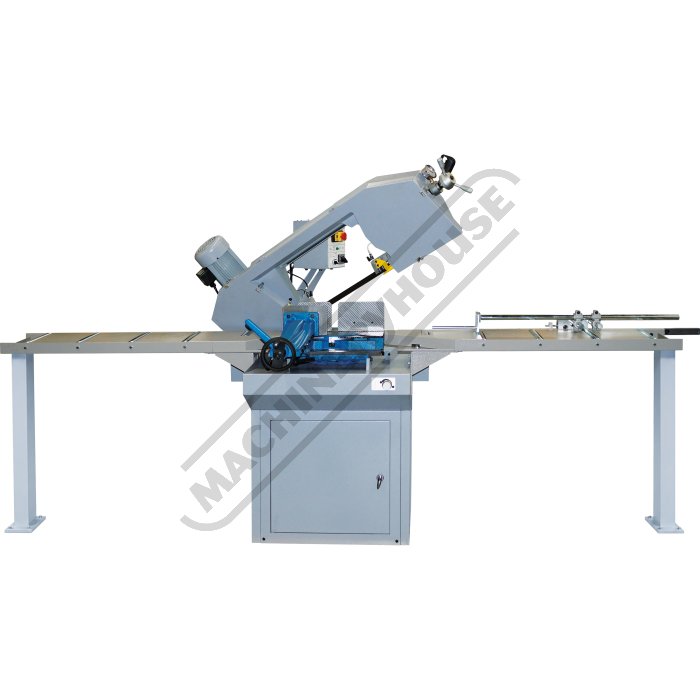

Swivel Head, 60 Degrees Right Cut 4 of 21

Control Panel 5 of 21

Out Feed Roller Table with Length Stop 6 of 21

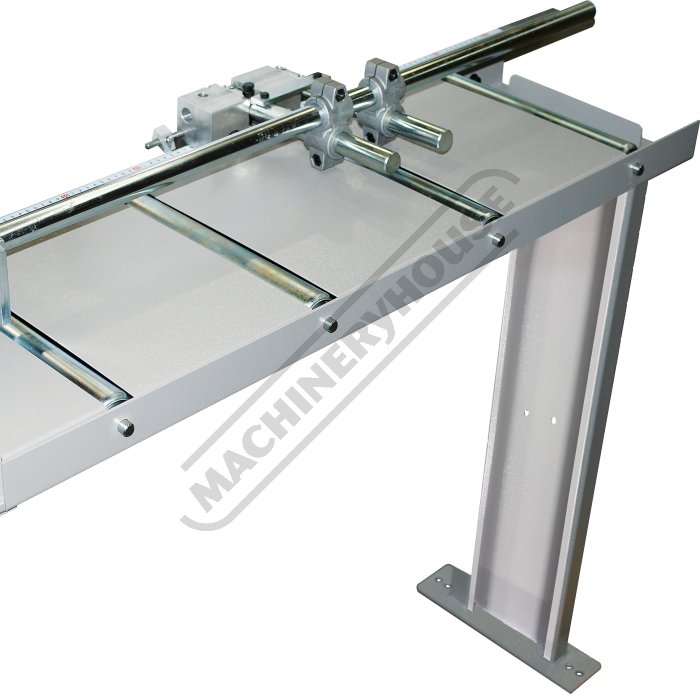

Length Stop on Ball Bearing Slide with Flip Up Action 7 of 21

Dual Mitre Rotating Table on Ball Bearings 8 of 21

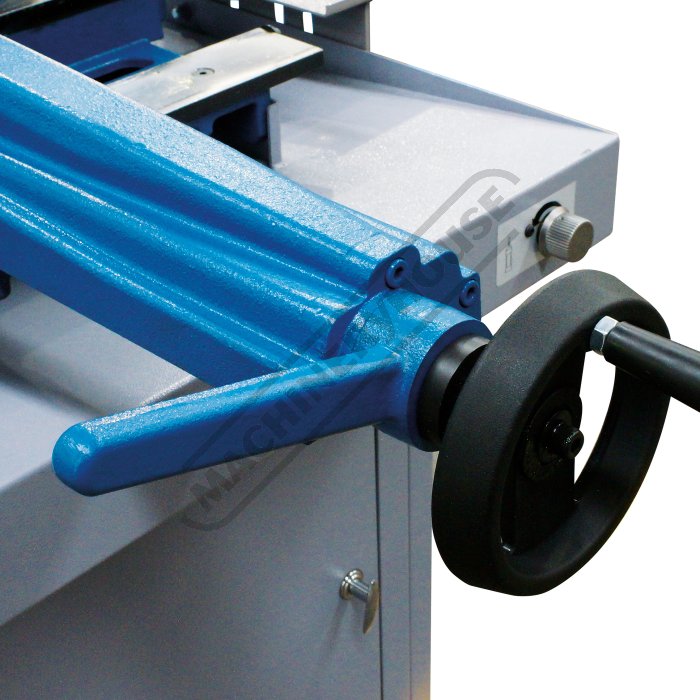

Quick Action Material Clamp Lever 9 of 21

Quick Action Lever For Material Setup 10 of 21

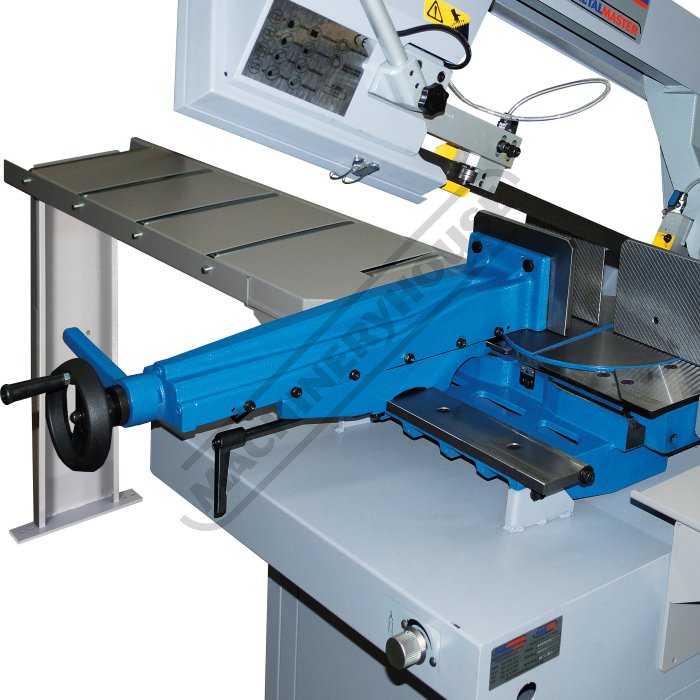

Quick Release Silding Vice 11 of 21

Trigger Control 12 of 21

Adjustable Hydraulic Blade Feed Dial 13 of 21

Blade Tension Device with Gauge 14 of 21

Ball Bearing and Carbide Blade Guides 15 of 21

Blade Cleaning Brush 16 of 21

Coolant System 17 of 21

Motor and Gearbox 18 of 21

Blade Guard Micro 19 of 21

Blade Cut Out Switch 20 of 21

Cutting Capacity Chart 21 of 21

HAFCO-METALMASTER

Order Code: B075

ex-gst

inc-gst

^$ 6,710.00

^$ 7,716.50

415V / (NO PLUG)
1 Year Warranty

Made in Taiwan

Add to Cart

Finance

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Downloads Spare Parts

Description

EB-330DSC - Swivel Head-Dual Mitre Metal Cutting Band Saw with Conveyor System

2 Blade Speed 36 - 72mpm, Dual Mitre Cuts Up To 60º, Quick Action Material Clamp, Includes Hydraulic Downfeed Control & In & Out Feed Conveyor System

295 x 230mm (W x H) Rectangle Capacity

Features

295 x 230mm rectangular capacity
Control panel with "Auto", "Manual" & "Set-Up" modes
Unique rotating table swivels with the cutting head on ball bearings
Swivel head double mitre cut to 45º right & left, 60º right
Quick action lock/release lever for swivel head
Swivel head incorporates rotating
Quick action vice release to change opening & closing position
Quick-action clamping lever for repetition work
Unique sliding vice design for dual mitre operation
User friendly blade tension system with gauge
Larger cutting capacity than conventional cold saws
Adjustable length stop for repetition cutting
Heavy-duty gear drive system
2 x blade speeds 36 - 72mpm
Ball bearing blade guides ensures minimal blade clearance wear and increases blade life due to less friction
Coolant system for cutting efficiency and blade life
Adjustable hydraulic cylinder for auto feed
Vibration free, low noise operation ensures clean & high precision cuts
Machine stand with integrated cooling fitted as standard
Made in Taiwan

Includes

In & out feed roller conveyor system with stands
Material length stop on ball bearing slide with flip over design

Specifications

Compare Product Range

Specifications

ORDER CODE	B075
MODEL	EB-330DSC
Operation Type	Swivel Head - Dual Mitre
(mm)Round @ 90º	260
(mm)Round @ 45º	240
(mm)Round @ 60º	160
(mm)Square @ 90º	230
(mm)Square @ 45º	210
(mm)Square @ 60º	130
(mm)Rectangle (W x H) @ 90º	295 x 230
(mm)Rectangle (W x H) @ 45º	225 x 210
(mm)Rectangle (W x H) @ 60º	160 x 130
Coolant System	Yes
(mm)Table Working Height	950
Cutting Head Beam Type	Manual
Cutting Head Beam Return	Manual Return
Cutting Head Down Feed Control	Adjustable Hydraulic
Vice Clamping Fixture	Manual - Quick Action
(m/min)Blade Steps / Speeds	36, 72
(mm)Blade Size (L x W x T)	2965 x 27 x 0.9
(kW / hp)Motor Power	1.2 / 1.6
(V / amp)Voltage / Amperage	415
(kg)Nett Weight	404
