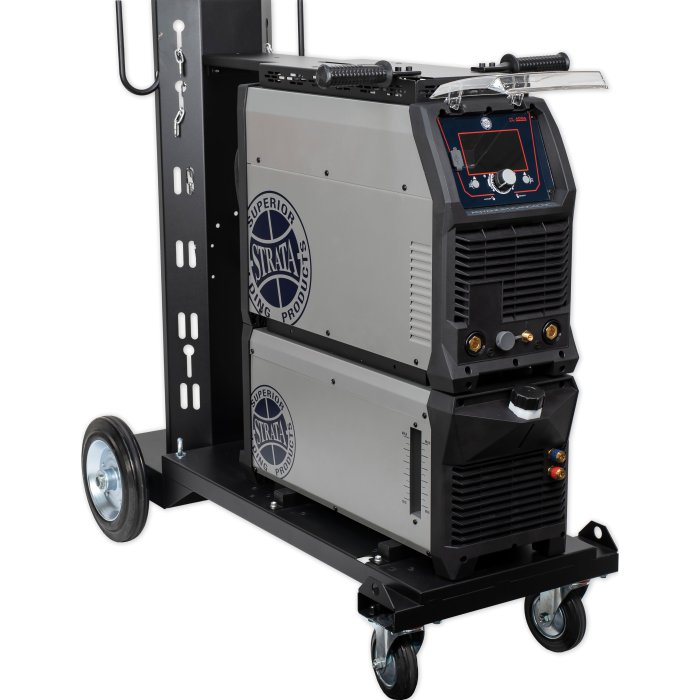

Synergic AC/DC Pulse TIG/ARC PFC Inverter Welder with Trolley & Water Cooler - AdvanceTig400ACDC Pack

400A Three-Phase

W1129 1 of 5

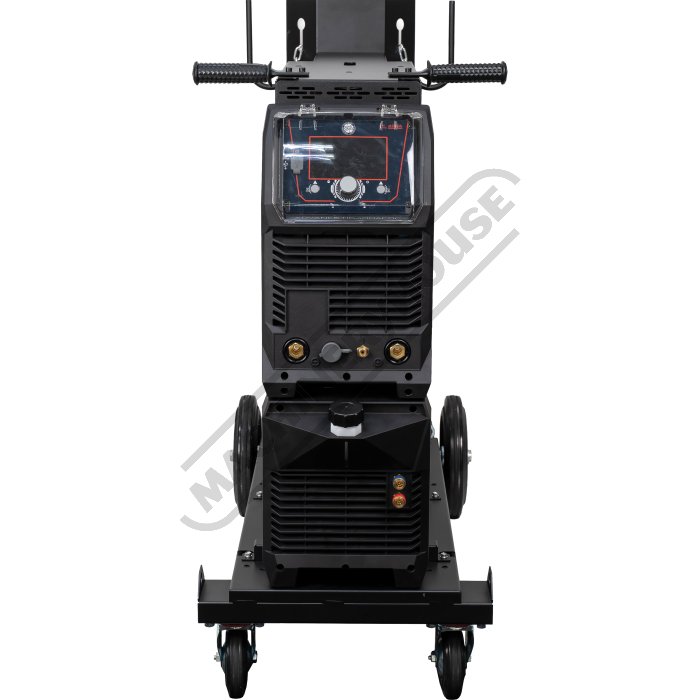

Front View 2 of 5

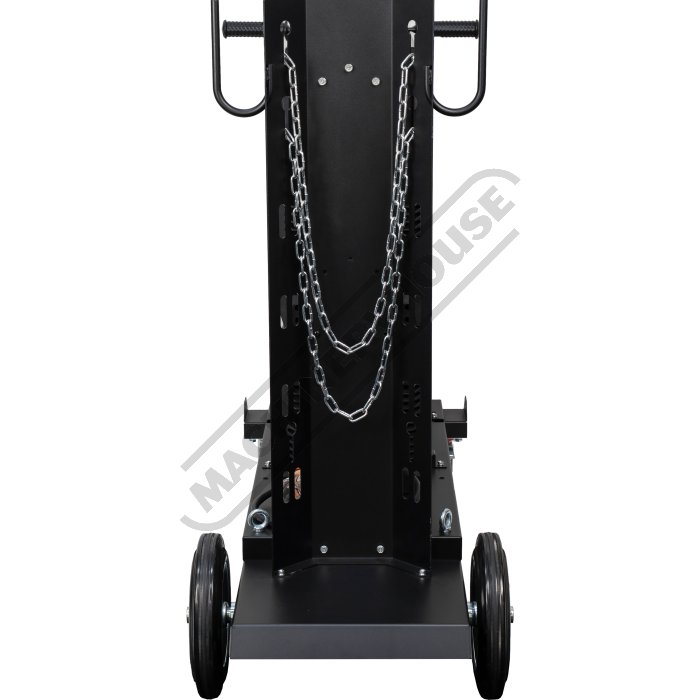

Back View 3 of 5

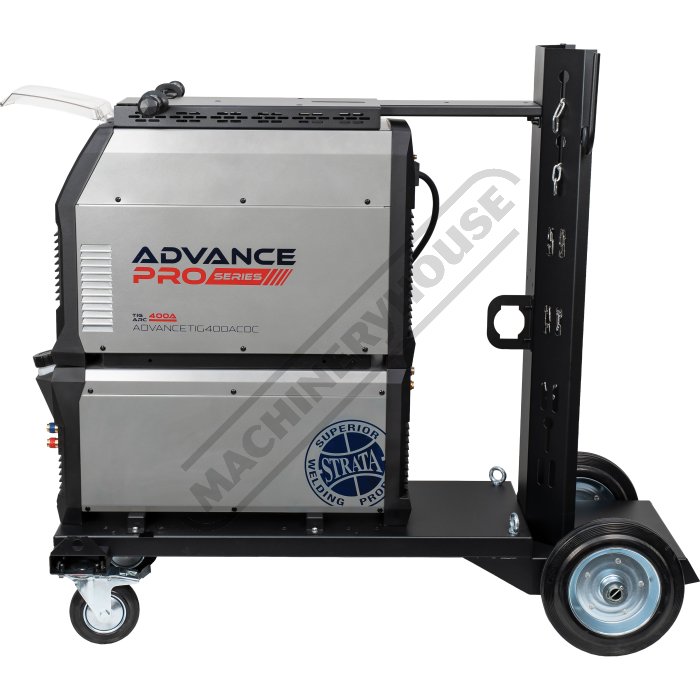

Right Side View 4 of 5

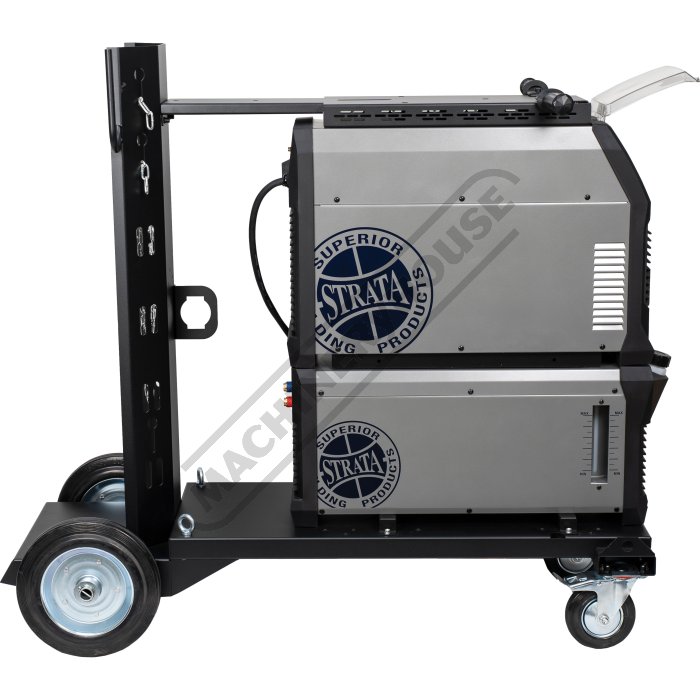

Left Side View 5 of 5

STRATA WELDERS

On Sale

Order Code: W1129

ex-gst

inc-gst

^$ 6,794.00

^$ 7,813.10

^$ 6,626.09

^$ 7,620.00

415V / Plug Fitted
4 Years Warranty

Add to Cart

Finance

Enquire

Price Match

Compare

Wishlist

Delivery & Pickup Availabilities

Description Specifications Compare Accessories Related Downloads

Description

Synergic AC/DC Pulse TIG/ARC PFC Inverter Welder with Trolley & Water Cooler - AdvanceTig400ACDC Pack

400A Three-Phase

Overview

Meet the ultimate welding solution: the AdvanceTig400ACDC. With a formidable 400A output and three-phase power, this machine is designed for high-demand environments. Its Synergic control system and full-color LCD make setting adjustments simple and precise, while the integrated heavy-duty trolley option offers mobility in the workshop. Perfect for those who demand reliability, versatility, and performance at the highest levels.

Max Output (Tig/Arc) - 400A
Max Electrode Size - 4.0mm
Input Power Supply - 400V Three Phase 32A

Features

IGBT Module Inverter Technology - Smooth & stable output, increased reliability, high duty cycle
Full Colour LCD Control Screen - Intuitive and clear visibility and setting of control parameters
TIG Smart Set Synergic Mode - Easy setting of welding parameters according to material, thickness and joint type
Active PFC Technology - Increased duty cycle and energy efficiency. Can be safely used with long extension lead
20 Memory Settings - Ability to quickly save and recall control settings for specific jobs
AC Sine, Square, Triangle & Mixed AC Wave Options - Ultimate control for every AC tig welding application
AC/DC Mix & Enhanced Fusion Feature - Faster AC TIG welding speeds
Modular integrated water cooler - Easy connection of water-cooled torch with low coolant torch protection function
Integrated Heavy Duty Industrial Trolley - Easy to move around the workshop environment
Digital Microprocessor Control System - Accurate and reliable setting of control parameters
Dual Lift TIG and HF Start Modes - Versatility for welding around sensitive electronic equipment
2T, 4T & Bi-Level Trigger Control Modes - Ease of operator use for all job applications
Dual Mode Remote Control Option - Digital up/ down button or potentiometer thumb wheel torch remote control options through a single connection plug (optional add on)
Wired & Wireless Foot Pedal Control Option (foot control optional extra)
Electronic HF Tig Arc Ignition System - Contamination free and easy arc starting with low EMF interference
Spot Welding Mode - Special feature for welding very thin material without heat distortion
Industrial IP23 casing with front panel protection - Resistant to damage, moisture and corrosion
Power Source Wind Tunnel Cooling Design - Protection against environmental contamination
MMA Adjustable Arc Force, Hot Start & Automatic Anti Stick Control - Greater control and ease of use for MMA welding.
Intelligent Machine Protection System - Temperature, voltage and current sensors for increased reliability & safety
Phase Loss Protection - Machine automatically shuts down if power supply phase loss occurs, to prevent damage.
Production tested with 550V - Extreme stress testing in production for rugged reliability.
Generator Friendly - Designed to work with generator power supply and protect from power surges.
Smart cooling fan system - Reduces noise and intake of environmental contaminants into machine
Quick connect inlet gas fitting - Tool-less easy connection of gas supply to machine

Includes

22109 Strata 400V Industrial Integrated Water Cooler V2
22108 Strata Industrial Welding Machine Trolley V2
17372 Strata WP18 Series Water Cooled Variable Amp TIG Torch with Rigid Head
17479 5m Strata heavy duty Arc Lead with twist-lock electrode holder
17478 5m Strata heavy-duty Earth lead & Earth clamp
GR102ARFL Strata Flowmeter Argon Regulator
PDL32 Plug Angled 4 Pin 32A 500V

Specifications

Compare Product Range

Specifications

ORDER CODE	W1129
Type	AC/DC Pulse TIG/ARC PFC Inverter Welder
MODEL	AdvanceTig400ACDC Pack
(V / amp)Voltage / Amperage	400
(amp)Recommended Plug	32
(amp)Input Current	36.5A
(amp / V)Rated Output Current	AC/DC TIG - 10-400A
(amp)Range of Output Current	~
(% @ amp)Duty Cycle 40 Deg C - TIG	AC TIG - 400A @ 60%, 310A @ 100% DC TIG - 400A @ 60%, 310A @ 100%
(% @ amp)Duty Cycle 40 Deg C - MMA	MMA - 400A @ 60%, 310A @ 100%
Insulation Class	IP23
Standard	AS/ IEC60974-1:2012
(kVA)Recommended Generator	25
(%)Efficency	85
Power Factor	0.7
(mm)Dimensions	640 x 250 x 500
(kg)Nett Weight	27
