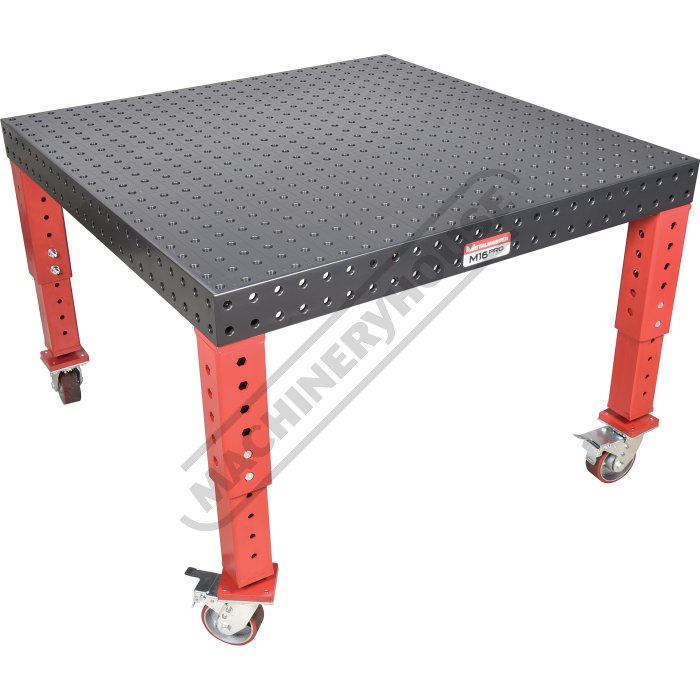

WT16-1212N - 1200 x 1200mm M16 Pro Series Welding Table

Plasma Nitriding Coating
Overview

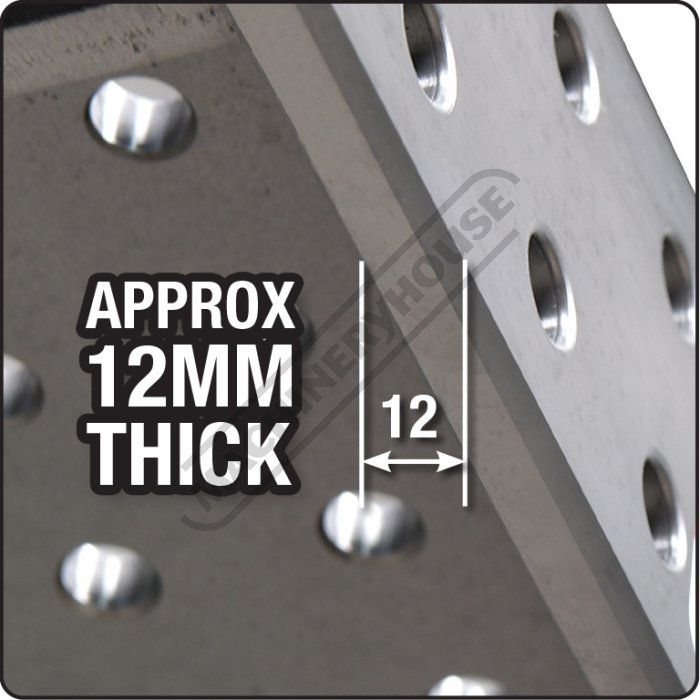

The Metalmaster M16 Pro Series welding tables features a welded & ribbed construction from heavy S355 plate steel, the frame is then CNC machined with the sides & top having a finished nominal thickness of 12mm. The CNC machining process is able to achieve a high flatness tolerance of +/- 0.1mm over 1m2 to give you a smooth precision welding surface. During this CNC machining process, the Ø16mm holes are precision bored to ensure a hole distance tolerance of +/- 0.05mm & with an industry standard 50 x 50mm hole pattern it gives you a multitude of fixture holes to suit your application. Before removing the table from the machining centre, we engrave 50mm grid lines & perimeter ruler to give you millimetre precision helping you minimise mistakes while increasing productivity.

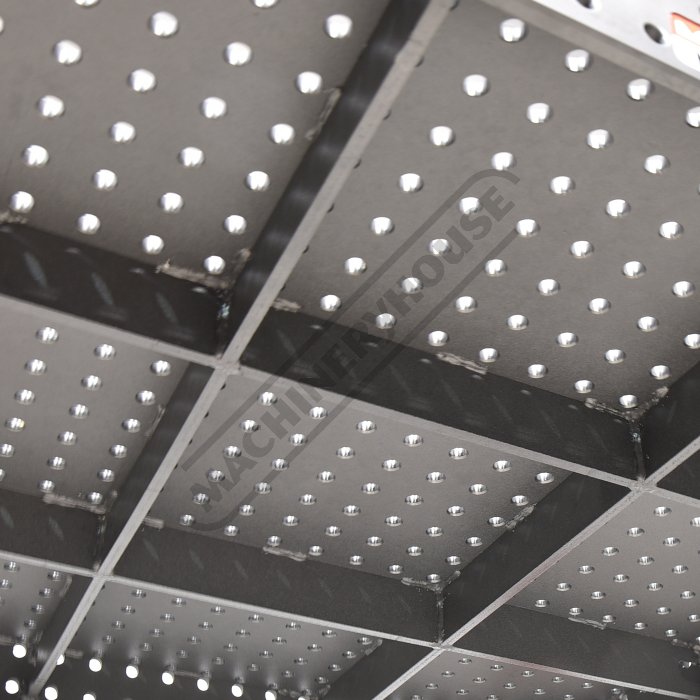

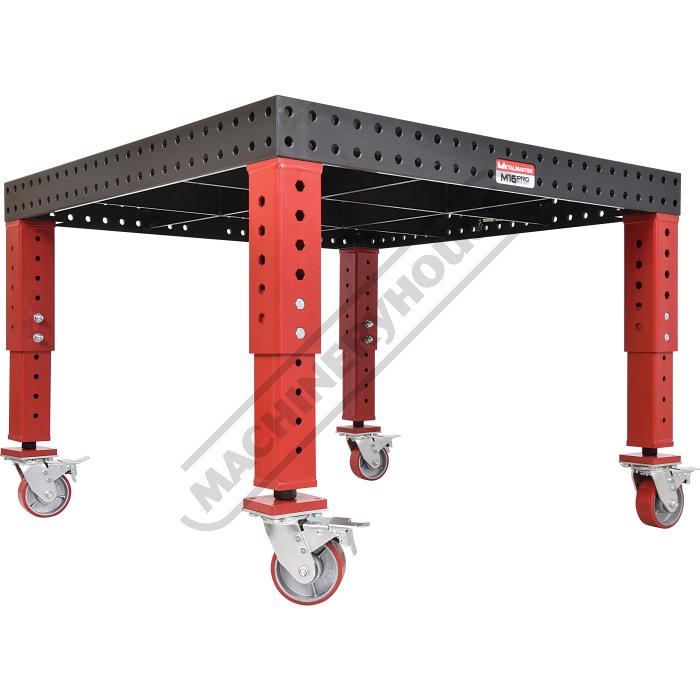

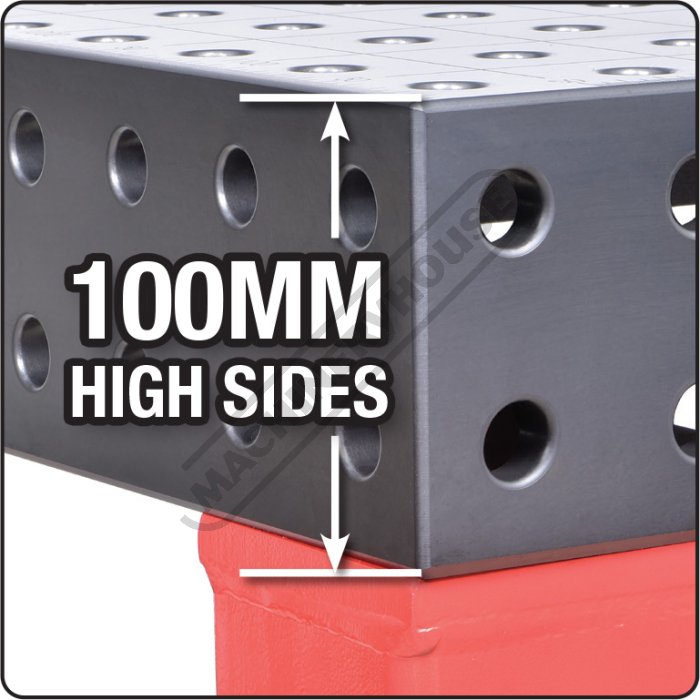

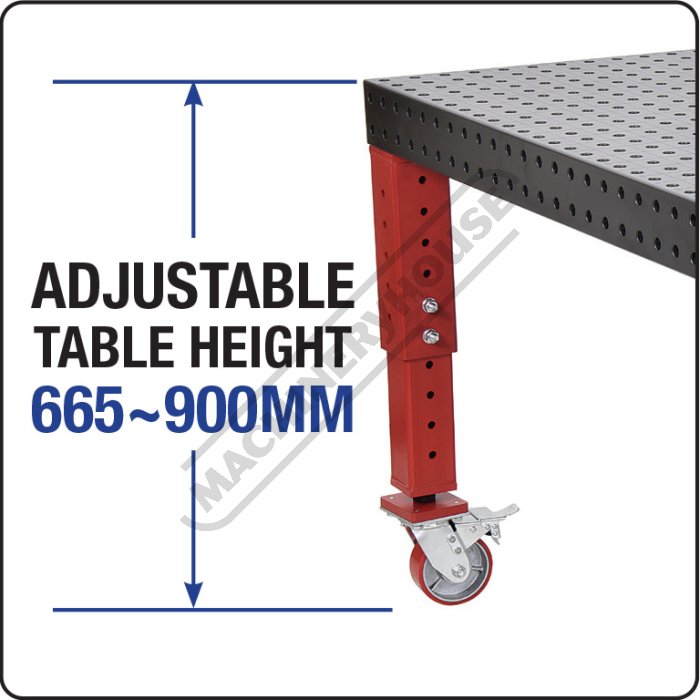

Our Pro Series tables have been designed with interlocking solid steel ribs & 100mm high sides to maintain rigidity with substantial load capacity for all medium sized fabrication projects. The hole spacing is an industry standard 50mm giving you almost endless possibilities for both welding and clamping applications. The table also comes complete with heavy powder coated tube steel legs complete with heavy duty caster wheels featuring integrated levelling feet ensuring a stable working surface.

This M16 Pro Series table come standard with a plasma nitriding coating which thermochemically case hardens the surface so not only making it harder but also making it spatter, wear & rust resistant.

Choose from our wide range of optional Pro Series clamping kits & fixturing accessories to add to your table giving you the ultimate welding & fixturing system so when you go into battle with your next fabrication project it’s a knockout.

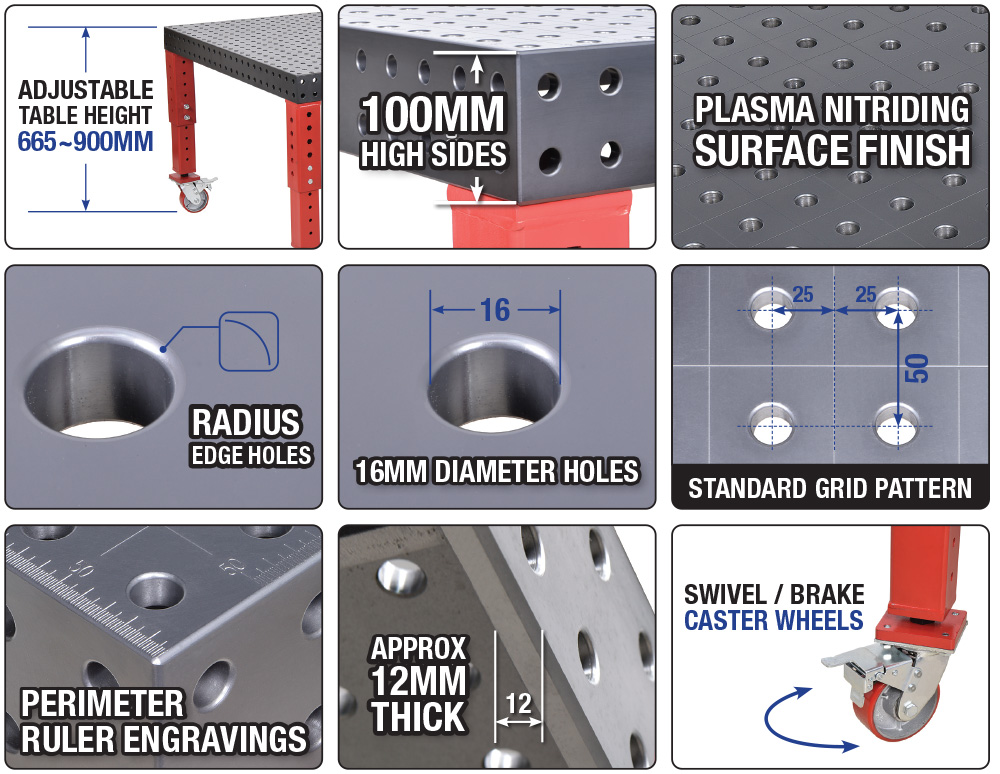

Features

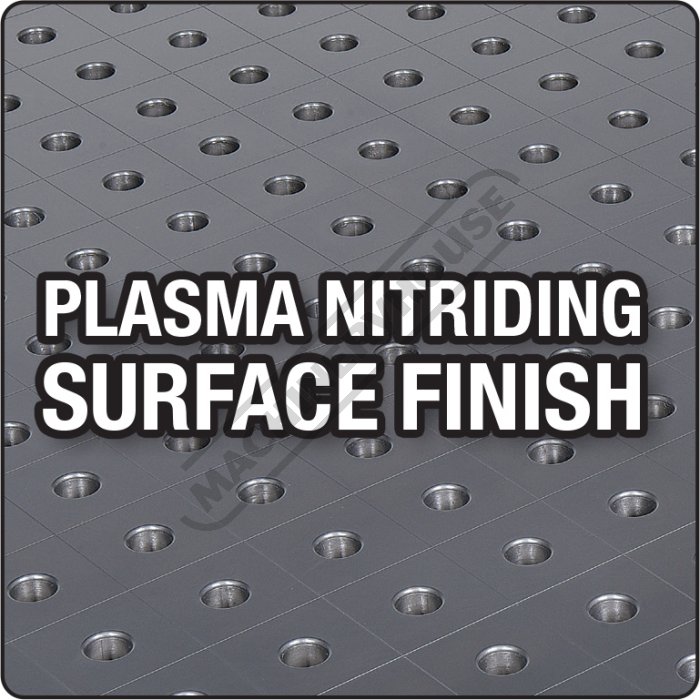

  • Plasma nitriding surface finish for increased hardness, rust & spatter resistance

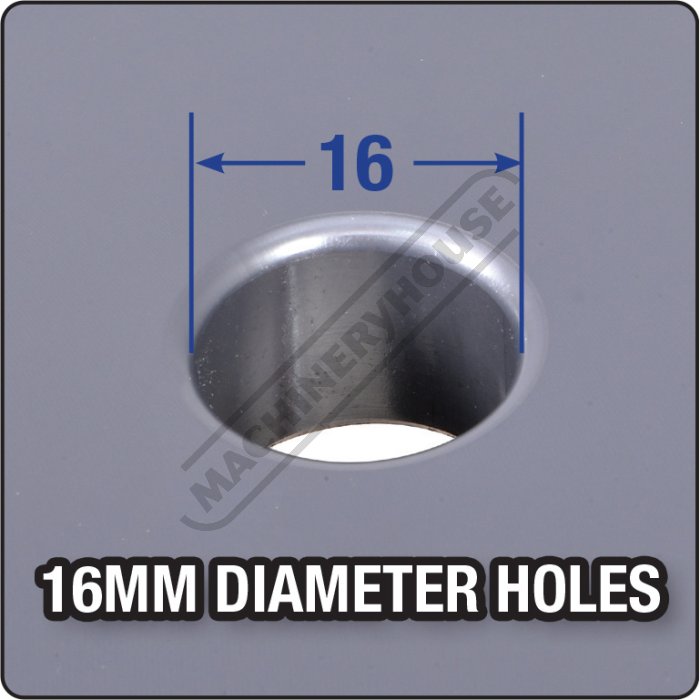

  • Ø16mm Precision bored fixing holes at 50mm centres

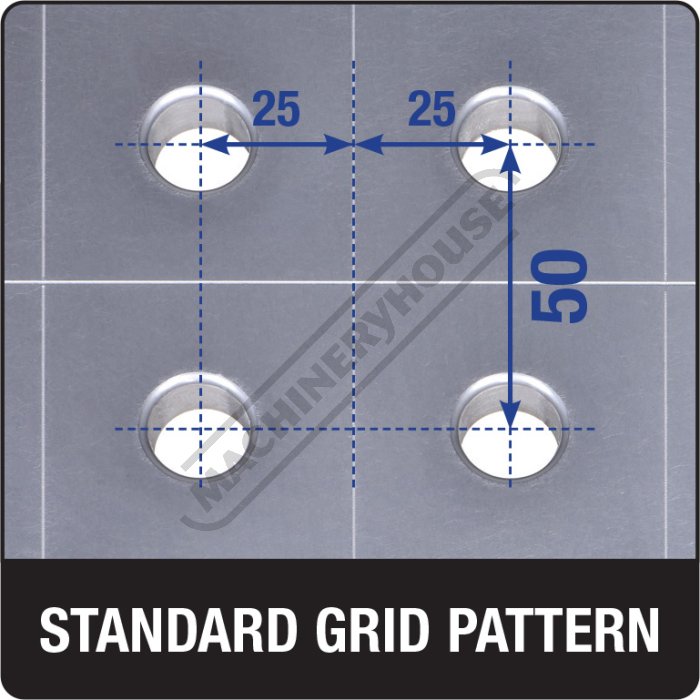

  • 50 x 50mm hole grid pattern offering a multitude of clamping options

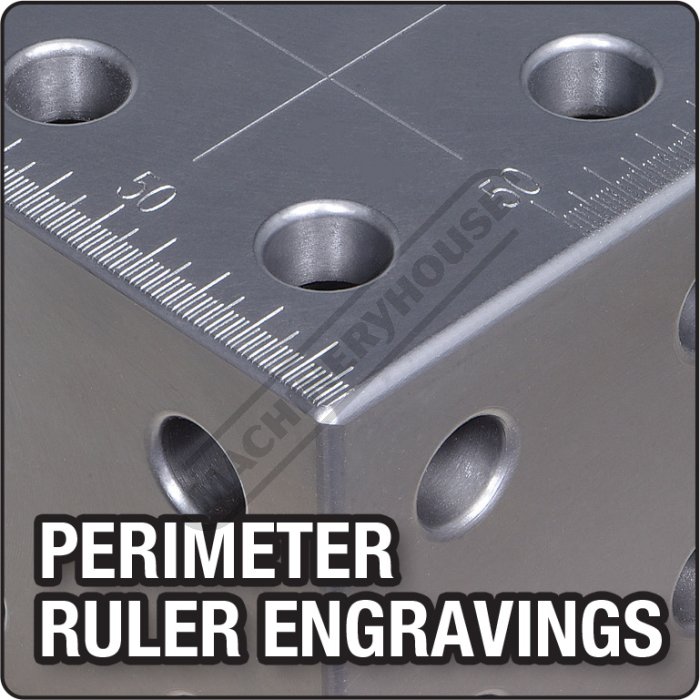

  • 50mm grid lines & perimeter ruler engraving
  • Precision CNC machined to ensure flatness of +/- 0.1mm over 1m2
  • Tabletop & sides manufactured from heavy S355 plate steel
Includes

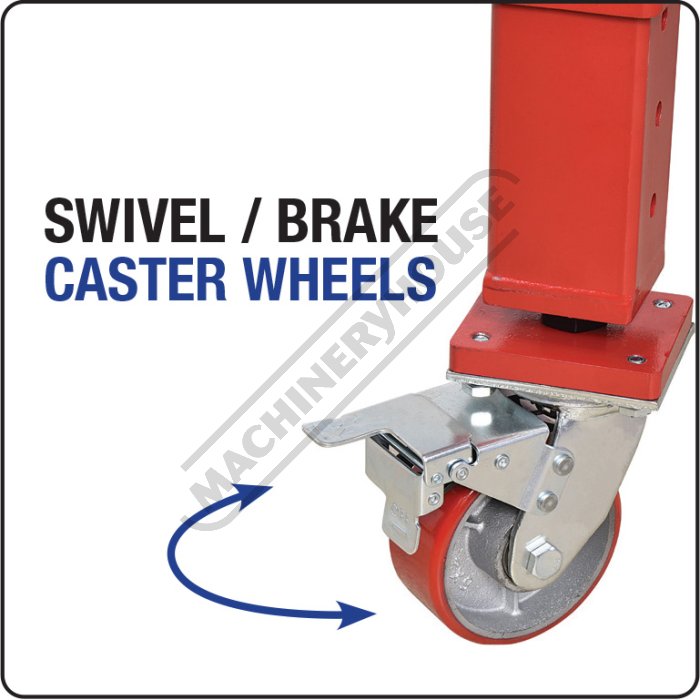

  • 4pcs of heavy square steel legs c/w caster with integrated levelling feet
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • MODEL
  • Table Top Finish
  • (mm)Table Top Size
  • (mm)Table Height
  • (mm)Table Side Height
  • (mm)Top Plate Thickness
  • (mm)Grid Pattern
  • (Ø)Table Hole Diameter
  • Table Slots
  • (kg)Table Load Capacity
  • (kg)Nett Weight
  • (ex-gst)Pricing
  • (inc-gst)
  • W07705
  • Compare
  • Wishlist
  • W07705
  • TDQ612075-K1
  • nitrided black oxide
  • 1200 x 750
  • 910
  • ~
  • 16
  • 50 x 50
  • 16mm
  • ~
  • 700
  • 195
  • $3,690.00
  • $4,243.50
  • ADD TO CART
  • Back In Stock SoonW07809
  • Compare
  • Wishlist
  • W07809
  • WT16-1212N
  • Plasma Nitriding Coating
  • 1200 x 1200
  • ~
  • 100
  • 12
  • 50 x 50
  • 16mm
  • ~
  • ~
  • 264
  • $3,470.00
  • $3,990.50
  • ADD TO CART
  • W07804
  • Compare
  • Wishlist
  • W07804
  • WT16-2010
  • S355 plate steel
  • 2000 x 1000
  • ~
  • 100
  • 12
  • 50 x 50
  • 16mm
  • ~
  • ~
  • 315
  • $4,350.00
  • $5,002.50
  • ADD TO CART
  • W07811
  • Compare
  • Wishlist
  • W07811
  • WT16-2010N
  • Plasma Nitriding Coating
  • 2000 x 1000
  • ~
  • 100
  • 12
  • 50 x 50
  • 16mm
  • ~
  • ~
  • 315
  • $5,446.00
  • $6,262.90
  • ADD TO CART
  • New ReleaseW07812
  • Compare
  • Wishlist
  • W07812
  • WT16-2412N
  • Plasma Nitriding Coating
  • 2400 x 1200
  • ~
  • 100
  • 12
  • 50 x 50
  • 16mm
  • ~
  • ~
  • 431
  • $7,426.00
  • $8,539.90
  • ADD TO CART
  • W08255
  • Compare
  • Wishlist
  • W08255
  • WT28-2010N
  • Plasma Nitriding Coating
  • 2000 x 1000
  • ~
  • 200
  • 25
  • 100 x 100
  • 28mm
  • ~
  • ~
  • 655
  • $6,546.00
  • $7,527.90
  • ADD TO CART
  • Back In Stock SoonW08257
  • Compare
  • Wishlist
  • W08257
  • WT28-2412N
  • Plasma Nitriding Coating
  • 2400 x 1200
  • ~
  • 200
  • 25
  • 100 x 100
  • 28mm
  • ~
  • ~
  • 901
  • $8,746.00
  • $10,057.90
  • ADD TO CART
  • W08260
  • Compare
  • Wishlist
  • W08260
  • WT28-3015N
  • Plasma Nitriding Coating
  • 3000 x 1500
  • ~
  • 200
  • 25
  • 100 x 100
  • 28mm
  • ~
  • ~
  • 1380
  • $11,276.00
  • $12,967.40
  • ADD TO CART
  • W07712A
  • Compare
  • Wishlist
  • W07712A
  • TMA61210
  • Standard Finish
  • 1160 x 1000
  • 900
  • ~
  • 16
  • 50 x 50
  • 16mm
  • 40mm
  • 2200
  • 187
  • $2,630.00
  • $3,024.50
  • ADD TO CART
  • W07716A
  • Compare
  • Wishlist
  • W07716A
  • TMA62010
  • Standard Finish
  • 1960 x 1000
  • 900
  • ~
  • 16
  • 50 x 50
  • 16mm
  • 40mm
  • 2500
  • 306
  • $4,016.00
  • $4,618.40
  • ADD TO CART
  • W07717A
  • Compare
  • Wishlist
  • W07717A
  • TMQA62010
  • Nitrided Finish
  • 1960 x 1000
  • 900
  • ~
  • 16
  • 50 x 50
  • 16mm
  • 40mm
  • 2500
  • 306
  • $5,600.00
  • $6,440.00
  • ADD TO CART
  • W07720A
  • Compare
  • Wishlist
  • W07720A
  • TMD625125
  • Standard Finish
  • 2560 x 1250
  • 900
  • ~
  • 16
  • 50 x 50
  • 16mm
  • 40mm
  • 2500
  • 449
  • $6,480.00
  • $7,452.00
  • ADD TO CART
  • W07721A
  • Compare
  • Wishlist
  • W07721A
  • TMQD625125
  • Nitrided Finish
  • 2560 x 1250
  • 900
  • ~
  • 16
  • 50 x 50
  • 16mm
  • 40mm
  • 2500
  • 449
  • $7,580.00
  • $8,717.00
  • ADD TO CART
  • W07725A
  • Compare
  • Wishlist
  • W07725A
  • TMQD626125F
  • BuildPro Max Table
  • 2550 x 1250
  • 900
  • ~
  • 16
  • 50 x 50
  • 16mm
  • ~
  • 3000
  • 654
  • $8,570.00
  • $9,855.50
  • ADD TO CART
  • Special OrderW07711A
  • Compare
  • Wishlist
  • W07711A
  • TMQA60610
  • BuildPro Table
  • 560 x 1000
  • 900
  • ~
  • 16
  • 50 x 50
  • 16mm
  • 40mm
  • 900
  • 108
  • $1,816.00
  • $2,088.40
  • ADD TO CART
