Tube Bender - Manual - 13B-C
Ø1/2" - Ø1 1/2" Round Capacity
T064
1 of 5

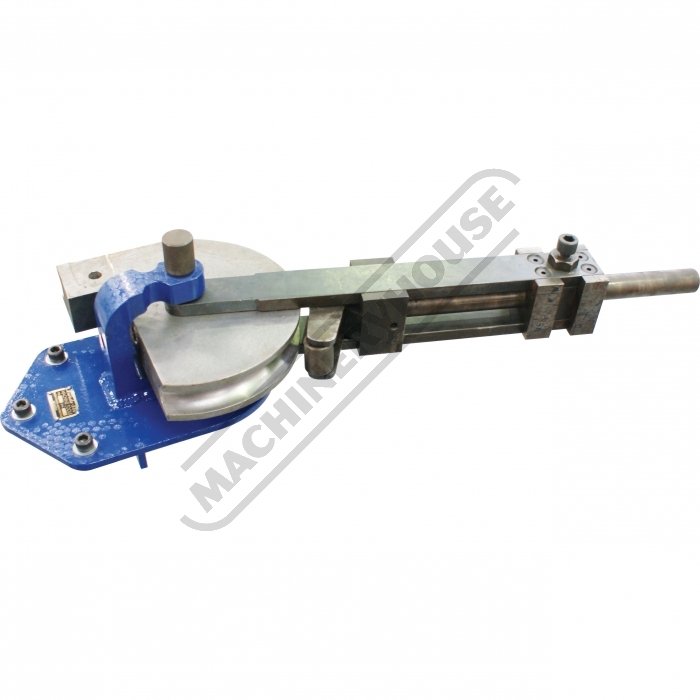

Top View
3 of 5

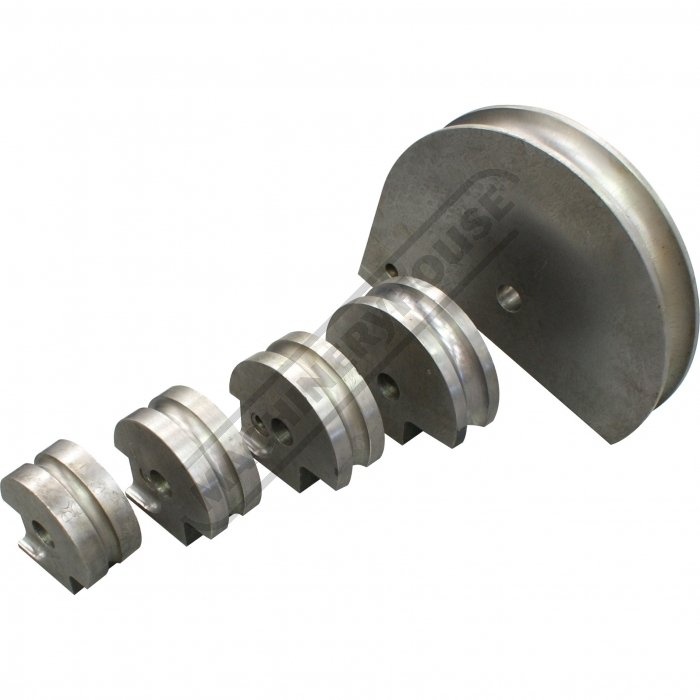

Formers
4 of 5
Shown on Optional Stand T065
5 of 5
Discontinued
Order Code: T064
1 Year Warranty
Made in Australia
Description
Tube Bender - Manual - 13B-C
Ø1/2" - Ø1 1/2" Round Capacity
Overview
The 13B-C model is a compression bender but uses a slide block to prevent the bend flattening on the back.
This model is a bench mounted or vice operated machine & will produce good quality bends from 12mm to 40mm. Its designed to bend medium wall steel and non-ferrous tube and section forms. An extension handle can be fitted for ease of bending.
The machine is manufactured from high grade materials - steel body, bending arm and clamping gear. Formers are made from high grade iron.
Features include easy accessibility for tube positioning and removal - no necessary clamping for larger size tubes.
Made in Australia
This model is a bench mounted or vice operated machine & will produce good quality bends from 12mm to 40mm. Its designed to bend medium wall steel and non-ferrous tube and section forms. An extension handle can be fitted for ease of bending.
The machine is manufactured from high grade materials - steel body, bending arm and clamping gear. Formers are made from high grade iron.
Features include easy accessibility for tube positioning and removal - no necessary clamping for larger size tubes.
Made in Australia
Features
- Engineered from the highest quality materials
- Simple setup and operation
- Speed with accuracy
- Hand operated - Bench or vice mounted. Direction of bend right or left hand.
- Capacity 40mm (1-1/2") x 3mm (10 SWG), 40mm (1-1/2") x 1.6mm (16 SWG)
- Maximum Angle of Bend 180 degrees.
- Maximum Radius 225mm (10") centre line radius
- Minimum Radius 4 diameters of tube
- Overall Dimensions 785mm (31") long x 200mm (8") wide x 190mm (7-1/2") high
- Weight approximately 70kg
Compare Product Range
Specifications
| ORDER CODE | T064 |
|---|---|
| MODEL | 13B-C |
| (Type)Material | Tube |
| (Type)Material Section | Round |
| (Type)Machine | Manual |
| (inch / mm)Round Tube Range (OD) - Mild Steel | Ø1/2 - Ø1-1/2" |
| (inch / mm)Tube Formers Included | 1/2", 5/8", 3/4", 1 1-1/4", 1-1/2" Round |
| (inch / mm)Pipe Formers Included | ~ |
| (kg)Nett Weight | 70 |
