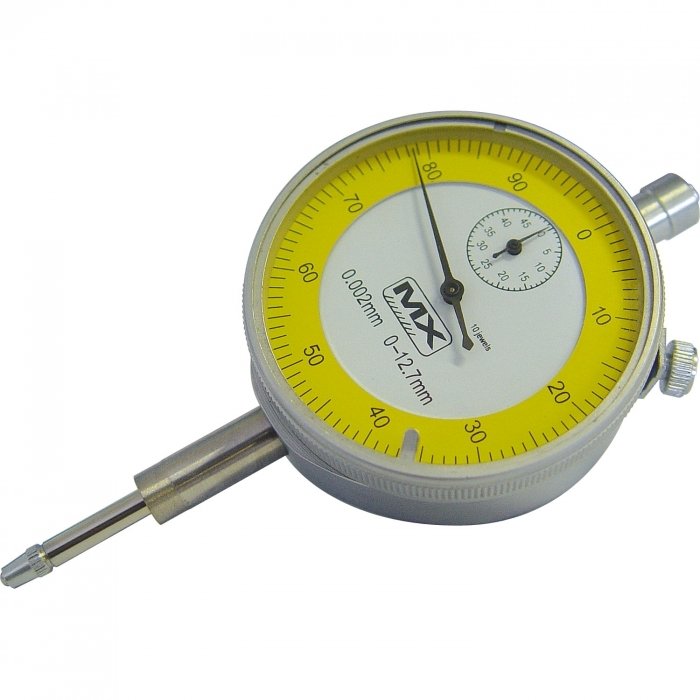

Micron Dial Indicator - 34-216

0-12.7mm

Features

Smooth 10 jewel movement
In-out tolerance marker
Flat glass - metal bezel
Protected top spindle extension
Flat back and back lug
Peach shape body
Dial reads 0.002mm (2µm)
Supplied in foam lined plastic case with test reports

Specifications

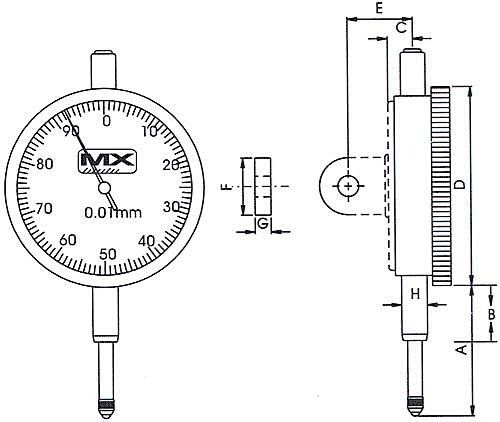

Enlarge Diagram Compare Product Range

Specifications

ORDER CODE	Q216
(mm)Range	0 - 12.7
(mm)Graduations	0.002
(mm)A	42.5
(mm)B	21
(mm)C	8
(mm)D	57
(mm)E	19
(mm)F	17
(mm)G	6.35
(mm)H	8
