Indicator Snap Micrometer - 10-132
0-25mm
Q132
1 of 4
Test Piece
2 of 4
Test Piece
3 of 4
Rear Side
4 of 4
Discontinued
Order Code: Q132
2 Years Warranty
Description

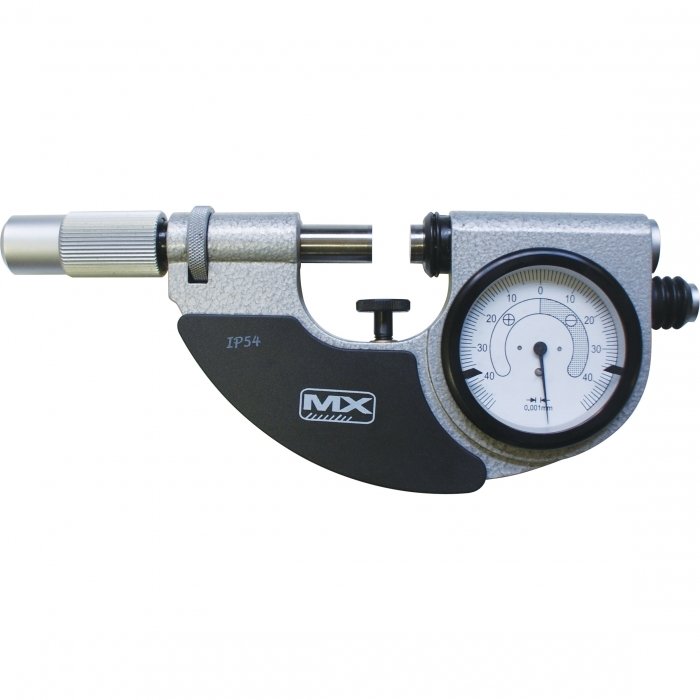

Indicator Snap Micrometer - 10-132
0-25mm
Features
- Protection level IP54
- 10mm diameter carbide measuring faces
- Direct GO/NOGO judgment for mass produced parts
- Measuring force 5-10N
- Painted frame
- Carbide tipped anvils, Flatness 0.0008mm
- Indicator rang ±0.04mm
- Indicator resolution 0.001mm
Compare Product Range
Specifications
| ORDER CODE | Q132 |
|---|---|
| (mm)Range | 0 - 25 |
| (mm)Accuracy | 0.001 |
| (mm)L | 28.5 |
| (mm)D | 25 |
Discontinued
