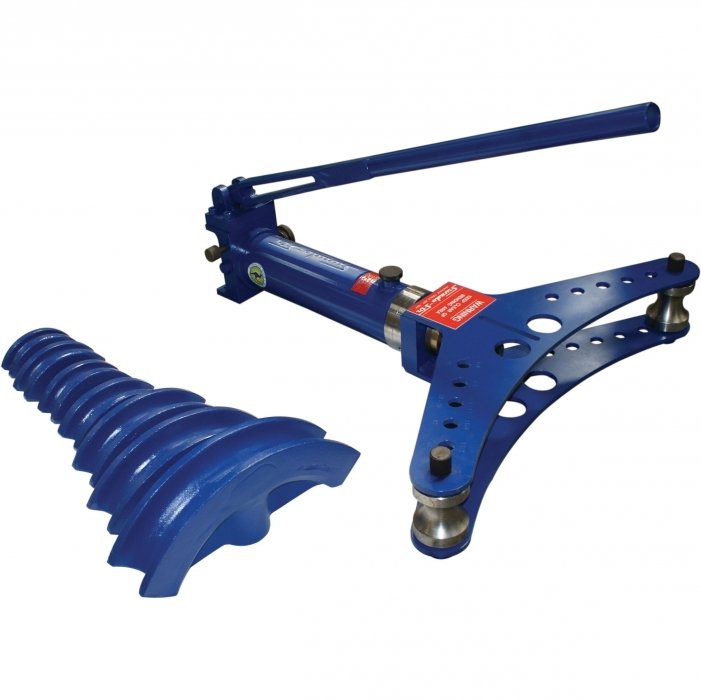

Hydraulic Pipe Bender - 15B-C
Ø3/8" - Ø2" Mild Steel Pipe Capacity (NB)
P072
1 of 2
Discontinued
Order Code: P072
220V 3 PHASE
1 Year Warranty
1 Year Warranty
Made in Australia
Description
Hydraulic Pipe Bender - 15B-C
Ø3/8" - Ø2" Mild Steel Pipe Capacity (NB)
Overview
PIPE BENDER
Model 15B Hand Operated Hydraulic Pipe bending Machine. is designed to bend both hot & cold rolled nominal bore pipe, heavy gauge steel tube & flat bar section.
The bending operation is simple & the interchange of tooling is quick & easy. Filling or heating of pipe is not necessary.
The bender is portable & does not require bolting down.
Standard Accessories
- Operation - Hand Operated - Limited switch control
- Capacity - (10mm - 50mm) AS 1074 - 1989. (3/8" - 2") nominal bore AS 1450 - 1983
- Maximum Angle of Bend - Standard machine 90 degree. With attachments 180 degree and 360 degree
STANDARD RADIUS FORMERS
Former Size --- Centre Line Radius
10mm NB (3/8" NB) --- 70mm (2-3/4")
15mm NB (1/2" NB) --- 85mm (3-1/4")
20mm NB (3/4" NB) --- 85mm (3-1/4")
25mm NB (1" NB) --- 100mm (4")
32mm NB (1-1/4" NB) --- 135mm (5-1/4")
40mm NB (1-1/2" NB) --- 170mm (6-5/8")
50mm NB (2" NB) --- 200mm (8")
Model 15B Hand Operated Hydraulic Pipe bending Machine. is designed to bend both hot & cold rolled nominal bore pipe, heavy gauge steel tube & flat bar section.
The bending operation is simple & the interchange of tooling is quick & easy. Filling or heating of pipe is not necessary.
The bender is portable & does not require bolting down.
Standard Accessories
- Operation - Hand Operated - Limited switch control
- Capacity - (10mm - 50mm) AS 1074 - 1989. (3/8" - 2") nominal bore AS 1450 - 1983
- Maximum Angle of Bend - Standard machine 90 degree. With attachments 180 degree and 360 degree
STANDARD RADIUS FORMERS
Former Size --- Centre Line Radius
10mm NB (3/8" NB) --- 70mm (2-3/4")
15mm NB (1/2" NB) --- 85mm (3-1/4")
20mm NB (3/4" NB) --- 85mm (3-1/4")
25mm NB (1" NB) --- 100mm (4")
32mm NB (1-1/4" NB) --- 135mm (5-1/4")
40mm NB (1-1/2" NB) --- 170mm (6-5/8")
50mm NB (2" NB) --- 200mm (8")
Features
- Engineered from the highest quality materials
- Hardened and ground ram
- Hardened and ground plunger
- Spherical non-return valve
- Simple setup and operation
- Portable and accurate
- Guaranteed workmanship
- After sales tooling service
- Made in Australia
Compare Product Range
Specifications
| ORDER CODE | P072 |
|---|---|
| MODEL | 15B-C |
| (Type)Material | Pipe |
| (Type)Material Section | Round |
| (Type)Machine | Manual Hydraulic |
| (inch / mm)Round Pipe Range (NB) - Mild Steel | Ø3/8" - 2" |
| (inch / mm)Tube Formers Included | ~ |
| (inch / mm)Pipe Formers Included | ~ |
| (inch / mm)Spigot Size on Ram | 43 |
| (kg)Nett Weight | 89 |
