Home Measuring Equipment Micrometers Micrometers - Outside - Sets M071

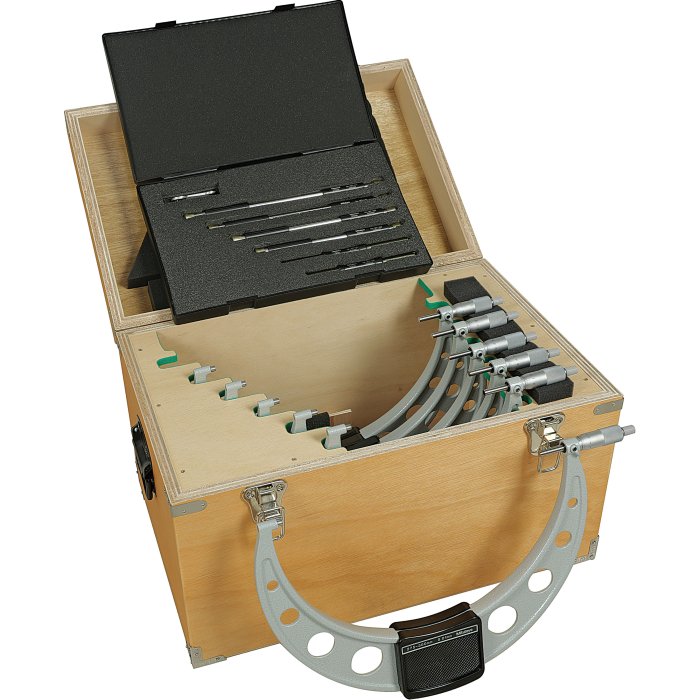

Metric Outside Micrometers - 6 Piece Set - #103-915-10

150-300mm Range

M071 1 of 5

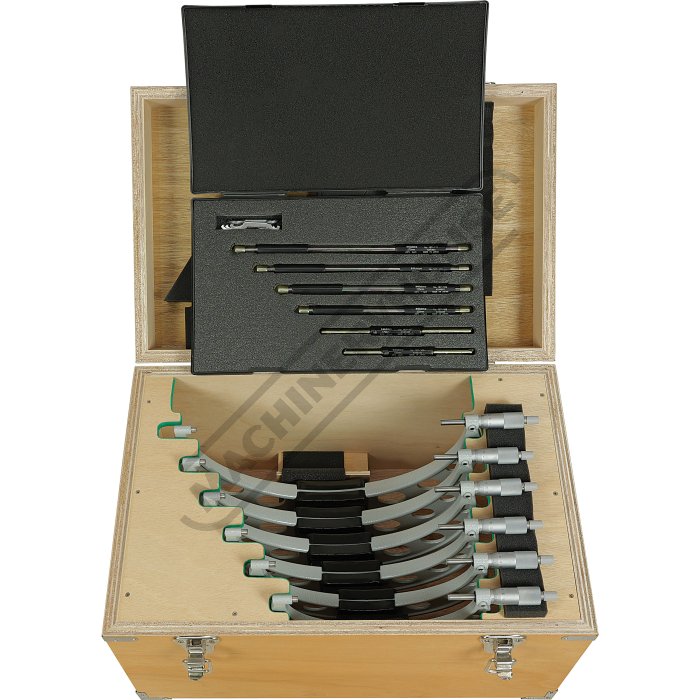

Top View 2 of 5

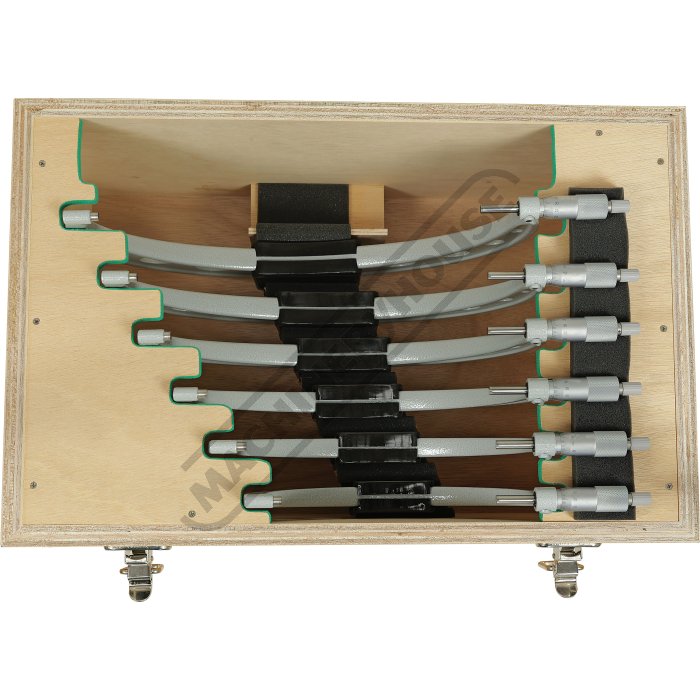

Micrometer Set 3 of 5

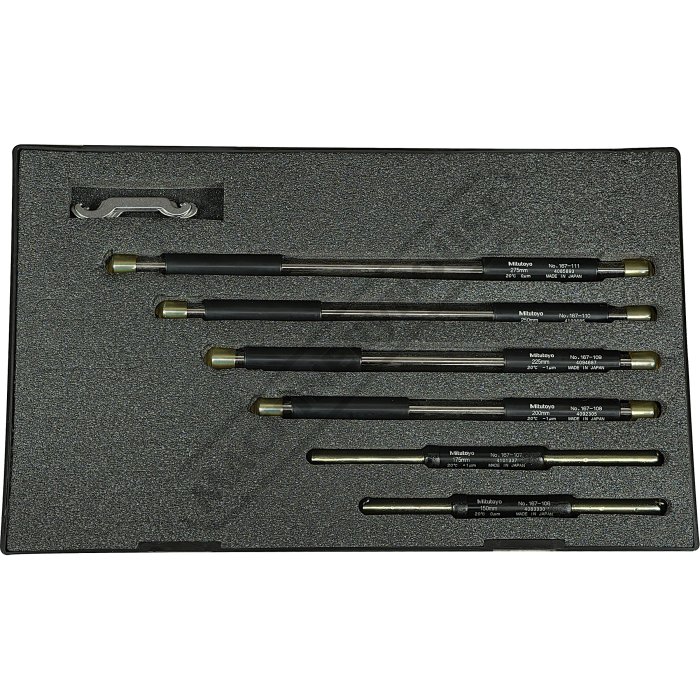

Setting Standard Rods 4 of 5

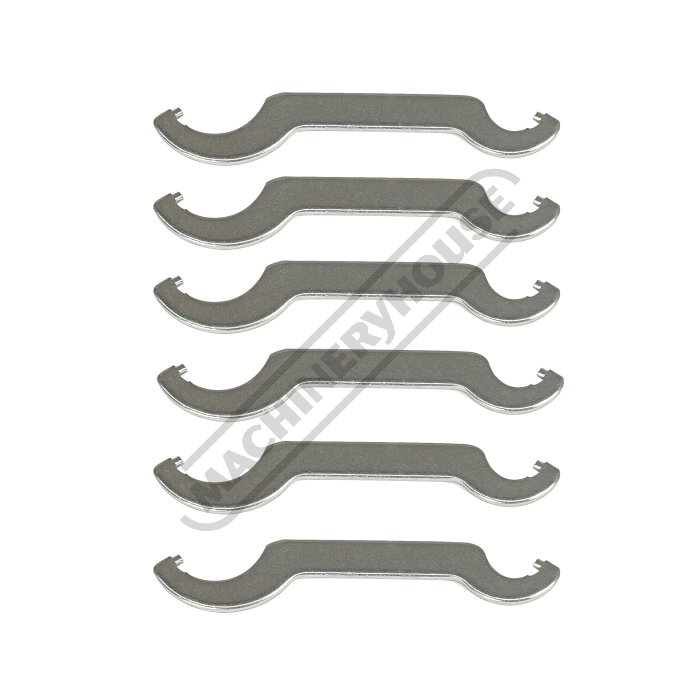

Thimble Adjusting Wrench 5 of 5

Order Code: M071

1 Year Warranty

Made in Japan

Compare

Wishlist

Description Specifications Compare Downloads

Description

Description

Metric Outside Micrometers - 6 Piece Set - #103-915-10

150-300mm Range

Features

#103-915-10 Box Set of Micrometers – MITUTOYO
Range; 150 – 300mm (6pcs/Set)
Graduations: .01mm
Simple, Classic analog micrometer 6 pce set
Measuring faces Carbide Tipped
Equipped with Rachet Stop for constant measuring force
Exact repetitive readings
Baked enamel finished frame

Includes

The Mitutoyo 103-915-10 Outside Micrometer Set is made up of the following:
#103-143-10 Outside Micrometer: 150-175mm
#103-144-10 Outside Micrometer: 175-200mm
#103-145-10 Outside Micrometer: 200-225mm
#103-146-10 Outside Micrometer: 225-250mm
#103-147-10 Outside Micrometer: 250-275mm
#103-148-10 Outside Micrometer: 275-300mm

Specifications

Compare Product Range

Specifications

ORDER CODE	M071
MODEL	#103-915-10
Measuring Units	Metric
(mm / inch)Range	150 - 300
(mm / inch)Graduation	0.01mm
Accuracy	±2 μm
(No.)Quantity In Set	6
(Type)Case	Wooden

Downloads

Downloads

Email a link to this page Product Brochure How to read a Micrometer (77 KB)
