Turning Tool Holders - Carbide Insert L4050

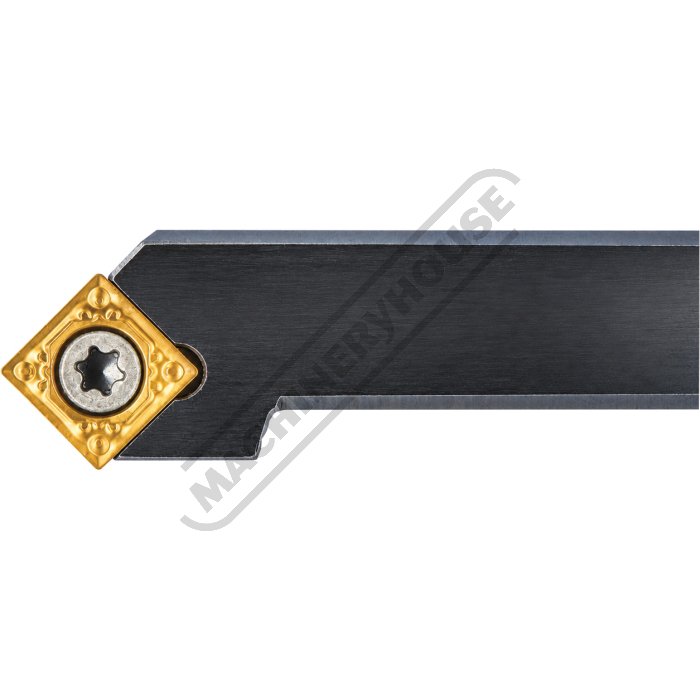

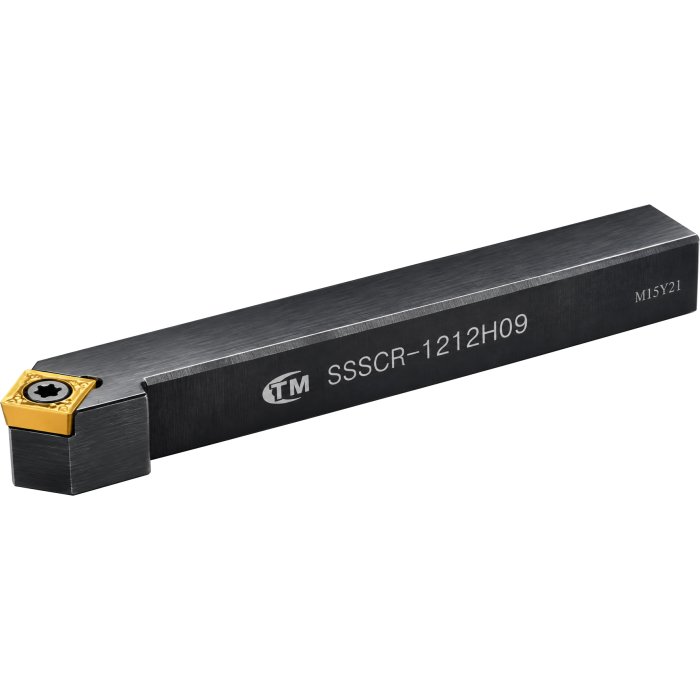

SSSCR-1212H09 - 45º Square / Positive - Right Hand Turning Tool Holder

12mm Tool Height
Insert tip not included
L4050 1 of 2

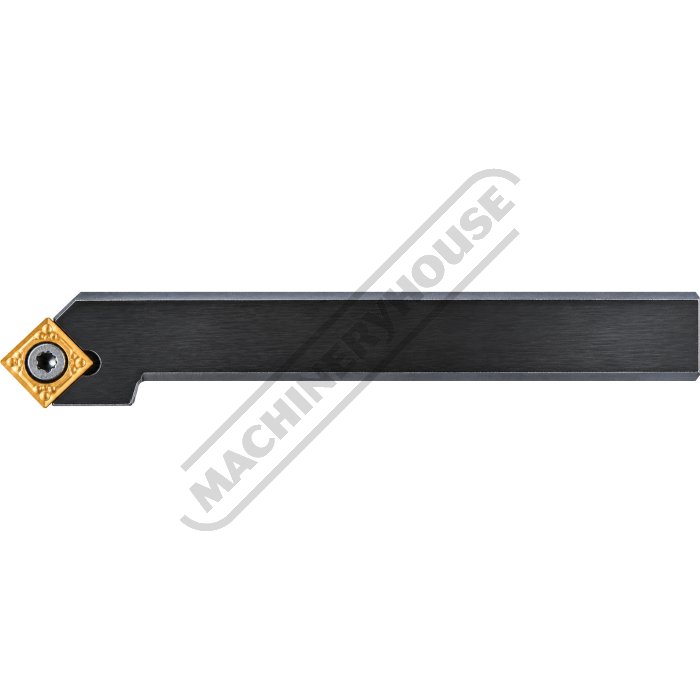

Top View 2 of 2
TOOLMASTER
New Release
Order Code: L4050
ex-gst
inc-gst
$ 66.00
$ 75.90
Unspecified
Made in Taiwan
1
Add to Cart
Enquire
Price Match
Compare
Wishlist
Print
Description
Description

SSSCR-1212H09 - 45º Square / Positive - Right Hand Turning Tool Holder

12mm Tool Height
Insert tip not included
Overview
Quality Tipped Tool Holders ISO Standard to suit Tungsten Carbide Indexable Insert Tips.

NOTE: Inserts not included with tool holders

Use insert SCMT09T304HQ (L0515)
Features
  • Toolholder with 45º approach angle for external turning and chamfering applications equipped with square positive inserts
  • Right hand tool holder suitable for turning towards the chuck
Specifications
Downloads
You may also like
L0515
SCMT09T304HQ - KYOCERA Carbide Inserts - Turning
Grade CA125P - Finishing to Medium
10 Inserts Per Pack
KYOCERA
Code: L0515

$ 144.00 ex
$ 165.60 inc

Add to Cart
L062
TCMT 110204HQ - KYOCERA Carbide Inserts - Turning
Grade CA125P - General Purpose Steel
10 Inserts Per Pack
KYOCERA
Code: L062

$ 98.00 ex
$ 112.70 inc

Add to Cart
L081
Lathe Carrier 38mm (Bent Tail)
22 - 38mm
TOOLMASTER
Code: L081

$ 56.00 ex
$ 64.40 inc

Add to Cart
Compare Product Range Compare Selected
  • Compare:
  • Wishlist:
  • ORDER CODE
  • Part Number - Style
  • (mm)Tool Height Size
  • Clamping Method of Insert
  • Category
  • Connection style
  • Back End Size
  • Application



  • Hand Type
  • Holder Style
  • Clearance Angle
  • Insert Shape
  • (mm)A (H)
  • (mm)B
  • (mm)C (LF)
  • (mm)LH
  • (mm)F (WF)
  • (mm)E
  • (ex-gst)Pricing
  • (inc-gst)
  • L012
  • Compare
  • Wishlist
  • L012
  • SCLCR
  • 10
  • ~
  • ~
  • ~
  • ~
  • ~



  • Right
  • ~
  • ~
  • ~
  • 10
  • 10
  • 100
  • ~
  • 12
  • ~
  • $60.00
  • $69.00
  • ADD TO CART
  • L0121
  • Compare
  • Wishlist
  • L0121
  • SCLCL
  • 10
  • ~
  • ~
  • ~
  • ~
  • ~



  • Left
  • ~
  • ~
  • ~
  • 10
  • 10
  • 100
  • ~
  • 12
  • ~
  • $60.00
  • $69.00
  • ADD TO CART
  • L015
  • Compare
  • Wishlist
  • L015
  • STGCR
  • 12
  • ~
  • ~
  • ~
  • ~
  • ~



  • Right
  • ~
  • ~
  • ~
  • 12
  • 12
  • 100
  • ~
  • 16
  • ~
  • $66.00
  • $75.90
  • ADD TO CART
  • L016
  • Compare
  • Wishlist
  • L016
  • STGCL
  • 12
  • ~
  • ~
  • ~
  • ~
  • ~



  • Left
  • ~
  • ~
  • ~
  • 12
  • 12
  • 100
  • ~
  • 16
  • ~
  • $66.00
  • $75.90
  • ADD TO CART
  • L017
  • Compare
  • Wishlist
  • L017
  • STGCR
  • 16
  • ~
  • ~
  • ~
  • ~
  • ~



  • Right
  • ~
  • ~
  • ~
  • 16
  • 16
  • 100
  • ~
  • 20
  • ~
  • $72.00
  • $82.80
  • ADD TO CART
  • L018
  • Compare
  • Wishlist
  • L018
  • STGCL
  • 16
  • ~
  • ~
  • ~
  • ~
  • ~



  • Left
  • ~
  • ~
  • ~
  • 16
  • 16
  • 100
  • ~
  • 20
  • ~
  • $72.00
  • $82.80
  • ADD TO CART
  • L044
  • Compare
  • Wishlist
  • L044
  • MTJNR
  • 16
  • ~
  • ~
  • ~
  • ~
  • ~



  • Right
  • ~
  • ~
  • ~
  • 16
  • 16
  • 100
  • ~
  • 20
  • 30
  • $78.00
  • $89.70
  • ADD TO CART
  • L045
  • Compare
  • Wishlist
  • L045
  • MTJNL
  • 16
  • ~
  • ~
  • ~
  • ~
  • ~



  • Left
  • ~
  • ~
  • ~
  • 16
  • 16
  • 100
  • ~
  • 20
  • 30
  • $78.00
  • $89.70
  • ADD TO CART
  • New Release L4050
  • Compare
  • Wishlist
  • L4050
  • SSSCR-1212H09
  • 12
  • Center screw
  • External turning
  • Square shank
  • 12x12
  • Chamfer turning
    Turning


  • Right
  • 45º
  • Positive
  • S - Square 90°
  • 12
  • 12
  • 100
  • 20
  • 16
  • ~
  • $66.00
  • $75.90
  • ADD TO CART
  • New Release L4052
  • Compare
  • Wishlist
  • L4052
  • SSSCR-1616H09
  • 16
  • Center screw
  • External turning
  • Square shank
  • 16x16
  • Chamfer turning
    Turning


  • Right
  • 45º
  • Positive
  • S - Square 90°
  • 16
  • 16
  • 100
  • 20
  • 20
  • ~
  • $72.00
  • $82.80
  • ADD TO CART
  • New Release L4054
  • Compare
  • Wishlist
  • L4054
  • PSSNR-2020K12
  • 20
  • Lever lock
  • External turning
  • Square shank
  • 20x20
  • Chamfer turning
    Facing
    Profiling
    Turning
  • Right
  • 45º
  • Negative
  • S - Square 90°
  • 20
  • 20
  • 125
  • 30
  • 25
  • ~
  • $88.00
  • $101.20
  • ADD TO CART
  • Coming Soon L4056
  • Compare
  • Wishlist
  • L4056
  • PSSNR-2525M12
  • 25
  • Lever lock
  • External turning
  • Square shank
  • 25x25
  • Chamfer turning
    Facing
    Profiling
    Turning
  • Right
  • 45º
  • Negative
  • S - Square 90°
  • 25
  • 25
  • 150
  • 30
  • 32
  • ~
  • $94.00
  • $108.10
  • ADD TO CART
  • New Release L4058
  • Compare
  • Wishlist
  • L4058
  • SVJCR-1212H11N
  • 12
  • Center screw
  • External turning
  • Square shank
  • 12x12
  • Profiling



  • Right
  • 93º
  • Positve
  • V - Rhombic 35°
  • 12
  • 12
  • 100
  • ~
  • 12
  • ~
  • $66.00
  • $75.90
  • ADD TO CART
  • New Release L4060
  • Compare
  • Wishlist
  • L4060
  • SVJCR-1616H11N
  • 16
  • Center screw
  • External turning
  • Square shank
  • 16x16
  • Profiling



  • Right
  • 93º
  • Positive
  • V - Rhombic 35°
  • 16
  • 16
  • 100
  • ~
  • 16
  • ~
  • $72.00
  • $82.80
  • ADD TO CART
  • New Release L4062
  • Compare
  • Wishlist
  • L4062
  • SVJCR-2020K16
  • 20
  • Center screw
  • External turning
  • Square shank
  • 20x20
  • Profiling



  • Right
  • 93º
  • Positive
  • V - Rhombic 35°
  • 20
  • 20
  • 125
  • 33
  • 25
  • ~
  • $88.00
  • $101.20
  • ADD TO CART
  • Coming Soon L4064
  • Compare
  • Wishlist
  • L4064
  • SVJCR-2525M16
  • 25
  • Center screw
  • External turning
  • Square shank
  • 25x25
  • Profiling



  • Right
  • 93º
  • Positive
  • V - Rhombic 35°
  • 25
  • 25
  • 150
  • 38
  • 32
  • ~
  • $94.00
  • $108.10
  • ADD TO CART
  • Coming Soon L4070
  • Compare
  • Wishlist
  • L4070
  • SRDCN-1616H10T3S
  • 16
  • Center screw
  • External turning
  • Square shank
  • 16x16
  • Profiling Turning



  • Neutral
  • 45°
  • Positive
  • R - Round
  • 16
  • 16
  • 100
  • 20.3
  • 13
  • ~
  • $72.00
  • $82.80
  • ADD TO CART
  • New Release L4071
  • Compare
  • Wishlist
  • L4071
  • SRDCN-2020K10T3S
  • 20
  • Center screw
  • External turning
  • Square shank
  • 20x20
  • Profiling Turning



  • Neutral
  • 45°
  • Positive
  • R - Round
  • 20
  • 20
  • 125
  • 20.3
  • 15
  • ~
  • $88.00
  • $101.20
  • ADD TO CART
  • Coming Soon L4072
  • Compare
  • Wishlist
  • L4072
  • SRDCN-2525M10T3S
  • 25
  • Center screw
  • External turning
  • Square shank
  • 25x25
  • Profiling Turning



  • Neutral
  • 45°
  • Positive
  • R - Round
  • 25
  • 25
  • 150
  • 20.3
  • 17.5
  • ~
  • $94.00
  • $108.10
  • ADD TO CART
  • L046
  • Compare
  • Wishlist
  • L046
  • WTJNR
  • 20
  • ~
  • ~
  • ~
  • ~
  • ~



  • Right
  • ~
  • ~
  • ~
  • 20
  • 20
  • 125
  • ~
  • 20
  • 32
  • $106.00
  • $121.90
  • ADD TO CART
  • L047
  • Compare
  • Wishlist
  • L047
  • WTJNL
  • 20
  • ~
  • ~
  • ~
  • ~
  • ~



  • Left
  • ~
  • ~
  • ~
  • 20
  • 20
  • 125
  • ~
  • 20
  • 32
  • $106.00
  • $121.90
  • ADD TO CART
  • L039
  • Compare
  • Wishlist
  • L039
  • MWLNR
  • 20
  • ~
  • ~
  • ~
  • ~
  • ~



  • Right
  • ~
  • ~
  • ~
  • 20
  • 20
  • 125
  • ~
  • 25
  • ~
  • $88.00
  • $101.20
  • ADD TO CART
  • L040
  • Compare
  • Wishlist
  • L040
  • MWLNL
  • 20
  • ~
  • ~
  • ~
  • ~
  • ~



  • Left
  • ~
  • ~
  • ~
  • 20
  • 20
  • 125
  • ~
  • 25
  • ~
  • $88.00
  • $101.20
  • ADD TO CART
  • L048
  • Compare
  • Wishlist
  • L048
  • WTJNR
  • 25
  • ~
  • ~
  • ~
  • ~
  • ~



  • Right
  • ~
  • ~
  • ~
  • 25
  • 25
  • 150
  • ~
  • 25
  • 32
  • $116.00
  • $133.40
  • ADD TO CART
  • L049
  • Compare
  • Wishlist
  • L049
  • WTJNL
  • 25
  • ~
  • ~
  • ~
  • ~
  • ~



  • Left
  • ~
  • ~
  • ~
  • 25
  • 25
  • 150
  • ~
  • 25
  • 32
  • $116.00
  • $133.40
  • ADD TO CART
  • L041
  • Compare
  • Wishlist
  • L041
  • MWLNR
  • 25
  • ~
  • ~
  • ~
  • ~
  • ~



  • Right
  • ~
  • ~
  • ~
  • 25
  • 25
  • 150
  • ~
  • 32
  • ~
  • $94.00
  • $108.10
  • ADD TO CART
  • L042
  • Compare
  • Wishlist
  • L042
  • MWLNL
  • 25
  • ~
  • ~
  • ~
  • ~
  • ~



  • Left
  • ~
  • ~
  • ~
  • 25
  • 25
  • 150
  • ~
  • 32
  • ~
  • $94.00
  • $108.10
  • ADD TO CART
