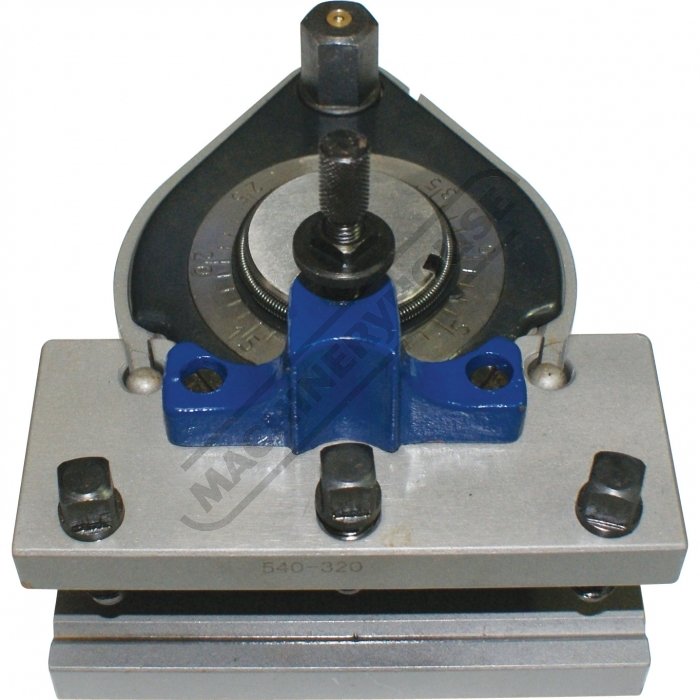

Quick Change Toolpost - 40 Position - Model E5
100 - 200mm Lathe Centre Height
L2992
1 of 3
Quick Change Toolpost
2 of 3
40 Position
3 of 3
Discontinued
Order Code: L2992
1 Year Warranty
Description
Quick Change Toolpost - 40 Position - Model E5
100 - 200mm Lathe Centre Height
Overview
40 Position European style quick change toolpost.
Basic body and tool holders are made of high quality steel which is hardened and ground. The tool holders are clamped against the body with an eccentric bolt.
Basic body and tool holders are made of high quality steel which is hardened and ground. The tool holders are clamped against the body with an eccentric bolt.
Features

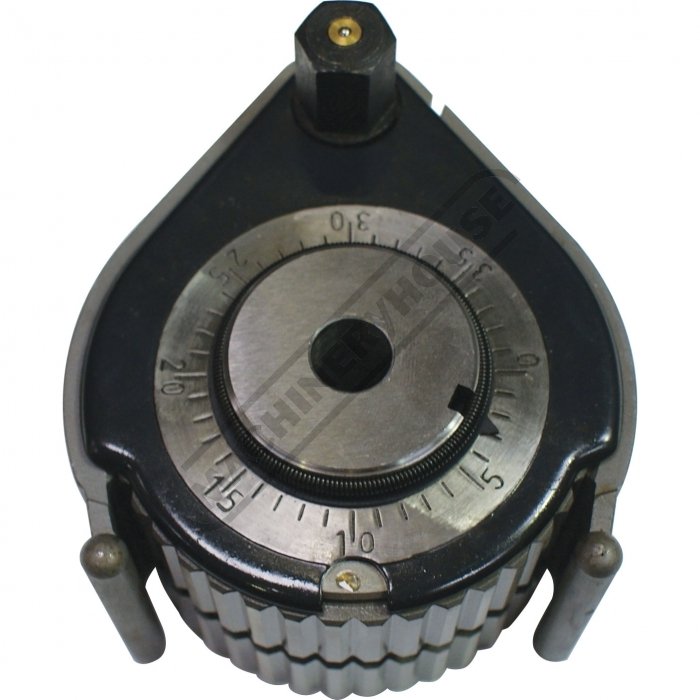

- The system allows a repeat accuracy of 0.01mm with 40 possible angular positions of the tool holder
- Body and tool holder are both made of high quality steel which is hardened and ground
- Tool holder is clamped against the body by an eccentric bolt

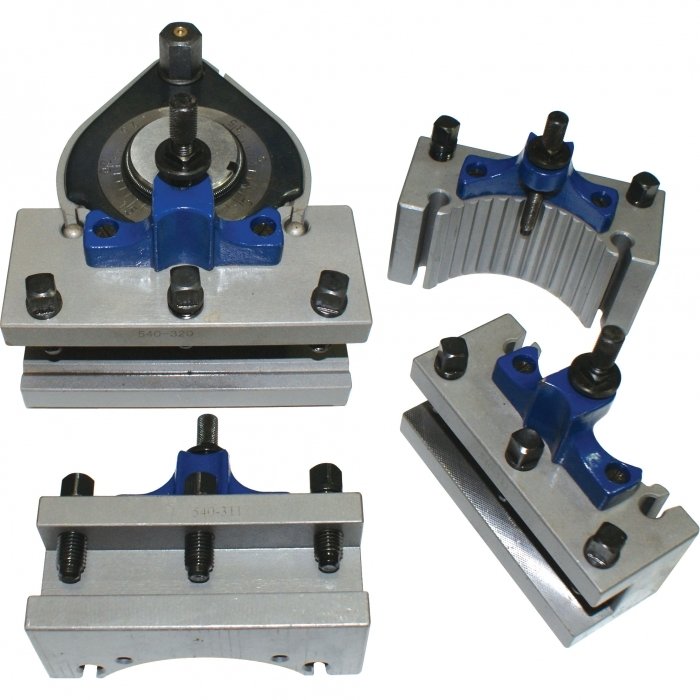

- Supplied with 3 square tool holders and one vee tool holder
- Please Note: Some machining required to suit your lathe
Includes
- 3 x square tool holders
- 1 x Vee tool holder
Optional Accessories
- Holders - L2993
Compare Product Range

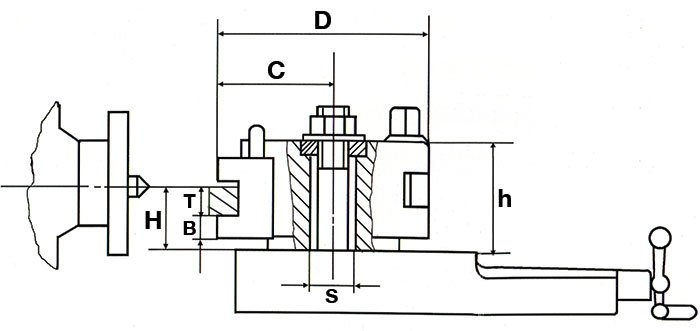

Specifications
| ORDER CODE | L2992 |
|---|---|
| MODEL | E5 |
| (mm)Lathe Centre Height | 100 - 200 |
| (mm)Lathe Swing | 200 - 400 |
| (mm)B | 12 |
| (mm)C | 66 |
| (mm)D | 132 |
| (mm)H | 32-52 |
| (mm)h | 68 |
| (mm)S | 20 |
| (mm)T | 20 |
| (No.)Number of Holders | 4 |
| (kg)Nett Weight | 6.2 |
Back In Stock Soon
- Compare:
- Wishlist:
- ORDER CODE
- MODEL
- (mm)Lathe Centre Height
- (mm)Lathe Swing
- (mm)A
- (mm)B
- (mm)C
- (mm)D
- (mm)E
- (mm)H
- (mm)h
- (mm)S
- (mm)T
- (mm)Y
- (No.)Number of Sides
- (No.)Number of Holders
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
-
-
Compare
-
Wishlist
- L280
- QA-100
- 75 - 115
- 150 - 230
- 12
- 6
- 50
- 58
- ~
- 18 - 30
- 40
- 20 - 10
- 12
- ~
- 2
- 4
- 2.5
- $244.00
- $280.60
- ADD TO CART
-
-
Compare
-
Wishlist
- L291
- QA-120
- 115 - 125
- 230 - 250
- 19
- 11
- 52
- 63.5
- 36.512
- 23
- 57.15
- M14 x 1.5
- 12
- 95.25
- 2
- 4
- 3.6
- $196.00
- $225.40
- ADD TO CART
-
-
Compare
-
Wishlist
- L292
- QA-140
- 150 - 170
- 300 - 340
- 25
- 12.65
- 61
- 72.6
- 41
- 28.65
- 69.85
- M16 x 1.5
- 16
- 112
- 2
- 4
- 6.2
- $220.00
- $253.00
- ADD TO CART
-
-
Compare
-
Wishlist
- L295
- QA-150
- 150 - 170
- 300 - 340
- 15
- 20
- 60
- 74
- ~
- 28 - 41
- 60
- 24
- 16
- ~
- 2
- 4
- 6.2
- $720.00
- $828.00
- ADD TO CART
-
-
Compare
-
Wishlist
- L294
- BR-BP
- 202
- 404
- 15
- 13
- 90
- 115
- ~
- 38 - 53
- 75
- 28
- 25
- ~
- 3
- 6
- 17.5
- $818.00
- $940.70
- ADD TO CART
-
-
Compare
-
Wishlist
- L296
- B
- 230
- 460
- 18
- 15
- 100
- 125
- ~
- 47 - 65
- 85
- 30
- 32
- ~
- 3
- 5
- 22
- $794.00
- $913.10
- ADD TO CART
-
-
Compare
-
Wishlist
- L297
- C
- 280
- 560
- 21
- 19
- 108
- 145
- ~
- 51 - 72
- 94
- 38
- 32
- ~
- 3
- 5
- 26
- $1,038.00
- $1,193.70
- ADD TO CART
-
-
Compare
-
Wishlist
- L2994
- B2
- 150 - 250
- 300 - 500
- ~
- 14
- 73
- 150
- ~
- 38 - 57
- 76
- 32
- 25
- ~
- ~
- 4
- 9.8
- $818.00
- $940.70
- ADD TO CART
-
-
Compare
-
Wishlist
- L2996
- C3
- 200 - 350
- 400 - 700
- ~
- 16
- 73-103
- 192-202
- ~
- 47-91
- 107
- 40
- 32
- ~
- ~
- 4
- 14.3
- $1,452.00
- $1,669.80
- ADD TO CART
