KENNAMETAL Carbide Inserts Turning CCGT 060204 HP

Description Specifications Compare Accessories Downloads

Description

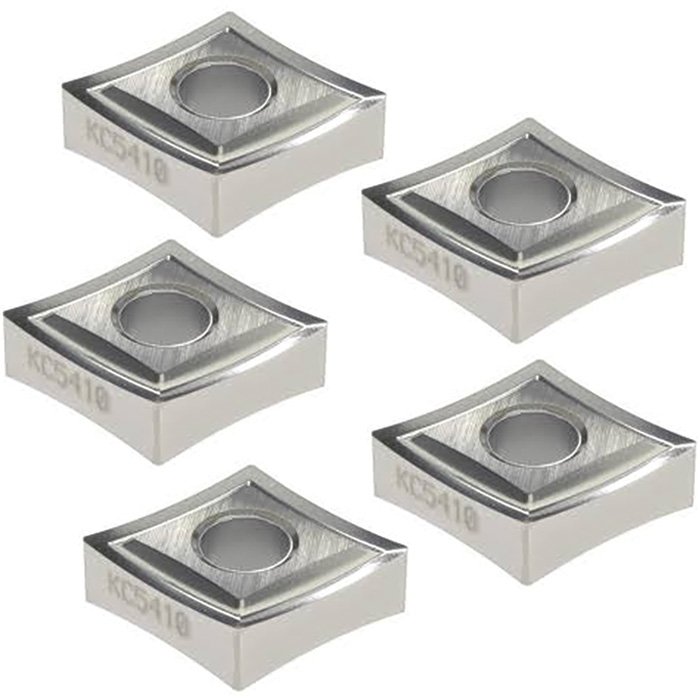

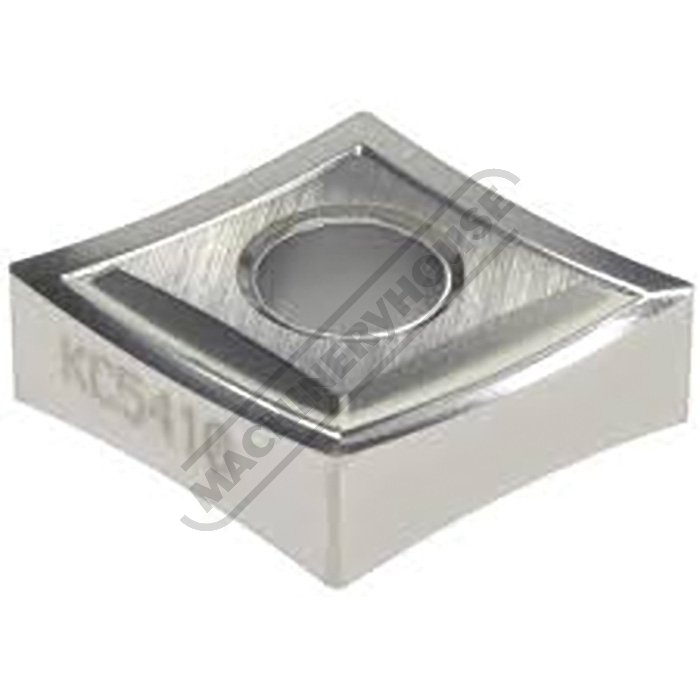

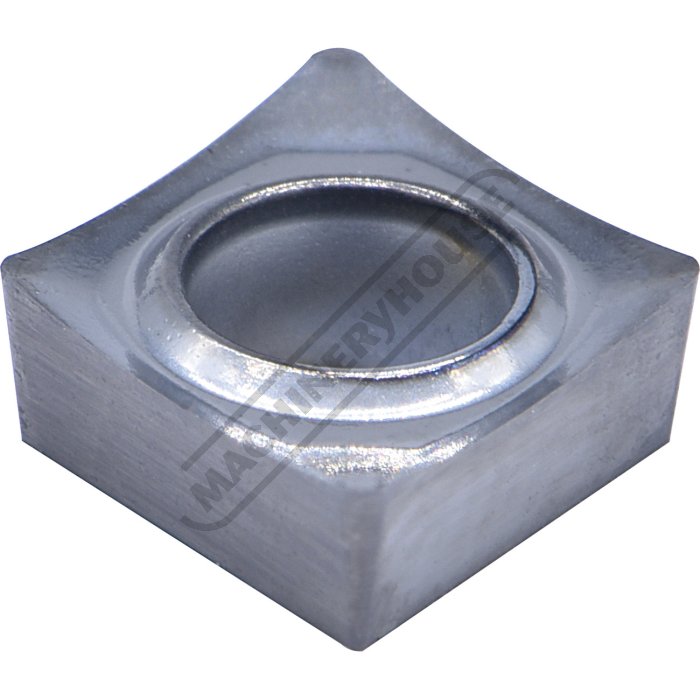

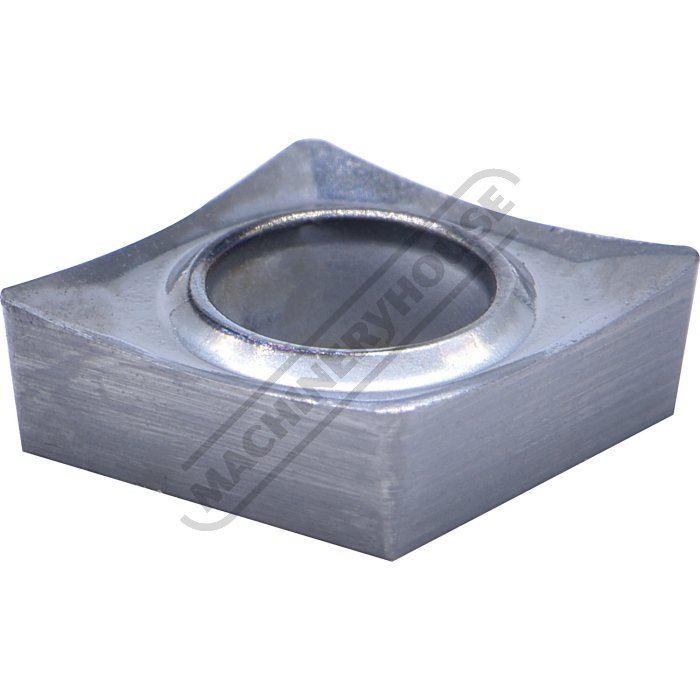

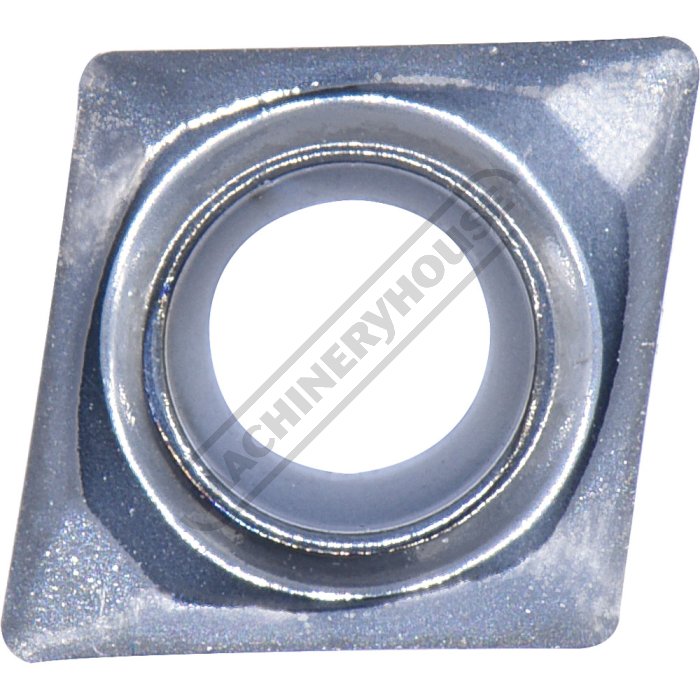

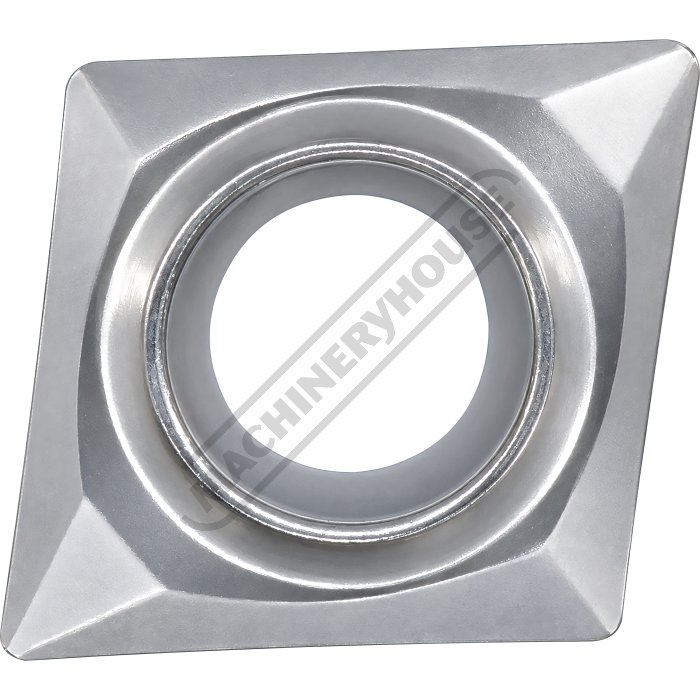

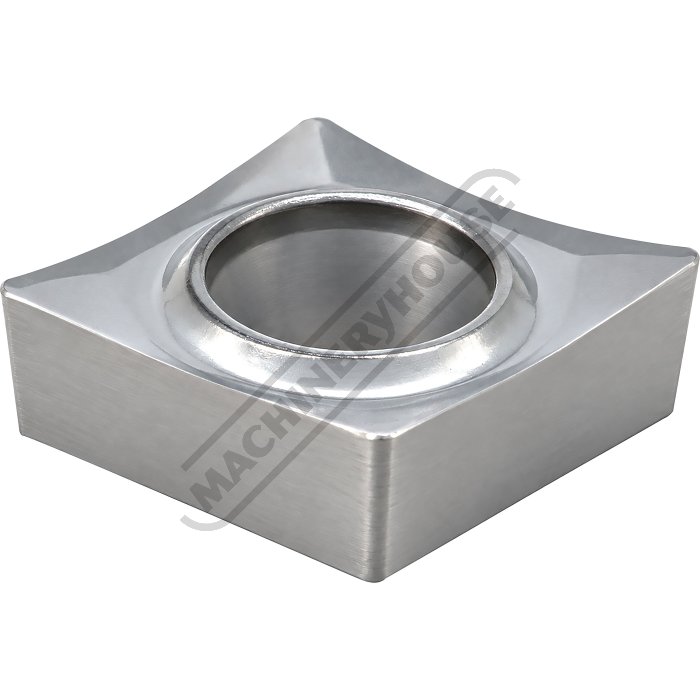

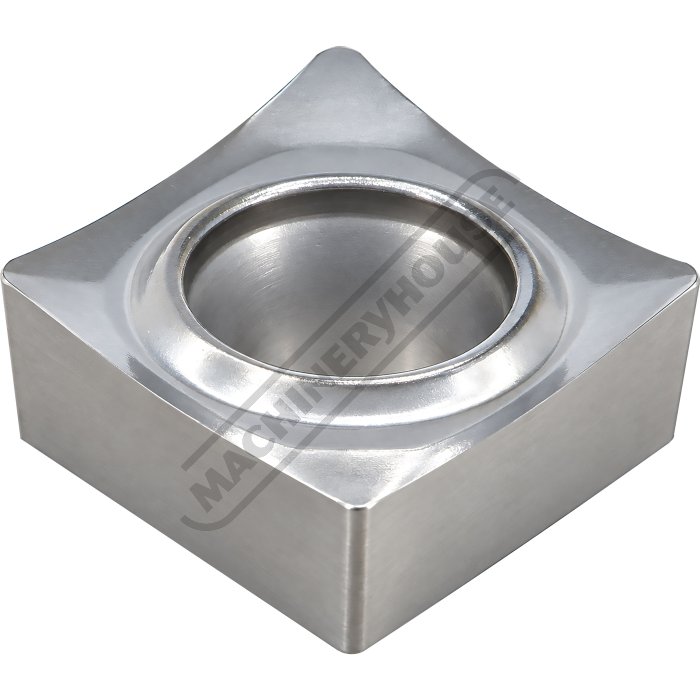

KENNAMETAL Carbide Inserts - Turning - CCGT 060204 HP

Grade KC5410 - Aluminium

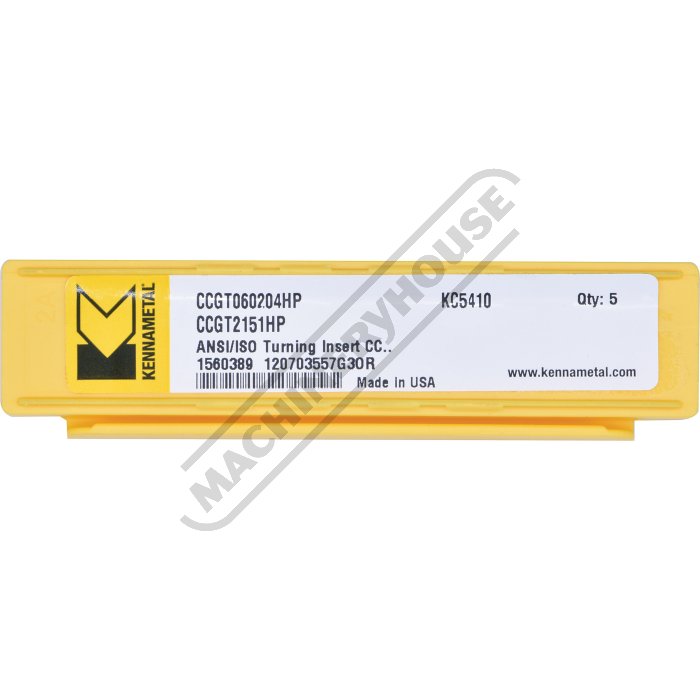

5 Inserts Per Pack

Overview

KC5410 Grade - Aluminium

Manufactured in Germany, the KENNAMETAL KC5410 HP insert is designed for high-performance machining of aluminium and other non-ferrous materials. Its premium PVD-coated carbide grade provides excellent wear resistance, smooth chip flow and superior surface finishes. Ideal for roughing, semi-finishing and finishing operations, it also performs well on nylon and plastics.

The "HP" indicates a high-positive, light-feed chipbreaker designed to achieve excellent finishes and prevent built-up edges.

Features

Made in Germany for exceptional quality and precision.
Premium PVD-coated insert on a highly deformation-resistant unalloyed substrate for extended tool life.
Optimised high-positive cutting geometry ensures smooth cutting action, reduced cutting forces and excellent chip control
Specifically designed for high-performance turning of aluminium. Also suitable for machining nylon, plastics and timber

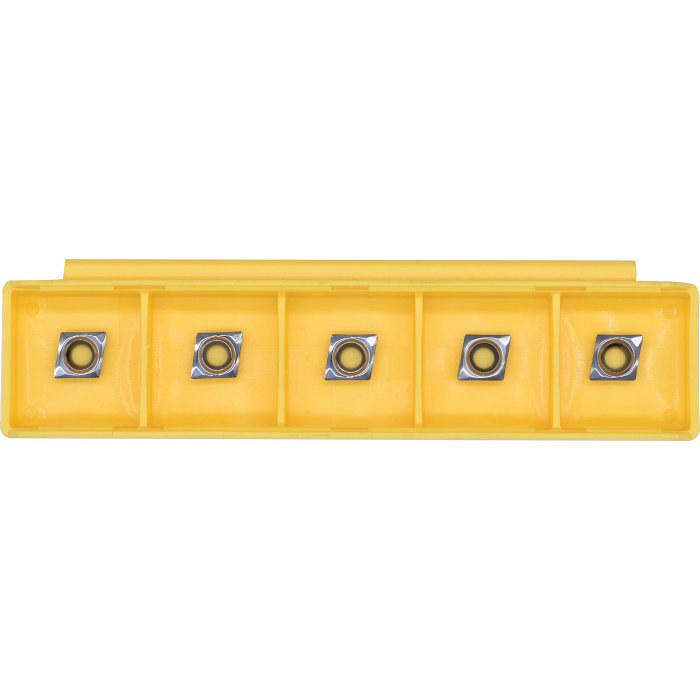

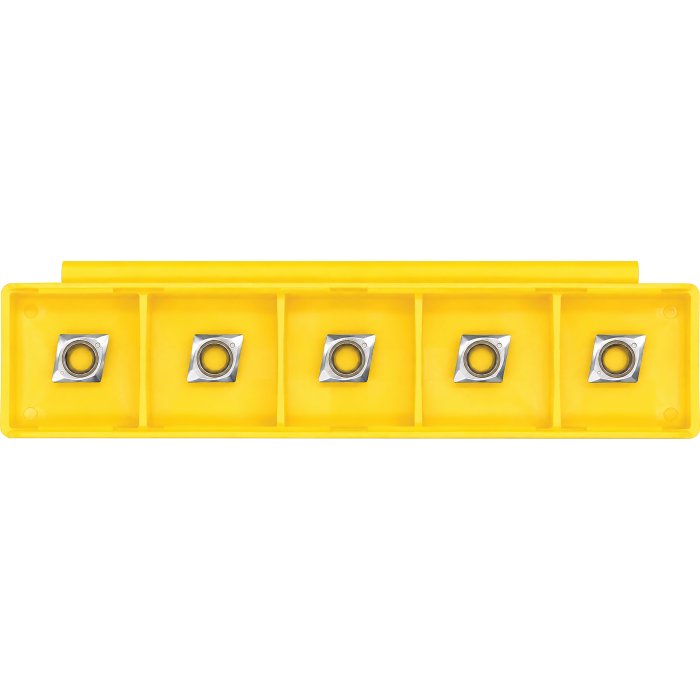

Supplied in a convenient pack of 5 inserts

Specifications

Enlarge Diagram Compare Product Range

Specifications

ORDER CODE	L0601
MODEL	CCGT 060204 HP
Grade	KC5410
Application	Aluminium
(Qty)Pieces in Set	5

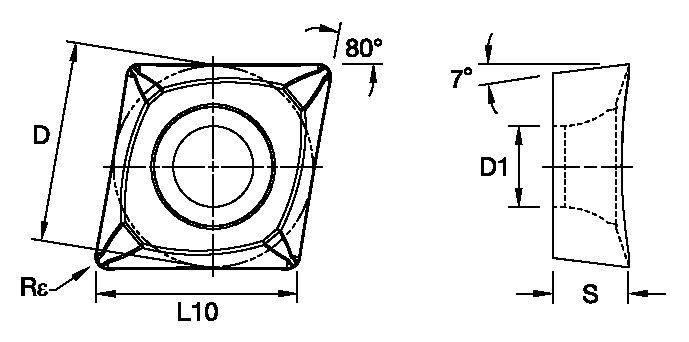

(mm)[D] Insert IC Size (Inscribed Circle)	6.35
(mm)[D1] Insert Hole Size	2.8
(mm)[L10] Insert Cutting Edge Length	6.47
(mm)[S] Insert Thickness	2.38
(mm)[Rε] Corner Radius	0.40
(Deg)Relief Angle	7°
(Style)Insert shape	Rhombic
