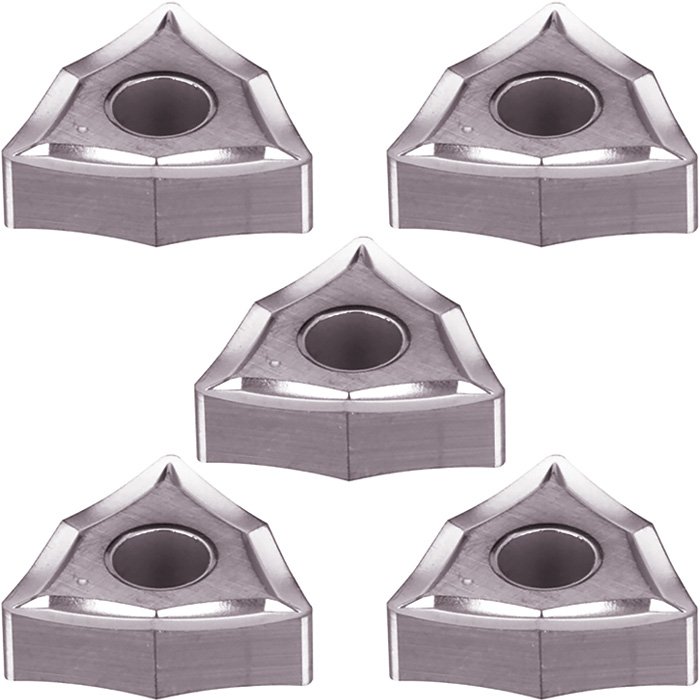

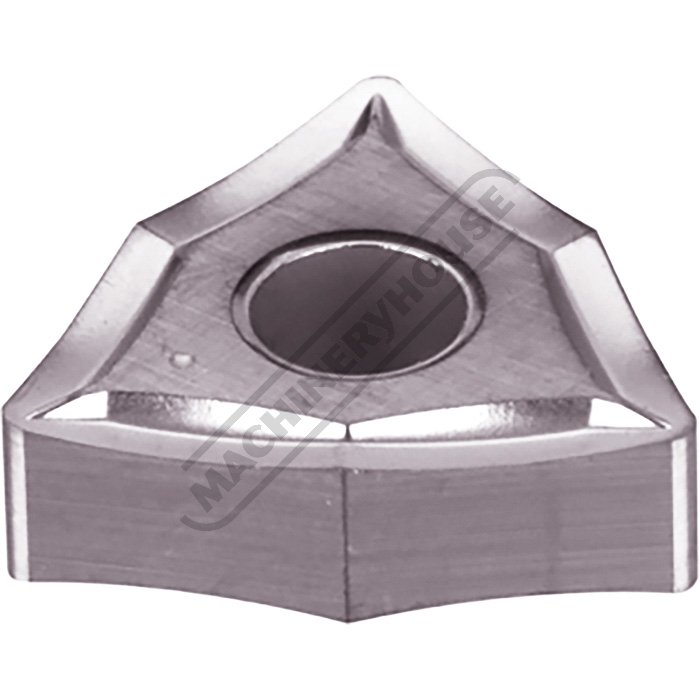

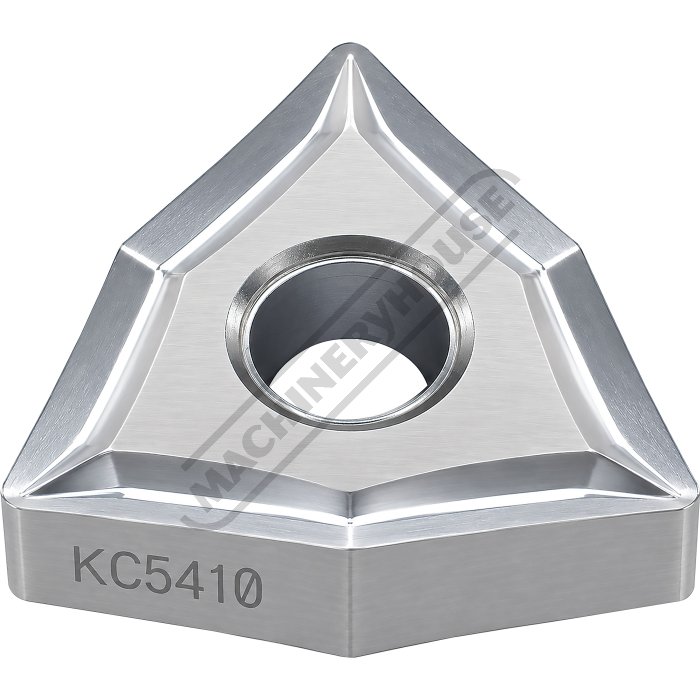

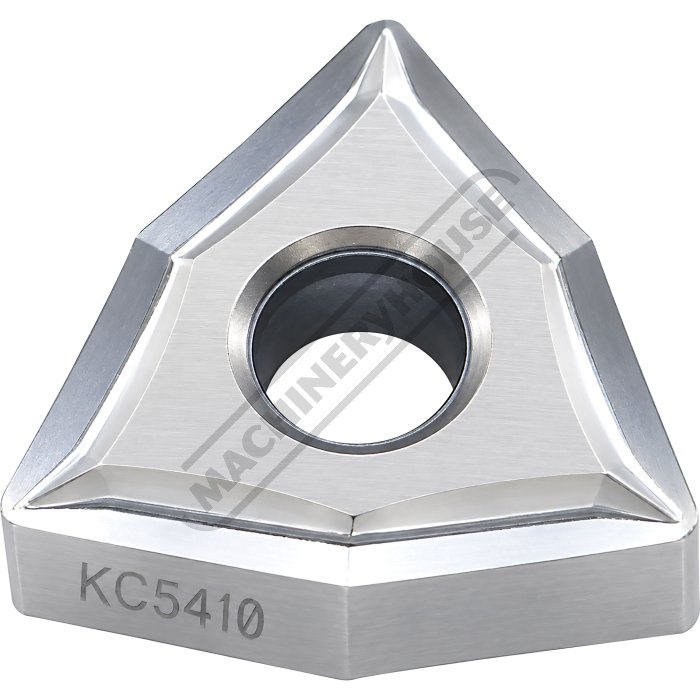

KENNAMETAL Carbide Inserts - Turning - WNGP 080408 HP

Grade KC5410 - Aluminium

5 Inserts Per Pack

L0539 1 of 2

Tip 2 of 2

KENNAMETAL

Order Code: L0539

Unspecified

Made in Germany

Please Enquire

Compare

Wishlist

Description Specifications Compare Accessories Downloads

Description

KENNAMETAL Carbide Inserts - Turning - WNGP 080408 HP

Grade KC5410 - Aluminium

5 Inserts Per Pack

Overview

KC5410 Grade - Aluminium

Manufactured in Germany, the KENNAMETAL KC5410 HP insert is designed for high-performance machining of aluminium and other non-ferrous materials. Its premium PVD-coated carbide grade provides excellent wear resistance, smooth chip flow and superior surface finishes. Ideal for roughing, semi-finishing and finishing operations, it also performs well on nylon and plastics.

The Kennametal WNGP 080408 (WNGP432K) in grade KC5410 is a specialized trigon (80-degree) carbide turning insert designed primarily for machining non-ferrous materials like aluminum and magnesium. The "HP" indicates a high-positive, light-feed chipbreaker designed to achieve excellent finishes and prevent built-up edges

Features

Made in Germany for exceptional quality and precision.
Premium PVD-coated insert on a highly deformation-resistant unalloyed substrate for extended tool life.
Optimised high-positive cutting geometry ensures smooth cutting action, reduced cutting forces and excellent chip control
Specifically designed for high-performance turning of aluminium. Also suitable for machining nylon, plastics and timber

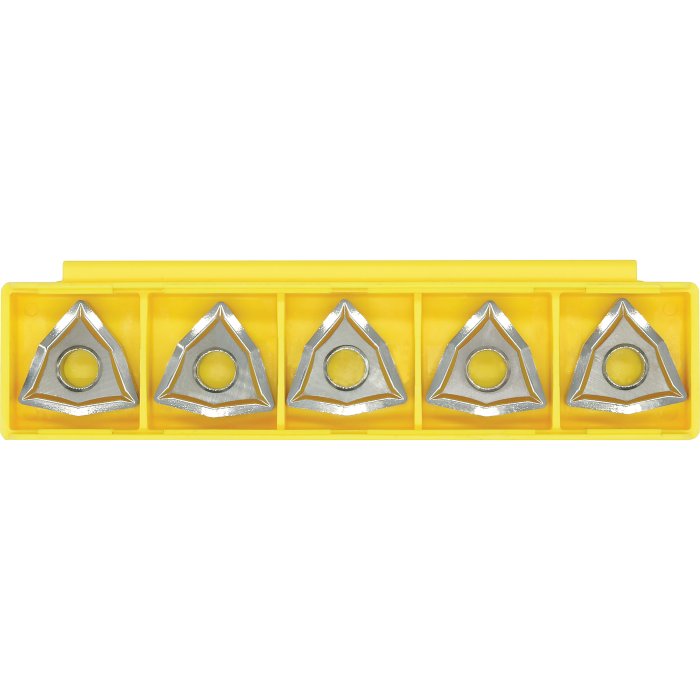

Supplied in a convenient pack of 5 inserts

Specifications

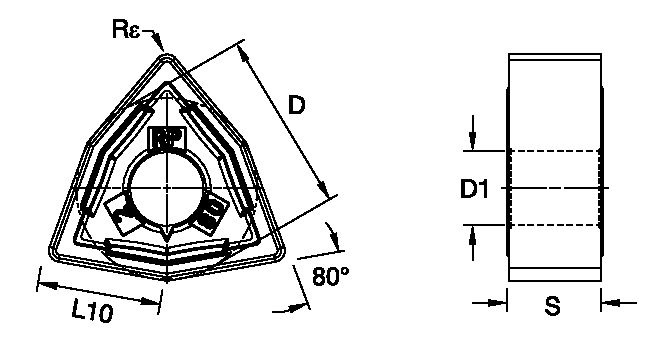

Enlarge Diagram Compare Product Range

Specifications

ORDER CODE	L0539
MODEL	WNGP 080408 HP
Grade	KC5410
Application	Aluminium
(Qty)Pieces in Set	5
(mm)[D] Insert IC Size (Inscribed Circle)	12.7
(mm)[D1] Insert Hole Size	5.16
(mm)[L10] Insert Cutting Edge Length	8.69
(mm)[S] Insert Thickness	4.76
(mm)[Rε] Corner Radius	0.8
(Style)Insert shape	Trigon / Diamond
