Manual Surface Grinder - SG-818
450 x 220mm Table Travel
G213
1 of 1
Discontinued
Order Code: G213
415V / (NO PLUG)
1 Year Warranty
1 Year Warranty
Description

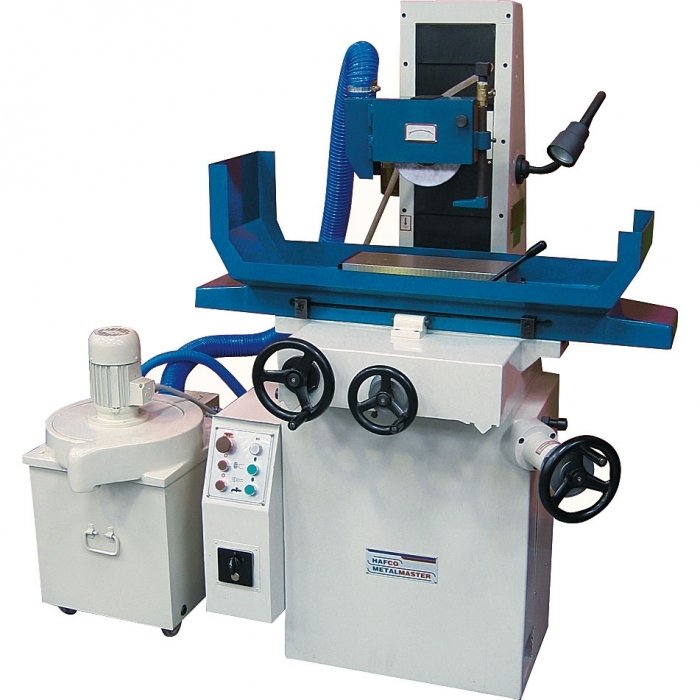

Manual Surface Grinder - SG-818
450 x 220mm Table Travel
Overview
The SG-816 is an excellent surface grinder for grinding precision parts in hardened or annealed ferrous metals. It features heavy duty cast iron construction, quiet running precision spindle, ball bearing longitudinal slide, coolant system and more.
Features
- Quality castings and Precision Japanese P4 ball bearing supporting the spindle
- Cast iron machine body and stand for maximum rigidity and smooth operation
- Manual Table Feed 450mm x 220mm.
- Magnetic Chuck 400 x 150mm
- Dust extraction system
- Coolant system with nozzle and flow control valve
- Halogen work lamp
- machine stand
- Wheel balancing kit
Includes
- :
Compare Product Range
Specifications
| ORDER CODE | G213 |
|---|---|
| MODEL | SG-818 |
| (mm)Magnetic Chuck Size | 400 x 150 |
| (mm)Longitudinal Table Traverse - Maximum | 450 |
| (mm)Cross Table Traverse - Maximum | 220 |
| (mm)Spindle To Table - Maximum | 450 |
| (mm)Wheel Diameter | 200 |
| (mm)Vertical Increment Graduations | 0.01 |
| (mm/rev)Vertical Graduations Per Revolution | 2 |
| (kW / hp)Spindle Motor | 1.1 / 1.5 |
| (V / amp)Voltage / Amperage | 415 |
| (kg)Nett Weight | 900 |
- Compare:
- Wishlist:
- ORDER CODE
- MODEL
- AD5 Controller
- (mm)Magnetic Chuck Size
- (mm)Longitudinal Table Traverse - Maximum
- (mm)Cross Table Traverse - Maximum
- (mm)Table Bed Size
- (mm)Spindle To Table - Maximum
- (mm)Wheel Diameter
- (mm)Vertical Increment Graduations
- (mm/rev)Vertical Graduations Per Revolution
- (mm)Cross Increment Graduations
- (mm/rev)Cross Graduations Per Revolution
- (kW / hp)Spindle Motor
- (V / amp)Voltage / Amperage
- (kg)Nett Weight
- (ex-gst)Pricing
- (inc-gst)
- Back In Stock Soon
-
Compare
-
Wishlist
- G203
- SG-340
- ~
- 300 x 150
- 340
- 170
- ~
- 275
- 180
- 0.025
- 1.25
- ~
- ~
- 0.55 / 0.75
- 240 / 10
- 260
- $6,088.00
- $7,001.20
- ADD TO CART
-
-
Compare
-
Wishlist
- G218
- SG-820
- ~
- 400 x 200
- 530
- 220
- 480 x 200
- 490
- 200
- 0.01
- 1.25
- 0.02
- 2.5
- 1.1 / 1.5
- 415
- 800
- $8,040.00
- $9,246.00
- ADD TO CART
-
-
Compare
-
Wishlist
- G220
- SG-820H
- ~
- 400 x 200
- 530
- 220
- 480 x 200
- 450
- 200
- 0.01
- 1.25
- 0.02
- 2.5
- 1.1 / 1.5
- 415
- 750
- $13,042.00
- $14,998.30
- ADD TO CART
-
-
Compare
-
Wishlist
- G242
- BMT-1545AH
- ~
- 450 x 150
- 500
- 185
- ~
- 450
- 205
- 0.01
- 2
- 0.02
- 5
- 1.5 / 2
- 415
- 1100
- $33,490.00
- $38,513.50
- ADD TO CART
-
-
Compare
-
Wishlist
- G243
- BMT-2045AH
- ~
- 450 x 200
- 500
- 235
- ~
- 450
- 205
- 0.01
- 2
- 0.02
- 5
- 1.5 / 2
- 415
- 1150
- $35,930.00
- $41,319.50
- ADD TO CART
-
-
Compare
-
Wishlist
- G244
- BMT-2550AH
- Yes
- 500 x 250
- 550
- 270
- ~
- 500 (Optional 600)
- 205
- 0.005
- 2
- 0.02
- 5
- 1.5 / 2
- 415
- 1550
- $44,470.00
- $51,140.50
- ADD TO CART
- Back In Stock Soon
-
Compare
-
Wishlist
- G248
- BMT-3060AH
- Yes
- 600 x 300
- 670
- 340
- ~
- 500 (Optional 600)
- 355
- 0.005
- 2
- 0.02
- 5
- 3.75 / 5
- 415
- 1950
- $50,570.00
- $58,155.50
- ADD TO CART
-
-
Compare
-
Wishlist
- G250
- BMT-4080AH
- Yes
- 800 x 400
- 860
- 450
- ~
- 550 (Optional 650)
- 405
- 0.005
- 2
- 0.02
- 5
- 3.75 / 5
- 415
- 3500
- $73,140.00
- $84,111.00
- ADD TO CART
