Air Operated Grease Gun P3 powerlube® P3 01C

Description Specifications Compare Downloads

Description

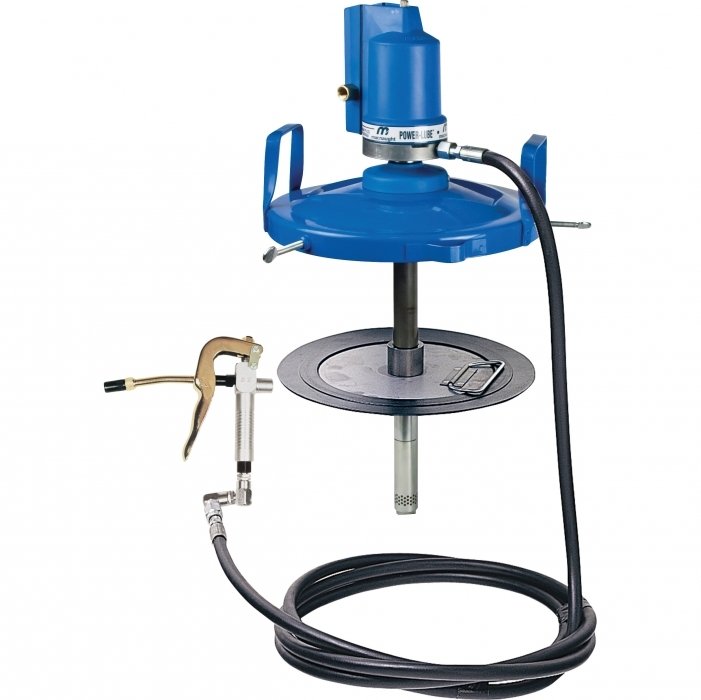

Air Operated - Grease Gun - P3 powerlube® P3-01C

Suits 20kg Drum

Overview

The P3 POWERLUBE® P3-01C is the ultimate in high pressure, air-powered greasing. With models available to suit containers from 12.5kg (28 lbs.) to 20 kg (48 lbs.), it is fitted with a 50Ʌ ratio air motor which can run off most small compressors to provide fast, continuous greasing. The P3 POWERLUBE is also suitable for underground coal mine applications.

For Warranty Terms and Conditions - click here

Features

Quiet, non-corroding air motor
Grease viscosity: up to NLGI No.2
Wetted components: zinc and hard chrome plated carbon steel, brass, and nitrile and polyurethane rubber
Output: approx. 460 g/min (16 oz/min)
Max. air pressure: 1,030 kPa (150 psi, 10.3 bar)
Min. air pressure: 400 kPa (60 psi, 4 bar)
Min. compressor size: 0.08 m³/min (3 cfm)
Air inlet/fluid outlet: ¼" NPT (F)
Pump ratio: 50Ʌ (grease pressure is 50 times air)
B2 gun pressure: up to 69,000 kPa (10,0000 psi, 690 bar) (boost pressure)
Hose thread: ¼" NPT (M) TA-7K Filter & Regulator Kit
Low air consumption
No air line lubricator required
Rubber edged follower plate
4m (13 ft.) x 6 mm (¼") ID delivery hose
B2 booster gun with 360º ZSB swivel
Fully serviceable
10 Year Macnaught Warranty

Optional Accessories

TR5 Trolley
PDF13 Push On Extension
PDF21 Push On Extension
TA-7K Filter & Regulator Kit
KZDXL Straight Needlepoint Coupler
KRV Pressure Release Valve

Specifications

Compare Product Range

Specifications

ORDER CODE	G062
MODEL	P3 powerlube® P3-01C
Type	Air Operated Grease Gun
Size	20kg Drum

Downloads

Email a link to this page Product Brochure p3 p6 p8 (878 KB) p3 01c (422 KB)
