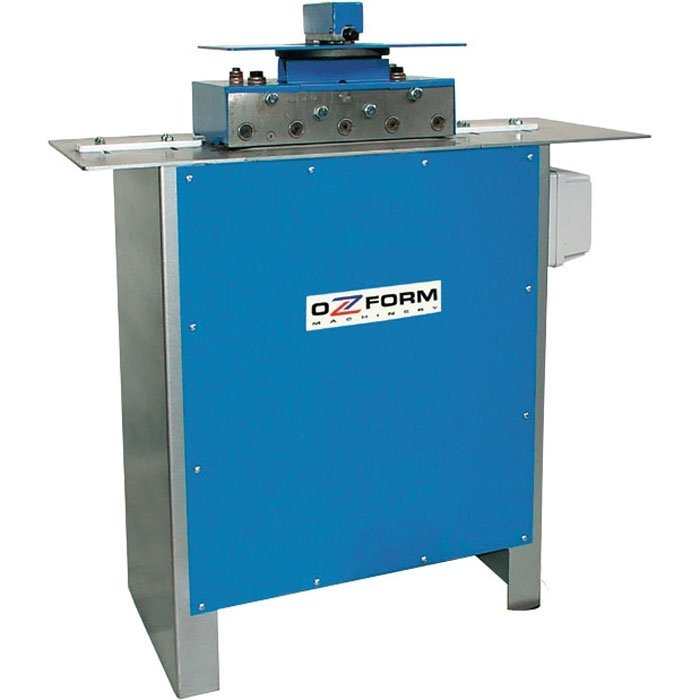

Lockseamer - OZ-20

0.4 - 0.9mm Mild Steel Capacity

S720 1 of 1

Discontinued

Order Code: S720

240V / 15A
1 Year Warranty

Made in Australia

Sorry, this Product is no longer available
Click Here To View All Lockseamers

Compare

Wishlist

Description Specifications Compare Downloads

Buy Lockseamers Online - New Zealand

Description

Description

Lockseamer - OZ-20

0.4 - 0.9mm Mild Steel Capacity

Features

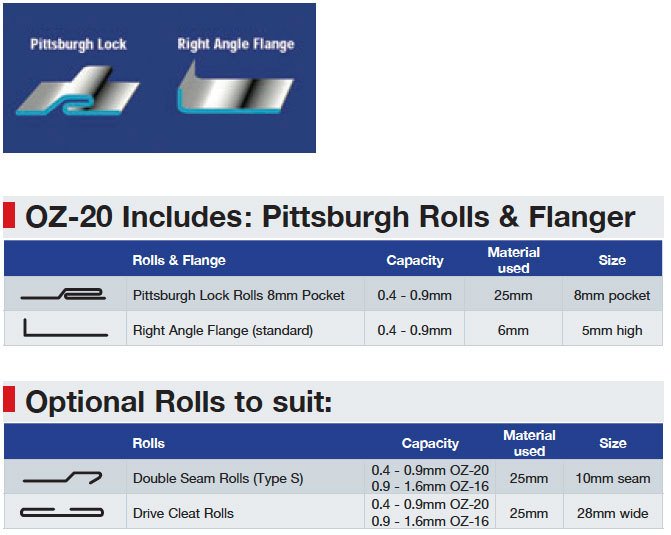

GENERAL FEATURES OF OZ-FORM-16 and OZFORM-20
Pittsburgh rolls are supplied as standard
OzForm-20 is supplied with Power Flanger as standard
Extended shafts for optional rolls such as Double Seam and Right Angle Flange
Positive lubrication to all moving parts through grease nipples and oil holes
Reinforced steel plate stand provides rigidity which eliminates drumming
Hardened material guides
Forming speed 5m/min maximum
Made in Australia
Mild steel capacity is rated on hot rolled material with 250MPA

Specifications

Compare Product Range

Specifications

ORDER CODE	S720
MODEL	OZ-20
(mm)Capacity - Mild Steel	0.4 - 0.9
(No.)Stations	5
(mm)Work Height Pittsburgh	870
(mm)Work Height - Power Flanger	1125
(kW / hp)Motor Power	1.1 / 1.5
(V / amp)Voltage / Amperage	240 / 15
(mm)Machine Dimensions (L x W x H)	1040 x 420 x 1120
(kg)Nett Weight	161
