CNC Milling Machine - NCM-3000
(X) 290mm (Y) 120mm (Z) 270mm
M821
1 of 15

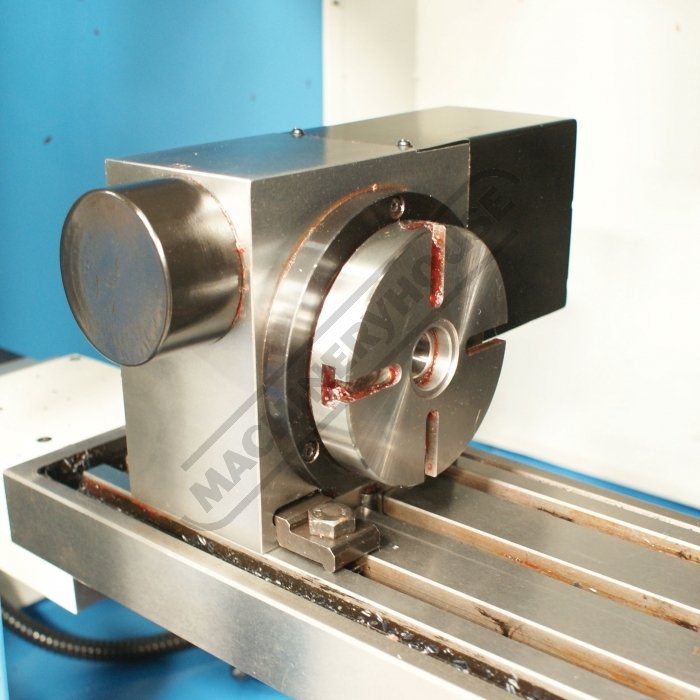

Optional 4th Axis
2 of 15

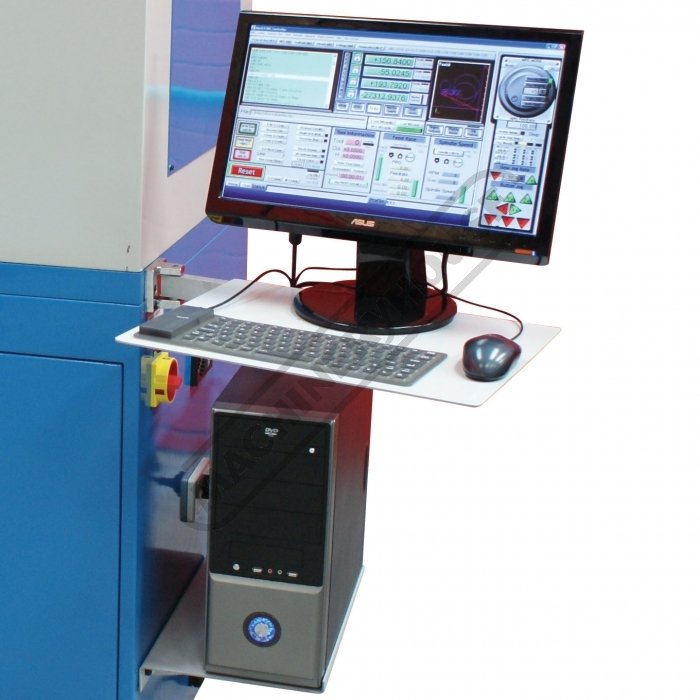

Computer Hardware
3 of 15

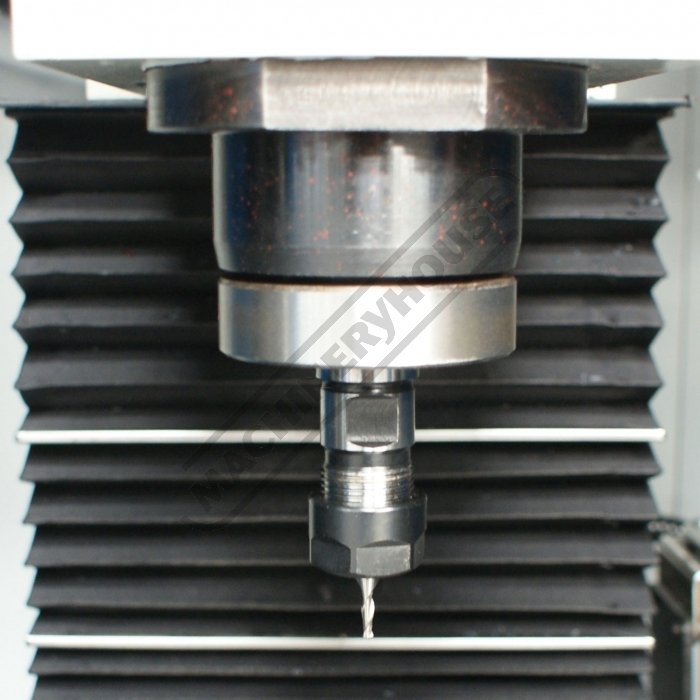

Spindle
4 of 15
Mach 3 Software
5 of 15
Safety Viewing Doors
6 of 15
Machine Side View
7 of 15

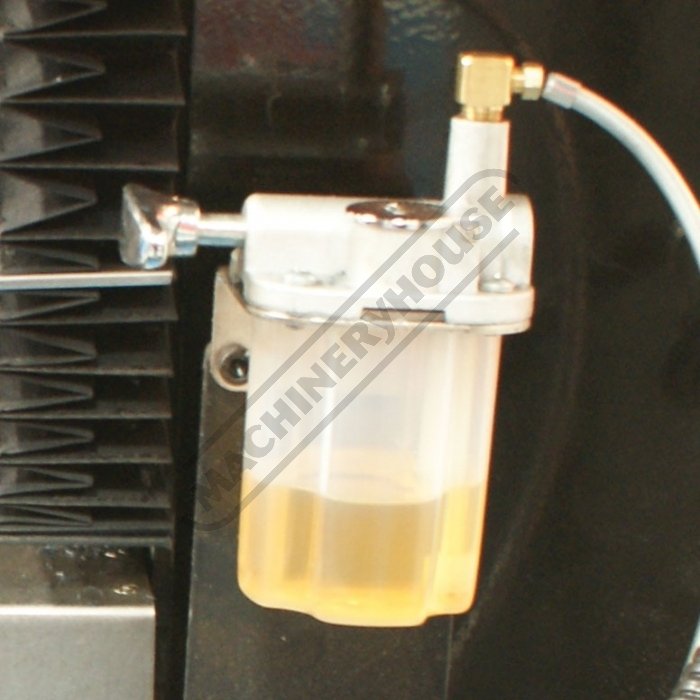

Lubrication Pump for Slid Ways
8 of 15

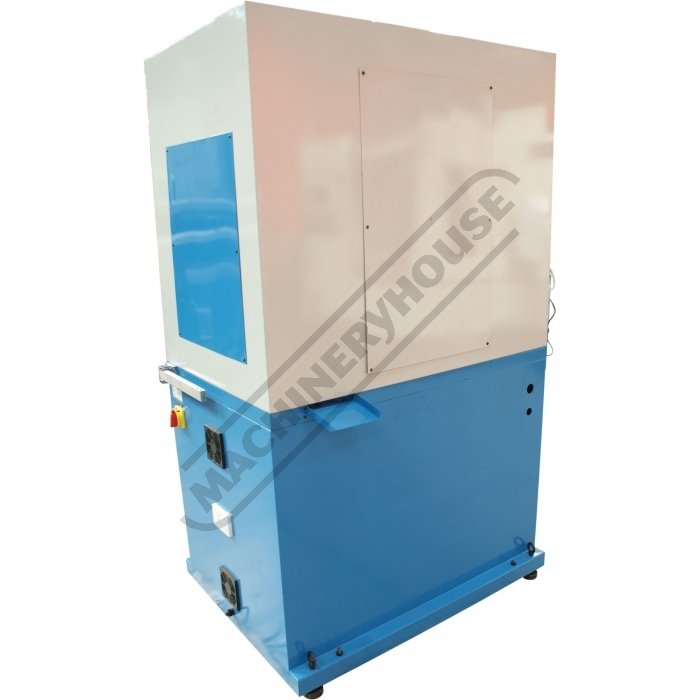

Rear View Enclosed Machine
9 of 15

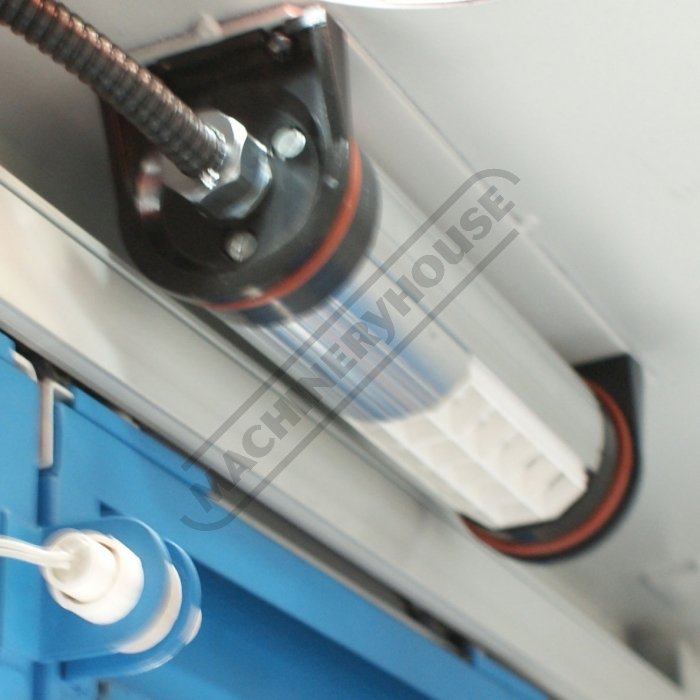

Work Light
10 of 15

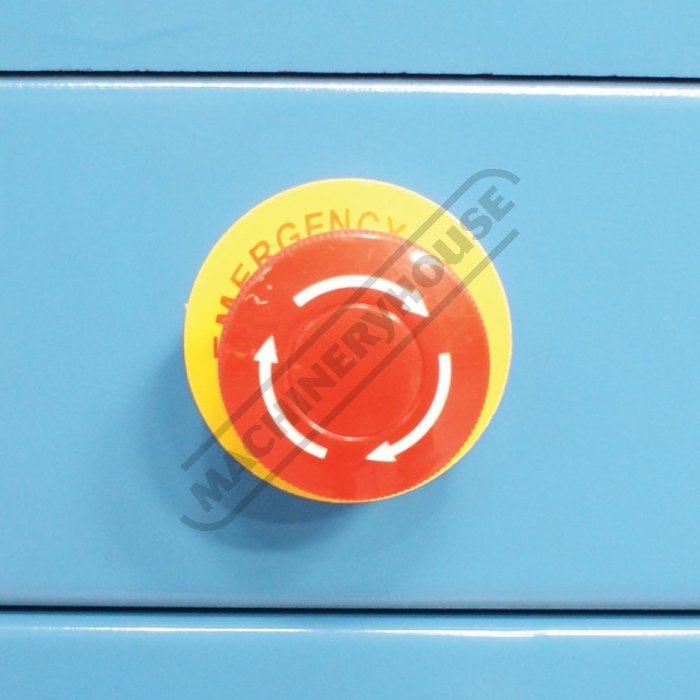

Emergency Stop Switch
11 of 15

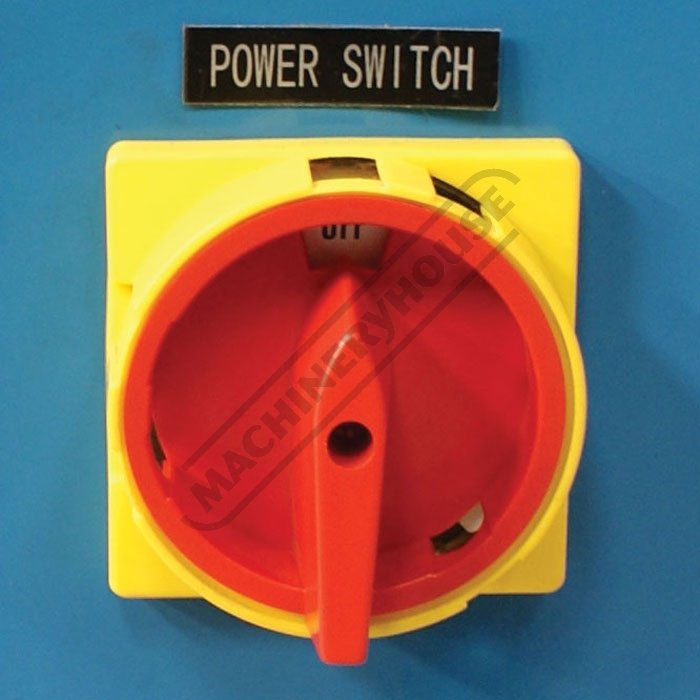

Main Power Switch
12 of 15

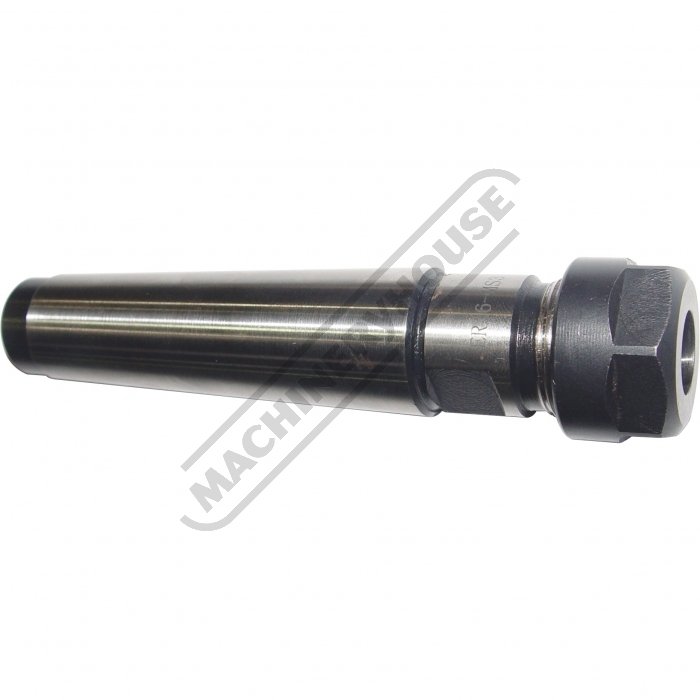

MT3 x ER16 Collet Chuck (C104)
13 of 15

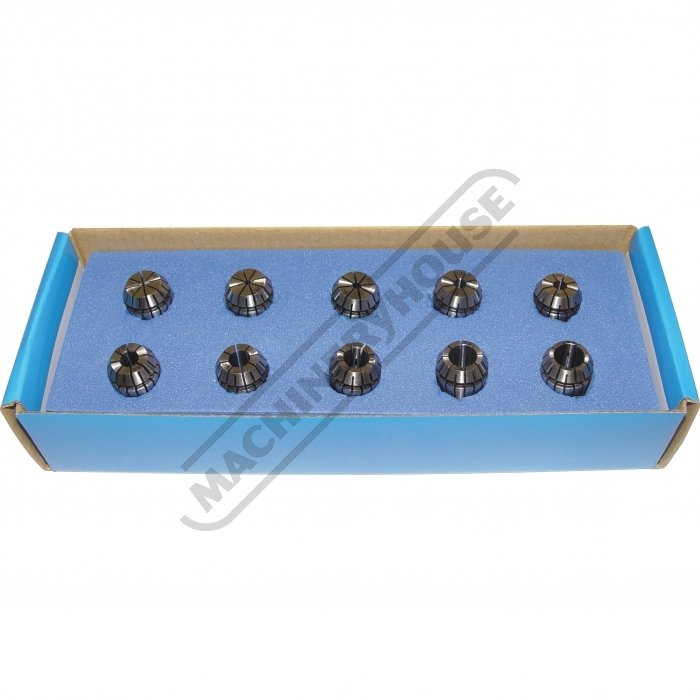

ER16 Collet Set 1 10mm (C831)
14 of 15

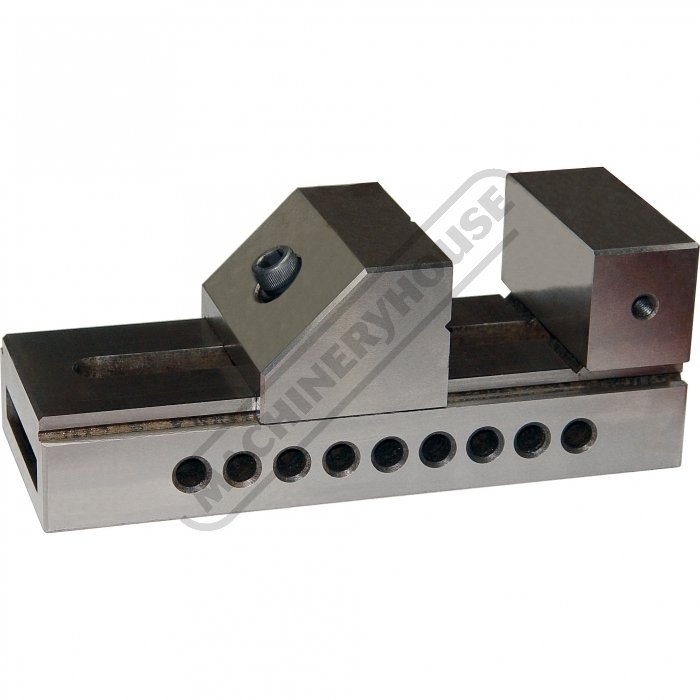

73mm Toolmakers Vice (V365)
15 of 15
Discontinued
Order Code: M821
240V / 10A
1 Year Warranty
1 Year Warranty
Description
CNC Milling Machine - NCM-3000
(X) 290mm (Y) 120mm (Z) 270mm
Overview
The NCM-3000 is a CNC milling machine which is equipped by 3-Axis stepping motors, all 3-Axis have hardened ballscrews. It is standard with a variable speed spindle motor, limit/home switches and easy change spindle.
Converts a standard PC to a fully featured CNC control. Up to 6-Axis control can be achieved, allows direct import of DFX, BMP, JPG and HPGL files to generate the G code. It includes visual G code display as well as multiple programming wizards to provide complex programming techniques into simple to use menu's. The entire machine is driven by the PC.
Converts a standard PC to a fully featured CNC control. Up to 6-Axis control can be achieved, allows direct import of DFX, BMP, JPG and HPGL files to generate the G code. It includes visual G code display as well as multiple programming wizards to provide complex programming techniques into simple to use menu's. The entire machine is driven by the PC.
Features
- 5000rpm maximum spindle speed
- 550 x 160mm table size
- 1000W 240V main spindle motor
- 290mm X-Axis table travel
- 120mm Y-Axis table travel
- 270mm Z-Axis table travel
- 4N Motor of X-Axis
- 4N Motor of Y-Axis
- 6N Motor of Z-Axis
- 230mm throat
- 12mm T-slot size
- Number of T-slots on table is 3
- 0.01mm Position accuracy
- 3MT Spindle taper
- 100-5000rpm Spindle speed
- 5.5NM motor torque @ 1500rpm
- Dimensions (LxWxH) 110 x 104 x 200cm
- Fully enclosed guarding
- Includes PC with Software pre-loaded, screen, keyboard and mouse
- 4th axis (optional)
Includes
- MT3 x ER16 Collet chuck (C104)
- ER16 Collet set 1-10mm (C831)
- HSS End mills 3, 4, 5, 6, 7, 8, & 10mm (M3236)
- 73mm Toolmakers vice (V365)
- 1/2" Tee nut (C084)
Compare Product Range
Specifications
| ORDER CODE | M821 |
|---|---|
| MODEL | NCM-3000 |
| (mm)Travel (X Axis) | 290 |
| (mm)Travel (Y Axis) | 120 |
| (mm)Travel (Z Axis) | 270 |
| (Nm)Motor Torque (X & Y Axis) | 4 |
| (Nm)Motor Torque (Z Axis) | 6 |
| (~)Table T Slot (size/distance/number) | 12 |
| (mm)Position Accuracy | 0.01 |
| Spindle Taper | 3MT |
| (rpm)Spindle Speed Range | 100 - 5000 |
| (kW / hp)Motor Power | 1 / 1.3 |
| (V / amp)Voltage / Amperage | 240 / 10 |
| (mm)Dimensions | 1100 x 1040 x 2000 |
| (kg)Nett Weight | 270 |
