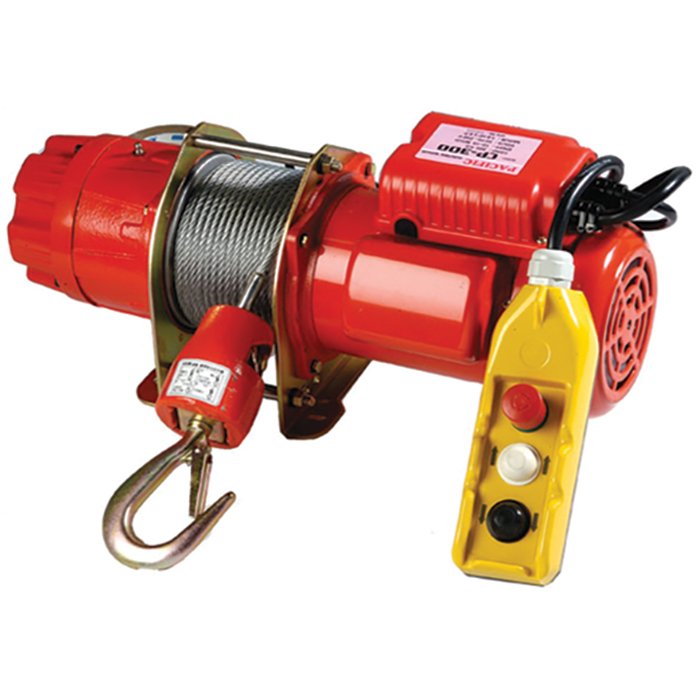

Electric Winch - CP250

250kg Lifting Capacity

30 Metre Lifting Height

H270 1 of 1

Discontinued

Order Code: H270

240V / 10A
1 Year Warranty

Made in Taiwan

Sorry, this Product is no longer available
Click Here To View All Electric Winches

Compare

Wishlist

Description Specifications Compare Downloads

Buy Electric Winches Online - New Zealand

Description

Description

Electric Winch - CP250

250kg Lifting Capacity

30 Metre Lifting Height

Overview

EXTREMELY RUGGED, LIGHTWEIGHT WINCHES FOR FACTORIES, BUILDING SITES, SLIPWAYS

Also Available
- 12V/24V/240V and 415V available
- 200kg to 3000kg

Features

High starting torque motors
Electric safety brake
Heavy gearbox
Quiet operation
Push button, forward and reverse
Ø6mm wire rope, 30 metres long
29 metres max. lifting height

Optional Accessories

Other Model Available, Please Contact Store For More Details

Specifications

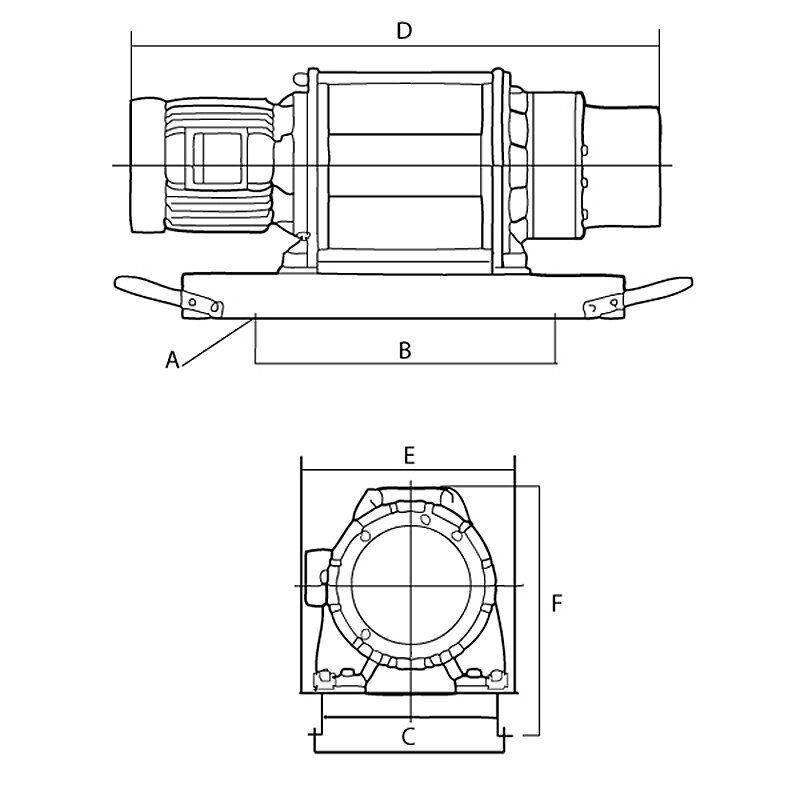

Enlarge Diagram Compare Product Range

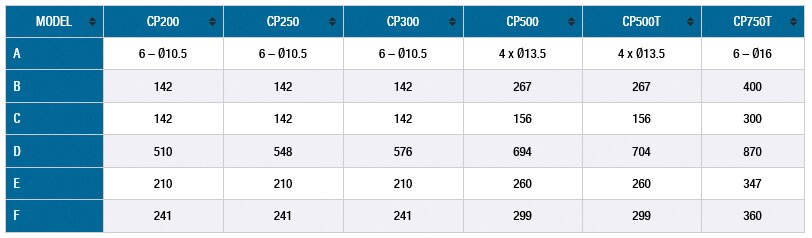

Specifications

ORDER CODE	H270
Model	CP250
(kg)Load Capacity	250
(Metre)Cable Length	30
(m/min)Speed	10 - 15
(mm)A	6 - Ø10.5
(mm)B	142
(mm)C	142
(mm)D	548
(mm)E	210
(mm)F	241
(kg)Nett Weight	34
