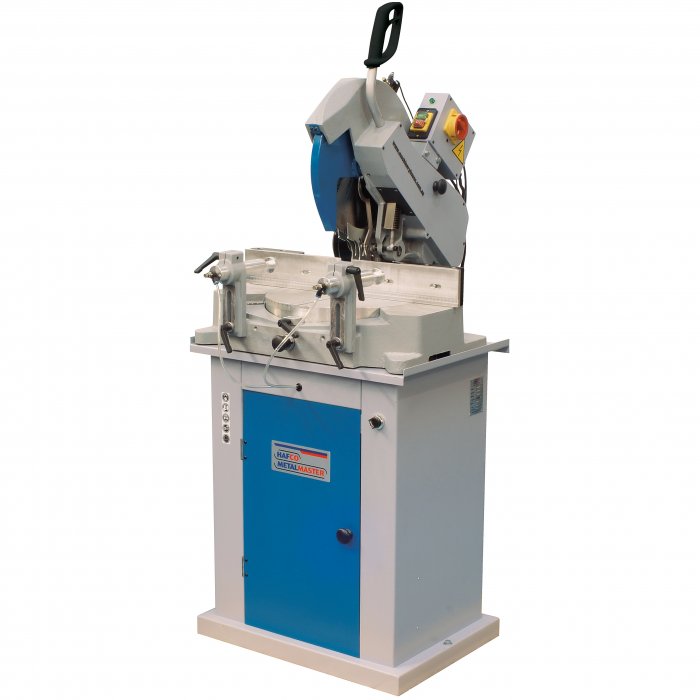

HAFCO METALMASTERALU-350
Non-Ferrous Metal Cutting Saw
  • 1 of 18
    S850
  • 2 of 18
    Left View
  • 3 of 18
    Swivel Head To 45 Degrees
  • 4 of 18

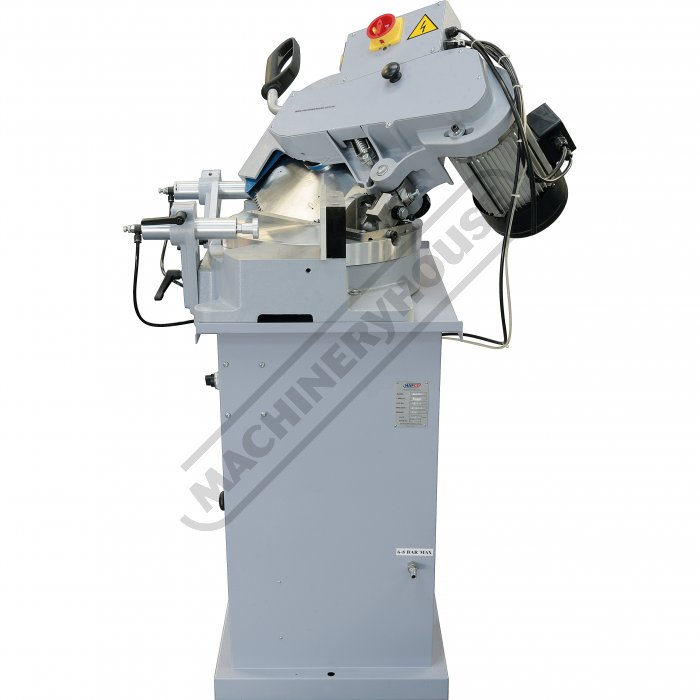

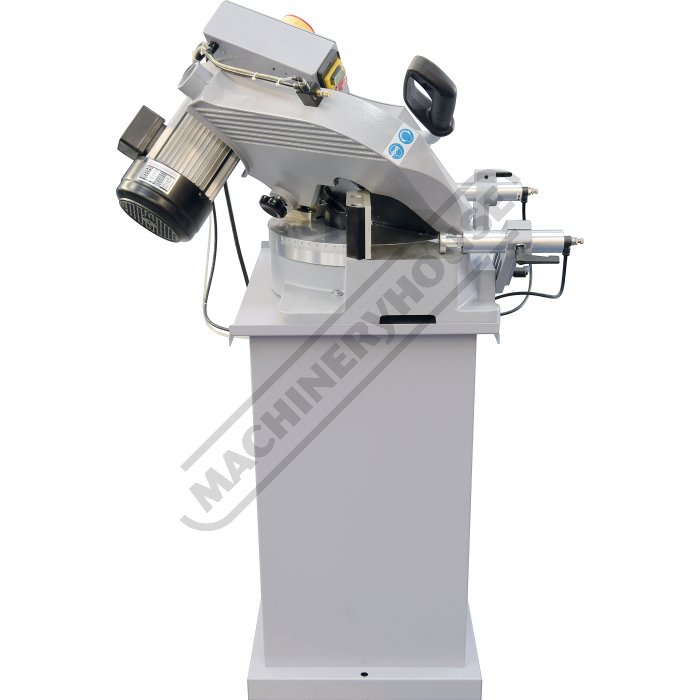

    Compound Mitre To 45 Degrees
  • 5 of 18

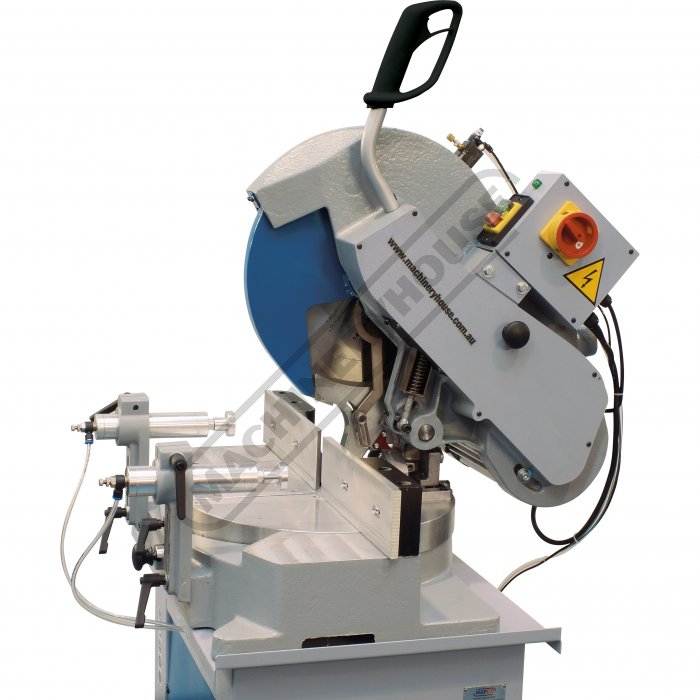

    Side View of Head
  • 6 of 18
    Dual Material Air Clamp System
  • 7 of 18
    Head Close Up
  • 8 of 18
    Head Down
  • 9 of 18
    Swivel Head Scale Indicator
  • 10 of 18
    Swivel Head Release
  • 11 of 18
    Tilting Head Scale Indicator
  • 12 of 18
    Spray Mist Coolant Control
  • 13 of 18
    Storage Cabinet With Oil Refill Bottle
  • 14 of 18
    Dust Extraction Chute
  • 15 of 18
    Air Clamp Switch
  • 16 of 18
    Control Switch Panel
  • 17 of 18
    Tilting Head Rear Material Support Included
  • 18 of 18
    Air Input
Order Code: S850
ALU-350 - Non-Ferrous Metal Cutting Saw (415V)
350mm Blade
HAFCO METALMASTER
On Special - Ends 30th September 2017
ex GST
inc GST
$3,050.00
$3,507.50
$2,600.00
$2,990.00

ORDER CODE
S850
MODEL
ALU-350
Cutting Head Action (auto-manual)
Manual
Operation Type
Swivel - Dual Mitre &

Compound Left
Round Capacity @ 90º / 45º (mm)
100
Square Capacity @ 90º / 45º (mm)
100
Rectangle Capacity @ 90º / 45º (mm)
100x195 / 100x135
Blade Size (D x B x T) (mm)
350 x 30 x 3
Number of Teeth (No.)
120
Vice Clamping Fixture
Pneumatic
Coolant System
Spray Mist
Table Working Height (with Stand) (mm)
885
Blade Speeds (rpm)
3300
Motor Power (kW / hp)
1.5 / 2
Voltage (V)
415
Nett Weight (kg)
100
Description
When cutting non-ferrous material, such as aluminium or copper, you need a high speed cut off saw to ensure a great cut every time. The ALU-350 semi-automatic high speed cut off saw is a great choice because of the 2hp 415V high speed brake motor that turns the blade at 3300rpm, which is perfect for cutting those soft metals known for gumming up blades. This saw has a maximum capacity of 100mm round at 90 & 45 degrees, and the ability to mitre from 45 degrees left & right, and is also able to compound mitre 45 degrees to the left, making this the most versatile aluminium cutting saw on the market today.

Operation of the ALU-350 saw could not be easier, simply place the material in the vice, flick the air vice switch to clamp material, start the machine blade, then manual pull the cutting head down to cut you material with ease. Another feature it that this machine has a mist type coolant system to prolong blade life and produce a clean cut.
Features
  • Dual mitre 45º left & 45º right
  • Compound mitre 45º to the left
  • Adjustable twin material air clamps
  • 350mm x 30mm x 120T tungsten carbide tipped blade
  • Quiet belt drive for smooth cutting
  • Spray mist coolant system
  • Dead man trigger hand switch
  • 60mm rear swarf outlet port
  • Stand with storage cabinet
  • Cast aluminium base & guard
  • Safety magnetic switch
  • Pad-lockable isolation switch
  • 1.5kW / 2hp, 415V brake motor
