| ORDER CODE | S816 |
|---|---|
| MODEL | CS-275 |
| Cutting Head Action | Manual |
| Operation Type | Swivel - Dual Mitre |
| (mm)Round Capacity @ 90º / 45º | 75 / 65 |
| (mm)Square Capacity @ 90º / 45º | 60 / 50 |
| (mm)Rectangle Capacity @ 90º / 45º (WxH) | 90 x 50 / 70 x 50 |
| (mm)Blade Size - Diametre. x Bore (Ø) | 275 x 32 |

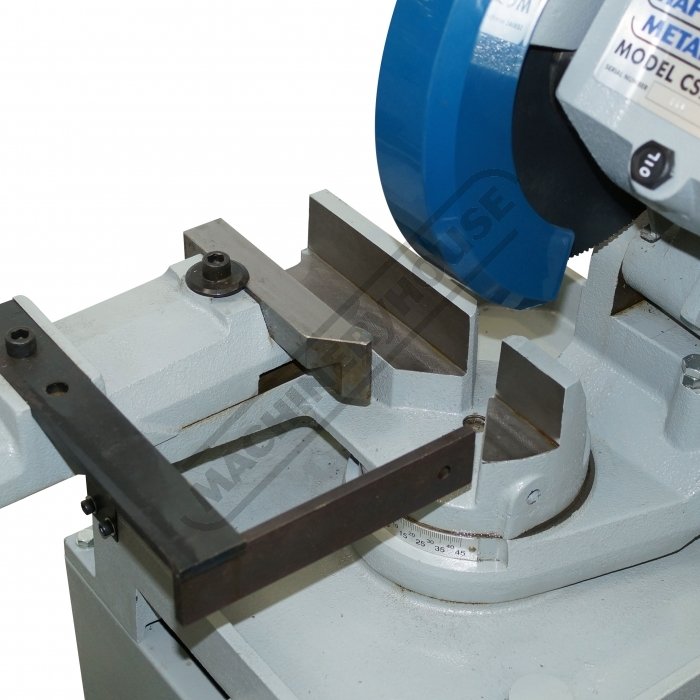

| Vice Clamping Fixture | Manual |
| Coolant System | Yes |
| (mm)Table Working Height (with Stand) | 955 |
| (rpm)Blade Speed | 42 |
| (kW / hp)Motor Power | 0.97 / 1.3 |
| (V / amp)Voltage / Amperage | 240 / 10 |
| (kg)Nett Weight | 110 |
