THIS PRODUCT IS NO LONGER AVAILABLE. Click to see recommended item > S924A (MG-440)

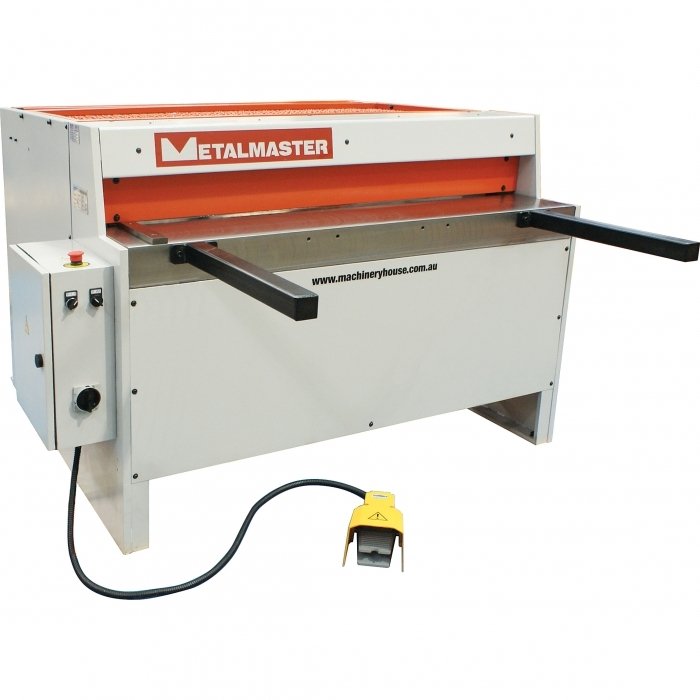

METALMASTERMG-432
Mechanical Guillotine
  • 1 of 13
    S609
  • 2 of 13

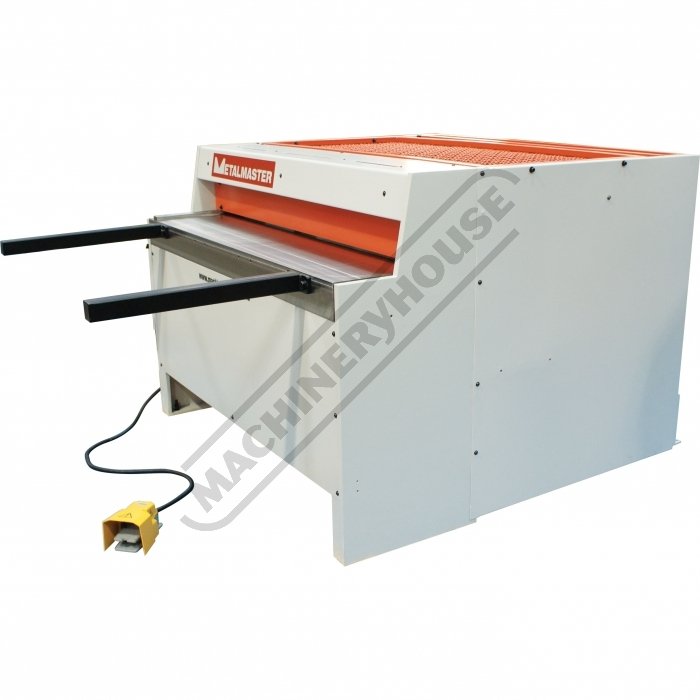

    Right View
  • 3 of 13
    Side View
  • 4 of 13
    Rear View
  • 5 of 13
    Hinged Rear Gate with Gas Strut Support
  • 6 of 13

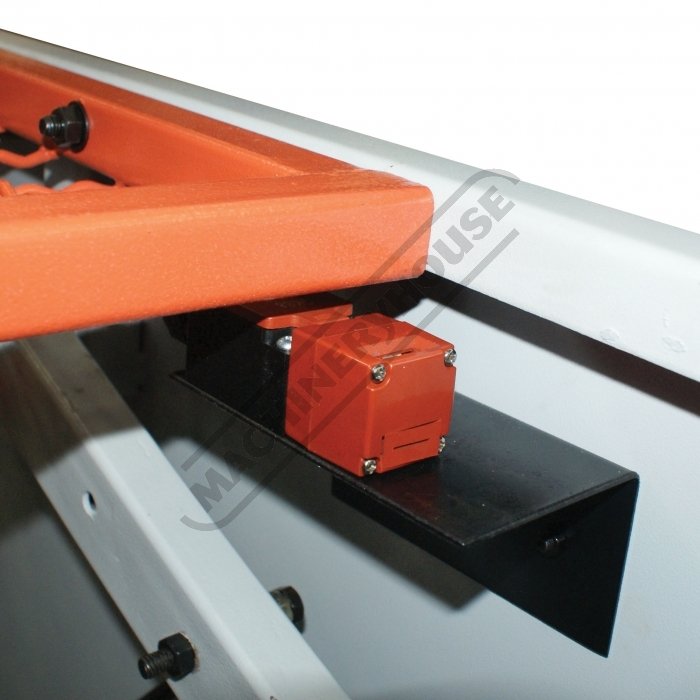

    Safety Micro Switch on Rear Gate
  • 7 of 13
    Backguage Handwheel with Digit Counter
  • 8 of 13
    Material Viewing Windows
  • 9 of 13
    Industrial Roving Foot Pedal
  • 10 of 13
    Emergency Stop and Cut Counter
  • 11 of 13
    Switches
  • 12 of 13
    Main Isolation Switch
  • 13 of 13
    Shown with Optional Ball Transfer Tables
Order Code: S609
MG-432 - Mechanical Guillotine (415V)
1250 x 3mm Mild Steel Shearing Capacity
Manual Backgauge
METALMASTER
ORDER CODE
S609
MODEL
MG-432
Shearing Capacity - Mild Steel (mm)
3
Shearing Length (mm)
1250
Backgauge Travel (mm)
635
Backgauge (Type)
Manual
Strokes / min (SPM)
33
Blade Angle (deg)
2.1ยบ
Motor Power (kW / hp)
3 / 4
Voltage / Amperage (V / amp)
415
Nett Weight (kg)
1140
Features
  • Mechanical operation for high stroke rate
  • 1250mm x 3mm cutting capacity
  • Single or multiple cutting
  • Blades made from 9CrSi material with two cutting edges
  • Material squaring edge
  • Front sheet supports
  • Foot pedal control
  • 3kW 415V motor
  • 635mm wind-out Backgauge with mechanical counter
  • Rear guarding included
  • Mild steel capacity is rated on hot rolled material with 250MPA

  • Pre-Commissioning:
  • 1. Guillotine is run & tested prior delivery
